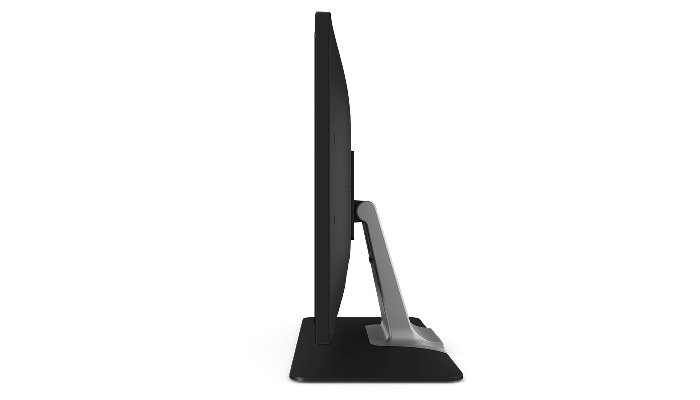

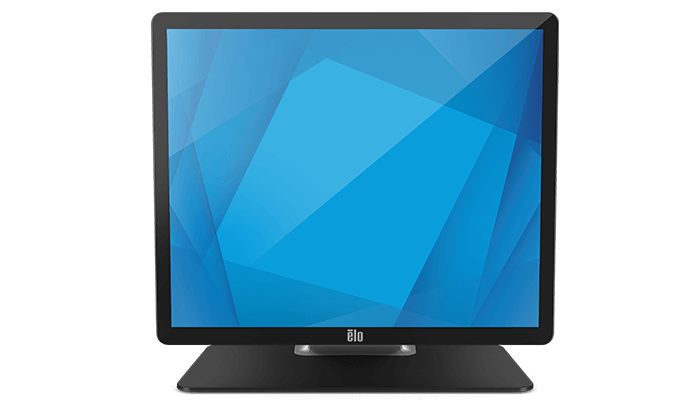

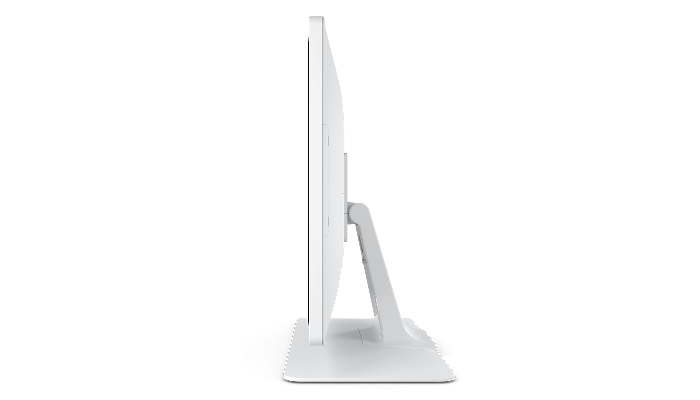

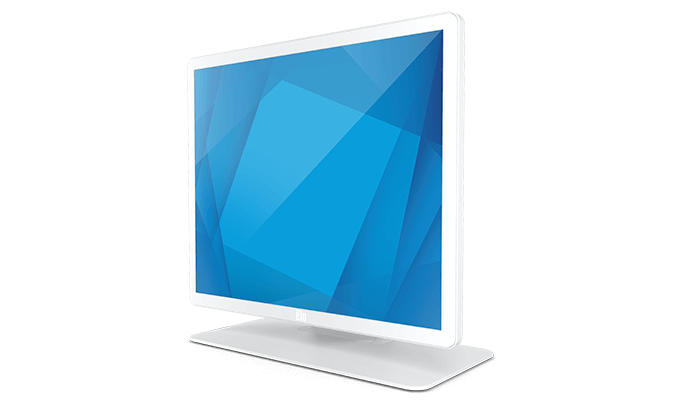

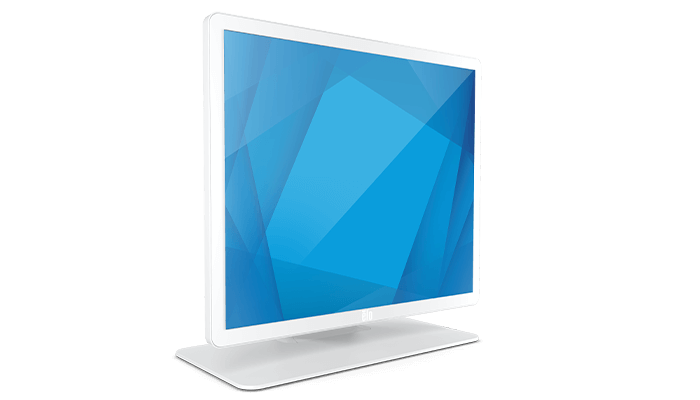

1903LM 19" Medical Grade Touchscreen Monitor
How to buy

DICOM Medical Grade Touchscreen Monitors

The 03-Series Medical Grade Touchscreen Monitors merge best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing patient engagement. With a compact form factor and sleek design, the touchscreen monitors are well-suited for EMR documentation, image viewing, clinical collaboration, deployment within the laboratory and pharmacy and for integration into medical devices.

DICOM Medical Grade Touchscreen Monitors
DICOM Medical Grade Touchscreen Monitors
IP-54 Rating
IP-54 Rating

Sealed against dirt, dust and liquids, delivering a reliable, easy-to-sanitize solution.

IEC 60601
IEC 60601

IEC 60601 compliant power supply included.

DICOM 14
DICOM 14

Ensures accurate and uniform image reproduction for reliable review.

Integrated Touch
Integrated Touch

TouchPro® PCAP offers a 10-touch tablet-like experience with capability for use with wet or dry gloves.

Built-to-Last
Built-to-Last

Backed by Elo’s 3-year standard warranty with optional EloCare service offerings.

Easy to Clean

Increase safety for healthcare providers and patients with the easy-to-clean touchscreen displays.

Learn More
DICOM 14 - Designed for Consistent Image Review

DICOM 14 - Designed for Consistent Image Review

Get the image accuracy you need during clinical review with the 03-Series medical grade touch screen monitors. To help ensure healthcare providers and patients can view clear, accurate and consistent medical images, the displays are pre-calibrated from the factory per AAPM secondary display guidelines in compliance with the DICOM 14 GSDF curve.

Enhancing Clinical Workflow with Touch

From analyzing X-rays and scans to reviewing vitals, lab results and medical history, adding touchscreens into the clinical workflow creates efficiencies while improving the patient and provider experience.

Purpose-built for Healthcare

The 03-Series medical grade touch screen monitors offer flexibility for installation in a variety of healthcare environments to support increased communication among patients and healthcare providers.

Nurse Station
Nurse Station
Patient Rooms
Patient Rooms
Laboratory
Laboratory
Pharmacy
Pharmacy
Operating Theatres
Operating Theatres
Medical Carts
Medical Carts
Purpose-built for Healthcare
Medical Device Ready

Device shown - Rosa with Elo Medical-grade monitor

Medical Device Ready

With a full line of touch technologies and display solutions, Elo can help develop and customize products for almost any medical device including ventilator monitors, anesthesia monitors, patient monitors and medication dispensers. From operating rooms to patient rooms, laboratories and anywhere healthcare is provided, Elo products are well-suited for medical applications where consistent and long-lasting quality and touch performance are critical.

Configurability Made Easy

Configurability Made Easy

Flexible Mounting
Flexible Mounting

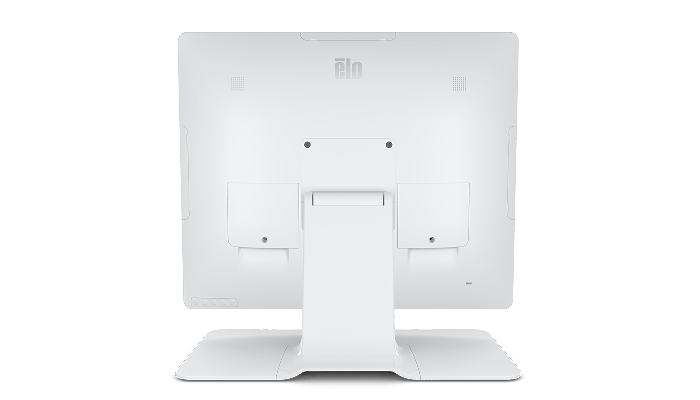

Every monitor is designed with VESA hole patterns to simplify mounting onto a variety of stands, arms, walls or medical carts.

Privacy Matters
Privacy Matters

Optional privacy filters offer an additional safeguard when reviewing private health information or sensitive administrative data.

Ergonomic
Ergonomic

Optional handles can be added to easily move or rotate the display to a comfortable orientation.

Unified Style Across Sizes

19"
19"
22"
22"
24"
24"
27"
27"

This product is not an FDA-approved “medical device” or otherwise approved by the FDA and is not ISO-13485 compliant. Depending on the intended use, additional certifications may be required.

Specifications

  • Technical

    Part Number(s)

    TouchPro PCAP White with stand - E658586
    TouchPro PCAP Black with stand - E658394
    TouchPro PCAP White without stand - E380665
    TouchPro PCAP Black without stand - E380478

    Enclosure Color

    White or Black

    Touch Technology & Capacity

    PCAP (TouchPro® Projected Capacitive) - 10 Touch

    Diagonal Size

    19'' diagonal, Active matrix TFT LCD (LED)

    Aspect Ratio

    5:4

    Active Area

    14.76" x 11.80" / 374.78 mm x 299.83 mm

    Resolution

    1280 x 1024 @ 60Hz

    Other Supported Resolutions

    640 x 480 @ 60Hz
    720 x 400 @ 70Hz
    640 x 400 @ 70Hz
    800 x 500 @ 60Hz
    800 x 600 @ 56, 60Hz
    1024 x 768 @ 60Hz
    1280 x 720 @ 58Hz, 60Hz
    1280 x 800 @ 60 Hz

    Viewing Angle

    Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

    Number of Colors

    16.7 million

    Brightness (typical)

    LCD Panel: 250 nits
    TouchPro PCAP: 225 nits

    Response Time-total (typical)

    14 msec

    Contrast Ratio

    1000:1

    Touch Interface

    USB, Serial (via VGA)

    Surface Treatment

    Anti-glare

    On Screen Display

    Accessible through switches along the bottom:

    Controls: Menu, Up, Down, Select

    Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Power LED ON/OFF, Touch Thru, Touch Interface, DICOM

    Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese, Russian, Korean

    Lockouts: OSD, Power

    I/O Ports

    VGA (RS232 touch supported via E810917)
    HDMI
    Combo Jack
    DC jack
    USB Type B
    USB 2.0 Type A
    4x Micro USB

    Speakers

    Two 2W internal speakers

    Input Video Format

    VGA (VGA DE-15 (DB-15) Male connecter cable included)
    HDMI (HDMI cable included)

    Input Video Frequency

    Horizontal: 30 – 82KHz
    Vertical: 50 - 75Hz

    Power Consumption (Typical)

    Monitor + AC/DC adapter
    ON (Default - 80% Brightness): 14.53 W
    ON (Typical - 100% Brightness): 16.36 W
    SLEEP: 0.79 W
    OFF: 0.37 W

    Input Voltage

    12VDC +/- 5%
    100-240VAC, 50/60Hz

    Input Connector

    Coaxial power jack (2.1 mm pin outer diameter, 6.4mm barrel inner diameter)

    Peripheral Mounting

    4x Micro USB side ports (Top, Bottom, Left, Right)

    Monitor Dimensions (without Stand)

    16.91" x 13.96" x 1.64" / 429.60 mm x 354.60 mm x 41.6 mm

    Monitor Dimensions (with Stand)

    16.91" x 15.65" x 7.61" / 429.60 mm x 397.65 mm x 193.40 mm

    Shipping Box Dimensions

    With Stand: 18.97" x 20.75" x 10.24" / 482 mm x 527 mm x 260 mm
    Without Stand: 18.97" x 20.75" x 7.47" / 482 mm x 527 mm x 190 mm

    Weight (Unpackaged)

    With Stand: 13.9 lbs / 6.3 kg
    Without Stand: 9.48 lbs / 4.3 kg

    Weight (Packaged)

    With Stand: 21.6 lbs / 9.8 kg
    Without Stand: 15.04 lbs / 6.82 kg

    Operating Temperature

    0°C to 40°C / 32°F to 104°F

    Storage Temperature

    -20°C to 60°C / -4°F to 140°F

    Humidity

    Operating: 20% to 80%; Storage: 10% to 95% (38.7℃ max wet bulb temperature)

    MTBF

    50,000 hours demonstrated

    Mounting Options

    VESA 4-hole 100mm mounting interface on rear of unit

    Warranty

    3-year

    Extended Service Options

    4 year warranty coverage - Elo P/N: E898247
    5 year warranty coverage - Elo P/N: E898449
    3 year warranty coverage + AUR - Elo P/N: E898648
    4 year warranty coverage + AUR - Elo P/N: E894921
    5 year warranty coverage + AUR - Elo P/N: E895125

    Regulatory approvals and declarations

    Canada CUL, IC
    China CCC
    Europe CE
    United Kingdom UKCA
    Korea KCC
    Taiwan BSMI
    United States FCC, UL
    Japan VCCI
    International CB
    Australia RCM
    Russia EAC
    Mexico CoC
    India BIS
    RoHS, China RoHS, WEEE, REACH

    UL: AAMI /ANSI ES60601-1:2005/(R)2012 and A1:2012, C1:2009/(R)2012 and A2:2010/(R)2012/IEC 60601-1 Ed. 3.1
    cUL: (CAN/CSA-C22.2 NO. 60601-1:14 /IEC60601-1 Ed. 3.1
    CB: IEC 60601-1:2005+A1:2012 (Ed. 3.1)
    CE: IEC 60601-1-2:2014 (Ed. 4)
    Risk Management: ISO 14971:2007 + EN ISO 14971:2012
    Usability: IEC 60601-1-6:2010+A1:2013 (Ed. 3.1), IEC 62366:2007+A1:2014 (Ed. 1.1)

    DICOM

    DICOM Part 14 (AAPM secondary display)

    Ingress Protection

    IP54 entire enclosure

    Impact Protection

    IK06

    Power Cables

    North America Power Cable C13 - Elo P/N: E593865
    Australia Power Cable C13 - Elo P/N: E594067
    Europe Power Cable C13 - Elo P/N: E594264
    Korea Power Cable C13 - Elo P/N: E594466
    China Power Cable C13 - Elo P/N: E594670
    Taiwan Power Cable C13 - Elo P/N: E594869
    Japan Power Cable C13 - Elo P/N: E793799

    What's in the Box

    Touchmonitor
    Quick Install Guide
    3x Tie wraps
    VGA cable
    HDMI cable
    Touch USB cable
    Audio cable
    Power brick (E323104)
    NA Power cable
    EU Power cable
    EEI Label
    DICOM calibration sheet
    2 x Cable cover screws
    4 x VESA Screws (only for E380478 and E380665)
    4 x rubbers (only for E380478 and E380665, affix to VESA holes)

    Replacement DC Power Supply

    Power Brick - E593253

    Optional Peripherals

    PCAP Stylus Pen - Elo P/N: E066148
    Privacy Screen 19-inch - Elo P/N: E352596
    Elo Monitor Handles – 1 Set - Elo P/N: E352196

    Stands, Mounts & Kits

    Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088
    Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069
    Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458
    Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663
    Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864
    1.8m Cable Kit - Elo P/N: E408193
    Elo Stand 1902/3-2202/3 - Black (100 mm VESA) - Elo P/N: E804330
    Elo Stand 1902/3-2202/3 - White (100 mm VESA) - Elo P/N: E808963
    Serial Touch & VGA Video Y-Cable - Elo P/N: E810917
