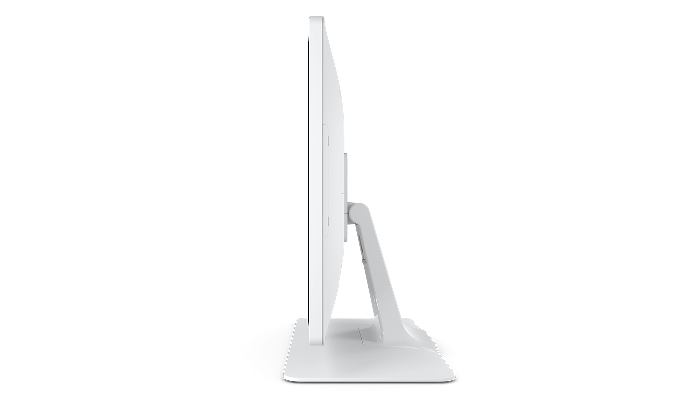

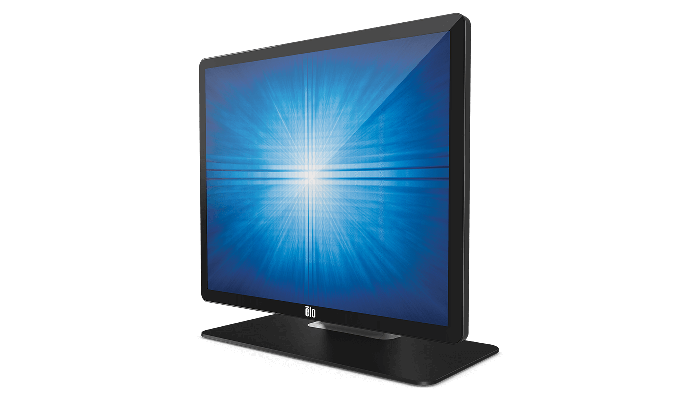

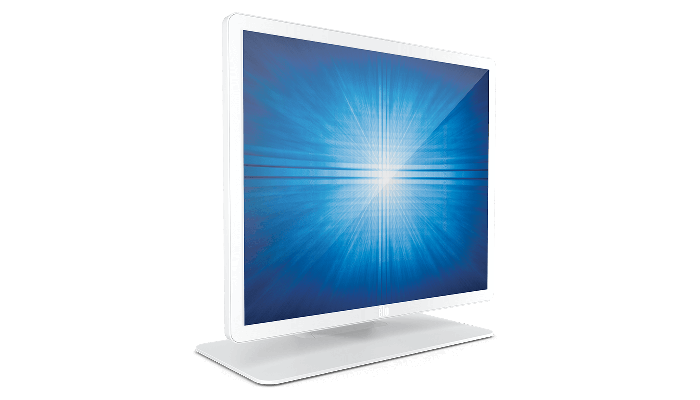

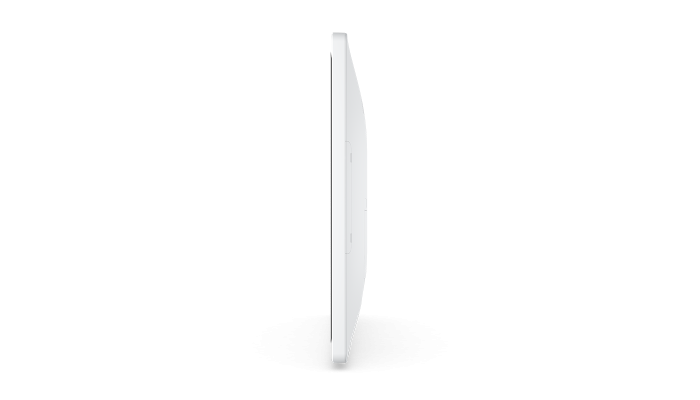

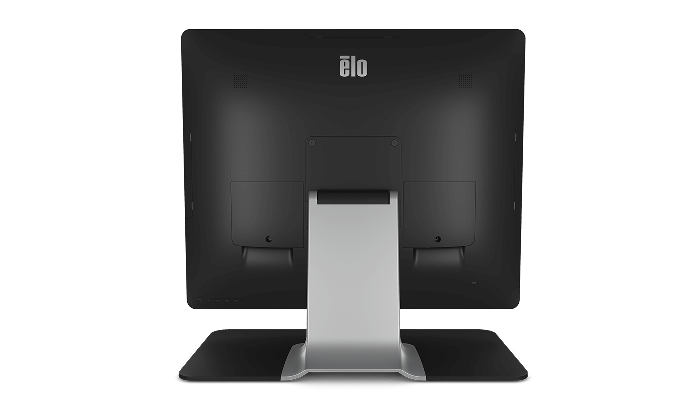

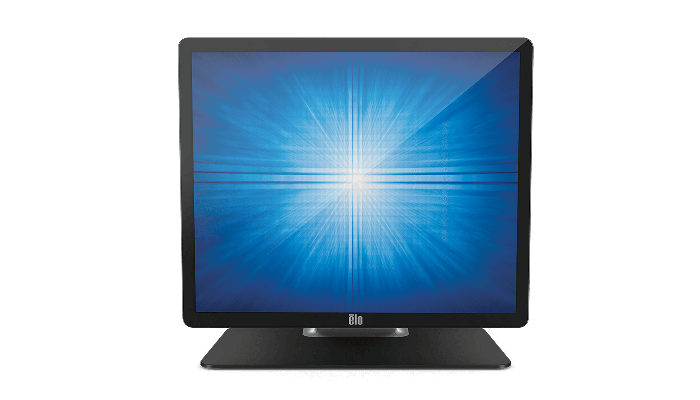

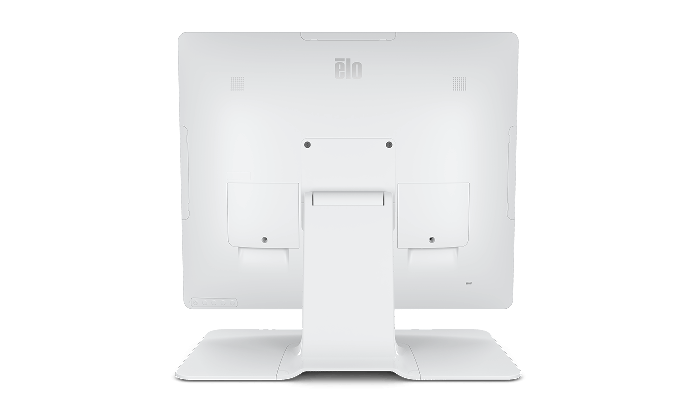

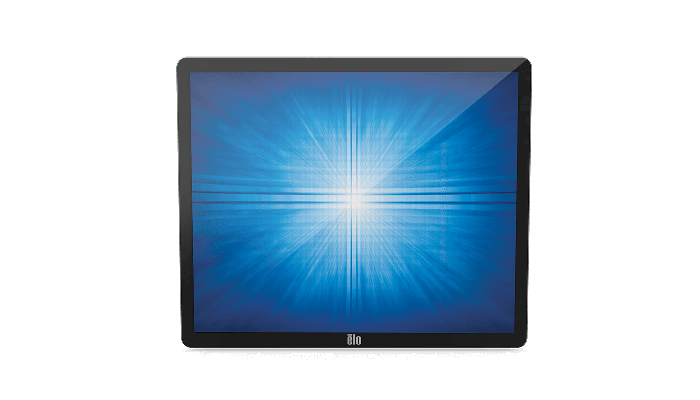

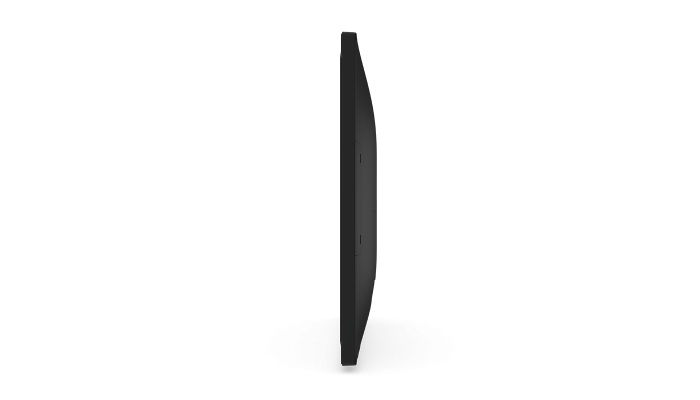

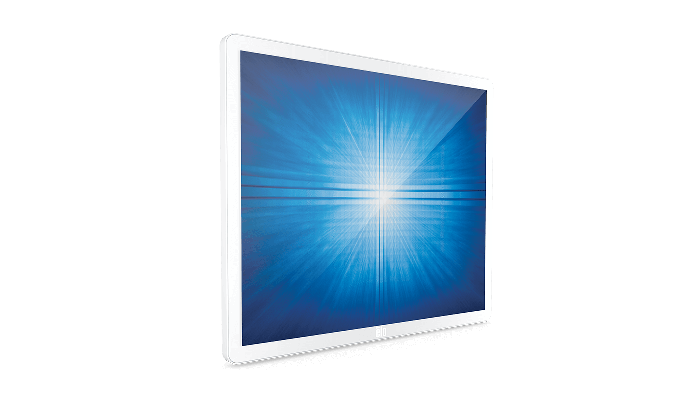

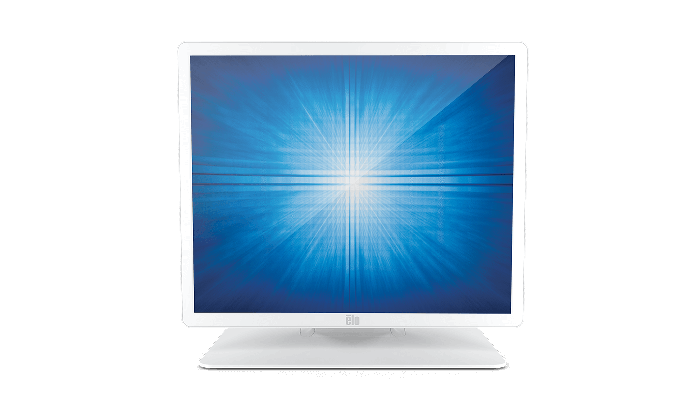

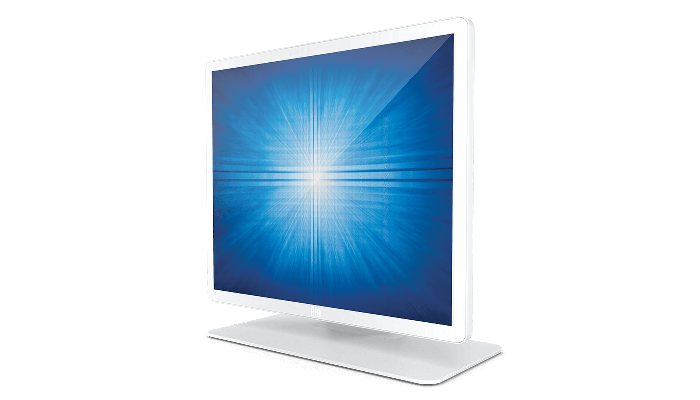

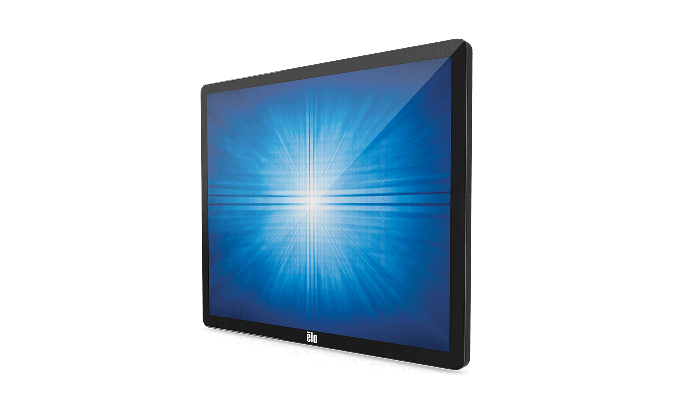

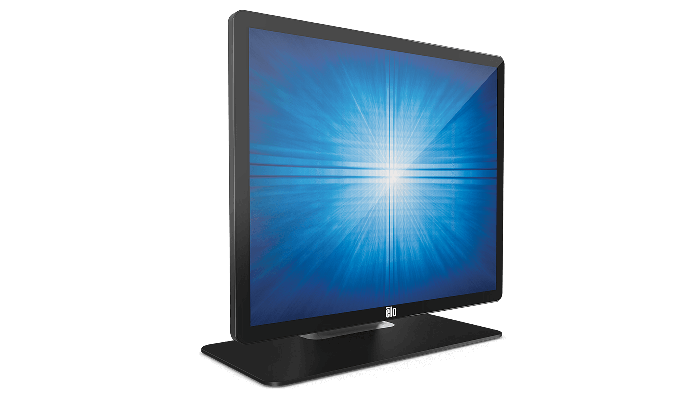

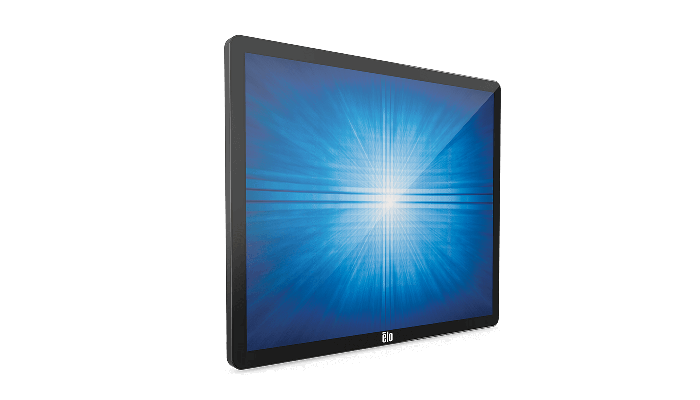

1903LM 19" Medical Grade Touchscreen Monitor (Gen 2)
This product has been replaced by - 1903LM.
03-Series Medical Grade
Touchscreen Monitors
The Elo 03-Series of Touchscreen Monitors designed for the Healthcare applications includes four sizes – a 19-inch square aspect ratio display and 22, 24 and 27-inch wide aspect ratio displays. With a compact form factor and clean design for easy integration the 03-Series monitors are well-suited for point-of-sale, point of information, signage and hospitality applications. Additionally, the 03-Series complies with IEC60601-1 4th edition requirements and is IP54 certified to support healthcare installations.
Brilliant Displays from 19 to 27-inches
The anti-glare touchscreens with Elo's industry-leading TouchPro® PCAP technology offer wide viewing angles with excellent image clarity, resolution, and light transmission for accurate touch response and vivid images. With up to 10 touches enabled, the 03-Series Monitors provide a tablet-like experience.
Well-Suited for
The 03-Series Medical Grade Touchscreen Monitors offer flexibility for installation in a variety of healthcare environments — from exam rooms and lab clinics to patient check-in and pharmacy check out. Whether you need a touchscreen at a nurse's station to enable support or as a directory to help patients and visitors get around the healthcare facility, the line of 03-Series monitors can support increased communication among patients and healthcare providers.*
Nurse
Station
Patient
Room
Directory
Lab Clinic
Pharmacy
* This product is not an FDA approved “medical device” or otherwise approved by the FDA and is not ISO-13485 compliant. Depending on the intended use, additional certifications may be required.
Medical Device Ready
With a full line of touch technologies and display solutions, Elo can help develop and customize products for almost any medical device including ventilators, anesthesia machines, diagnostic monitors, medication dispensers and more. From operating rooms to patient rooms, laboratories and anywhere healthcare is provided, Elo products are well-suited for medical applications where consistent and long-lasting quality and touch performance are critical.
Shown: ROSA® Knee System with Elo medical-grade touchscreen monitor
Privacy Matters
Optional privacy screen can be used as an additional physical safeguard for private health information or sensitive administrative data. Whether you are a physician or a patient, privacy matters.
Get a handle on it
Some healthcare applications require a display with flexibility of movement to support the appointment with a patient. With handles connected to the monitor, a physician can easily move the display to a comfortable orientation.
Mount with Flexibility
Delivering a seamless experience from patient check-in to check-out is important, so monitor placement matters. The monitors can be mounted on a stand or any mount compatible with VESA configuration — allowing integrators to meet the IT monitor placement requirements demanded by healthcare providers.
Connections
HDMI
VGA
Integrated Speakers
(HDMI or Line-In)
USB 2.0
Touch USB
The Elo
Advantage
Customization
Elo offers customized solutions with everything from slight modifications to ground up designs. If you need something customized.
Global Reach
Elo products are distributed and available across the globe. Every 21 seconds, an Elo touchscreen is installed somewhere in the world.
Long Life Cycle
We do everything in our power to minimize design changes and we have kept some monitors available to order for over seven years.
Built-to-Last
The 03-Series Touchscreen Monitors deliver the quality and reliability Elo is known for and are backed by our 3-year standard warranty with an optional extension to 5-years. We design and build the complete solution, with touch integrated from the start.
Specifications
-
Technical
Part Number(s)
TouchPro PCAP White (Worldwide) - E124149
TouchPro PCAP Black (Worldwide) - E123955Enclosure Color
White or Black
Touch Technology & Capacity
PCAP (TouchPro® Projected Capacitive) - 10 Touch
Diagonal Size
19'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
5:4
Active Area
14.76" x 11.80" / 374.78 mm x 299.83 mm
Resolution
1280 x 1024 @ 60Hz
Other Supported Resolutions
640 x 480 @ 60Hz
720 x 400 @ 70Hz
640 x 400 @ 70Hz
800 x 500 @ 60Hz
800 x 600 @ 56, 60Hz
1024 x 768 @ 60Hz
1280 x 720 @ 58Hz, 60Hz
1280 x 800 @ 60 HzViewing Angle
Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Number of Colors
16.7 million
Brightness (typical)
LCD Panel: 250 nits
TouchPro PCAP: 225 nitsResponse Time-total (typical)
14 msec
Contrast Ratio
1000:1
Touch Interface
USB
Surface Treatment
Anti-glare
On Screen Display
Accessible through switches along the bottom:
Controls: Menu, Up, Down, Select
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Power LED ON/OFF
Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese, Russian, Korean
Lockouts: OSD, PowerI/O Ports
VGA
HDMI
Combo Jack
DC jack
USB Type B
USB 2.0 Type A
4x Micro USBSpeakers
Two 2W internal speakers
Input Video Format
VGA (VGA DE-15 (DB-15) Male connecter cable included)
HDMI (HDMI cable included)Input Video Frequency
Horizontal: 30 – 82KHz
Vertical: 50 - 75HzPower Consumption (Typical)
Monitor +AC/DC adapter
ON: 18W
SLEEP: 0.8W
OFF: 0.4WInput Voltage
12VDC +/- 5%
100-240VAC, 50/60HzInput Connector
Coaxial power jack (2.1 mm pin outer diameter, 6.4mm barrel inner diameter)
Peripheral Mounting
4x Micro USB side ports (Top, Bottom, Left, Right)
Monitor Dimensions (with Stand)
15.66" x 16.91" x 7.61" / 397.7 mm x 429.6 mm x 193.4 mm
Shipping Box Dimensions
20.75" x 18.97" x 10.24" / 527 mm x 482 mm x 260 mm
Weight (with stand)
13.9 lbs / 6.3 kg
Weight (without stand)
9.48 lbs / 4.3 kg
Weight (Packaged)
21.6 lbs / 9.8 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%; Storage: 10% to 95%
MTBF
50,000 hours demonstrated
Mounting Options

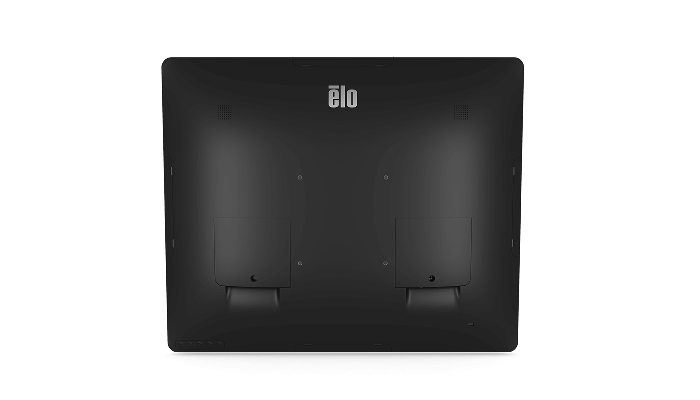

VESA 4-hole 100mm mounting interface on rear of unit
Warranty
3-year
Extended Service Options
4 year warranty coverage - Elo P/N: E898247
5 year warranty coverage - Elo P/N: E898449
3 year warranty coverage + AUR - Elo P/N: E898648
4 year warranty coverage + AUR - Elo P/N: E894921
5 year warranty coverage + AUR - Elo P/N: E895125Regulatory approvals and declarations
Canada CUL, IC
China CCC
Europe CE
Korea KCC
Taiwan BSMI
United States FCC, UL
Japan VCCI
International CB
Australia RCM
Russia EAC
Mexico CoC
India BIS
RoHS, China RoHS, WEEE, REACH
UL: AAMI /ANSI ES60601-1:2005/(R)2012 and A1:2012, C1:2009/(R)2012 and A2:2010/(R)2012/IEC 60601-1 Ed. 3.1
cUL: (CAN/CSA-C22.2 NO. 60601-1:14 /IEC60601-1 Ed. 3.1
CB: IEC 60601-1:2005+A1:2012 (Ed. 3.1)
CE: IEC 60601-1-2:2014 (Ed. 4)
Risk Management: ISO 14971:2007 + EN ISO 14971:2012
Usability: IEC 60601-1-6:2010+A1:2013 (Ed. 3.1), IEC 62366:2007+A1:2014 (Ed. 1.1)Ingress Protection
IP54 entire enclosure
Power Cables
North America Power Cable C13 - Elo P/N: E593865
Australia Power Cable C13 - Elo P/N: E594067
Europe Power Cable C13 - Elo P/N: E594264
Korea Power Cable C13 - Elo P/N: E594466
China Power Cable C13 - Elo P/N: E594670
Taiwan Power Cable C13 - Elo P/N: E594869
Japan Power Cable C13 - Elo P/N: E793799What's in the Box
Touchmonitor
Quick Install Guide
3x Tie wraps
VGA cable
HDMI cable
Touch USB cable
Audio cable
Power brick (E795350 or E323104)
NA Power cable
EU Power cable
EEI LabelReplacement DC Power Supply
Power Brick 65W - E593253
Optional Peripherals
Magnetic Stripe Reader (MSR) – Elo P/N: E001002
Magnetic Stripe Reader (White MSR) – Elo P/N: E352392
PCAP Stylus Pen - Elo P/N: E066148
Privacy Screen 19-inch - Elo P/N: E352596
Elo Monitor Handles – 1 Set - Elo P/N: E352196Stands, Mounts & Kits
Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088
Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382
Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151
1.8m Cable Kit - Elo P/N: E408193
Elo Stand 1902/3-2202/3 - Black (100 mm VESA) - Elo P/N: E804330
Elo Stand 1902/3-2202/3 - White (100 mm VESA) - Elo P/N: E808963
