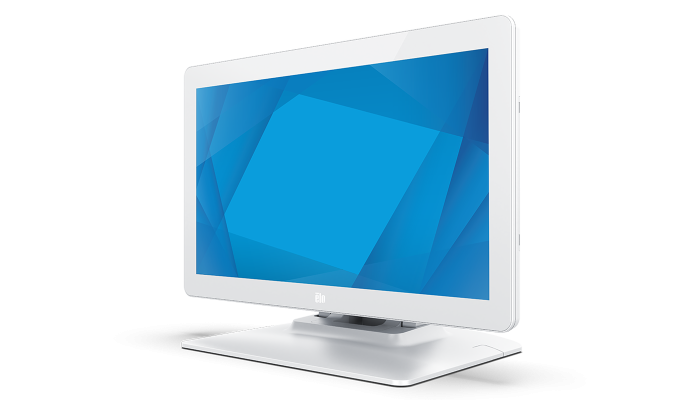

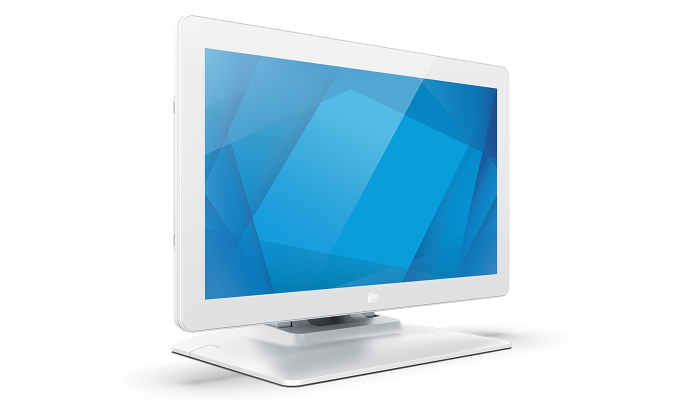

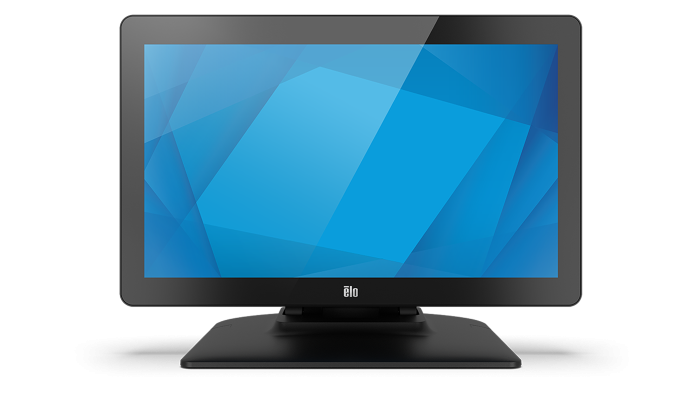

1502LM 15" Medical Grade Touchscreen Monitor
How to buy

Medical Grade Touchscreen Monitors

The 1502LM Medical Grade Touchscreen Monitor merges best-in-class touchscreen technology with critical healthcare features, including adherence to IP-22 and IEC 60601-1 standards. Its compact form factor and sleek design make it ideal for patient entertainment, virtual health, patient monitoring, respiratory and medication dispensing devices, and laboratories.

Medical Grade Touchscreen Monitors
Medical Grade Touchscreen Monitors
IP-22 Rating
IP-22 Rating

Sealed against dirt, dust and liquids, delivering a reliable, easy-to-sanitize solution.

IEC 60601
IEC 60601

IEC 60601 compliant power supply included.

Integrated Touch
Integrated Touch

TouchPro® PCAP offers a 10-touch, tablet-like experience with capability for use with wet or dry gloves.

Built-to-Last
Built-to-Last

Backed by Elo’s 3-year standard warranty with optional EloCare service offerings.

Easy to Clean

Increase safety for healthcare providers and patients with the easy-to-clean touchscreen displays.

Learn More

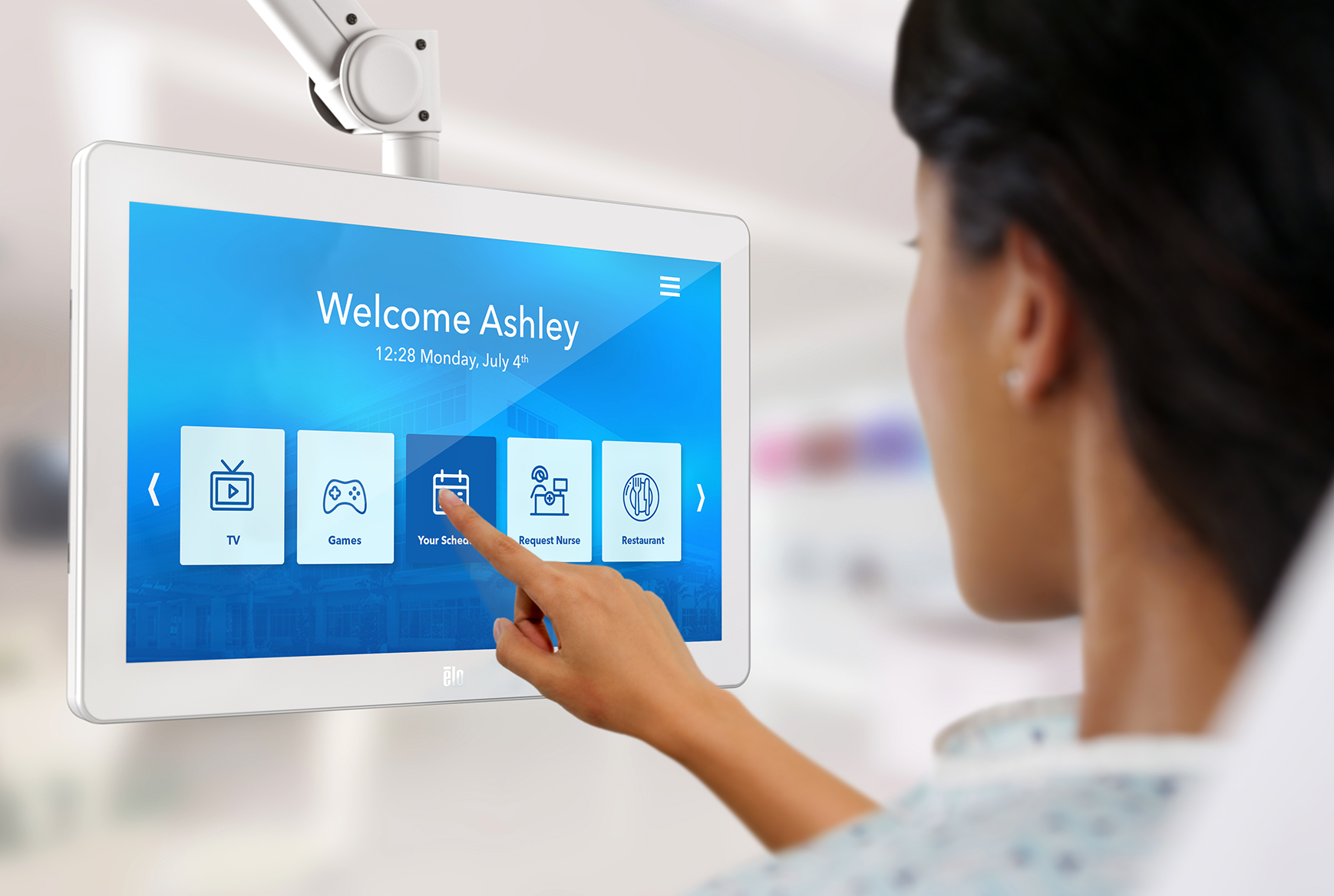

Interactive Patient Care

Interactive Patient Care

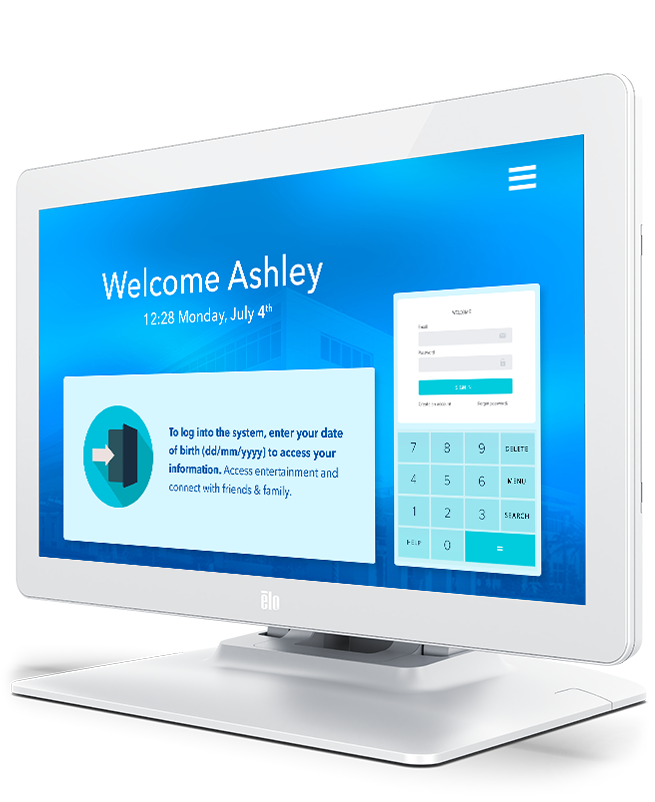

Enhance the patient’s experience with the 1502LM medical grade touch screen monitor at the bedside for entertainment applications or educational content keeping them informed during the course of their treatment.

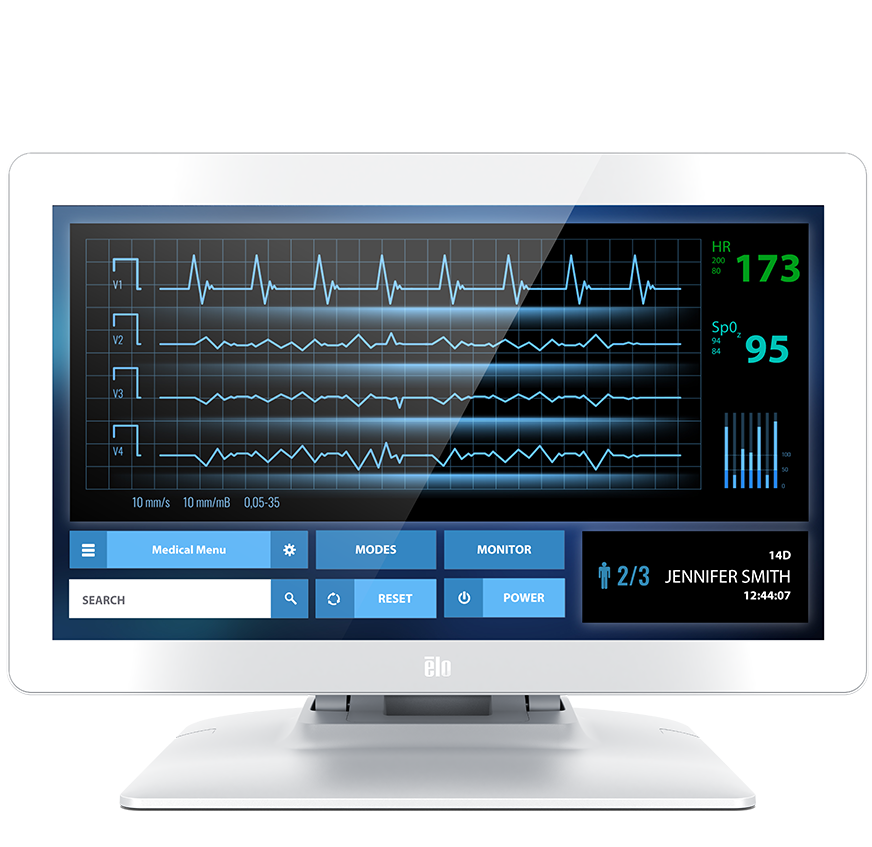

Virtual Health and Patient Monitoring

Combining virtual health solutions with patient monitoring capabilities enables healthcare providers to save time, increase satisfaction and enhance care all at a lower cost. Whether from a medical cart, in a clinic or in a patient room, pair Elo’s medical grade touch screen monitor with the Elo Edge Connect Webcam to engage, educate and personalize care for patients outside traditional office visits.

Purpose-built for Healthcare

The 1502LM offers installation flexibility in a variety of healthcare environments to support increased
communication between patients and providers.

Patient Monitoring
Patient
Monitoring
Patient Entertainment System
Patient Entertainment
System
Laboratory Equipment
Laboratory
Equipment
Pharmacy Automation
Pharmacy
Automation
Respiratory Devices
Respiratory
Devices
Purpose-built for Healthcare
Medical Device-Ready

Device shown - Rosa with Elo Medical-grade monitor

Medical Device-Ready

With a full line of touch technologies and display solutions, Elo can customize products for almost any medical device including ventilator monitors, anesthesia monitors, patient monitors and medication dispensers. From patient rooms to laboratories and anywhere healthcare is provided, Elo products are well-suited for medical applications where consistent and long-lasting quality and touch performance are critical.

Configurability Made Easy

Configurability Made Easy

Flexible Mounting
Flexible Mounting

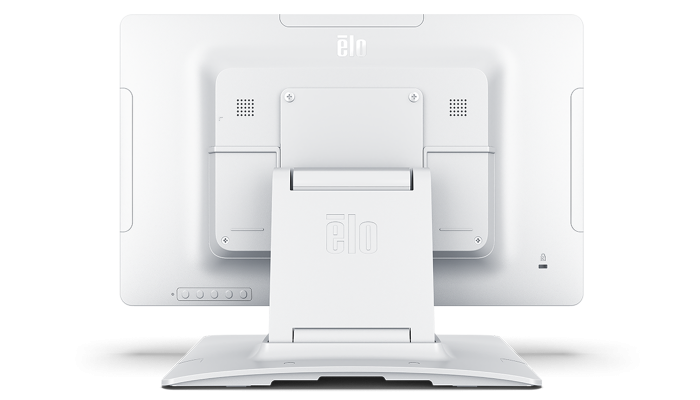

Every medical grade touch screen monitor is designed with VESA hole patterns to simplify mounting onto a variety of stands, arms, walls or medical carts.

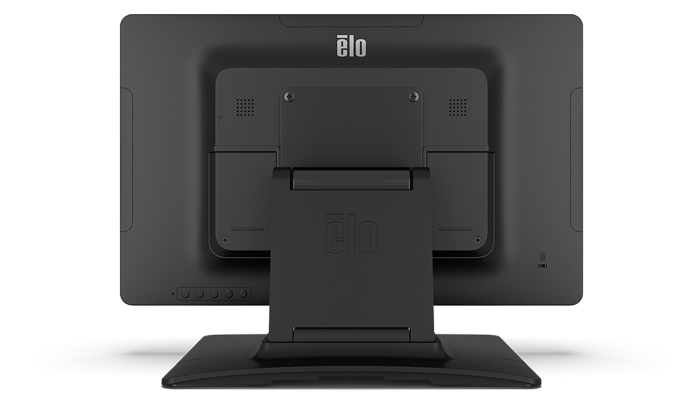

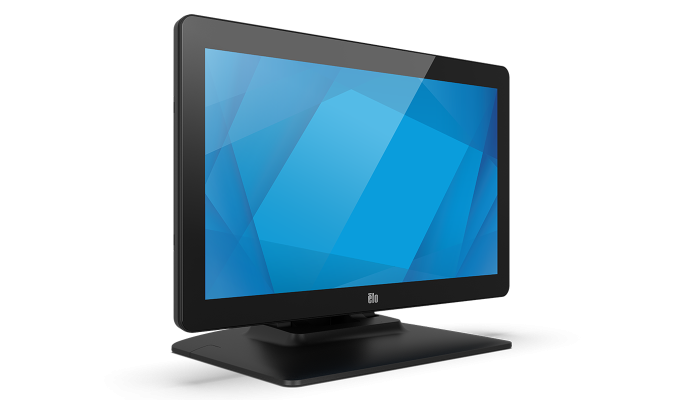

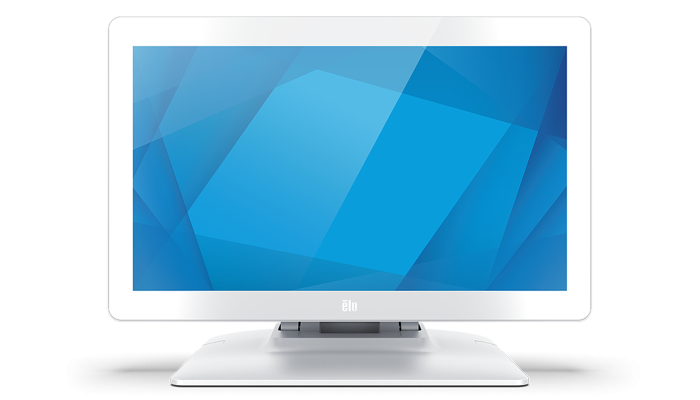

Black or White
Black or White

Choose between white or black models with or without a stand.

Ergonomic
Ergonomic

Optional handles can be added to easily move or rotate the display to a comfortable orientation.

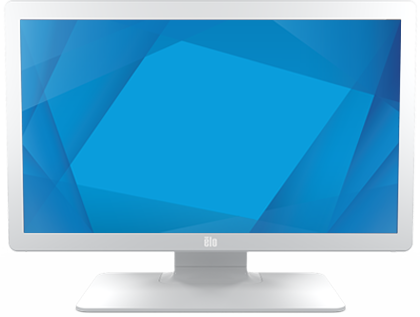

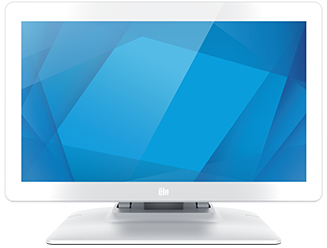

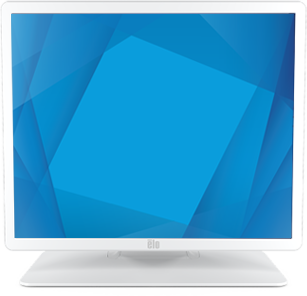

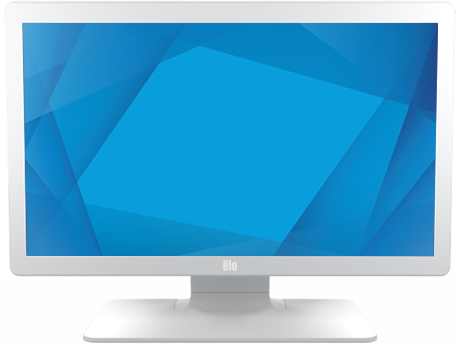

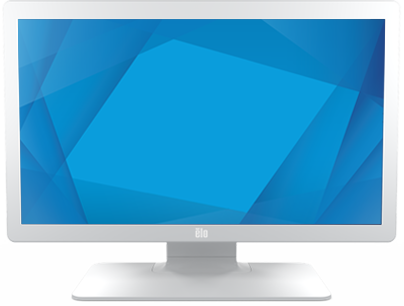

Unified Style Across Sizes

15"
15"
19"
19"
22"
22"
24"
24"
27"
27"

This product is not an FDA-approved “medical device” or otherwise approved by the FDA and is not ISO-13485 compliant. Depending on the intended use, additional certifications may be required.

Specifications

  • Technical

    Part Number(s)

    White With Stand - E542808
    Black With Stand - E542617
    White Without Stand - E967255
    Black Without Stand - E967064

    Enclosure Color

    White or Black

    Touch Technology & Capacity

    PCAP (TouchPro® Projected Capacitive) - 10 Touch

    Diagonal Size

    15.6'' diagonal, Active matrix TFT LCD (LED)

    Aspect Ratio

    16:9

    Active Area

    13.55" x 7.62" / 344.16 mm x 193.5 mm

    Resolution

    1920 x 1080

    Other Supported Resolutions

    640 x 480 @ 60Hz
    640 x 400 @ 70Hz
    720 x 400 @ 70Hz
    800 x 600 @ 56, 60Hz
    1024 x 768 @ 60Hz
    1280 x 720 @ 50, 60Hz
    1280 x 800 @ 60Hz, 60HzRB
    1280 x 960 @ 60Hz
    1280 x 1024 @ 60Hz
    1360 x 768 @ 60Hz
    1366 x 768 @ 60Hz, 60Hz RB
    1440 x 900 @ 60Hz, 60Hz RB
    1680 x 1050 @ 60Hz, 60Hz RB
    1920 x 1080 @ 50, 60Hz

    Viewing Angle

    Horizontal: ±80° or 160° total / Vertical: ±80° or 160° total

    Number of Colors

    16.7 million

    Brightness (typical)

    LCD Panel: 250 nits
    With PCAP: 225 nits

    Response Time-total (typical)

    30 msec

    Contrast Ratio

    700:1

    Touch Interface

    USB

    Surface Treatment

    Anti-glare

    On Screen Display

    Accessible through switches along the bottom:

    Controls: Menu, Up, Down, Select

    Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Video Priority, Information, Touch on Sleep Mode, Peripheral Port

    Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese

    Lockouts: OSD, Power

    I/O Ports

    USB Type-C
    Audio jack (Line-in)
    VGA (Micro-HDMI female connecter)
    HDMI
    12V D/C input
    3 x Micro-USB ports (Top, Left, Right)

    Speakers

    2 x 2W internal speakers

    Video

    Analog VGA
    HDMI
    USB Type-C (support DP Alt mode)
    (Suggest using Elo USB Type-C to Type-C (Elo P/N: E710364) cable to prevent any compatibility issues)

    Input Video Horizontal Sync frequency range: 31.5 – 82KHz
    Input Video Vertical Sync (frame rate) frequency range: 50 – 75Hz

    Power

    Monitor input power connector: Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) Barrel depth)

    Monitor input voltage range: 12VDC +/- 5%

    Adapter output power connector: DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) Barrel length)

    Adapter input voltage range: 100-240 VAC

    Input frequency: 50-60 Hz

    Power Consumption (Typical)

    Monitor + adapter
    ON: 9.5 W
    SLEEP: 1.27 W
    OFF: 0.2 W

    Monitor Dimensions (without Stand)

    9.62'' x 15.23'' x 1.28'' / 244.39 mm x 386.96 mm x 32.4 mm

    Monitor Dimensions (with Stand)

    11.21'' x 15.23'' x 7.84'' / 284.65 mm x 386.96 mm x 199.12 mm

    Shipping Box Dimensions

    With Stand: 8.03'' x 17.76'' x 13.54''/ 204 mm x 451 mm x 344 mm
    Without Stand: 6.89" x 17.76" x 12.60" / 175 mm x 451 mm x 320 mm

    Weight (Unpackaged)

    With Stand: 6.79 lbs / 3.08 kg
    Without Stand: 3.62 lbs / 1.64 kg

    Weight (Packaged)

    With Stand: 11.24 lbs / 5.1 kg
    Without Stand: 7.47 lbs / 3.39 kg

    Operating Temperature

    0°C to 40°C / 32°F to 104°F

    Storage Temperature

    -20°C to 60°C / -4°F to 140°F

    Humidity

    Operating: 20% to 80%; Storage: 10% to 95% (38.7℃ max wet bulb temperature)

    MTBF

    50,000 hours demonstrated

    Mounting Options

    VESA 4-hole 75mm and 100mm mounting interface on rear of unit

    Warranty

    3-year

    Extended Service Options

    4 year warranty coverage - Elo P/N: E898247
    5 year warranty coverage - Elo P/N: E898449
    3 year warranty coverage + AUR - Elo P/N: E898648
    4 year warranty coverage + AUR - Elo P/N: E894921
    5 year warranty coverage + AUR - Elo P/N: E895125

    Regulatory approvals and declarations

    Canada cUL, IC
    China CCC
    Europe CE
    United Kingdom UKCA
    Taiwan BSMI
    Korea, KCC, e-standby
    United States UL, FCC
    Japan VCCI
    International CB
    Australia RCM
    Russia EAC
    Mexico NOM
    India BIS
    RoHS, China RoHS, WEEE, REACH

    UL: AAMI /ANSI ES60601-1:2005/(R)2012 and A1:2012, C1:2009/(R)2012 and A2:2010/(R)2012/IEC 60601-1 Ed. 3.1

    Ingress Protection

    IP22 entire enclosure

    Impact Protection

    IK07

    What's in the Box

    Touchmonitor
    Quick Install Guide
    HDMI cable
    Power brick (E128201)
    2x cable clamps
    2x Tie wraps
    EEI Label
    USB Cable (USB Type-A to Type-C)
    NA Power cable
    EU Power cable
    3x screws (M3x8mm) for cable clamps
    2x screws (M3x10mm) for cable doors
    4x screws (M4x10mm) for E967064 and E967255 only

    Optional Peripherals

    PCAP Stylus Pen - Elo P/N: E066148

    Stands, Mounts & Kits

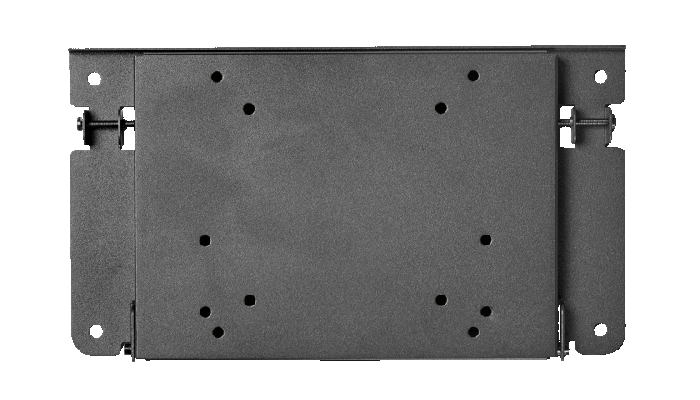

    Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088
    Tabletop Stand for 15-inch Display (Black) - Elo P/N: E044162
    Tabletop Stand for 15'' Display (White) - Elo P/N: E765019
    Tabletop Stand for 22'' I-Series (100mm VESA) - Elo P/N: E044356
    Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382
    Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069
    Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458
    Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663
    Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864
    Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151
    Power USB to USB-C/DC-IN (2.1 mm) cable – 1.8 m - Elo P/N: E214097
    Power USB to USB-C/DC-IN (2.1 mm) cable - 3 m - Elo P/N: E214282
    Elo Stand 1302L - Black (75 mm VESA) - Elo P/N: E307788
    Elo Stand 1302L - White (75 mm VESA) - Elo P/N: E307974
    USB-C to USB-C Cable Kit – Elo P/N: E710364
    VGA-DB15 to Micro Cable Kit – Elo P/N: E710549
    DVI-D to HDMI Cable Kit – Elo P/N: E538507
    Slim Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E514693
    Slim Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E514881 + E515260
    1.8 m USB-C Cable Kit - includes VGA, USB, HDMI and audio cables - Elo P/N: E408388
    North America Power Cable – C13 - Elo P/N: E593865
    Australia Power Cable – C13 - Elo P/N: E594067
    Europe Power Cable – C13 - Elo P/N: E594264
    Korea Power Cable – C13 - Elo P/N: E594466
    China Power Cable – C13 - Elo P/N: E594670
    Taiwan Power Cable – C13 - Elo P/N: E594869
    Japan Power Cable – C13 - Elo P/N: E793799
    Power Brick – 60W – 1502LM - Elo P/N: E181106
