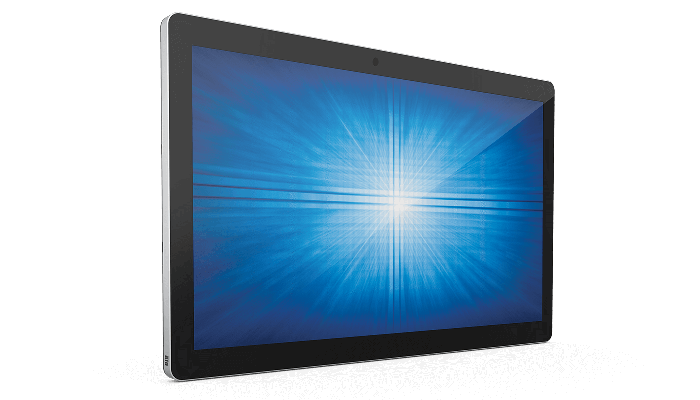

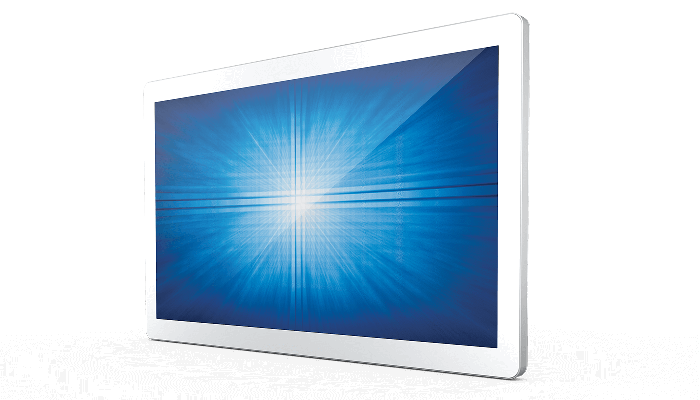

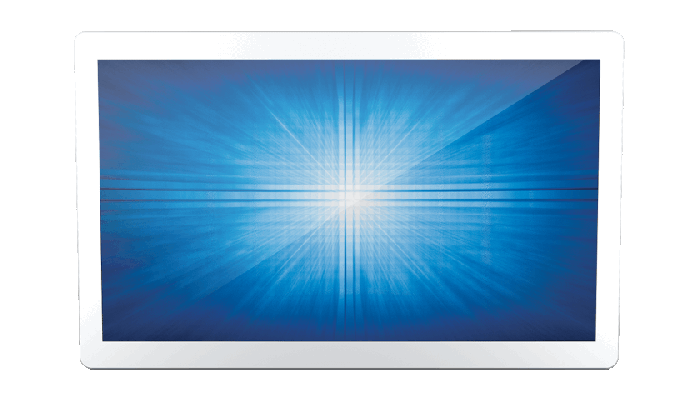

22-inch I-Series for Android
with Google Play Services (3.0)
I-Series 3.0 for Android™
Secure. Flexible. Manageable.
Elo's I-Series 3.0 for Android™ delivers a reliable, commercial-grade solution with the flexibility and functionality of Google™ Play Services. Based on a unified architecture, Elo's Android-powered devices make it easy to create a seamless experience for your customers - from their mobile devices to your interactive in-store experiences.
Purpose-built with a modular design, the I-Series can be found in installations across the globe, from in-store interaction and point of sale to self-service, hospitality and corporate office environments. The uses are limitless.
You can deploy and manage your Android devices with EloView® and take advantage of the latest Google Mobile Services features. Available with your choice of size and configuration, the 3.0 Android-platform is designed to offer versatility across environments with the durability to meet the demands of continuous public use.
I-Series for Everything
Our I-Series for Android has proven a versatile workhorse. From self-order kiosks and point-of-sale systems to in-store interaction, kitchen display systems, price checkers and meeting room signage, the I-Series is well-suited to meet the demands of continuous daily use.
Google Play Services
Now you can create a seamless experience for your customers - from their personal devices to your interactive experiences in store. With Google Play Services, your app can take advantage of the latest, Google-powered features while maintaining the added flexibility of EloView - making deployments and management a breeze.
apps on commercial devices
enterprise apps can leverage
- Webview
- Firebase
- Push Notifications
- Location Services
- App Updates
- YouTube Control
Elo EssentialEdge™ for Android
Are you looking for ways to make your digital transformation faster, easier and more affordable? Elo EssentialEdge for Android offers everything you need to build and operate interactive solutions for your business. With easy-to-use development kits, robust management tools, world class life cycle management and security, Elo can help you deliver the convenience and familiarity of Android interfaces in a secure, business-friendly way.
Fully Integrated
The I-Series is a fully integrated, Android-powered interactive system with the
performance needed to create the customer experience you want.
-
Display
Available in 10-inch, 15-inch
and 22-inch screen sizes -
OS
Android 8.1 (Oreo)
-
Processor
Blazing-fast Qualcomm
Snapdragon octa-core
processor. -
Memory/Storage
Up to 3GB of RAM and 32GB of
storage. -
Network
WiFi, Ethernet & Bluetooth
More Choice: Features to Match Your Needs
Get the freedom of choice. From color and size options to standard and value models, you can choose the
configuration that matches your needs. If you need more memory and storage, ports for peripheral mounting
and a webcam, then the standard models are the choice for you.
Use Cases for Standard Models
Point of Sale
Self-Service Checkout
Kiosk (with peripherals)
Price Checker
Check-In Kiosks
Use Cases for Value Models
Interactive Shelf Signage
Product Information
Meeting Scheduler
Kiosk (without peripherals)
Configure with Elo Edge Connect™
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripheral options. Whether for endless aisle, self-order or collaboration applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!
Barcode
Scanner
Status
Light
NFC-RFID
Reader
Fingerprint
Scanner
MSR
EMV
Cradles
Power over Ethernet
Now you do not need to connect to a power adapter.
The Power-over-Ethernet (POE) module is an optional accessory you can pair with all I-Series 3.0 Models. All you need is a POE-capable network and to connect the POE Module to the I-Series.
In retail, where power drops can be expensive, running low voltage network cables allows for a lower cost solution. Or for AV applications (e.g., meeting rooms) - POE represents an easy-to -implement solution for conference room scheduler displays or AV control applications.
EloView®
EloView allows you to deploy and securely manage your entire network of Android-powered interactive signage, point-of-sale systems and kiosk - from anywhere around the world. You can deploy content, manage settings and maintain the OS to reduce operating costs while increasing up-time and security.
The EloView architecture also allows you to leverage your content investments in mobile and web assets. Simply push your apps and responsive websites via the EloView portal. EloView's modular system is designed to integrate your business to enable smarter content distribution and device management abilities alongside your existing CMS platforms and MDM tools.
Virtual GPS via EloView
Often, applications depend upon the GPS location of individual devices to understand what content to display. The problem is a GPS chip does not work indoors and can be expensive to add to a device that spends its life fixed to a specific location.
With EloView, you can set the location (latitude/longitude) of the fixed device remotely, allowing the application to sync with the GPS coordinates. Now the application can run localized content because it knows where the unit is.
Built-to-Last
The I-Series AiO Touchscreen Signage displays deliver the
quality and reliability Elo is known for and are backed by our
2-year standard warranty with an optional extension to
5-years. We design and build the complete solution, with
touch integrated from the start.
Specifications
-
Technical
Part Number(s)
E462589
Enclosure Color
Black
Touch Technology & Capacity
PCAP (TouchPro® Projected Capacitive) - 10 Touch
Processor
Qualcomm® Snapdragon™ APQ8053 2.0GHz Octa-Core Processor
Memory (RAM)
3GB DDR3L
Storage
32GB SSD
OS
Android 8.1™ Oreo™ with Google™ Play Services; EloView® content deployment and management
Diagonal Size
21.5'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
16:9
Active Area
18.74" x 10.54" / 476mm x 268mm
Resolution
Full HD 1920 x 1080 @ 60Hz
Number of Colors
16.7 million
Brightness (typical)
LCD Panel: 250 nits
TouchPro PCAP: 215 nitsResponse Time-total (typical)
14 msec
Contrast Ratio
1000:1
Viewing Angle
Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
I/O Ports
Micro HDMI output
Micro SD slot
Ethernet 1x LAN (Gigabit)
GPIO
1x USB 3.0 supportPeripheral Mounting
4x microUSB side ports available
Webcam
Auto exposure
Auto Gain Control
Sharpness/Brightness/Contrast control
Max resolution: 1920 x 1080 30fpsWireless
802.11b/g/n/ac + Bluetooth 4.1
Audio Ports
Built-in microphone
Microphone and headphone support is available via an optional the USB adaptor (Vantech NBA-120U)Speakers
Two 2W internal speakers
Power Supply
AC input voltage: 100-240 VAC
Input frequency: 50-60 Hz
power adapter (included in accessory box)Power Consumption (Typical)
ON: 16W
OFF: 0.5W
SLEEP: 4.0WDimensions
12.75" x 20.63" x 1.39" / 323.9mm x 523.9mm x 35.2mm
Shipping Box Dimensions
23.62" x 15.75" x 7.08" / 600mm x 400mm x 180mm
Weight (Unpackaged)
9.47 lbs / 4.30kg
Weight (Packaged)
16.10 lbs / 7.30 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 50°C / -4°F to 122°F
Humidity
Operating: 20% to 80%
Storage: 5% to 95%Regulatory approvals and declarations
UL/cUL, FCC, IC, CE, CB, KCC, NOM, BIS, ANATEL, BSMI
Supported Countries
Canada, USA, Australia, Japan, South Korea, New Zealand, Austria, Belgium, Czech Republic, Denmark, France, Germany, United Kingdom, Hungary, Italy, Netherlands, Poland, Portugal, Romania, Spain, Sweden, Switzerland
Real-Time Clock
lithium coin cell battery
Mounting Options
VESA 100mm x 100mm
Warranty
2-year
Extended Service Options
3 year warranty coverage - Elo P/N: E819394
4 year warranty coverage - Elo P/N: E819598
5 year warranty coverage - Elo P/N: E819795
2 year warranty coverage + AUR - Elo P/N: E819985
3 year warranty coverage + AUR - Elo P/N: E820186
4 year warranty coverage + AUR - Elo P/N: E820388
5 year warranty coverage + AUR - Elo P/N: E820582Sealability
Touchscreen sealed to LCD
What's in the Box
I-Series
North American Power Cable
European Power Cable
1x Power Brick
Quick Install Guide
Screws for cable cover door (located in the power/Ethernet bay)Optional Peripherals
Magnetic Stripe Reader (MSR) – Elo P/N: E001002
Fingerprint Scanner – Elo P/N: E134286
GPIO Cable - Elo P/N: E211544
2D Barcode Scanner (Black - SE4720) – Elo P/N: E384627
EMV Cradle for Ingenico ICMP (I-Series & 02-Series Monitors) - Elo P/N: E200465
EMV Cradle for Verifone E355 (I-Series & 02-Series Monitors) - Elo P/N: E201088
POE Module Kit - Elo P/N: E615169
EMV Cradle for MagTek eDynamo - Elo P/N: E375343
EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981
EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930
Status Light (Micro-USB Connectivity) - Elo P/N: E644767
3D Camera - Elo P/N: E134699
Webcam - Elo P/N: E201494Stands, Mounts & Kits
Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088
Wall Mount Kit (low profile) – Elo P/N: E802400 (Not compatible with POE installed)
Tabletop Stand for 22'' I-Series (100mm VESA) - Elo P/N: E044356
Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382
Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069
Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458
Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663
Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864
Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151
Expansion Module - Short Cable Kit - Mounted on the back of the I-Series - Elo P/N: E412240
Expansion Module - Long Cable Kit - Mounted under the flip stand - Elo P/N: E923781
Wallaby™ Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E796783
Wallaby™ Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E796965 + E797162
65W Replacement Cable Kit (NA & EU power cables and power brick) – Elo P/N: E514304
Slim Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E514693
Slim Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E514881 + E515260
Wallaby™ Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E421137
Wallaby™ Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E421325 + E797162
