Status Light (Gen 1)
Overview

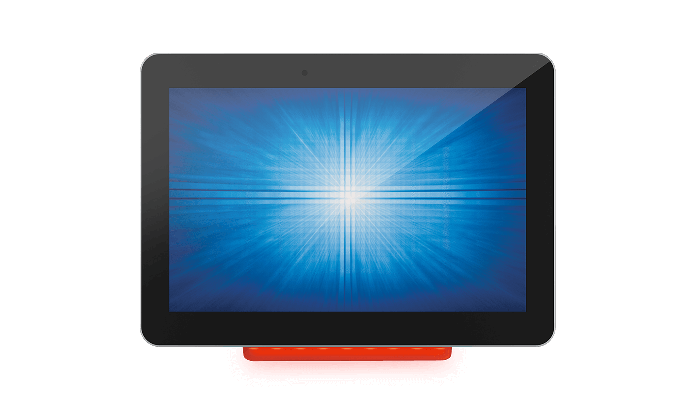

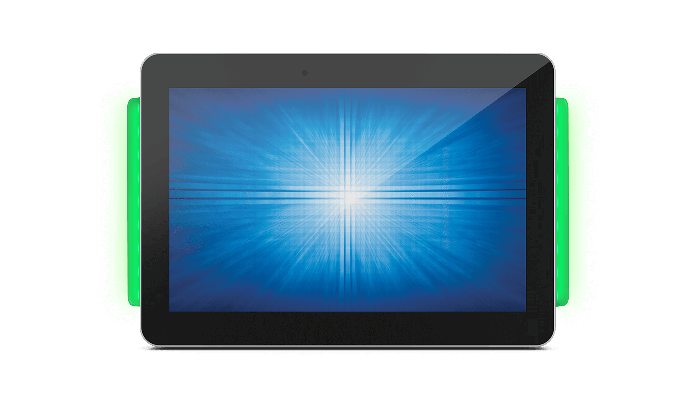

The Elo Status Lights provide a sleek, low profile solution for highlighting conference room availability and self-checkout (SCO) lane readiness. The Elo Edge Connect Status Lights connect easily via a Micro USB port or GPIO to the side of the I-Series in either portrait or landscape – creating an integrated design while delivering the flexibility you need. The lights appear white when not activated and can light up red or green depending on the need or use. Elo provides a set of APIs through the EloView® SDK allowing you to control the status light via your own APIs.
Specifications
-
Technical
Part Number(s)
Micro USB Connectivity - E466847
GPIO Connectivity - E651272Enclosure Color
Black
Compatibility
E466847 - I-Series (2.0 & 3.0) for Android Standard Models (10, 15, 22), I-Series 2.0 for Windows
E651272 - I-Series (2.0 & 3.0) for Android Value Models (10, 15)Lens Material
Polycarbonate
Input Connector Type
E466847 - Micro-USB
E651272 - GPIOLED
Red Light (default) and Green Light
Mounting Options
Portrait or Landscape
Input Voltage
5V
Typical Current Draw
45mA
Dimensions
4.72'' x 0.75'' x 1.02'' / 119.9 mm x 19.1 mm x 26.0 mm
Shipping Box Dimensions
7.13'' x 4.57'' x 2.76'' / 181 mm x 116 mm x 70 mm
Weight (Unpackaged)
E466847 - 0.07 lbs / 0.03 kg
E651272 - 0.09 lbs / 0.04 kgWeight (Packaged)
E466847 - 0.33 lbs / 0.15 kg
E651272 - 0.35 lbs / 0.16 kgWarranty
3-year
What's in the Box
E466847 - 1x Status Light with Micro-USB connector, QIG
E651272 - 1x Status Light with GPIO port, 200mm GPIO Cable, 525mm GPIO Cable, QIG
