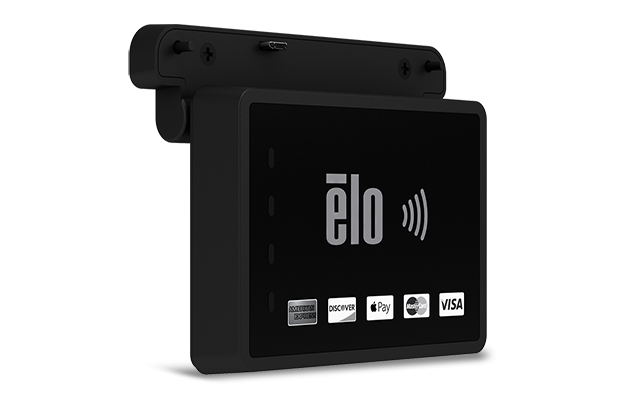

NFC/RFID (Replaced by new RFID)
How to buy

Be sure to check out the newer model - Elo Edge Connect™ RFID


The Near Field Communication (NFC) adapter for mobile payments offers increased compatibility with the latest point of sale applications. The accessory is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.

Specifications

  • Technical

    Part Number(s)

    E001004

    Enclosure Color

    Black

    Power Supply

    5VDC ± 5%

    Interface

    USB

    Interface Modes

    HID Keyboard and USB Virtual COM

    Frequency Range

    13.56 MHz

    Communication Signal

    Standard RS232 signal level
    Compatible with USB 2.0 specification
    TTL 5V signal level (optional)
    Comm Signal Logic 1 = ‐3 volts to ‐15 volts or TTL level 5 volts
    (RS232) Logic 0 = +3 volts to +15 volts or TTL level 0 volt

    Communication Range

    40mm

    MIFARE Applications

    Read/Write of MIFARE Plus/Classic/Ultralight/DESFire cards
    Support MIFARE higher baud rate up to 424KHz

    Operating modes

    Read/Write
    Peer-to-Peer
    Card emulation

    Supported Operating Systems

    Windows POSReady 7 32-bit
    Windows Embedded Pro 7 32-bit
    Windows Embedded Pro 7 64-bit
    Windows Industry Embedded Pro 8.1 32-bit
    Windows Industry Embedded Pro 8.1 64-bit
    Android 4.4.2

    Payment Applications

    American Express ExpressPay
    Discover ZIP
    MasterCard PayPass/MCHIP
    Visa MSD/qVSDC
    Google wallet

    Weight (Unpackaged)

    0.35 lbs/ 0.16 Kg

    Weight (Packaged)

    0.60 lbs/ 0.27 Kg

    Warranty

    2-year

Resources

(3)

  • Drawings and Certificates

    Dimensional Drawing

    Go

    CAD Drawings

    Go
  • User Guides

    Quick Install Guide

    Go
