TouchPro® Pro-M Projected Capacitive, 42"-86"
How to buy

Overview

The Elo TouchPro® Projected Capacitive (PCAP) touch technology offers a fast and sensitive response and professional-grade reliability combined with a stylish, sleek design. TouchPro projected capacitive touchscreens are designed for the rigors of commercial applications. The advanced solution of the Pro-M offers a lighter +10-point multi-touch screen specifically designed for large format, high-use applications.

Download our whitepaper — Large Format PCAP Reinvented and see how the trend in large format touch screens is driving the need for new types of PCAP products.

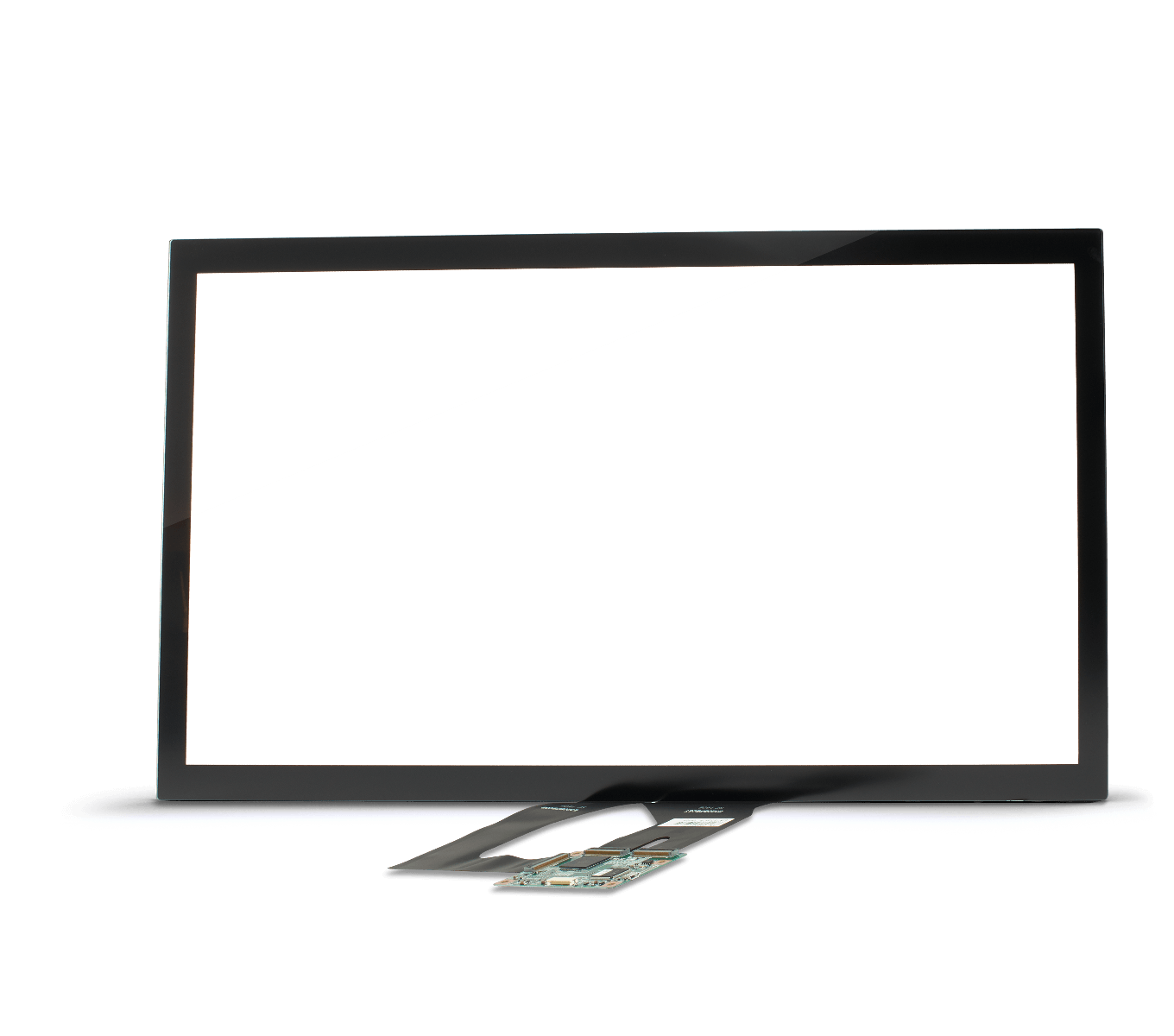

pro-m
Large Format PCAP

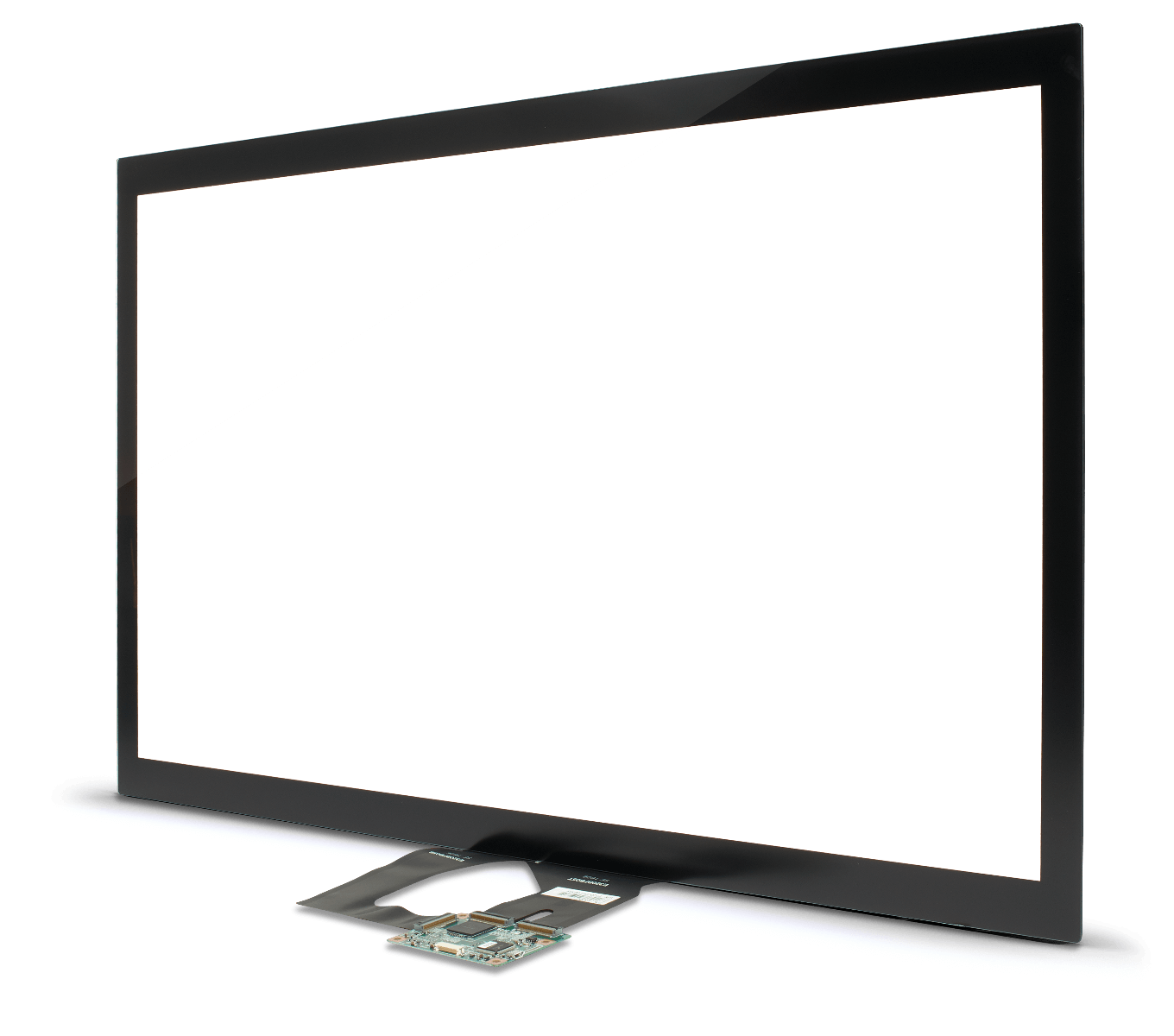

Elo’s Pro-M solution offers a lighter +10-point multi-touch screen specifically designed for large format, high-use applications. TouchPro Pro-M PCAP touchscreens are available in 42”, 43”, 46”and 55” standard diagonal sizes.
Fully Customizable

Elo also offers a wide range of customization options to meet your requirements including screen dimensions, cover glass thickness, bonding and treatments such as anti-glare.

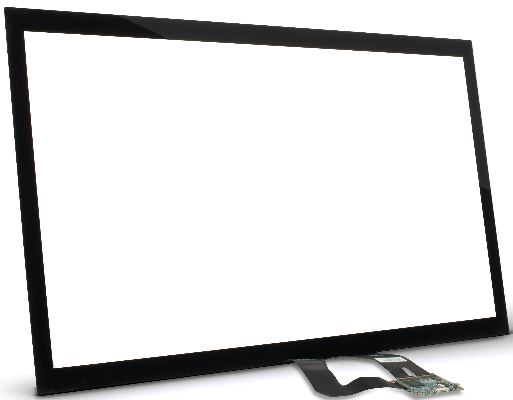

 pro-m

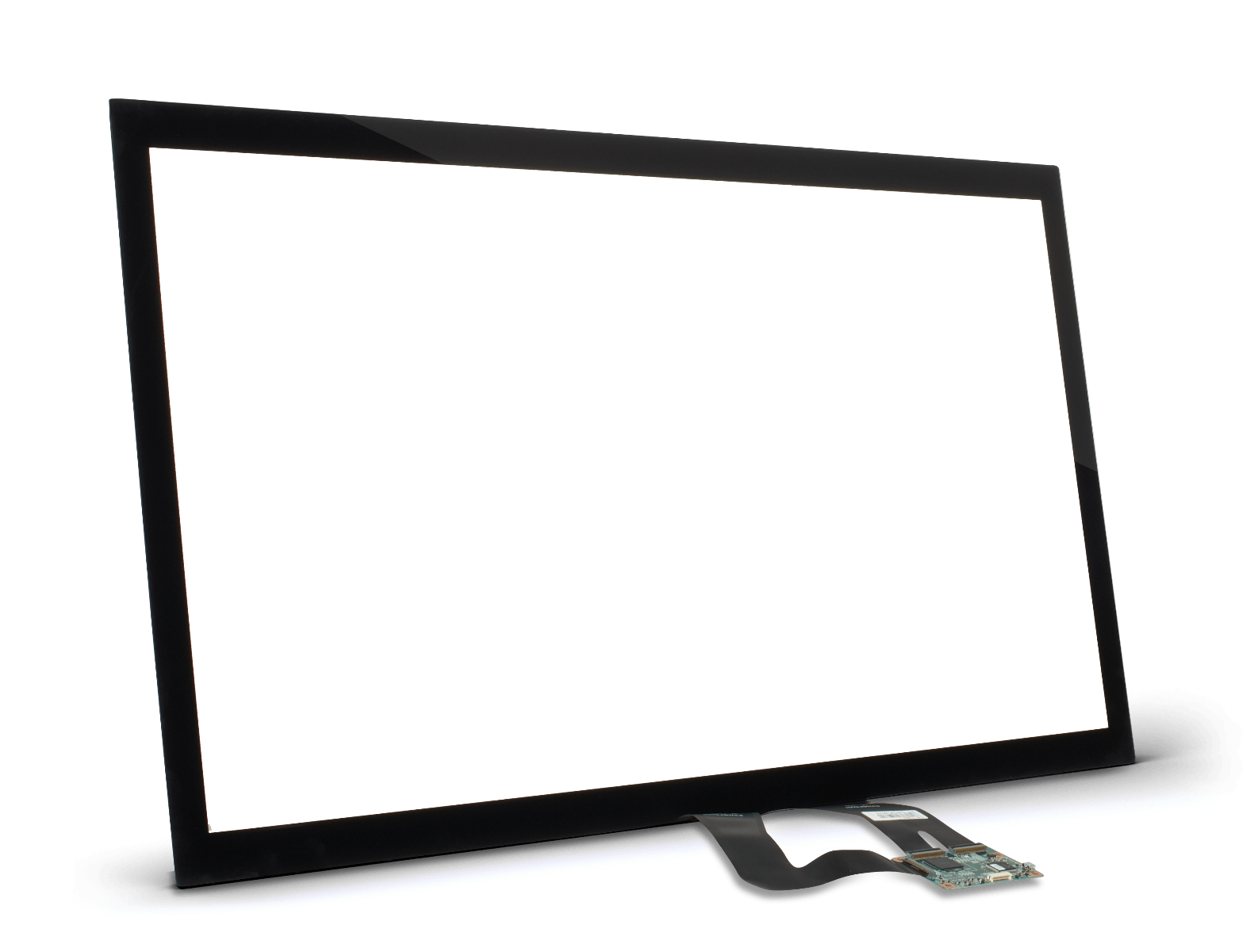

pro-m
Complete Solutions

Elo offers a complete PCAP solution including touch screen, controllers, drivers for various operating systems and software utilities resulting in shorter development and integration time.
Factory Video

Elo’s state of the art facility in Suzhou, China occupies a quarter of a million square feet and includes 155,000 square feet of manufacturing space with adjacent offices and warehouses. It is home to Elo’s industry leading touchscreen solutions including AccuTouch 5-wire resistive, IntelliTouch surface acoustic wave and TouchPro projected capacitive touchscreens.

Elo is proud to be the only company in the world that produces its own touch screens, ASICs, firmware and software drivers in-house.



Applications
  • Interactive digital signage
  • Gaming and lottery terminals
  • Point-of-Information kiosks
  • Self-service/self-automation
  • Education

TouchPro Product Selection Table

Screen Families
Screen Families
7
10
12
15
17
19
22
24
27
32
42
46
55
Pro-F (Film)
7"- 32"
7200 series- CoF
8200 series - PCB- Core
8300 series - PCB
9200 series - PCB - Advanced
9300 series- PCB- Advanced
Pro- G (Glass)
7"- 22"
8200 series - PCB- Core
9200 series - PCB - Advanced
Pro-M (Large)
≥ 42"
8300 series - PCB- Large
Pro-F (Film)
7"- 32
7
10
12
15
17
7200 series- CoF
7
10
12
15
17
19
22
8200 series - PCB- Core
9200 series- PCB- Advanced
24
27
32
8300 series - PCB
9300 series- PCB- Advanced
Pro- G (Glass)
7"- 22"
7
10
12
15
17
19
22
8200 series - PCB- Core
9200 series- PCB- Advanced
Pro-M (Large)
≥42"
42
46
55
8300 series - PCB- Large
Controller Families
Controller Families
Screen
Size
Range		 Form
Factor*		 Flextail
Configuration		 Interface Touch
Screen
Family		 Controller
IC Make/
Model		 Fluid
Rejection		 Saline/
Salt Water
Operation		 10V RMS
CS		 Touch
Through
Glass		 Glove Stylus # of
touches
7200 series
CoF		 ≤15.6" CoF Single USB Pro-F Multiple Good - Yes Good Good Passive Multi
8200 series
Core 		7"- 22" PCB Single/Multi USB/Serial Pro-F/Pro-G Multiple Good Good Yes Good Good Passive Multi
9200 series
Advanced		 7"- 22" PCB Single/Multi USB/Serial Pro-F/Pro-G Elo Best Best Yes Best Best Passive Multi
8300 series
Large		 ≥32" PCB Single/Multi USB Pro-M/Pro-F Multiple Good - Yes Good Good Active Multi
9300 series
Advanced		 22"- 32" PCB Single/Multi USB/Serial Pro-F Elo Best Best Yes Best Best Passive Multi
* PCB (Controller IC mounted on a stand alone printed circuit board), CoF (Chip on Flex - Controller IC mounted on a flex tail)

Specifications

  • Technical

    Technology

    PCAP (TouchPro® Projected Capacitive)

    Number of Touches

    Multi Touch (50)

    Input Methods

    Finger
    Passive stylus

    Dimensions

    sizes from 42" to 86"

    Light Transmittance

    ≥85% ± 3%

    Overall Thickness

    3.4mm

    Cover Glass Thickness

    2.8mm chemically strengthened; other thicknesses and tempered glass available

    Surface Treatment

    Anti-Glare
    Anti-Fingerprint
    Anti-Bacterial
    Privacy Filters
    Colored Borders
    Printed Icons

    Durability

    Over 50 million touches in one location

    Positional Accuracy

    ± 2.0mm

    Interface

    USB, I2C, Serial

    Report Rate

    >100 Hz

    Operating System

    Windows XP
    Windows 7
    Windows 8
    Linux
    Android

    Utilities

    Multiple monitor
    Various touch modes
    Touch zones

    Operating Temperature

    0°C to 60°C

    Humidity

    95% (Non Condensing)

    Safety Approvals

    UL

    Warranty

    2-year limited warranty

    Note

    Actual technical specifications are dependent on multiple design variables including touch IC and screen size. Values above are for reference only.
