TouchPro® 8200 Series Controller
How to buy

Overview

The Elo Touch Solutions 8200 series high-performance controllers are designed to work with Elo’s Projected Capacitive (PCAP) touchscreens. The 8200 series controllers are compatible with TouchPro® Pro-G and Pro-F screens from 7" to 22".

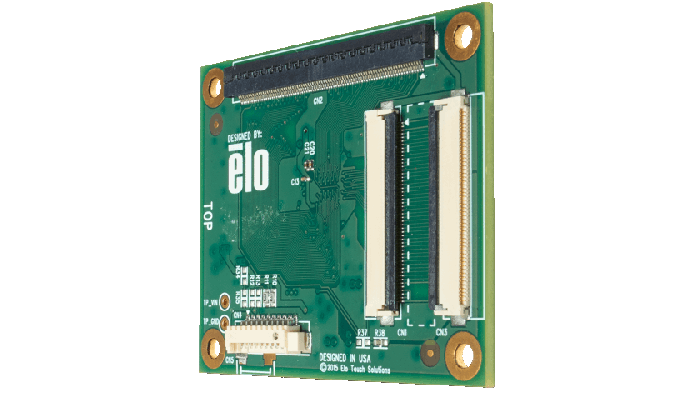

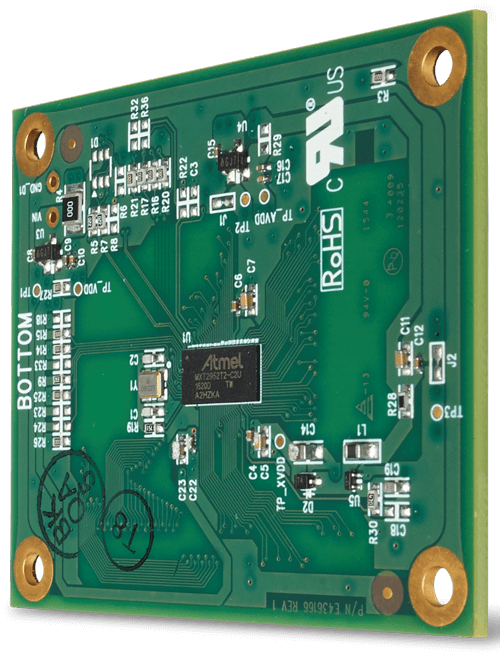

Elo TouchPro 8200 controller
Designed for simple integration

Elo’s 8200-series controllers support up to 16 touches and are offered with a dual-use connector for both USB and I2C interfaces. They are full-speed, self-powered, USB devices with Elo designed and configured firmware. The Elo driver provides for ease of installation and setup across a variety of operating systems and architectures.
Fully Optimized

The 8200-series controllers are designed to provide a high-performance touch experience when paired with Elo’s TouchPro® PCAP touchscreens. With over 40 years of experience designing touchscreens, Elo has a team of engineers dedicated to optimizing screen design and controller tuning for each application. Utilizing industry leading control ICs our controllers combine the best of mutual and self-capacitance architecture for enhanced liquid resistance and noise immunity. Options are available to support passive stylus with 1 mm tip, 6 mm thick glass, and the ability to pass 10 Volts rms conducted-susceptibility testing.

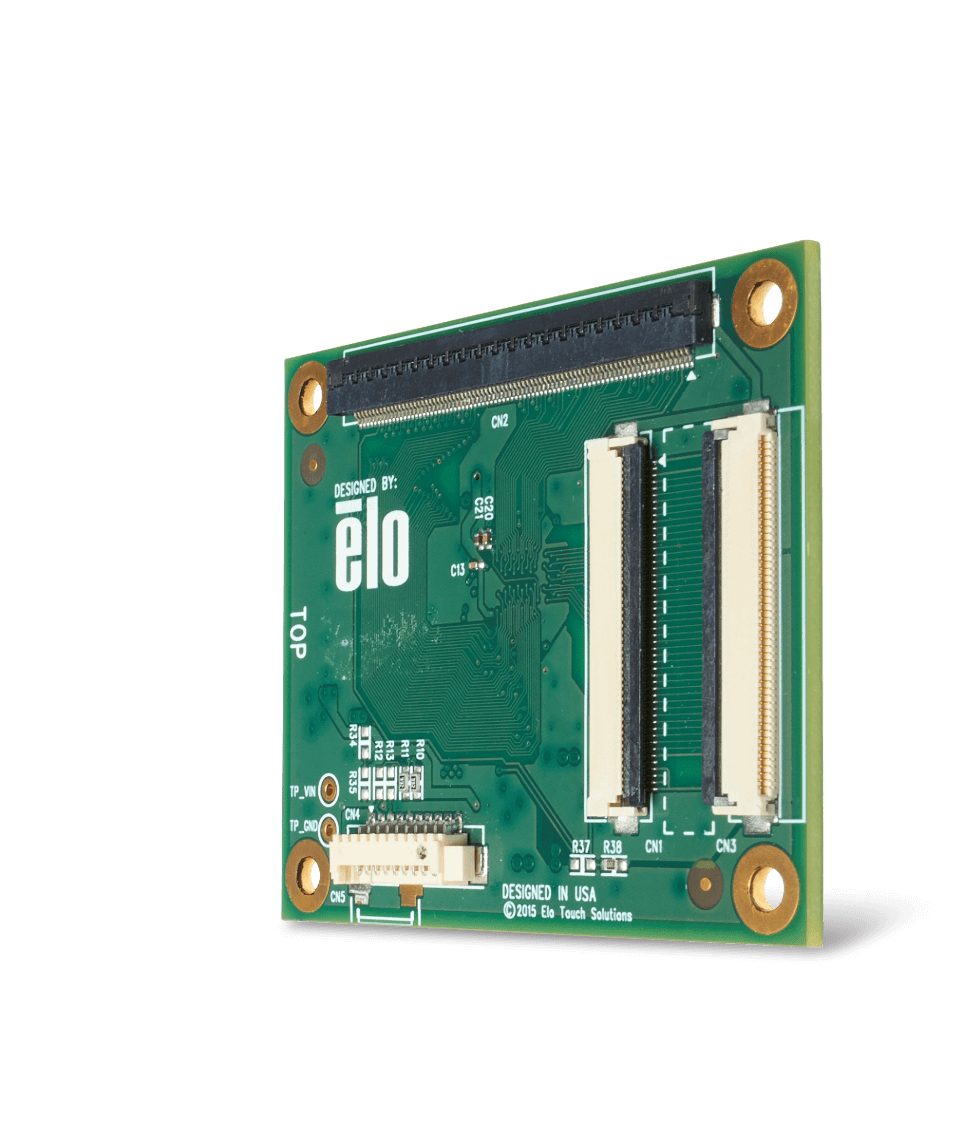

 Elo TouchPro 8200 controller

TouchPro Product Selection Table

Screen Families
Screen Families
7
10
12
15
17
19
22
24
27
32
42
46
55
Pro-F (Film)
7"- 32"
7200 series - CoF
8200 series - PCB- Core
8300 series - PCB
9200 series - PCB - Advanced
9300 series - PCB- Advanced
Pro- G (Glass)
7"- 22"
8200 series - PCB- Core
9200 series - PCB - Advanced
Pro-M (Large)
≥ 42"
8300 series - PCB- Large
Pro-F (Film)
7"- 32
7
10
12
15
17
7200 series- CoF
7
10
12
15
17
19
22
8200 series - PCB- Core
9200 series- PCB- Advanced
24
27
32
8300 series - PCB
9300 series- PCB- Advanced
Pro- G (Glass)
7"- 22"
7
10
12
15
17
19
22
8200 series - PCB- Core
9200 series- PCB- Advanced
Pro-M (Large)
≥42"
42
46
55
8300 series - PCB- Large
Controller Families
Controller Families
Screen
Size
Range		 Form
Factor*		 Flextail
Configuration		 Interface Touch
Screen
Family		 Controller
IC Make/
Model		 Fluid
Rejection		 Saline/
Salt Water
Operation		 10V RMS
CS		 Touch
Through
Glass		 Glove Stylus # of
touches
7200 series
CoF		 ≤15.6" CoF Single USB Pro-F Multiple Good - Yes Good Good Passive Multi
8200 series
Core 		7"- 22" PCB Single/Multi USB/Serial Pro-F/Pro-G Multiple Good Good Yes Good Good Passive Multi
9200 series
Advanced		 7"- 22" PCB Single/Multi USB/Serial Pro-F/Pro-G Elo Best Best Yes Best Best Passive Multi
8300 series
Large		 ≥32" PCB Single/Multi USB Pro-M/Pro-F Multiple Good - Yes Good Good Active Multi
9300 series
Advanced		 22"- 32" PCB Single/Multi USB/Serial Pro-F Elo Best Best Yes Best Best Passive Multi
* PCB (Controller IC mounted on a stand alone printed circuit board), CoF (Chip on Flex - Controller IC mounted on a flex tail)

Specifications

  • Technical

    Technology

    PCAP (TouchPro® Projected Capacitive)

    Number of Touches

    Multi Touch (16)

    Input Methods

    Finger
    Gloved hand
    Passive stylus

    Dimensions

    Elo’s 8200-series controllers have a variety of touch IC’s and form factors to choose from. Contact Elo for more details.

    Surface Treatment

    Clear

    Interface

    USB, I2C, Serial

    Positional Accuracy

    ±1.5mm

    Report Rate

    ≥ 100 Hz

    Operating Environment

    -20°C to 70°C; max 95% RH (non-condensing)

    Controller Cables

    Serial cable: P/N D16890-000
    USB cable: P/N D38640-000
    Dual serial/USB cable: P/N D40022-000

    Note

    Exact specifications vary with touch IC, configuration, and screen size. The information above represents typical values.
