TouchPro® 9200 Series Advanced Controller
How to buy

Overview

The Elo Touch Solutions 9200-series advanced PCAP controllers are designed for the most demanding industrial and commercial applications and are powered by the COACh Pro touch IC – Elo’s new advanced ASIC. In combination with our Pro-G and Pro-F touch screens from 15 inches to 21.5 inches, it delivers industry leading performance.

9200 back
Solving Difficult Industry Challenges

Users of modern consumer touch devices like smartphones are familiar with the limitations of projected capacitive technology, including the inability to recognize touches through thick gloves and inoperability with liquids on the screen or perspiring hands. This presents a significant challenge for turning PCAP into a robust solution for advanced commercial and industrial usage. The 9200 controllers’ high drive voltage and complete control of firmware enable key features such as liquid-related false touch rejection, touch recognition through gloves and support for extra thick overlays where extreme impact protection is required.
Liquid Rejection

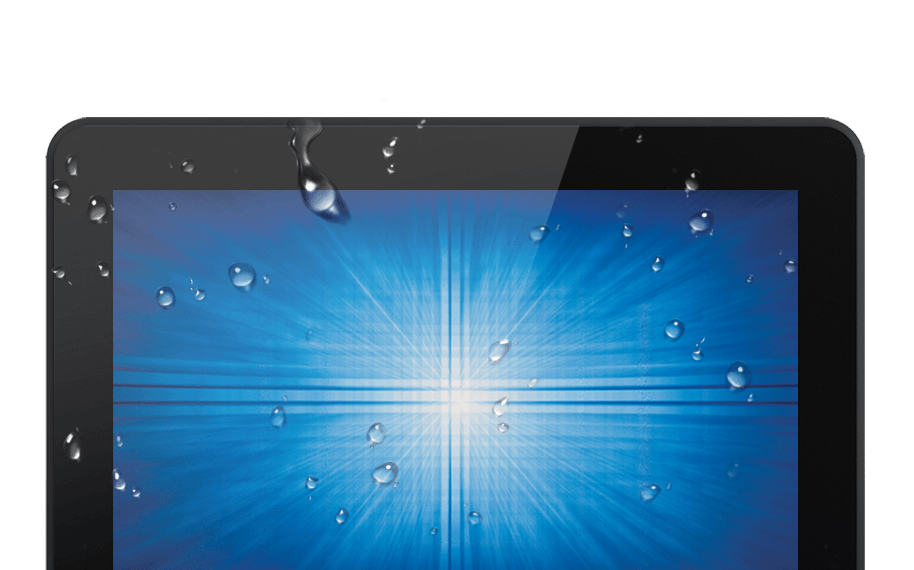

The 9200-series advanced controllers offer industry-leading liquid rejection which is often required in commercial applications like marine navigation, factory automation and healthcare. Traditionally, PCAP technology struggles to differentiate between legitimate touches and false signals caused by water, salt water, or other liquids. Elo’s new 9200-series controllers can provide a true 2-finger true multi-touch experience such as drag, pinch and zoom with 3.5% salt water coating the screen and no false touches.

 Image of item
Image of item
Advanced EMI Performance

Commercial and industrial touch applications are constantly challenged by EMI (Electromagnetic Interference) causing unwanted behaviors such as false touches. These electromagnetic fields are created internally by the equipment itself but also externally from its environment, as the device is frequently surrounded by other sources of electromagnetic noise. Our 9200-series advanced controller is designed to withstand and be immune to these sources of electromagnetic noise by utilizing a high drive voltage and other techniques including frequency hopping and advanced signal processing.
Customization for Your Application

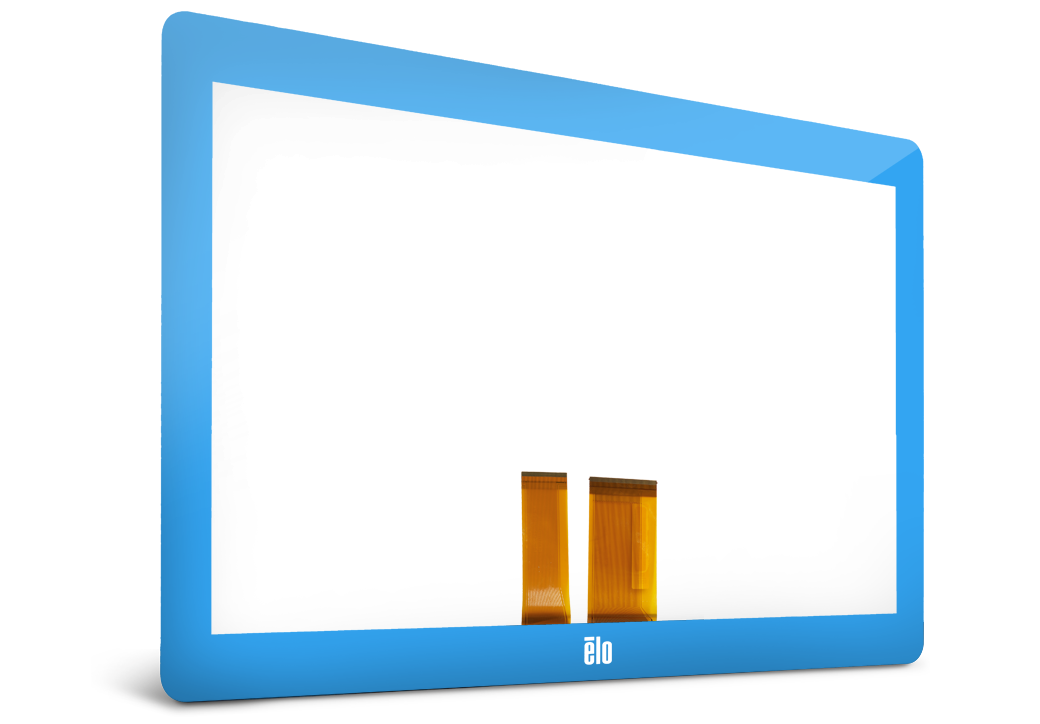

With in-house developed hardware, firmware and software for our new COACh Pro advanced touch IC, Elo can customize its features and performance to your unique application, creating an ideal partnership and opportunity for mutual success and growth in targeted markets with unique touch requirements and features.

 Image of item

TouchPro Product Selection Table

Screen Families
Screen Families
7
10
12
15
17
19
22
24
27
32
42
46
55
Pro-F (Film)
7"- 32"
7200 series - CoF
8200 series - PCB- Core
8300 series - PCB
9200 series - PCB - Advanced
9300 series - PCB- Advanced
Pro- G (Glass)
7"- 22"
8200 series - PCB- Core
9200 series - PCB - Advanced
Pro-M (Large)
≥ 42"
8300 series - PCB- Large
Pro-F (Film)
7"- 32
7
10
12
15
17
7200 series- CoF
7
10
12
15
17
19
22
8200 series - PCB- Core
9200 series- PCB- Advanced
24
27
32
8300 series - PCB
9300 series- PCB- Advanced
Pro- G (Glass)
7"- 22"
7
10
12
15
17
19
22
8200 series - PCB- Core
9200 series- PCB- Advanced
Pro-M (Large)
≥42"
42
46
55
8300 series - PCB- Large
Controller Families
Controller Families
Screen
Size
Range		 Form
Factor*		 Flextail
Configuration		 Interface Touch
Screen
Family		 Controller
IC Make/
Model		 Fluid
Rejection		 Saline/
Salt Water
Operation		 10V RMS
CS		 Touch
Through
Glass		 Glove Stylus # of
touches
7200 series
CoF		 ≤15.6" CoF Single USB Pro-F Multiple Good - Yes Good Good Passive Multi
8200 series
Core 		7"- 22" PCB Single/Multi USB/Serial Pro-F/Pro-G Multiple Good Good Yes Good Good Passive Multi
9200 series
Advanced		 7"- 22" PCB Single/Multi USB/Serial Pro-F/Pro-G Elo Best Best Yes Best Best Passive Multi
8300 series
Large		 ≥32" PCB Single/Multi USB Pro-M/Pro-F Multiple Good - Yes Good Good Active Multi
9300 series
Advanced		 22"- 32" PCB Single/Multi USB/Serial Pro-F Elo Best Best Yes Best Best Passive Multi
* PCB (Controller IC mounted on a stand alone printed circuit board), CoF (Chip on Flex - Controller IC mounted on a flex tail)

Specifications

  • Technical

    Technology

    PCAP (TouchPro® Projected Capacitive)

    Number of Touches

    Multi Touch (12)

    Input Methods

    Finger
    Gloved hand
    Passive stylus

    Dimensions

    Elo’s 9200-series controllers have multiple form factors to choose from. Contact Elo for more details.

    Interface

    USB, Serial

    Positional Accuracy

    ± 2.0mm

    Report Rate

    Up to 200Hz

    Operating Temperature

    -20°C to 70°C; max 90% RH (non-condensing)

    Note

    Exact specifications vary with touch IC, configuration, and screen size. The information above represents typical values.
