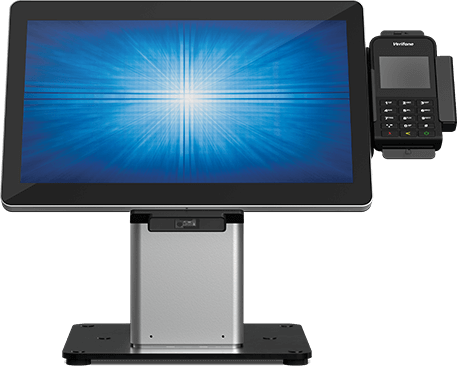

Slim Self-Service Stands
Streamline Installation of Interactive Experiences in High-Traffic Public Environments.
The Elo Slim Self-Service Stands offer a great addition to the current Wallaby Stand lineup by providing an 11% slimmer form factor for environments where space is limited. Compatible with Elo's 15" and 22" I-Series AiO touchscreens and Elo Edge Connect™ accessories, the Slim Self-Service Stands offer the flexibility to configure the solution you want. The stands come in both countertop and floor models, giving you the flexibility to tailor your Elo solution to perfectly achieve your vision for your customer experience.
The Slim Self-Service Stands create unique customer experiences including self-order, endless aisle, price verification, loyalty programs, brand experience and patient check-in.
Increase Sales & Customer Satisfaction with Self-Service
-
Increases average check size and
earn higher margins with
high-profit add-on items and
order modifiers. -
Customers control their
transactions, increasing order
accuracy while providing a
consistent experience every visit. -
Reallocate labor to optimize
costs, increase operational
efficiency and enhance the
total customer experience.

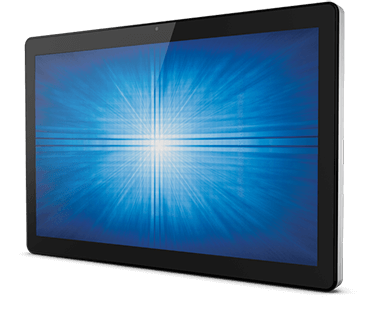

Choose Your Display
The Slim Self-Service Stands are designed to support our most popular 15 and 22-inch I-Series all-in-one computers, available in Windows or Android, and can be mounted in portrait or landscape orientation.

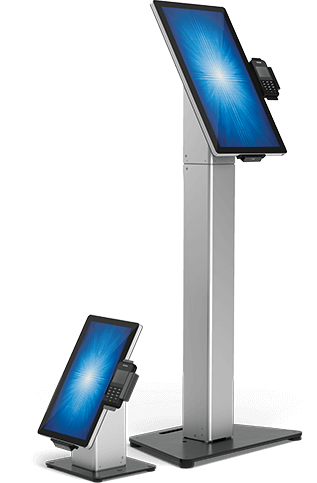

Floor Stand or Countertop Stand, You Choose!
Whether you have an existing counter or available floor space where you want to utilize self-checkout (SCO) or check-in, Elo’s Slim Self-Service Stands offer the flexibility for both.
-

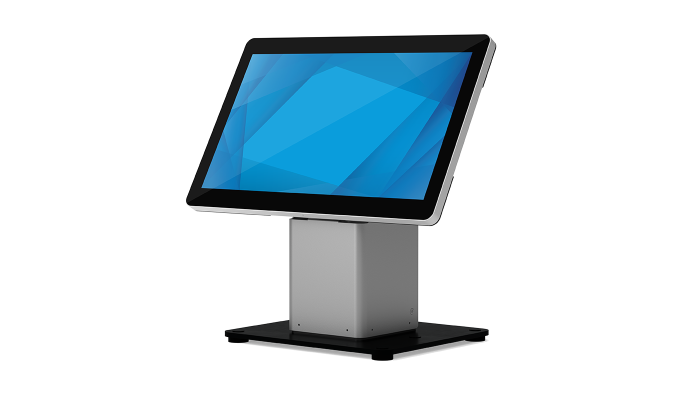

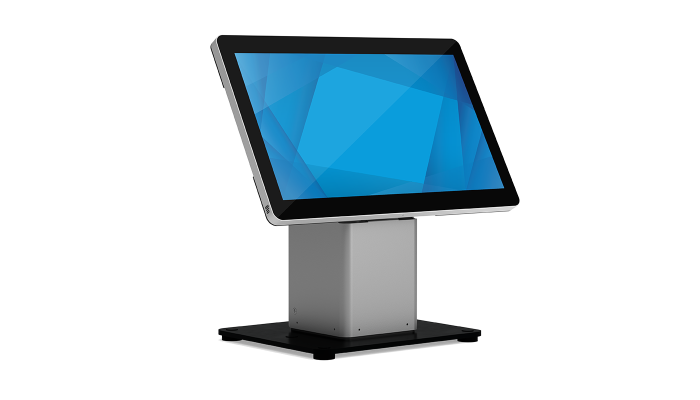

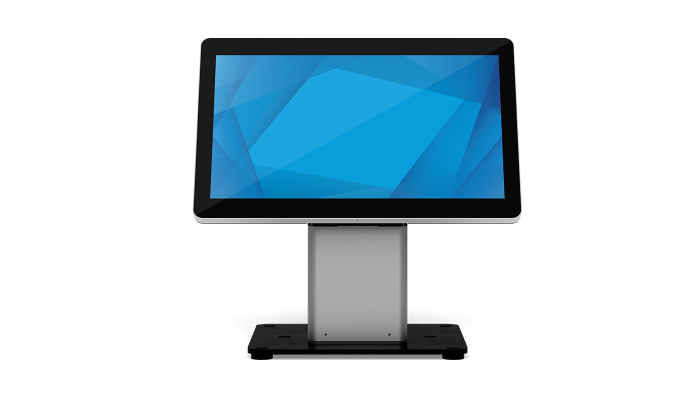

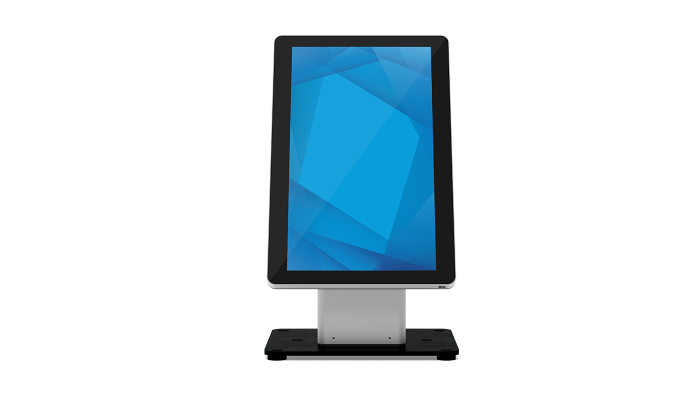

Slim Self-Service Countertop Stand
-

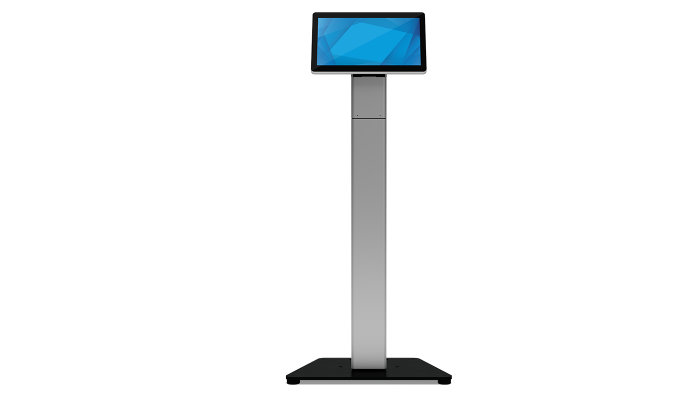

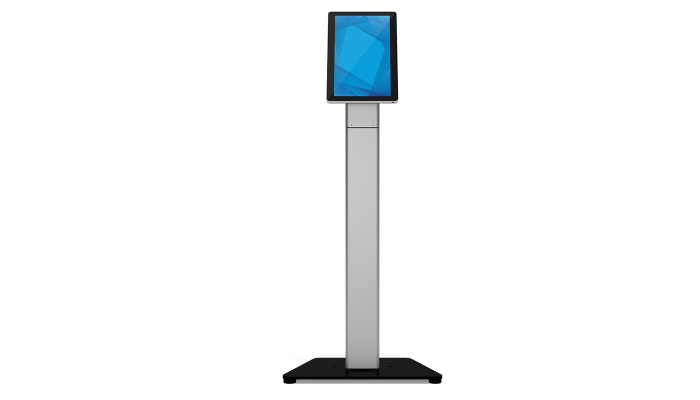

Slim Self-Service Floor Stand

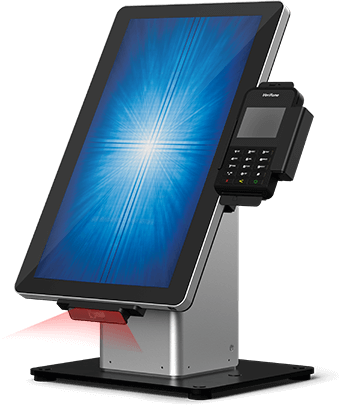

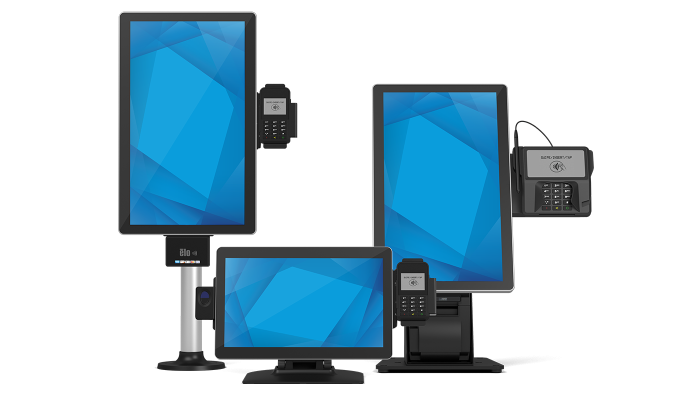

Add Your Peripherals
Built with versatility in mind, both stands offer secure, I/O cable management for peripherals and seamless attachment of up to four peripherals to the edge of the touchscreen to tailor your Elo solution to your individual needs.
-
Fingerprint
Scanner -
Status Light
Kit -
MSR
-
NFC/RFID
Reader
Get Connected
With the Slim Self-Service solutions, the I-Series can connect wirelessly with Wi-Fi 802.11
or Bluetooth 4.0, or via a wired Ethernet connection.

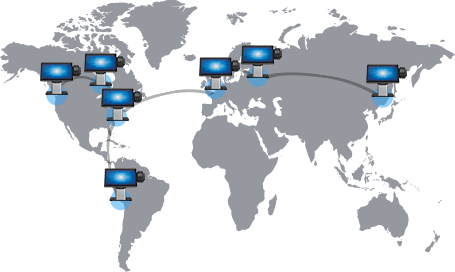

Connect & Control with EloView®
EloView allows you to deploy and securely manage your entire network of Elo Android-powered devices-from anywhere in the world. You can deploy content, manage settings and maintain the OS to reduce operating costs while increasing up-time and security. EloView's modular system is designed to integrate with your business to enable smarter content distribution and device management alongside your existing CMS platforms and MDM tools.
Experience Interactive
Self-Service With Elo
Specifications
-
Technical
Part Number(s)
Slim Self-Service Countertop Stand - E514693
Slim Self-Service Floor Stand - E514881 + E515260Enclosure Color
Black/Silver
Compatibility
Display Compatibility
Portrait and Landscape:
15” I-Series Android/Windows
22” I-Series Android/Windows
1502L Touchscreen Monitor*
2002L Touchscreen Monitor*
2202L Touchscreen Monitor*
2402L Touchscreen Monitor*
2702L Touchscreen Monitor* (portrait limited to Floor Stand only)
*requires center plate (E698263) for portrait mounting
Optional Accessories
EMV Cradle for MagTek eDynamo – Elo P/N: E375343
EMV Cradle for Verifone E355 – Elo P/N: E201088
EMV Cradle for Ingenico ICMP – Elo P/N: E200465
EMV Cradle for Ingenico RP457C with BT and USB – Elo P/N: E710930
EMV Cradle for Ingenico RP457C with Audio Jack, BT and USB – Elo P/N: E586981
MSR – Elo P/N: E001002
Barcode Reader – Elo P/N: E093433
2D Barcode Reader – Elo P/N: E926356
NFC – Elo P/N: E001004
Fingerprint Reader – Elo P/N: E001001
Webcam – Elo P/N: E275233
Status Light Kit for Standard Model I-Series 2.0 for Android – Elo P/N: E466847
Status Light Kit for Value Model I-Series 2.0 for Android – Elo P/N: E651272
Center Plate for 02-Series Monitors (required for portrait mounting) – Elo P/N: E698263Dimensions
Countertop Stand: 10.23" x 8.86" x 12.08" / 260 mm x 225 mm x 306.86 mm
Floor Stand: 21.69" x 13.78" x 46.2" / 551 mm x 350 mm x 1173.48 mm
No display installedShipping Box Dimensions
Countertop Stand: 16.54" x 11.81" x 9.45" / 420 mm x 300 mm x 240 mm
Floor Top: 50" x 11.81" x 11.02" / 1270 mm x 300 mm x 280 mm
Floor Base: 28.35" x 18.5" x 4.72" / 720 mm x 470 mm x 120 mm
No display installedWeight (Unpackaged)
Countertop Stand: 16.22 lbs / 8.02 kg
Floor Top: 33.51 lbs / 15.2 kg
Floor Base: 26.79 lbs / 12.15 kgWeight (Packaged)
Countertop Stand: 17.68 lbs / 7.36 kg
Floor Top: 39.68 lbs / 18 kg
Floor Base: 30.31 lbs / 13.75 kgOperating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%; Storage: 10% to 90%
Availability
US, Canada, EMEA, Japan, China
Warranty
2-year
ADA Compliant
Yes - software and installation must follow ADA rules
What's in the Box
Countertop Stand:
QIG
Small black tie-wrap, x3
Hook and Loop Cable Tie with Buckle, x1
Screws for Countertop Stand (refer to MS
drawing for details)
Floor Stand:
QIG
Small black tie-wrap, x3
Hook and Loop Cable Tie with Buckle, x1
Screws for Floor Stand (refer to MS drawing
for details)
Accessories
(14)
Upgrades, add-ons, and more.
15-inch I-Series for Android
with Android Open Source (2.0)
22-inch I-Series for Android
with Android Open Source (2.0)
22-inch I-Series for Windows (1.0) (Discontinued April 2020)
15-inch I-Series for Windows (1.0) (Discontinued April 2020)
X-Series 15-inch AiO Touchscreen Computer (Rev B) (Discontinued March 2020)

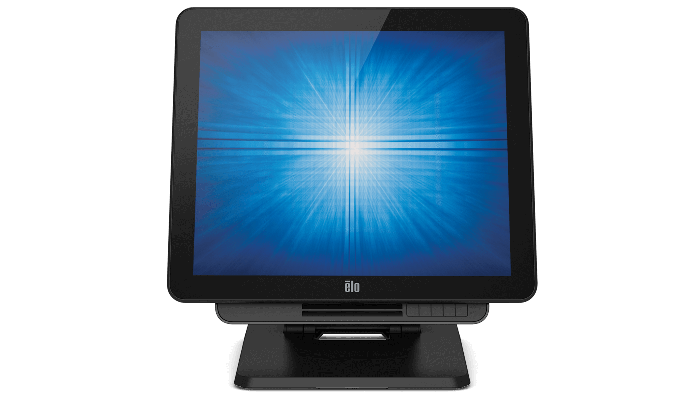

X-Series 17-inch AiO Touchscreen Computer (Rev B) (Discontinued March 2020)

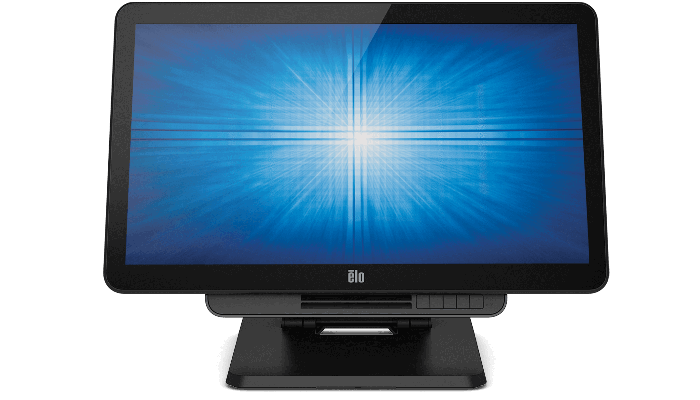

X-Series 20-inch AiO Touchscreen Computer (Rev B) (Discontinued March 2020)
EMV Cradles

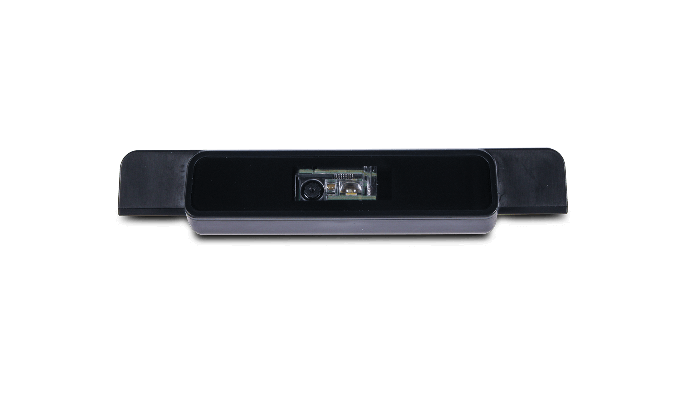

2D Barcode Scanner (Gen 1)
Elo Edge Connect™ Magnetic Stripe Reader (MSR)
NFC/RFID (Replaced by new RFID)
Fingerprint Reader (Replaced by updated Fingerprint Scanner)
1D Barcode Reader (Gen 1 - Replaced by 2D Barcode Scanner)

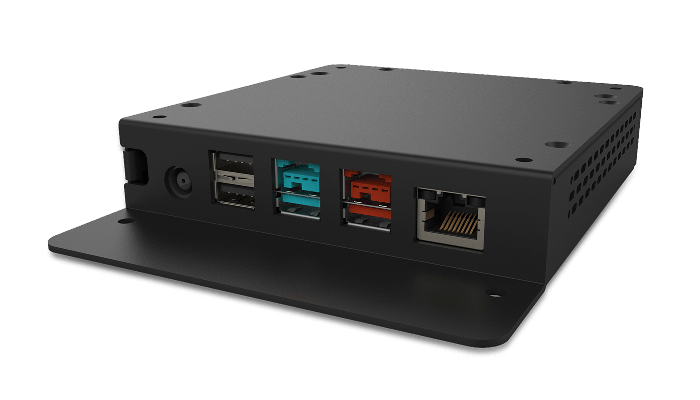

Expansion Module for Android (Gen 1)
