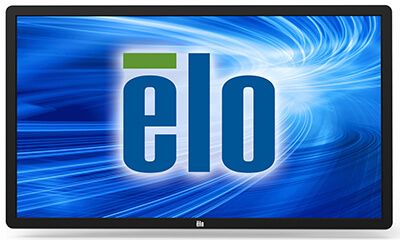

5500L 55" Interactive Digital Signage (Discontinued June 2015)
How to buy

Overview

The thin profile Elo 5500L Interactive Digital Signage (IDS) display combines a precision touchscreen with a professional-grade, large format LCD panel. The 5500L offers System Integrator, Value-Added Resellers and Software Developers a high-performance touch solution for interactive digital displays in high traffic environments.

The 55" 5500L is part of a family of large-format touch displays which bring interactivity to digital signage. The 5500L features a choice of two sensitive, accurate touchscreen technologies, each with pure-glass construction for visual clarity: Optical touchscreen provides multi-touch (up to 4 touches) and gesture support (Microsoft® Windows 7 required); IntelliTouch® single-touch surface acoustic wave (SAW) touchscreen stands out for consistent reliability

The display is housed in a highly durable steel chassis for a long life of reliable and durable performance in almost any public access location. Optical multi-touch touchscreen technology recognizes touch with a finger, gloved hand, stylus, card or pen while the IntelliTouch touchscreen recognizes touch by a finger, gloved hand, or virtually any soft stylus. With these touchscreen technologies, the result is an efficient display canvas for almost any commercial application. In addition, the 5500L sports a thinner profile (4.8") and an LED-based LCD panel which reduces power consumption and heat output.

Optional high performance computer modules are well-suited for running interactive media and are available with a choice of three processing models: ECM1 with the Intel Celeron Dual-Core 2.2GHz, ECM2 with the Intel Core 2 Duo 3.0GHz and ECM3 with the Intel Core i5 2.5GHz. The computer modules are field-installable, easily sliding into a dedicated bay behind the touch display and locking into place with two thumbscrews. These modules make the 5500L a reliable platform that is inter-operable with content management servers and support optimal partitioning of locally cached and network stored content.

Other features.
  • Pure-glass display surface delivers crystal clear images
  • VESA mounting with optional stand
  • Aspect ratio 16:9
  • True High Definition (HD) 1080p (1920 x 1080)
  • Seamless, field installable, computer module, docking integration
  • Heat strengthened glass per ASTM C1048; UL60950 ball drop test compliant
  • Analog VGA and HDCP-capable HDMI 1.3, video
  • Two 10W speakers
  • Housed in a highly durable steel chassis for a long-life of reliable performance

Specifications

  • Technical

    Part Number(s)

    IntelliTouch (USB, Clear, Americas, Asia-Pacific, EMEA) - E053414
    Optical (USB, Clear, Americas, Asia-Pacific, EMEA) - E891542

    Enclosure Color

    Black

    Touch Technology & Capacity

    SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch
    Optical - Up to 6 Touch

    Diagonal Size

    54.6'' diagonal, Active matrix TFT LCD (LED)

    Active Area

    47.6" x 26.8" / 1210 mm x 680 mm

    Aspect Ratio

    16:9

    Resolution

    1920 x 1080

    Other Supported Resolutions

    640x480 60Hz
    720x480 60Hz
    720x576 50Hz
    800x600 56, 60Hz
    1024x768 60Hz
    1280x720 50, 60Hz
    1280x960 60Hz
    1280x1024 60Hz
    1360x768 60Hz (does not scale; image is centered on panel and the remaining active area is filled with black)
    1366x768 60Hz
    1440x900 60Hz
    1680x1050 60Hz
    1920x1080 60Hz

    Viewing Angle

    Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

    Number of Colors

    1073.7 million

    Brightness (typical)

    LCD Panel: 450 nits
    IntelliTouch: 405 nits
    Optical: 405 nits

    Response Time-total (typical)

    6.5 msec

    Contrast Ratio

    4000:1

    Touch Interface

    USB

    On Screen Display

    Controls: Menu, Up, Down, Select, Power
    Settings: Brightness, Contrast, Clock, Phase, Auto-Adjust, H-position, V-position, Maintain Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Mounting, OSD H-Position, OSD V-Position, Volume, Mute, Recall Defaults, Video Source, Audio Source
    Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
    Lockouts: OSD, Power

    I/O Ports

    COM1 and COM2 - Software specific; for future use

    Input Video Format

    Analog VGA and HDCP-capable HDMI 1.3 video

    Input Video Signal Connector

    Female DE-15 for Analog VGA
    HDMI Type A receptacle for HDMI

    Audio Input Connector

    3.5 mm TRS jack

    Audio Input Signal Range

    1 Vrms max. stereo signal (standard PC line out)

    Headphone Output Connector

    3.5 mm TRS jack

    Headphone Output Signal

    Delivers 90 mW of power into a 32-ohm stereo load

    Speakers

    Two 10W RMS speakers

    Power Supply

    Type: Internal AC

    Input Connector

    IEC 60320 C14

    Input Voltage

    100 - 240 VAC, 50 / 60 Hz

    Input Frequency

    Horizontal: 32 - 80 kHz / Vertical: 48 - 62 Hz

    Power Consumption (Typical)

    Monitor only (at 100V/60Hz):
    ON, max audio: 145W; SLEEP: 15W; OFF: 3.5W

    Monitor with ECM1 Computer Module (at 100V/60Hz):
    S0 – ON, max audio
    100% CPU load: 238W; S3 – STANDBY: 17W; S5 – OFF: 13.2W

    Monitor with ECM2 Computer Module (at 100V/60Hz):
    S0 - ON, max audio
    100% CPU load: 268W; S3 – STANDBY: 17W; S5 – OFF: 13.2W

    Dimensions

    50.8" x 30.0" x 4.8" / 1290 mm x 762 mm x 122 mm

    Shipping Box Dimensions

    57.1" x 38.2" x 14.2" / 1450 mm x 970 mm x 360 mm

    Weight (Unpackaged)

    Without computer module: 88.7 lbs / 40.3 kg
    With computer module: 94.4 lbs / 42.9 kg

    Weight (Packaged)

    Without computer module: 119.5 lbs / 54.3 kg

    Operating Temperature

    0°C to 40°C / 32°F to 104°F

    Storage Temperature

    -20°C to 50°C / -4°F to 122°F

    Humidity

    Operating: 20-80%
    Storage: 10-90%
    noncondensing

    Mounting Options

    VESA MIS-F, 600 x 400, Y, 6, 90

    MTBF

    50,000 hours demonstrated

    Warranty

    3-year

    Regulatory approvals and declarations

    CB, UL, cUL, FCC, CE, VCCI, IC, C-TICK, S-Mark, CCC, Russia & CIS GOST, NOM, KC, BSMI

    Optional Accessories/Peripherals

    IntelliTouch SAW Stylus pen - Elo P/N: D82064-000
    Computer Module - 2.2 GHz ECM1 Windows XP - Elo P/N: E370690
    Computer Module - 3.0 GHz ECM2 Windows XP - Elo P/N: E268268
    Computer Module - 2.2 GHz ECM1 NO OS - Elo P/N: E587119
    Computer Module - 3.0 GHz ECM2 NO OS - Elo P/N: E057911
    Computer Module - 2.2 GHz ECM1 Windows 7 - Elo P/N: E077771
    Computer Module - 3.0 GHz ECM2 Windows 7 - Elo P/N: E588755
    Computer Module - 2.5 GHz ECM3 Windows 7 - Elo P/N: E518070
    Computer Module - 2.5 GHz ECM3 NO OS - Elo P/N: E694079
    Replacement Cable Kit - EMEA: Elo P/N: E414311
    Replacement Cable Kit - Japan: Elo P/N: E545338
    Replacement Cable Kit - Asia-Pacific: Elo P/N: E914104
    Replacement Cable Kit - North America: Elo P/N: E998924
    OSD Control Box - Elo P/N: E622897
    4GB RAM Kit - Elo P/N: E331130
    Webcam - Elo P/N: E828885 and Elo P/N: E574975
    Stand - Elo P/N: E448725.
