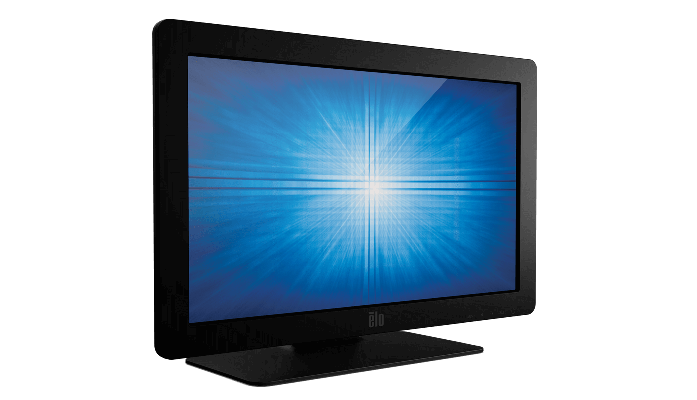

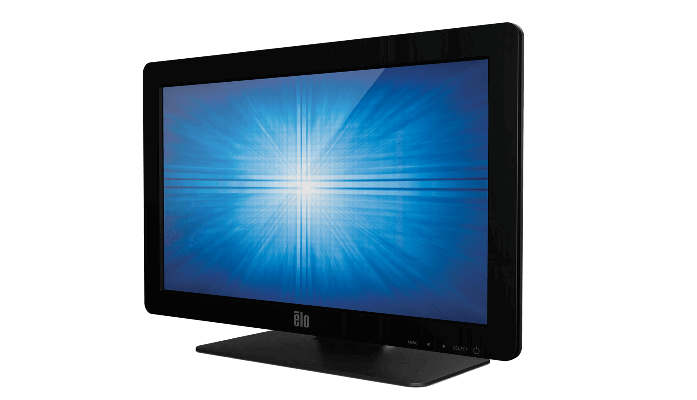

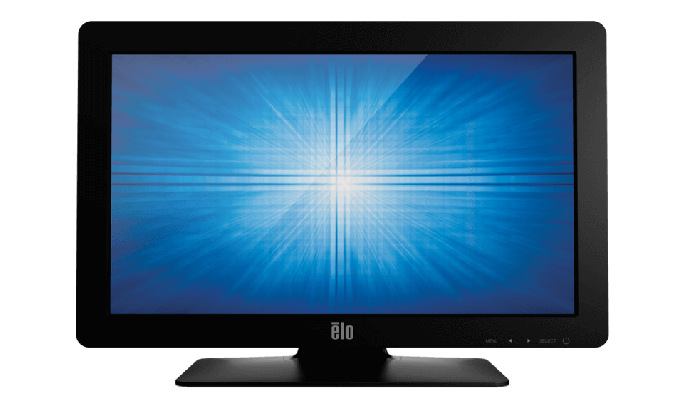

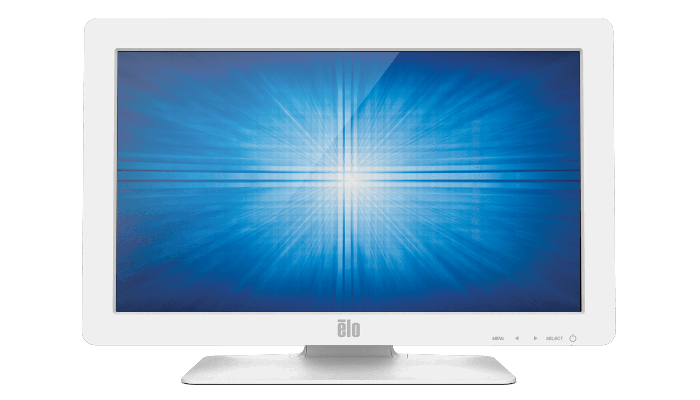

2401LM 24" Touchscreen Monitor (Discontinued February 2019)
Overview

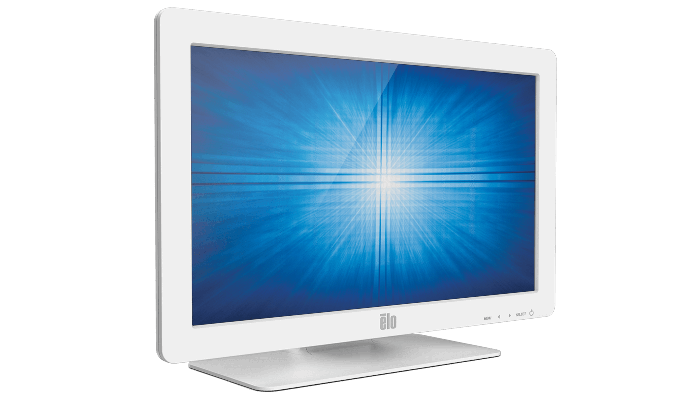

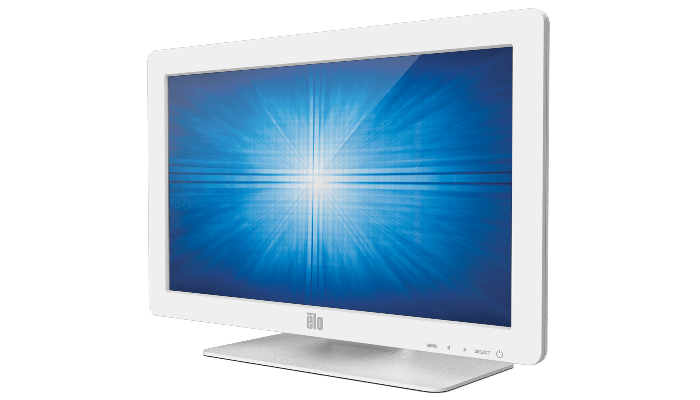

Elo 2401LM 24-inch touchscreen monitor delivers an interactive solution for healthcare professionals and patients. The feature rich, 2401LM 24-inch touchscreen monitor offers professional-grade, best-in-class optical performance with Elo’s industry-leading touch technology that was designed for medical professionals that demand reliability and input flexibility. Compliant with multiple safety and electrical certifications, the clean white design of the 2401LM is equipped with a USB and RS232 combination touch controller, built-in audio amp and speakers, VGA, and DVI, video connectors all with a three-year warranty.

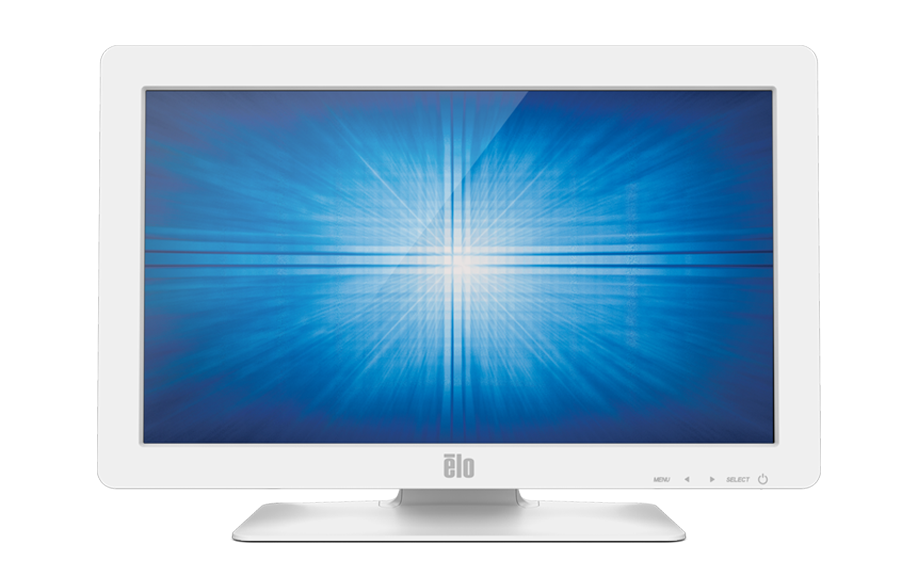

Healthcare compliant.The 2401LM is compliant with multiple safety and electrical certification standards, including IEC/EN 60950-1 and IEC/EN 60601-1 for safety and EN 55011, EN 55022, EN 55024 and IEC/EN 60601-1-2 (3rd Edition) for EMC. Equipped with an LED backlit state-of-the-art LCD panel, the monitor is environmentally friendly with reduced power consumption. |
 |
 |

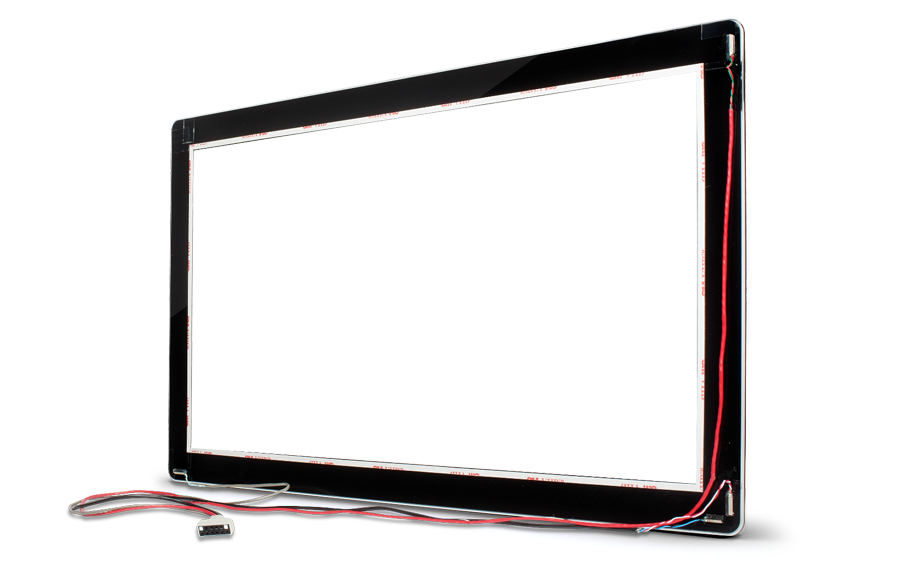

Integrated touch.The 2401LM features IntelliTouch® surface acoustic wave (SAW) technology with single touch functionality providing a stable drift-free touch response, and outstanding image clarity and resolution. |

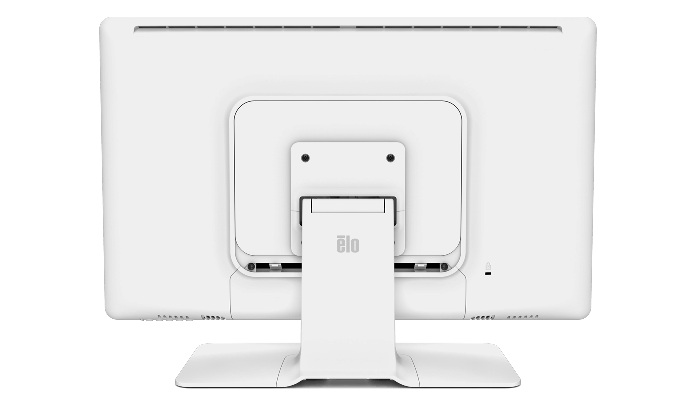

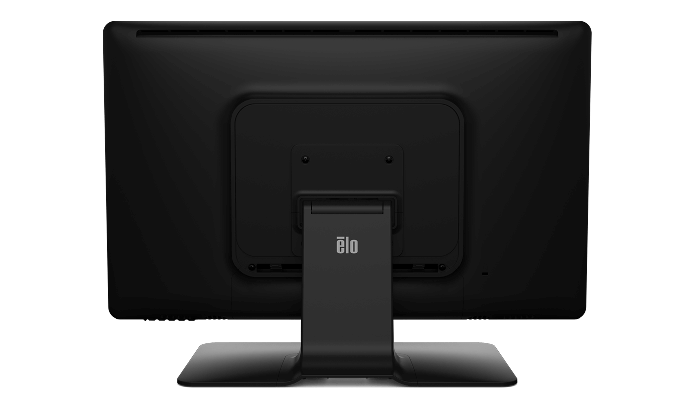

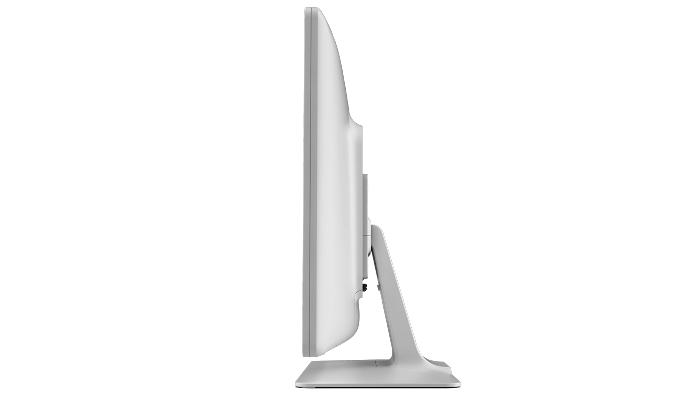

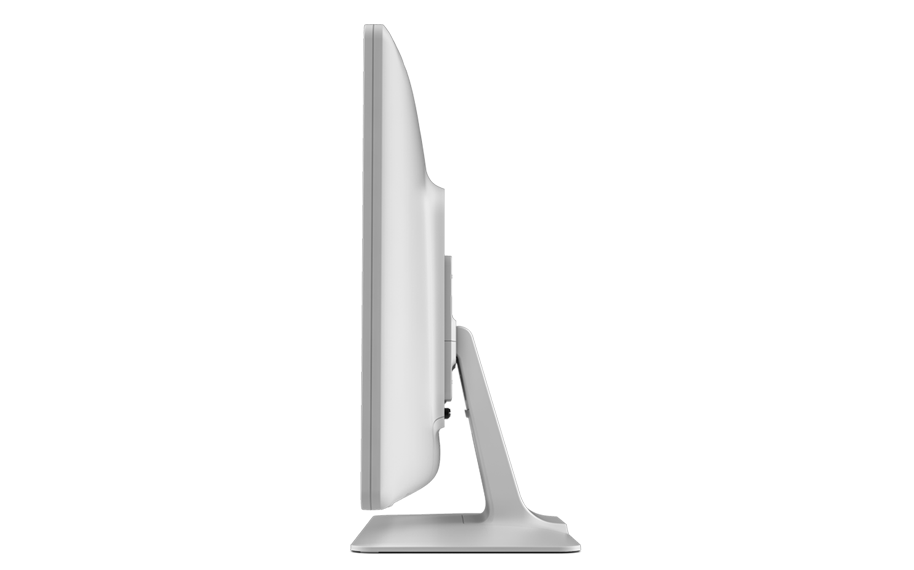

Functional design.Having been designed for touch from the start, the 2401LM features a stable stand with tilting functionality, VESA mount, cable management and cable fastening features to prevent accidental disconnection, OSD controls with lockout capability and a IPx1 drip-resistant housing. |
 |
 |

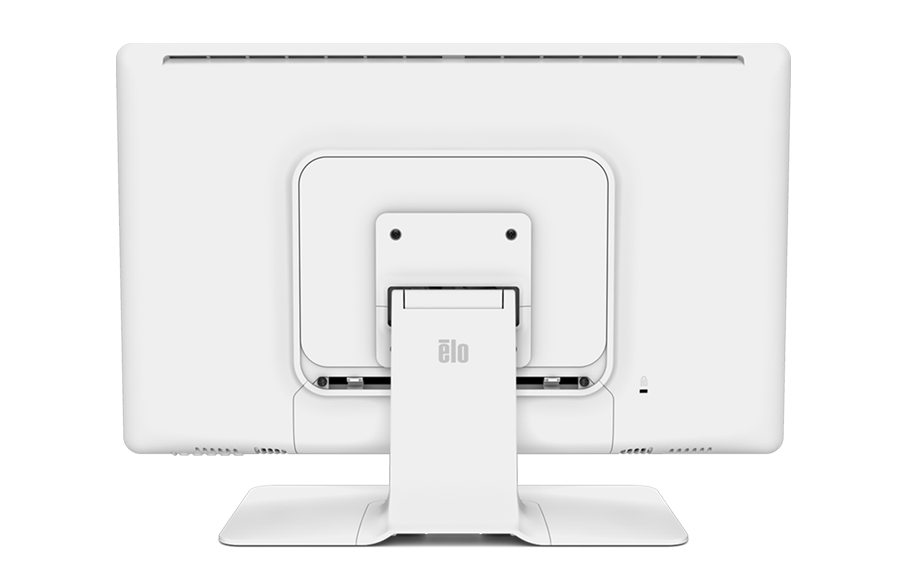

Commercial grade.The 24-inch touchscreen monitor delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF. |
Other features.
- High quality panel, wide viewing angles, and high contrast ratio provides best-in-class optical performance
- USB and serial touch interface VGA and DisplayPort 1.1 Video interface allows connectivity to new and legacy systems
- On board audio amp and speakers positions sound signals nearby user interface
- High quality panel, wide viewing angles, and high contrast ratio
- Pure-glass touchscreen with SAW technology
- Energy savings by using LED technology
- Recognized by public health authorities in most countries as the safety standard for certain medical electrical equipment
- Three-year standard warranty
Specifications
-
Technical
Part Number(s)
IntelliTouch White (Worldwide) - E263686
IntelliTouch Black (Worldwide) - E000140Enclosure Color
White or Black
Touch Technology & Capacity
SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch
Diagonal Size
24'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
16:9
Active Area
20.9" x 11.7" / 531.4mm x 298.9mm
Resolution
1920 x 1080 at 60 Hz
Other Supported Resolutions
640 x 350 @ 70 Hz
720 x 400 @ 70 Hz
640 x 480 @ 60, 72 & 75 Hz
800 x 600 @ 56, 60 Hz & 72 Hz
832 x 624 @ 75 Hz
1024 x 768 @ 60, 70 & 75 Hz
1280 x 800 @ 60 Hz
1280 x 960 @ 60 Hz
1280 x 1024 @ 60 Hz & 75 Hz
1360 x 768 @ 60 Hz
1440 x 900 @ 60 Hz
1600 x 1200 @ 60 Hz
1680 x 1050 @ 60 HzViewing Angle
Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Number of Colors
16.7 million
Brightness (typical)
LCD panel: 300 nits
IntelliTouch: 270 nitsResponse Time-total (typical)
25 msec
Contrast Ratio
3000:1
Input Video Format
Analog VGA, DVI
Input Video Signal Connector
Mini-D-sub 15-pin VGA type; DVI-D connector for digital video input
Audio Input Connector
3.5mm TRS jack
Audio Input Signal Range
0.5V rms maximum stereo signal
Power Supply
Internal AC
Input Voltage
12 VDC +/- 0.5V
Input Connector
Coaxial power jack (2.5 mm pin diameter, 6.3 mm barrel diameter, 9.5 mm barrel length)
Adapter Input Connector
IEC 60320 C14
Adapter Input Voltage Range
100 - 240 VAC, 50 - 60Hz
Power Consumption (Typical)
32W
Speakers
Two x 1W internal speakers
On Screen Display
Controls: Menu, Up, Down, Select
Settings: Brightness, Contrast, Phase, Clock, H-Position, V-Position, Auto-Adjust, Maintain Aspect Ratio, Sharpness, Video Source, Color Temperature, OSD Timeout, OSD Language, OSD Rotation, Volume, Mute, Recall Defaults
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, PowerMonitor Dimensions (with Stand)
23.9" x 14.6" x 2.4" / 606mm x 373mm x 61mm
Shipping Box Dimensions
28" x 10.5" x 20" / 711mm x 267mm x 508mm
Weight (Unpackaged)
19.4 lbs / 8.8 kg
Weight (Packaged)
29 lbs / 13.2 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%; Storage: 10% to 90%
Sealability
Touchscreen sealed to bezel; Touchscreen sealed to LCD
MTBF
50,000 hours demonstrated
Mounting Options
With provided stand (on flat surface or bolted to surface via holes in base) in landscape; 100mm VESA rear-mount
Warranty
3-year
Extended Service Options
1 Year Extended Warranty - Elo P/N: E188404
2 Year Extended Warranty - Elo P/N: E572038
Elo Advance Unit Replacement (AUR) - Elo P/N: E67295-000Regulatory approvals and declarations
L, cUL, CE EN/IEC 60601-1 3rd ed., FCC Class B, VCCI, C-Tick, KC, GOST, BSMI, CCC, China RoHS, IPX1
Elo Declarations: RoHS, WEEE, CEReplacement DC Power Supply
Elo P/N: E448370
For monitors with older 4-pin Mini Din connectors - replacement medical grade power adapter - Elo P/N: E000648AC Power Cable
US medical and EMEA AC power cables are included with every monitor.
EMEA: E690013
North America: E450339
China: E030476
Taiwan: E637694
Japan: E849156
3-pin to 2-pin adapter: E351985
UK: E235317Optional IntelliTouch Stylus Pen
Stylus pen with rubber tip, designed specifically for use with IntelliTouch SAW touch technologies. Part number D82064-000, available at additional cost.
