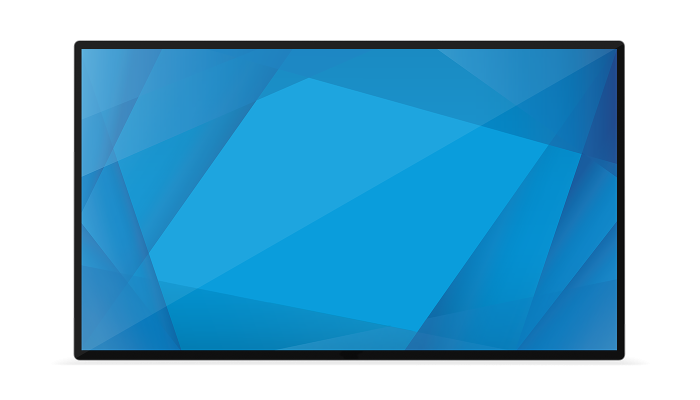

5553L 55" (4K) Interactive Digital Signage
Elo's 5553L Interactive Display
Elo's 55-inch, 4K touchscreen display adds interactivity to any environment. Perfect for everything from endless aisle and brand experiences to collaborative meetings, conferencing and whiteboarding, the 5553L offers a sleek, slim design built to withstand the rigors of continuous commercial use. Easily turn the display into a powerful, 55-inch, all-in-one, life-size tablet by adding an Elo computer module. Available with either PCAP (with anti-glare or clear glass with anti-friction) or infrared (with anti-glare) touch technologies, the professional-grade, large-format display integrates easily into any environment.

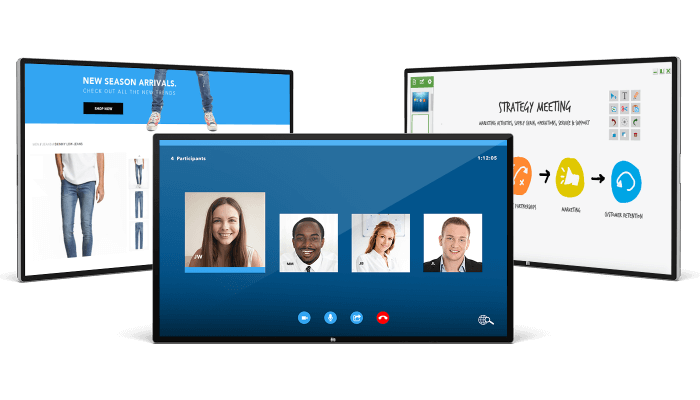

Interactive Signage or Collaboration: You Choose
Whether you are looking for an interactive display for a department store, restaurant or corporate
environment, Elo's 5553L offers the flexibility for a variety of applications. Explore how the
5553L can support both collaboration and interactive signage installations.
- 5553L For Collaboration
- 5553L For Signage
Collaboration for all Environments
Not only do high-traffic environments demand interaction, but conference and huddle rooms do as well. Interactive displays expand
collaboration capabilities between the presenter and his or her audience, helping deliver concepts beyond what a whiteboard
and dry erase marker can do.
-
Learning
& Development -
White Boarding
& Markup -
Collaborative
Video Conferencing -
Presentations
-
Meeting Room
Management
Video Conferencing
Designed for conference and huddle rooms, the Conference Camera delivers full HD video with wide viewing angles, an adjustable slider and 30° tilt that supports both vertical and horizontal adjustment. Choose whether you want to mount it on the top or on the side of your interactive display and simply attach, orient the camera and you’re ready to start your meeting.
The Conference Camera is compatible with all major web conferencing applications, including Microsoft Teams, Zoom, Cisco Webex, GoToMeeting and BlueJeans.
Whiteboarding Ready
The user-friendly annotation and whiteboarding software provides corporate environments with a full set of features— from multi-user writing and drawing to handwriting recognition, graphical input and full multi-media integration and capture, the 5553L has the durability your environment demands. Choose between a stylus or your finger and start collaborating.
Add Windows Computing
Power with Ease
The commercial-grade computer module transforms Elo's touchscreen into a powerful, all-in-one, touch computer platform with compatibility with most content-management servers. Running Intel® Core™ 7th-Generation CPUs and enhanced graphics engine, the ECMG4s make field installation and maintenance easy with no external cables required.
Start Managing Your
Devices Smarter
The Elo Backpack® is an Android powered compute engine capable of transforming Elo touchscreens into an affordable, scalable, single-architecture media platform. With its simplified content-delivery and remote-management capabilities via the EloView® portal, the Backpack provides a low-power, solid-state, fan-less computing solution with the capability to simplify deployments and remotely manage kiosks out-of-the-box.
* Supports a maximum resolution of 1920x1080
Elo EssentialEdge™ for Android
Are you looking for ways to make your digital transformation faster, easier and more affordable? Elo EssentialEdge for Android offers everything you need to build and operate interactive solutions for your business. With easy-to-use development kits, robust management tools, world class life cycle management and security, Elo can help you deliver the convenience and familiarity of Android interfaces in a secure, business-friendly way.
EloCare Advance Unit Replacement - We Have Your Back.
As part of the three-year standard warranty for large format IDS, Elo offers complimentary advance unit replacement to cover you in the unfortunate event your device requires service. If the issue can't be resolved over the phone, Elo will provide a replacement unit and a pre-paid shipping label for the defective unit to be returned at no cost. Elo also offers rapid response times and On-Site Exchange for large format interactive displays at additional cost.
Commercial-Grade Products Designed for
Commercial-Grade Environments
-
Backed by our 3-year standard
warranty with an optional
extension to 4 or 5-years. -
Compliant with ADA and IBC
requirements for protrusion
when mounted to a wall with an
Elo low-profile mount. -
Purpose-built
for touch -
Compliant with UL-60950 &
IK-07 impact testing -
Ready for use 24/7 in high
traffic environments -
Advance Unit Replacement
included with standard warranty. -
External control for
remote management -
Free Technical Support with
standard warranty
Immerse Yourself in Your Experiences
Elo's IDS product line offers versatility across environments. From retail and entertainment to healthcare and corporate offices, the 5553L is an excellent choice to meet the demands of continuous public use.
-
Retail
-
Hospitality
-
Restaurant
-
Entertainment
-
Healthcare
Interactive Digital Signage In Retail
The Elo touchscreen is highly reactive and beautiful. There's a
'wow' moment when customers get to see and explore the
possibility of their dream closet on a large interactive display.
Lisa Gold
Director of Showroom Design, California Closets
Elo Edge Connect™ Lets You do More
Expand your touchscreen’s potential by adding an EMV reader, NFC/RFID, MSR, barcode reader or one of our many other
accessories. With the Elo Edge Connect system, accessories snap on to the edge of the touchscreen for a clean design and
extended functionality. Easily add any combination of up to four Edge Connect
products—configuration is up to you and easily changed at any time.
-
Barcode
Scanner -
EMV
Cradle -
MSR
-
NFC/RFID
Reader -
Fingerprint
Scanner -
Webcams
* optional accessories to expand your interactive touchscreen experience.
Add Windows Computing
Power with Ease
The commercial-grade computer module transforms Elo's touchscreen into a powerful, all-in-one, touch computer platform with compatibility with most content-management servers. Running Intel® Core™ 7th-Generation CPUs and enhanced graphics engine, the ECMG4s make field installation and maintenance easy with no external cables required.
Start Managing Your
Devices Smarter
The Elo Backpack® is an Android powered compute engine capable of transforming Elo touchscreens into an affordable, scalable, single-architecture media platform. With its simplified content-delivery and remote-management capabilities via the EloView® portal, the Backpack provides a low-power, solid-state, fan-less computing solution with the capability to simplify deployments and remotely manage kiosks out-of-the-box.
* Supports a maximum resolution of 1920x1080
Elo EssentialEdge™ for Android
Are you looking for ways to make your digital transformation faster, easier and more affordable? Elo EssentialEdge for Android offers everything you need to build and operate interactive solutions for your business. With easy-to-use development kits, robust management tools, world class life cycle management and security, Elo can help you deliver the convenience and familiarity of Android interfaces in a secure, business-friendly way.
EloCare Advance Unit Replacement - We Have Your Back.
As part of the three-year standard warranty for large format IDS, Elo offers complimentary advance unit replacement to cover you in the unfortunate event your device requires service. If the issue can't be resolved over the phone, Elo will provide a replacement unit and a pre-paid shipping label for the defective unit to be returned at no cost. Elo also offers rapid response times and On-Site Exchange for large format interactive displays at additional cost.
Commercial-Grade Products Designed for
Commercial-Grade Environments
-
Backed by our 3-year standard
warranty with an optional
extension to 4 or 5-years. -
Compliant with ADA and IBC
requirements for protrusion
when mounted to a wall with an
Elo low-profile mount. -
Purpose built
for touch -
Compliant with UL-60950 &
IK-07 impact testing -
Ready for use 24/7 in high
traffic environments -
Advance Unit Replacement
included with standard warranty. -
External control for
remote management -
Free Technical Support with
standard warranty
Specifications
-
Technical
Part Number(s)
Infrared (with anti-glare) - E628244
TouchPro PCAP (with anti-glare) - E628053
TouchPro PCAP (clear with anti-friction) - E914973Enclosure Color
Black
Touch Technology & Capacity
PCAP (TouchPro® Projected Capacitive) - 40 Touch
Infrared - 20 TouchDiagonal Size
54.6'' diagonal, Active matrix TFT LCD (LED)
Active Area
47.62" x 26.79" / 1209.6 mm x 680.4 mm
Aspect Ratio
16:9
Resolution
3840 x 2160 @ 60hz
Other Supported Resolutions
640 x 480 60Hz
720 x 480 60Hz
720 x 576 50Hz
800 x 600 56/60Hz
1024 x 768 60Hz
1280 x 720 50, 60Hz
1280 x 960 60Hz
1280 x 1024 60Hz
1366 x 768 60Hz, 60Hz RB
1440 x 900 60Hz, 60Hz RB
1680 x 1050 60Hz, 60Hz RB
1920 x 1080 50, 60Hz
3840 x 2160 60Hz – Native resolutionViewing Angle
Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Number of Colors
10-bit (1.07 billion)
Brightness (typical)
LCD Panel: 500 nits
IR: 450 nits
TouchPro PCAP: 430 nitsResponse Time-total (typical)
8 msec
Contrast Ratio
1100:1
On Screen Display
Let’s Get Started: Language Selection, Time Setting, Time Zone
Video Source Select: HDMI-1, HDMI-2, HDMI-Side, DisplayPort, Internal-PC, Conference
Video Settings: Video Port Discovery, Brightness, Contrast, Black Level, Sharpness and Aspect Ratio can be selected
Color Settings: Color Temperature, Color Sensor, User Preset (for color), Picture Modes and HDMI Full Range are available in this menu
Audio Settings: Audio Output, Mute, Volume selection are available here
Power: Power Loss Behavior, Power Lock, Energy Star Mode, Power Savings Light options are available here
Time: Time Set, On/Off Schedule
OSD Settings: Recall Defaults, OSD Timer, OSD Language, OSD Lock and OSD Portrait Rotation
Information: Monitor, Temperature and Help & Support are available here
Conference: Screen Share Enable, Conference Hub Power Behavior
See user manual for full details.I/O Ports
Back:
HDMI x2
USB 3.0 Type B
RJ45 OSD Remote
DISPLAYPORT 1.4
3.5mm TRS jack for Serial RS232
3.5mm Audio Headphones Line-out
Side:
HDMI x1
USB 3.0 Type A
Power Button
Video Source Selection
On Screen Display ButtonVideo
3x HDCP-capable HDMI on Type A connector
DisplayPort 1.4 connector
Input Video Horizontal Sync frequency range: 121.8 - 140 KHz
Input Video Vertical Sync (frame rate) frequency range: 47 - 63 HzHeadphone Output Connector
3.5 mm TRS jack
Speakers
2 x 10 W stereo speakers
Power
Input power connector: IEC 60320-C13
Input power signal specifications: 100-240VAC 50/60HzMaximum Operating Time
24 hours/day
Power Consumption (Typical)
TouchPro (monitor + AC/DC adapter)
ON: 111.87 W
ON (with ECMG4): 125.12 W
SLEEP: 1.52 W
OFF: 0.38 W
IR (monitor + AC/DC adapter)
ON: 110.72 W
ON (with ECMG4): 124.23 W
SLEEP: 1.52 W
OFF: 0.38 WDimensions
TouchPro: 50.07" x 29.24" x 3.15" / 1271.8 mm x 742.6 mm x 80 mm
IR: 50.07" x 29.24" x 3.54" / 1271.8 mm x 742.6 mm x 89.8 mmShipping Box Dimensions
55.12" x 36.61" x 9.61" / 1410 mm x 930 mm x 244 mm
Weight (Unpackaged)
TouchPro:
With ECMG4: 85.8 lbs / 38.9 kg
Without ECMG4: 81.1 lbs / 36.8 kg
IR:
With ECMG4: 85.2 lbs / 38.65 kg
Without ECMG4: 80.6 lbs / 36.55 kgWeight (Packaged)
TouchPro:
Without ECMG4: 102.5 lbs / 46.47 kg
IR:
Without ECMG4: 101.9 lbs / 46.22 kgOperating Temperature
Portrait/Landscape/Tilt (≤15°) Mode: 0°C to 40°C / 32°F to 104°F
Tabletop Mode: 0° C to 35° C / 32° F to 95° FStorage Temperature
Portrait/Landscape/Tilt (≤15°) Mode: -20°C to 60°C / -4°F to 140°F
Tabletop Mode: -20° C to 60° C / -4° F to 140° FHumidity
Operating: 20% to 80%
Storage: 10% to 95% (38.7° C max wet bulb temperature)Mounting Options
VESA MOUNT PER MIS-F, 400 x 400mm, M6
VESA MOUNT PER MIS-F, 600 x 600mm, M8
See dimensional drawings for detailsMTBF
50,000 hours demonstrated
Warranty
3-year with AUR included
Extended Service Options
4 year warranty coverage + AUR - Elo P/N: E740135
5 year warranty coverage + AUR - Elo P/N: E740330
3 year warranty coverage + OSE - Elo P/N: E740527
4 year warranty coverage + OSE - Elo P/N: E740728
5 year warranty coverage + OSE - Elo P/N: E740918Regulatory approvals and declarations
UL 62368-1
FCC (US)
cUL, IC (Canada)
CB (International safety) (IEC/EN60950-1+IEC/EN62368-1)
CE (Europe)
RCM (Australia)
VCCI (Japan)
CCC (China) (for TouchPro version only)
IK07 and UL60950 for ball drop testEnergy Star
Energy Star 8.0
Other Features
Ambient Light Sensor - changes panel color to match ambient light, Auto Wake
What's in the Box
Quick Install Guide
HDMI 2.0 cable
USB 3.0 cable (Type A plug to Type B plug)
power cable, IEC 60320-C13 to NA plug
power cable, IEC 60320-C13 to EU/KR plug
power cable, IEC 60320-C13 to UK plug
Serial 3.5mm male to Serial DB9 female cable
Energy label according to EU Regulation 1062/2010IDS Optional Accessories
3D Camera - Elo P/N: E134699
Webcam - Elo P/N: E201494
2D Barcode Scanner (SE4720) – Elo P/N: E384627
2D Barcode Scanner (SE4107) – Elo P/N: E245047
Magnetic Stripe Reader – Elo P/N: E001002
NFC/RFID Reader – Elo P/N: E001004
Fingerprint Scanner – Elo P/N: E134286
Wired OSD Remote - Elo P/N: E483757
Passive Stylus - Elo P/N: E727568
Replacement Cable Kit - Elo P/N: E283066
i5-7500 ECMG4 with No OS - Elo P/N: E227895
i5-7500 ECMG4 with Win10 (LTSC) - Elo P/N: E228087
Wallmount - Elo P/N: E727774
Status Light (Micro-USB Connectivity) - Elo P/N: E644767
Elo Backpack® 4 (Value Model) - Elo P/N: E393754
Elo Backpack® 4 (Standard Model) - Elo P/N: E393359
RFID - Elo P/N: E673037
4K Conference Camera - Elo P/N: E988153
Elo Edge Connect™ Speaker Bar (Black) - Elo P/N: E894719
Elo Edge Connect™ Speaker Bar (White) - Elo P/N: E133780
