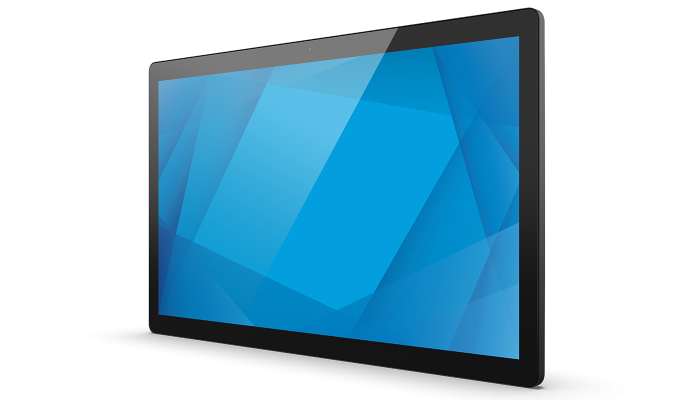

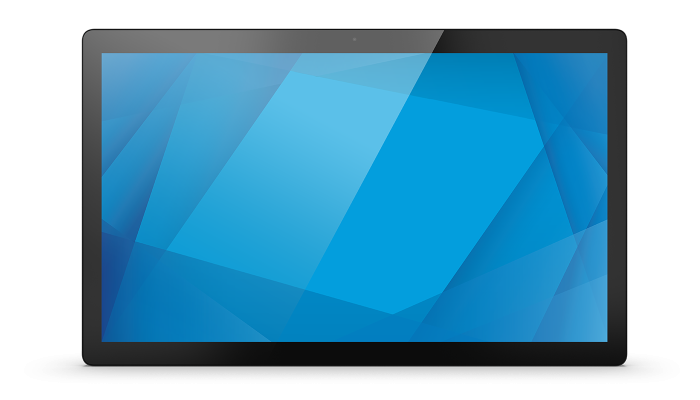

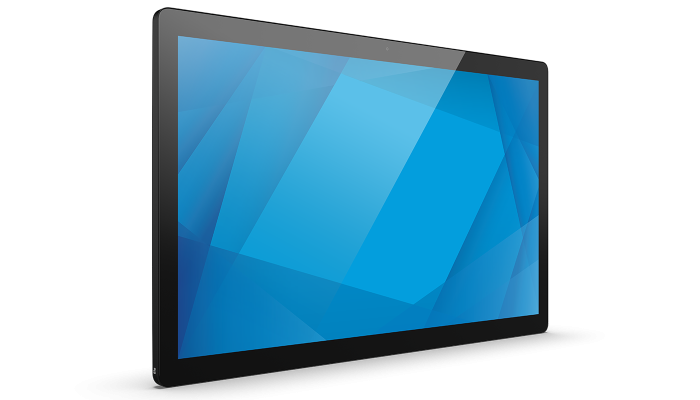

22-inch I-Series 4 for Android
How to buy

All-in-one I-Series 4.Secure. Flexible. Powerful.

All-in-one I-Series 4. Secure. Flexible. Powerful.

It’s the next level of awesome.

Do more with I-Series 4.

Android 10 with GMS

8MP
Camera

Digital Microphones

Faster Wi-fi​ Performance

USB Type-C​ Compatible

10”, 15” &
22” sizes

Do more with I-Series 4.

Android 10
with GMS

8MP
Camera

Digital
Microphones

Faster Wi-fi​
Performance

USB
type C

10”, 15” &
22” sizes

Perfect for Any Industry
Perfect for Any Industry
Perfect for Any Industry

Perfect for
any industry.

One of our most popular product lines ever, the I-Series has been used across the globe for everything from self-service, point-of-sale and price checkers to industrial controls and visitor management.

Perfect for Any Industry
Perfect for Any Industry

Modular & innovative.

The modular designed I-Series can be easily configured to fit nearly any use. Elo Edge Connect peripherals allow you to add a variety of accessories including payment devices, cameras, barcode readers and many others. And with the universal VESA compatibility and stand options you get additional flexibility.

Google mobile
services ready.

Create a seamless experience for your customers - from their personal devices to your interactive experiences in store. With Google Mobile Services, your app can take advantage of the latest, Google-powered features while maintaining the added flexibility of EloView - making deployments and management a breeze.

Google mobile
services ready.

Create a seamless experience for your customers - from their personal devices to your interactive experiences in store. With Google Mobile Services, your app can take advantage of the latest, Google-powered features while maintaining the added flexibility of EloView - making deployments and management a breeze.

Ready to support your digital transformation.

Many businesses are tasked with digital transformation and are trying to figure out how to incorporate consumer technologies into their business. With Elo’s approach to Android, including uniform SDKs, a constantly growing set of tools and an expansive lineup across sizes and form factors, users gain the advantage of years of development and customizations Elo has made for many global Enterprise customers. Choose Elo to easily deliver the convenience and familiarity of Android in secure, business-friendly solutions.

Learn more

One product.
Thousands of uses.

Order now

Create your perfect POS system.

Easily convert your favorite I-Series into a powerful, industrial-designed POS system that scales with your business.

Amazing touchscreen kiosks simplified.

The possibilities are endless with the I-Series. From self-order and self-checkout to order pickup and virtual assistants, pair the I-Series with a variety of stands to create your perfect kiosk. And, applications with audio and video are simplified with the built-in 8MP camera and digital microphones.

Build engaging brand experiences.

Build engaging brand experiences.

Educate buyers, create brand awareness and drive purchases in store with an easy-to-use interactive platform that can adapt as needs change.

Commercial-gradeperformance.

Whether equipped with the Qualcomm Snapdragon 8-core Kryo processor or the Rockchip 6-core processor, the I-Series delivers the performance you need.

Commercial-grade performance.
Qualcomm Snapdragon
Rockchip

Expand with
Edge Connect.

With the Elo Edge Connect system, you can seamlessly attach any combination of peripherals to the edge of the touchscreen. And, you can add or move them later as your needs change!

Do more with power
over ethernet (POE).

With the POE adapter, you can say goodbye to your power adapter and the expense of power drops. All you need is a POE-capable network and to connect the POE adapter to the I-Series.

Android device
management
made easy.

EloView allows you to deploy and securely manage your entire network of Android-powered Elo devices from anywhere in the world.

  • Remotely deploy content and manage your devices securely.
  • Provision your devices in seconds with a seamless out-of-the-box experience.
  • Leverage Elo Home to create a customized interface on your I-Series device.
Learn more
Android Device Management made easy

Get peace
of mind
with EloCare.SM

From advance unit replacement to OS 360, EloCare delivers service and support from the people who know your Elo products best.

  • Advance Unit Replacement
  • Extended Warranty
  • Accidental Damage Protection
  • OS 360
Learn more
EloCare

Enterprise-grade
support.

OS 360 – Monthly security updates to keep your devices secure.

Learn more

Seamless Provisioning – Leverage EloView, Google Zero Touch or scan a QR code to integrate with your choice of MDM solution.

Elo OEMConfig – Get immediate support of Elo’s proprietary APIs on your preferred Android MDM platform, saving you months of time as new releases become available.

Learn more

Enterprise-grade
support.

OS 360 – Monthly security updates to keep your devices secure.

Learn more

Seamless Provisioning – Leverage EloView, Google Zero Touch or scan a QR code to integrate with your choice of MDM solution.

Elo OEMConfig – Get immediate support of Elo’s proprietary APIs on your preferred Android MDM platform, saving you months of time as new releases become available.

Learn more

Specifications

  • Technical

    Part Number(s)

    Standard Model, Android 10, Black - E390263
    Standard Model, Android 10, White - E412818 (MTO)
    Standard Model, Android 12, Black - E747123
    Value Model, Android 10, Black - E391414
    Value Model, Android 10, White - E413211 (MTO)
    Value Model, Android 12, Black - E792655

    Enclosure Color

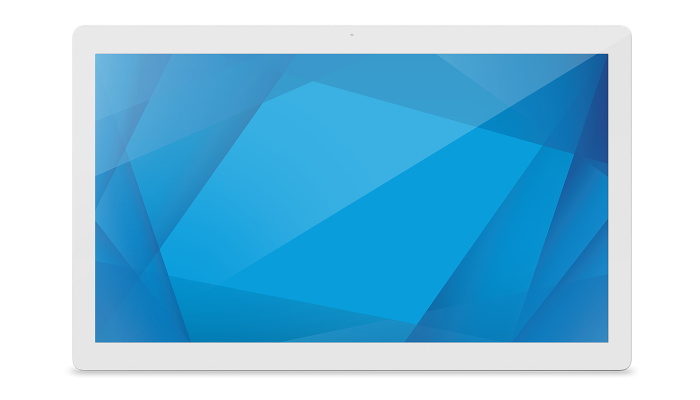

    White or Black

    Touch Technology & Capacity

    PCAP (TouchPro® Projected Capacitive) - 10 Touch

    Touch Thru

    Supports up to 6mm / 0.24" glass or 3mm / 0.12" plastic with up to 2 touches

    Processor

    Standard Model: Qualcomm Snapdragon SDA660
    Value Model: Rockchip RK3399

    Memory (RAM)

    4GB

    Storage

    Standard Model: 64GB
    Value Model: 32GB

    OS

    Android 10 with Google Play Services (AOSP capable)
    Upgrade to Android 12 and planned upgrade to Android 14 are available with an OS 360 subscription

    Diagonal Size

    21.5'' diagonal, Active matrix TFT LCD (LED)

    Aspect Ratio

    16:9

    Active Area

    18.74" x 10.54" / 476 mm x 268 mm

    Resolution

    1920 x 1080 @ 60Hz

    Number of Colors

    8-bit (16.7 million)

    Brightness (typical)

    Standard Model:
    LCD Panel: 250 nits
    TouchPro PCAP: 215 nits

    Value Model:
    LCD Panel: 250 nits
    TouchPro PCAP: 215 nits

    Response Time-total (typical)

    Standard Model: 14 msec
    Value Model: 5 ms

    Contrast Ratio

    1000:1

    Viewing Angle

    Standard Model:
    Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

    Value Model:
    Horizontal: ±85° or 170° total / Vertical: ±80° or 160° total

    Peripheral Mounting

    4x micro-USB 2.0 Elo Edge Connect ports

    Support for 1.2A on one port and 500mA for the remaining three ports

    I/O Ports

    1x USB 3.0 support (900mA)
    Type C USB output
    Micro SD slot
    GPIO
    Ethernet 1x LAN (Gigabit)
    DC in

    Webcam

    Standard Model: 8MP, Max Resolution: 1920x1080 30fps, Auto Focus, Focus Range: >10cm
    Value Model: 5MP, Max Resolution: 1920x1080 30fps, Auto Focus

    Wireless

    802.11a/b/g/n/ac + Bluetooth 5.0

    Audio Ports

    Standard Model: 2x built-in Digital Microphones
    Value Model: 1x built-in Analog Microphone

    Speakers

    Standard Model: 2x 0.8W
    Value Model: 2x 2W

    Power Supply

    AC input voltage: 100-240 VAC
    Input frequency: 50-60 Hz

    power adapter (included in accessory box)

    Power Consumption (Typical)

    Standard Model:
    On: 19.8W
    Off: 0.4W
    Sleep: 4.4W

    Value Model:
    On: 15.7W
    Off: 0.45W
    Sleep: 3.4W

    Power Over Ethernet (PoE)

    Supported via Elo PoE Device PN: E413396
    Reference the I-Series 4.0 user guide for details.

    Dimensions

    20.66" x 12.79" x 1.17" / 524.8 mm x 324.8 mm x 29.7 mm

    Shipping Box Dimensions

    Standard Model: 23.2" x 6.6" x 15.8" / 590 mm x 168 mm x 400 mm
    Value Model: 23.6" x 6.6" x 16.0" / 600 mm x 168 mm x 406 mm

    Weight (Unpackaged)

    Standard Model: 8.4 lbs / 3.8 kg
    Value Model: 9.5 lbs / 4.3 kg

    Weight (Packaged)

    Standard Model: 12.4 lbs / 5.6 kg
    Value Model: 16.1 lbs / 7.3 kg

    Operating Temperature

    0°C to 40°C / 32°F to 104°F

    Storage Temperature

    -20°C to 50°C / -4°F to 122°F

    Humidity

    Operating: 20% to 80%
    Storage: 5% to 95%

    Regulatory approvals and declarations

    UL/cUL (US)
    FCC (US)
    IC (Canada)
    CE (Europe)
    CB (International)
    VCCI, MIC (Japan)
    RCM (Australia)

    Supported Countries

    Canada, USA, Australia, Japan, New Zealand, Austria, Belgium, Czech Republic, Denmark, France, Germany, United Kingdom, Hungary, Italy, Netherlands, Poland, Portugal, Romania, Spain, Sweden, Switzerland, Turkey, Brazil

    Real-Time Clock

    lithium coin cell battery

    MTBF

    50,000 hours demonstrated

    Mounting Options

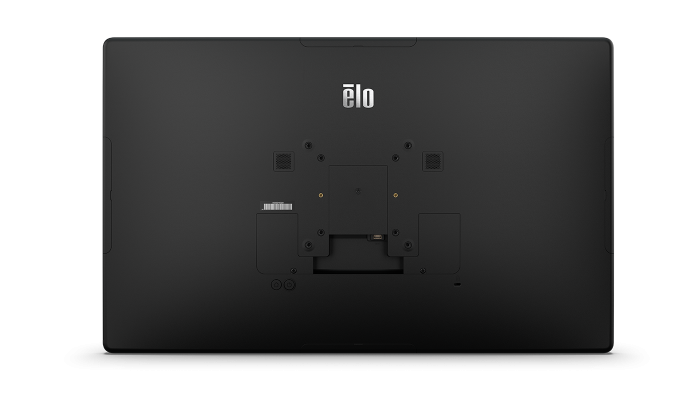

    VESA 75mm and 100mm

    Warranty

    2-year

    Extended Service Options

    3 year OS 360 - Elo P/N: E873133
    3 year Warranty Coverage – Elo P/N: E819394
    4 year Warranty Coverage – Elo P/N: E819598
    5 year Warranty Coverage – Elo P/N: E819795
    3 year Warranty Coverage + ADP – Elo P/N: E130329
    4 year Warranty Coverage + ADP – Elo P/N: E130530
    5 year Warranty Coverage + ADP – Elo P/N: E130719
    2 year Warranty Coverage + AUR – Elo P/N: E819985
    3 year Warranty Coverage + AUR – Elo P/N: E820186
    4 year Warranty Coverage + AUR – Elo P/N: E820388
    5 year Warranty Coverage + AUR – Elo P/N: E820582
    2 year Warranty Coverage + AUR + ADP – Elo P/N: E131490
    3 year Warranty Coverage + AUR + ADP – Elo P/N: E131674
    4 year Warranty Coverage + AUR + ADP – Elo P/N: E131859
    5 year Warranty Coverage + AUR + ADP – Elo P/N: E132053

    OS Support

    Monthly Android security updates available with Elo OS 360 package.

    Sealability

    Touchscreen sealed to LCD

    What's in the Box

    I-Series 4
    North American Power Cable
    European Power Cable
    1x Power Brick
    Quick Install Guide
    Screws for cable cover door (located in the power/Ethernet bay)

    Optional Peripherals

    Magnetic Stripe Reader (MSR) – Elo P/N: E001002
    Fingerprint Scanner – Elo P/N: E134286
    2D Barcode Scanner (Black - SE2707) – Elo P/N: E393160
    2D Barcode Scanner (White - SE2707) – Elo P/N: E551946
    2D Barcode Scanner (Black - SE4720) – Elo P/N: E384627
    2D Barcode Scanner (White - SE4720) – Elo P/N: E454122
    2D Barcode Scanner (Black - SE4107) – Elo P/N: E245047
    2D Barcode Scanner (White - SE4107) – Elo P/N: E454318
    POE Module Kit - Elo P/N: E413396
    Status Light (Micro-USB Connectivity) - Elo P/N: E644767
    3D Camera - Elo P/N: E134699
    Webcam - Elo P/N: E201494
    Expansion Module – Elo P/N: E809509
    RFID - Elo P/N: E673037
    Elo Edge Connect™ Speaker Bar (Black) - Elo P/N: E894719
    Elo Edge Connect™ Speaker Bar (White) - Elo P/N: E133780

    Stands, Mounts & Kits

    Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088
    Tabletop Stand for 22'' I-Series (100mm VESA) - Elo P/N: E044356
    Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382
    Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069
    Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458
    Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663
    Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864
    Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151
    Elo Stand 1902/3-2202/3 - Black (100 mm VESA) - Elo P/N: E804330
    Elo Stand 2402/3-2702/3 - Black (100 mm VESA) - Elo P/N: E509844
    65W Replacement Cable Kit (NA & EU power cables and power brick) – Elo P/N: E514304
    90W Replacement Cable Kit (NA & EU power cables and 90W power brick) - Elo P/N: E572635
    Slim Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E514693
    Slim Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E514881 + E515260
    Wallaby™ Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E421137
    Wallaby™ Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E421325 + E797162
    Replacement Cable Kit (NA & EU power cables) – Elo P/N: E512363
    Wallaby™ Pro countertop stand – Elo P/N: E989127
    Wallaby™ Pro floor stand – Elo P/N: E989314 + E989512
    Wallaby™ Pro double-sided floor stand – Elo P/N: E989314 + E989314 + E989705
    Wallaby™ Pro wall-mounted stand – Elo P/N: E989127 + E990079

Accessories

(17)

Upgrades, add-ons, and more.
Image of item

Wallaby™ Pro Self-Service Stands

Image of item

Wallaby™ Self-Service Stands

Image of item

Slim Self-Service Stands

Image of item

Elo Edge Connect™ Speaker Bar

Image of item

Elo Edge Connect™ Status Light

Image of item

Elo Edge Connect™ 2D Barcode Scanner (SE4107 & SE4720)

Image of item

EMV Cradles

Image of item

Pole Stands

Image of item

Tabletop Stands

Image of item

Shelf Mount

Image of item

Elo Edge Connect™ Magnetic Stripe Reader (MSR)

Image of item

Elo Edge Connect™ Fingerprint Scanner

Image of item

Elo Edge Connect™ 3D Camera

Image of item

Elo Edge Connect™ Webcam

Image of item

Power-over-Ethernet (POE) Module (For I-Series 4)

Image of item

Android Expansion Module

Image of item

Elo Edge Connect™ RFID

Resources

(32)

  • Collateral

    Spec Sheet

    Go
  • Drawings and Certificates

    Value Model Dimensional Drawing

    Go

    Standard Model Dimensional Drawing

    Go

    Dimensional Drawing - Pole Mounts

    Go

    Dimensional Drawing - Pole Mount Bracket (E045151)

    Go

    Value Model CAD Drawing

    Go

    Standard Model CAD Drawing

    Go

    Value Model Agency Approval Certificates

    Go

    Standard Model Agency Approval Certificates

    Go

    Standard Model Material Safety Data Sheet (MSDS)

    Go

    Value Model Material Safety Data Sheet (MSDS)

    Go
  • User Guides

    English (Value Model)

    Go

    English (Standard Model)

    Go

    Spanish (Value Model)

    Go

    Spanish (Standard Model)

    Go

    Portuguese (Value Model)

    Go

    Simplified Chinese (Value Model)

    Go

    Simplified Chinese (Standard Model)

    Go

    Traditional Chinese (Value Model)

    Go

    Traditional Chinese (Standard Model)

    Go

    French (Value Model)

    Go

    French (Standard Model)

    Go

    Italian (Value Model)

    Go

    Italian (Standard Model)

    Go

    German (Value Model)

    Go

    German (Standard Model)

    Go

    Japanese (Value Model)

    Go

    Japanese (Standard Model)

    Go

    Quick Install Guide

    Go

    QIG: EMV Cradle

    Go
  • Additional Support Resources

    Download SDKs and Tools

    Go

    Download Drivers

    Go

Get Started with Elo Today.

Contact Sales
