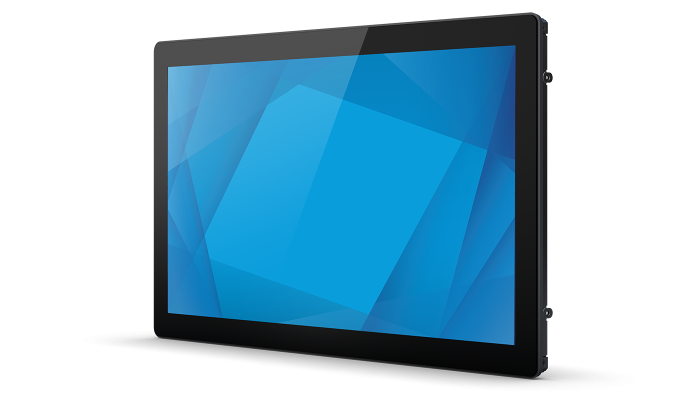

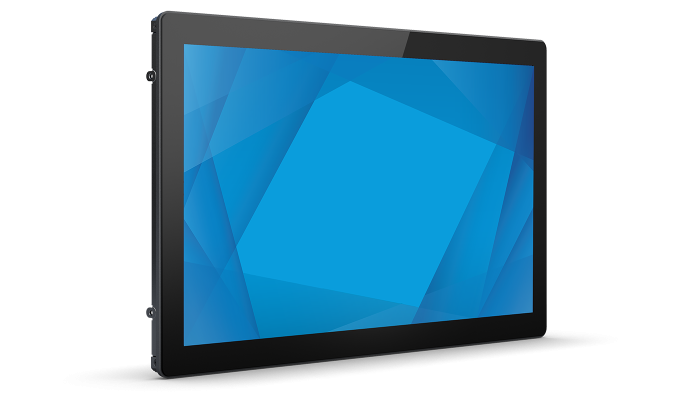

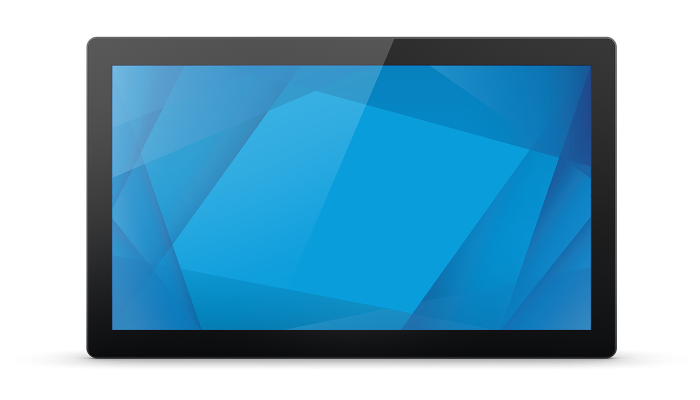

2295L 21.5" Open Frame Touchscreen
Go Brighter with
Elo Open Frames
Elo's new interactive open frames deliver the sleek design the 90-Series is known for with outstanding brightness ranging from 400 to 1000 NITs. Available in sizes from 22 to 27 inches, the brilliant, interactive, TouchPro® PCAP displays offer edge-to-edge glass for ease of integration and up to 10 simultaneous touches for an enhanced, tablet-like experience. With proven Elo expertise and built-in reliability, the industrial-grade displays provide outstanding image clarity and light transmissivity, as well as stable drift-free operation for accurate touch responses. Elo’s brighter open frames offer the versatility needed for commercial kiosk applications from industrial automation and gaming to self-service and retail.
Brighten Up Your Kiosks
Create a design-in solution that will capture audiences, attract integrators, and differentiate you from the competition.
Design Your Solution with Elo
Enabling Partners to Build Smarter Kiosks

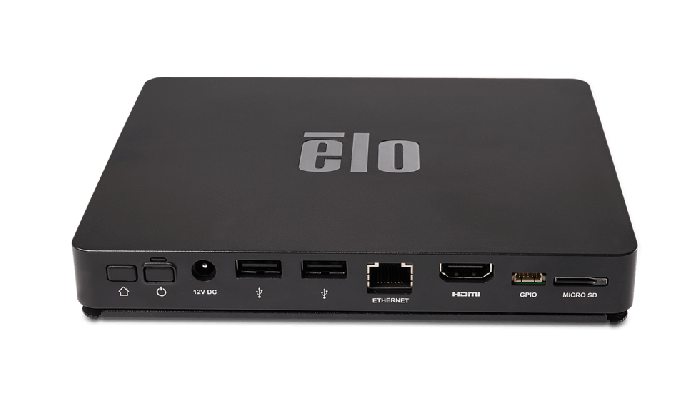

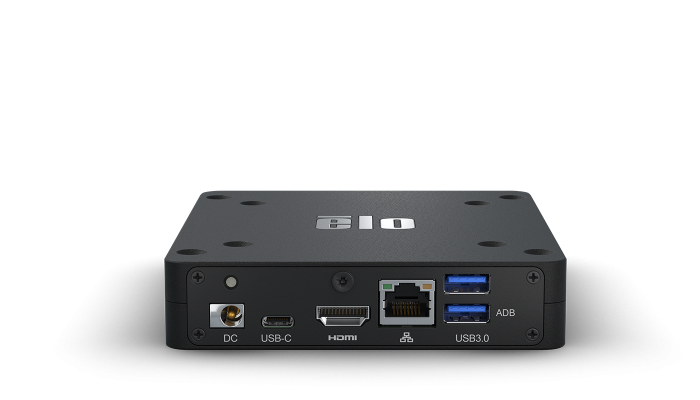

With EloView® and the Backpack, managing kiosks is EASY! The Elo Backpack is an Android powered compute engine capable of transforming Elo touchscreens into an affordable, scalable, single-architecture media platform. With its simplified content-delivery and remote-management capabilities via the EloView portal, the Backpack provides a low-power, solid-state, fan-less computing solution with the capability to simplify deployments and remotely manage kiosks out-of-the-box.
Flexibility for Your Install
Our commercial-grade open frames can be mounted in
landscape, portrait and face-up orientations, providing
optimal flexibility for mounting in any table, kiosk or cabinet
design. Whether viewing straight on or at an angle, close-up
or from a distance, our open frames offer what you need
while maintaining optimal clarity and the viewing experience
you want to deliver.
Touch Thru Glass
Enabled with PCAP
Our TouchPro® PCAP technology supports touch thru functionality for
installations requiring a front layer of glass up to 6 mm thick or solutions
that require specific IP ratings. Whether you need a flush-mounted
display or one that is fully encased behind glass, our robust PCAP open
frames are purpose-built for durability in various applications and
environments — from self-service kiosks or highly used gaming cabinets
to industrial machines performing in harsh environments.
Interactive Open Frames From 10 to 55-inches
1093L 10" (16:10)
1291L 12" (4:3)
1590L 15" (4:3)
1593L 15" (16:9)
1598L 15" (4:3)
1790L 17" (5:4)
1990L 19" (5:4)
1991L 19" (5:4)
2094L 20" (16:9)
2293L 22" (16:9)
2294L 22" (16:9)
2402L 24" (16:9)
2702L 27" (16:9)
3243L 32" (16:9)
4243L 42" (16:9)
4343L 43" (16:9)
5543L 55" (16:9)
Connections
Built for Industrial & Commercial Use
We pride ourselves on being a leading manufacturer in the market — designing and building the complete solution with touch integrated
from the start. Our robust touchscreen solutions offer flexibility for diverse environments and have undergone rigorous testing to ensure the
longest life possible for our product, and to maximize your ROI.
-
Backed by our 3-year standard
warranty with an optional
extension to 4 or 5-years -
Built-in thermal protection via
internal thermal sensor and
firmware -
Compliant with UL-60950,
IK-07 impact testing and GLI
ESD 27kV air / 8kV contact -
OEM life cycle support
for component and
product transitioning -
Well-suited for 24/7 use in any
high-traffic or harsh
environment -
Designed and tested to ensure
reliability and long life in the field
Specifications
-
Technical
Part Number(s)
TouchPro PCAP (Worldwide) - E146083
Enclosure Color
Black
Touch Technology & Capacity
PCAP (TouchPro® Projected Capacitive) - 10 Touch
Touch Interface
USB 2.0
Diagonal Size
21.5'' diagonal, Active matrix TFT LCD (LED)
On Screen Display
Accessible through switches on the unit’s tethered OSD Control box.
Controls: Menu, Up, Down, Select, Power
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode, Touch Thru
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, PowerAspect Ratio
16:9
Active Area
18.74" x 10.54" / 476.06 mm x 267.79 mm
Resolution
1920 x 1080
Other Supported Resolutions
640 x 480 60Hz
720 x 400 70Hz
800 x 500, 60Hz
800 x 600 56, 60Hz
1024 x 768 60Hz
1280 x 800 60Hz
1280 x 1024 60Hz
1366 x 768 60Hz, 60Hz RB
1440 x 900 60Hz, 60Hz RB
1680 x 1050 60Hz, 60Hz RB
1920 x 1080 50, 60HzViewing Angle
Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Number of Colors
16.7 million
Brightness (typical)
LCD panel: 500 nits
TouchPro PCAP: 450 nitsResponse Time-total (typical)
22 msec
Contrast Ratio
1000:1
I/O Ports
USB TypeB, RJ45 for OSD remote key, VGA, HDMI, DisplayPort, 12V D/C in
Input Video Format
HDMI V1.3 Type A receptacle for HDMI input
Analog VGA on Female DB-15 connector
DisplayPort V1.1a - Supports later versions of DisplayPort video inputInput Video Frequency
Horizontal: 30 - 82 KHz
Vertical: 50 - 75 HzVideo Interface
HDMI, VGA & Display Port
Power
External DC - Optional power brick (sold separately)
Monitor input power connector: Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) Barrel depth)
Monitor input voltage range: 12VDC +/- 5%
Adapter output power connector: DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) Barrel length)
Adapter input voltage range: 100-240 VAC
Input frequency: 50-60 HzPower Consumption (Typical)
Monitor + Adapter
ON: 26.2 W
SLEEP: 0.48 W
OFF: 0.28 WDimensions
20.31" x 12.24" x 1.85" / 516 mm x 311 mm x 46.9 mm
Shipping Box Dimensions
24.41" x 16.65" x 7.48" / 620 mm x 423 mm x 190 mm
Weight (Unpackaged)
11.9 lbs / 5.41 kg
Weight (Packaged)
18.92 lbs / 8.6 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%
Storage: 10% to 95%Sealability
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF
50,000 hours demonstrated
Warranty
3-year
Extended Service Options
4 year warranty coverage - Elo P/N: E898247
5 year warranty coverage - Elo P/N: E898449
3 year warranty coverage + AUR - Elo P/N: E898648
4 year warranty coverage + AUR - Elo P/N: E894921
5 year warranty coverage + AUR - Elo P/N: E895125Regulatory approvals and declarations
Australia RCM
Canada cUL, IC
China CCC
Europe CE TUV
United Kingdom UKCA
Japan VCCI
Korea KCC
Mexico CoC
Taiwan BSMI
United States UL, FCC
International CB
Russia EAC
RoHS, China RoHS, WEEECompliance
GLI 27 kV air / 8 kV contact ESD compliant
UL 62368 ball-drop compliant
IK07 impact compliantMounting Options
VESA 4-hole 100mm mounting interface on rear of unit
Flush mount with included bracketsWhat's in the Box
HDMI cable
Touch USB Cable
VGA Cable
Remote OSD
Flush Mount Brackets w/Screws
Quick Install Guide
EEI Label
Japan Class-B TM info sheetOptions / Peripherals / Upgrades
Remote OSD (RJ45) - Elo P/N: E483757
Replacement Cable Kit (HDMI, VGA, USB and Serial cables) - Elo P/N: E546861
Cable Kit DVI-D to HDMI – Elo P/N: E538507
Cable Kit DP to DP – Elo P/N: E582895
North America power adapter and cable kit - Elo P/N: E005277
European & Korea power adapter and cable kit - Elo P/N: E571601
UK power adapter and cable kit - Elo P/N: E180092
China power adapter and cable kit - Elo P/N: E558862
Taiwan power adapter and cable kit - Elo P/N: E818655
Japan power adapter and cable kit - Elo P/N: E182546
Argentina power adapter and cable kit - Elo P/N: E887099
Australia power adapter and cable kit - Elo P/N: E637593
Elo 20-inch & 22-inch Wide Flush-mount Bracket - Elo P/N: E190706
Elo Backpack® 4 (Value Model)- Elo P/N: E393754
Elo Backpack® 4 (Standard Model) - Elo P/N: E393359Optional PCAP Stylus Pen
E066148
