Elo Pay 7-inch Integrated Payment POS
How to buy

Elo Pay 7"
POS System

The integrated payment POS system packs the modularity merchants need into a compact enterprise-grade terminal. Complete with a 7-inch HD touch display, integrated payment, flexible Android 12 OS and Qualcomm SD660 processor.

Order now
7-inch HD
Touch Display
Integrated
Payment
Built On
Android 12
Qualcomm
SD660
EloView
Ready

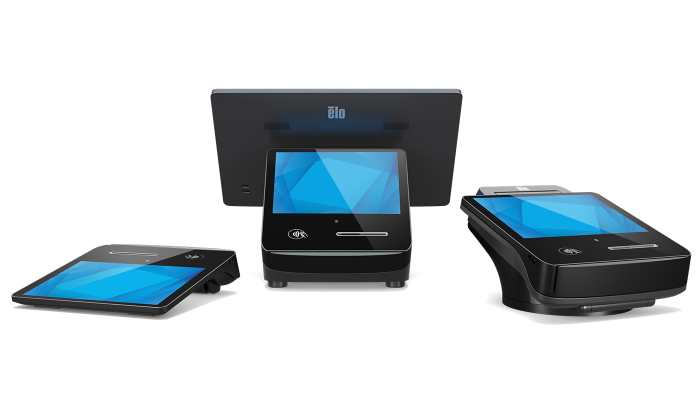

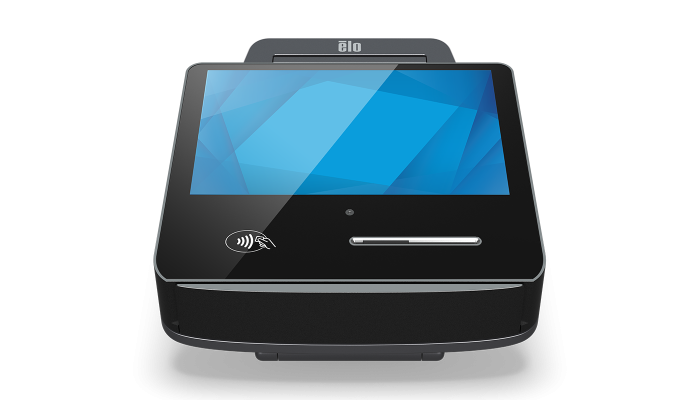

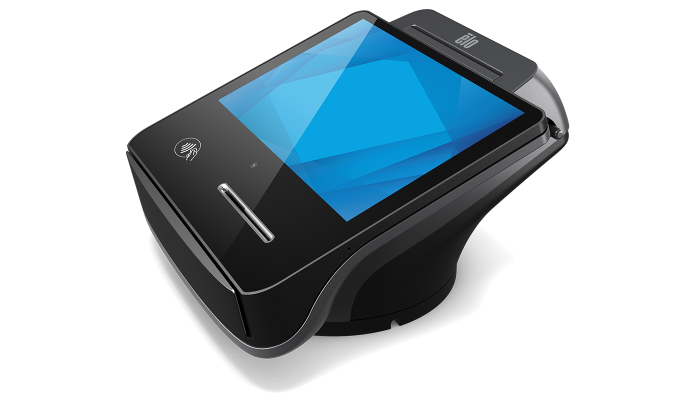

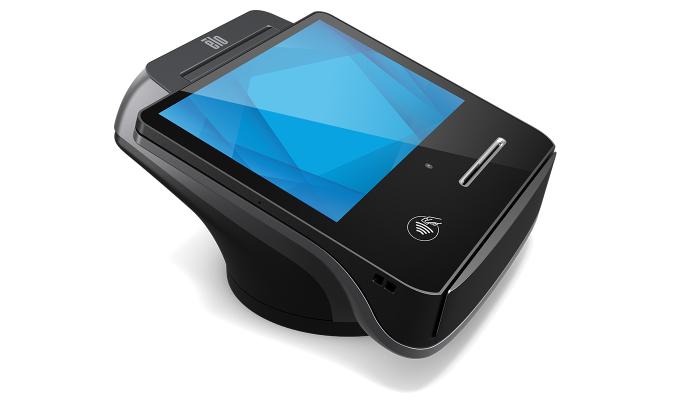

Dock it to the printer stand.

Elo Pay 7-inch docked to printer stand.

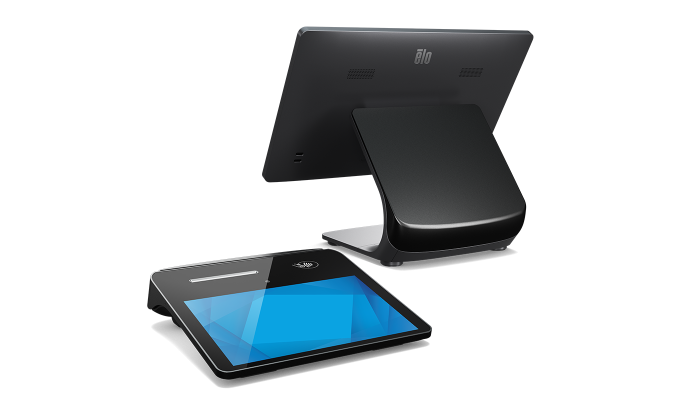

Place it on the counter.

Elo Pay 7-inch on counter.

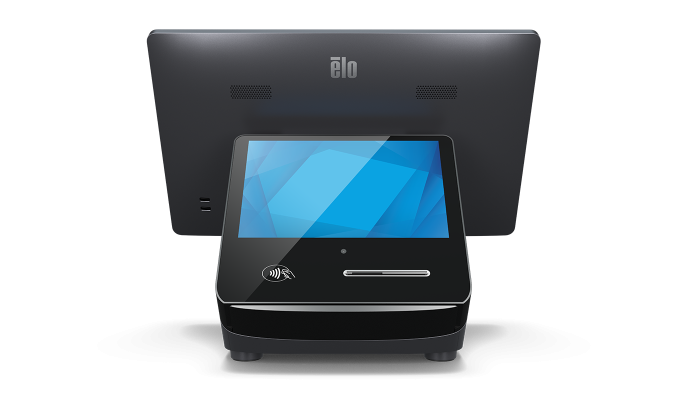

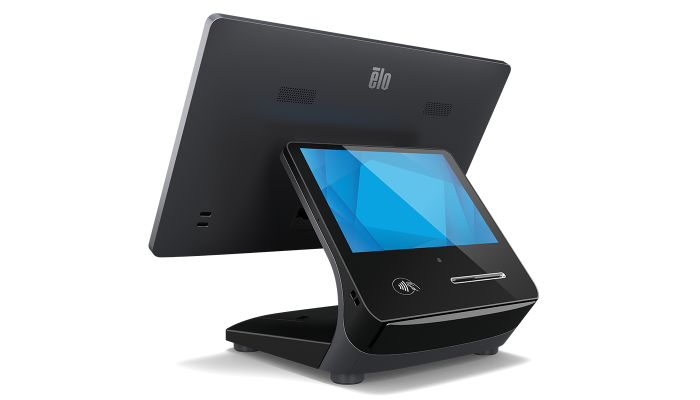

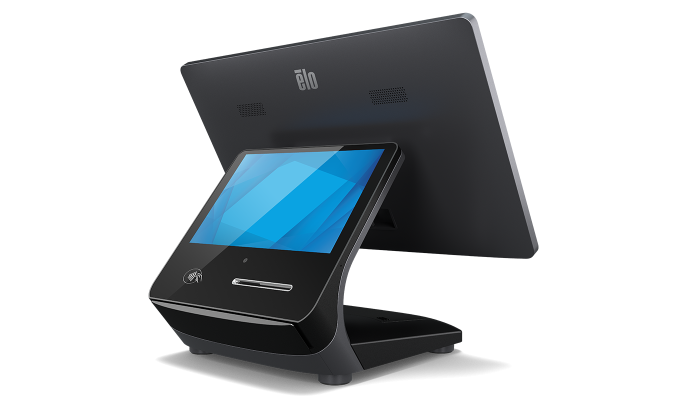

Integrate it to the Z70 stand.

Elo Pay 7-inch integrated with Z70 Stand.

Enjoy the convenience
of integrated payment.

Dip. Tap. Swipe.

Whether your customers have a physical card or
contactless via their mobile phone, the Elo Pay 7"
POS terminal accepts all forms of payment.

EMV - Insert cards with chips.

NFC - Tap with contactless payments.

MSR - Swipe cards with mag stripes.

Pin on Glass - Enter your pin directly on the screen.

Unified Hardware.
Unified Payment.

Elo Pay terminals leverage one payment kernel to
simplify the payment process, increase security,
and improve the user experience.

Elo Pay delivers fast, secure
and scalable payment services.

Elo Pay offers comprehensive payment services that enables
merchants to process transactions with confidence. With access to
multiple payment applications, end-to-end encryption, secure
tokenization, robust terminal management services (TMS) and
easy to use APIs for quick integration, merchants can get started
quickly and securely.

Explore Elo Pay

Manage your devices
easily with EloView.®

EloView allows you to deploy and securely manage
your entire network of Android-powered Elo devices
from anywhere in the world.

Remotely deploy content and manage your
devices securely.

Provision your devices in seconds with a
seamless out-of-the-box experience.

Leverage Elo Home to create a customized
interface on your Elo Pay device.

Explore EloView
Eloview Dashboard Eloview Dashboard

Get enterprise support
with Elo EssentialEdge.™

With easy-to-use development kits, robust management
tools, world class life cycle management and security, Elo
can help you deliver the convenience and familiarity of
Android interfaces in a secure, business-friendly way.

OS 360 - Take advantage of monthly security updates to
keep your devices secure.

Seamless Provisioning - Leverage EloView or Google
Zero Touch to easily set up your device.

Elo OEMConfig - Get Elo's proprietary APIs on your
preferred Android MDM platform, saving months of
effort as new releases become available.

Explore Elo EssentialEdge

Get peace of mind
with EloCare.

From advance unit replacement to OS 360, EloCare
delivers service and support from the people who
know your Elo products best.

  • Advance Unit Replacement
  • Accidental Damage Protection
  • Extended Warranty
  • OS 360
Learn more
Elo Pay 7-inch

Specifications

  • Technical

    Part Number(s)

    E863808 - Elo Pay 7"
    E814281 - Elo Pay 7" with Z70 POS Stand & External Hub*
    E814473 - Elo Pay 7" with Z70 POS Stand & Integrated Hub*
    E814661 - Elo Pay 7" with Printer Stand

    *Monitor sold separately.

    Enclosure Color

    Black

    Processor

    Qualcomm Snapdragon 660 2.2GHz Octa-Core Processor

    Memory (RAM)

    4GB

    Storage

    64GB

    Expansion Options

    1x MicroSD

    OS

    Android 12 with Google Play Services

    Display

    7” Optically Bonded High Definition LCD

    Touchscreen

    10-touch Projective capacitive with Corning Gorilla Glass
    Water rejection

    Sensor

    Accelerometer

    Resolution

    1920 x 1080

    Brightness (typical)

    400 nits

    Contrast Ratio

    1000:1

    I/O Ports

    Elo Pay 7": 1x USBC

    Small External Hub: 1x DC-in, 1x RJ45 LAN, 4x USB-A, 2x USB-C

    Large External Hub: 1x DC-in, 1x RJ45 LAN, 1x RJ12 Cash Drawer, 4x USB-A, 2x USB-C, 1x Powered USB (24V)

    EloPOS Z70 Pay with Integrated Hub: 1x DC-in, 1x RJ45 LAN, 4x USB-A, 1x USB-C, 1x RJ12 Cash Drawer

    Camera

    1x 5MP FF

    Payment

    EMV Contactless ISO 14443-A/B, MiFare, ISO-18092
    EMV Chip Card Reader (chip and pin-on-glass)
    3-track MSR ISO 7810/7811

    Certifications

    PCI-PTS 6.2 (PCI Approval Number: 4-30548)
    EMV L1 & L2
    Visa PayWave (coming soon)
    Mastercard PayPass
    Amex ExpressPay
    Discover D-PAS
    Mastercard TQM (coming soon)
    China Union Pay International (coming soon)
    JCB J/Speedy (coming soon)
    Interac Flash (coming soon)
    EFTPOS (coming soon)

    Wireless

    802.11a/b/g/n/ac with 2x2 MU-MIMO

    Bluetooth

    Bluetooth 5.0

    LED

    1x Amber/White LED for Power
    Programmable R/G/B/W LED for EMV-CL Reader
    Programmable R/G/B/W LED for SCR Reader

    Keyboard

    On screen keyboard

    Audio

    2x Microphone
    1x 1W speaker
    1x Buzzer

    Buttons

    1x Power button
    1x Home Button

    Printer

    Paper width: 58mm
    Print width: 48mm
    Print speed: 100 mm / sec
    Auto-cutter
    Roll diameter: 48mm
    Sensors: paper out, cover open

    Supported Monitors

    1002L Without Stand - E155834* (for pairing with Z70 POS Stand)
    1302L Black Without Stand – E683595* (for pairing with Z70 POS Stand)
    1302L Black With Stand – E683204 (for pairing with Elo Pay 7” & Elo Pay 7” with printer stand)

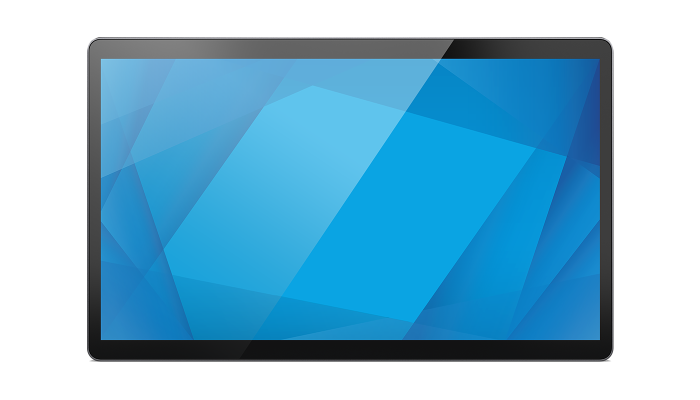

    1304LS Gray Without Stand – E968117 (for pairing with Z70 POS Stand)
    1502L Without Stand – E125496* (for pairing with Z70 POS Stand)
    1502L With Stand – E155645 (for pairing with Elo Pay 7” & Elo Pay 7” with printer stand)

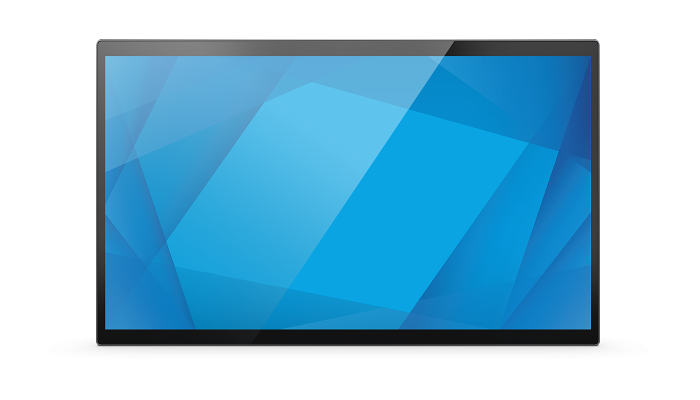

    1504LS Gray Without Stand – E968313 (for pairing with Z70 POS Stand)
    *requires VESA mount kit (included in box)

    Dimensions

    6.9" x 6.6" x 1.7" / 176 mm x 168.68 mm x 42.95 mm

    Shipping Box Dimensions

    8.7" x 7.3" x 2.7" / 220 mm x 185 mm x 68 mm

    Weight (Unpackaged)

    1.4 lbs / 0.616 kg

    Weight (Packaged)

    1.6 lbs / 0.716 kg

    Operating Temperature

    0°C to 40°C / 32°F to 104°F

    Storage Temperature

    -20°C to 50°C / -4°F to 122°F

    Humidity

    5% to 95% non-condensing

    Regulatory approvals and declarations

    UL, FCC (US) - Class B
    cUL, IC (Canada)
    CB (International safety)
    CE (Europe) - Class B
    RCM (Australia)
    China RoHS

    ESD

    Class B: 8kV contact, 15kV air

    Warranty

    2-year

    Extended Service Options

    3 year OS 360 - Elo P/N: E822682
    4 year OS 360 - Elo P/N: E834310
    5 year OS 360 - Elo P/N: E822484
    3 year Warranty Coverage – Elo P/N: E819394
    4 year Warranty Coverage – Elo P/N: E819598
    5 year Warranty Coverage – Elo P/N: E819795
    3 year Warranty Coverage + ADP – Elo P/N: E130329
    4 year Warranty Coverage + ADP – Elo P/N: E130530
    5 year Warranty Coverage + ADP – Elo P/N: E130719
    2 year Warranty Coverage + AUR – Elo P/N: E819985
    3 year Warranty Coverage + AUR – Elo P/N: E820186
    4 year Warranty Coverage + AUR – Elo P/N: E820388
    5 year Warranty Coverage + AUR – Elo P/N: E820582
    2 year Warranty Coverage + AUR + ADP – Elo P/N: E131490
    3 year Warranty Coverage + AUR + ADP – Elo P/N: E131674
    4 year Warranty Coverage + AUR + ADP – Elo P/N: E131859
    5 year Warranty Coverage + AUR + ADP – Elo P/N: E132053

    OS Support

    Monthly Android security updates available with Elo OS 360 package

    Sealability

    IP54 on the panel/front-facing side

    What's in the Box

    Elo Pay 7" (E863808)
    Elo Pay 7"
    18W USBC PD Charger w/ (US, EU, UK) Plug Options
    Quick Install Guide

    Elo Pay 7" with Z70 POS Stand and External Hub (E814281)
    Elo Pay 7"
    Z70 POS Stand with External Hub (E815422)
    Small Hub (E815044)
    120W Power Brick w/ (US, EU, UK) Cable Options
    1.8m USBC to USBC Cable
    Quick Install Guide

    Elo Pay 7" with Z70 POS Stand and Integrated Hub (E814473)
    Elo Pay 7"
    Z70 POS Stand with Integrated Hub (E815605)
    120W Power Brick w/ (US, EU, UK) Cable Options
    1.8m USBC to USBC Cable
    Quick Install Guide

    Elo Pay 7" with Printer Stand (E814661)
    Elo Pay 7"
    Printer Stand (E815808)
    45W USBC PD Charger w/ (US, EU, UK) Plug Options
    Paper Roll
    Quick Install Guide

    Stands, Mounts & Kits

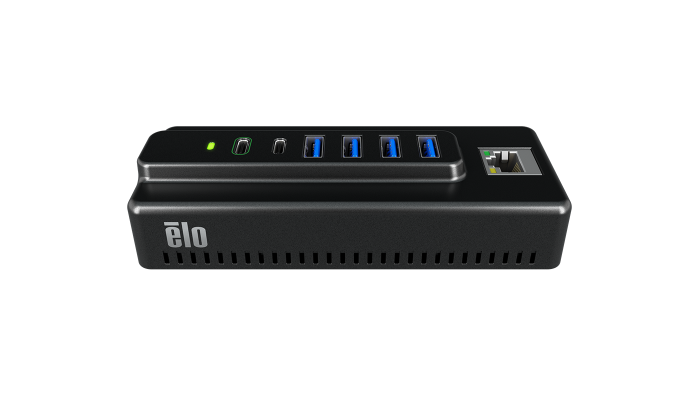

    Small I/O Hub: 1x DC-in, 1x RJ45 LAN, 4x USB-A, 2x USB-C – Elo P/N: E815044

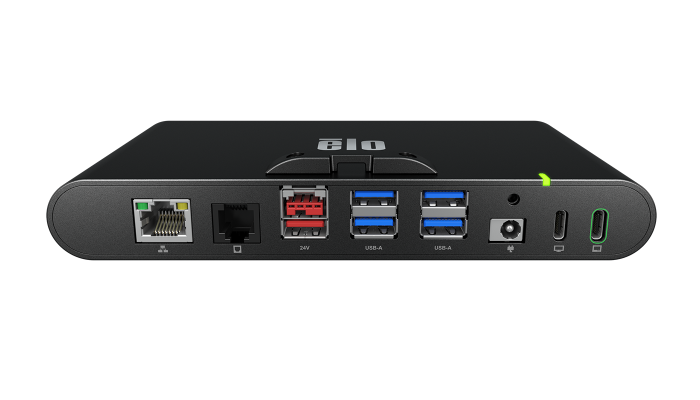

    Large I/O Hub: 1x DC-in, 1x RJ45 LAN, 1x RJ12 Cash Drawer, 4x USB-A, 2x USB-C, 1x Powered USB (24V) – Elo P/N: E815235
    VESA Mount Kit – Elo P/N: E220684
