Accept contactless
payments with ease.
![](https://docs.elotouch.com/elopay/elopay-22/EloPay22_WallabyArray.png)
![](https://docs.elotouch.com/elopay/elopay-22/EloPay22_TapToPay_AngledRight-2.png)

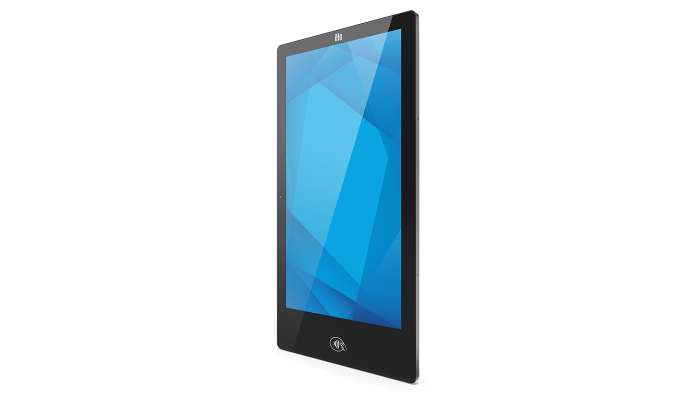

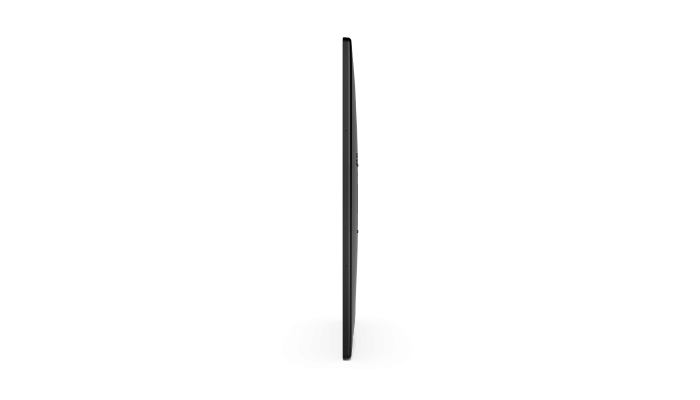

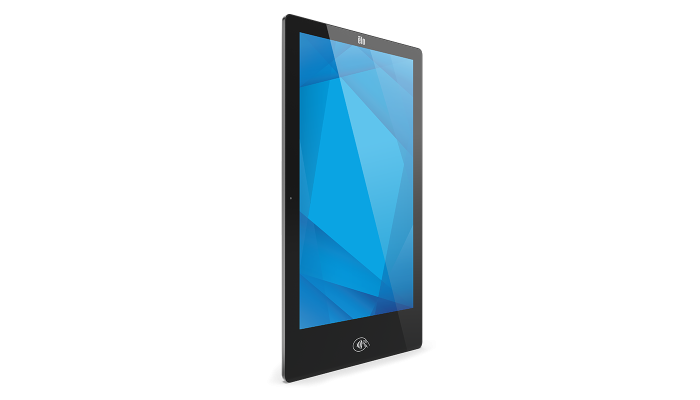

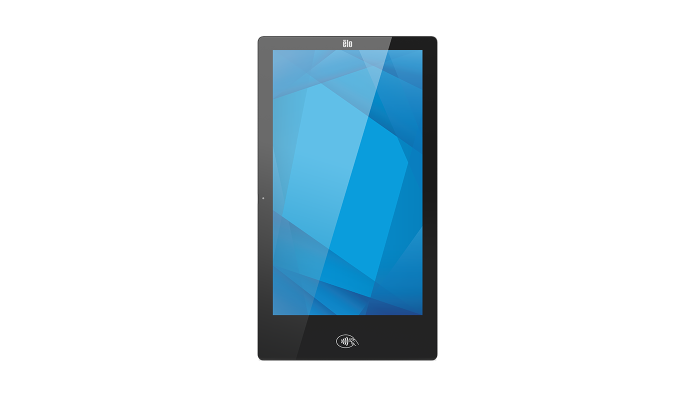

Elo Pay 22"
'Tap to Pay'
Discover seamless transactions with our Elo Pay 22"
integrated payment solution based on the I‑Series 4.
The user-friendly self-service platform features a FHD
touch display, built-in NFC for contactless payment,
Android 12 OS, and Qualcomm SD660 processor.
![](https://docs.elotouch.com/elopay/elopay-22/hand-with-card.png)
Big & brilliant
22-inch display.
Elevate your customers' payment experience with the
Elo Pay 22-inch touchscreen display. Designed for
maximum visibility and effortless interaction, transform
every transaction into a smooth and engaging encounter.
![](https://docs.elotouch.com/elopay/elopay-22/EloPay22_TapToPay_AngledLeft-3.png)
![](https://docs.elotouch.com/elopay/elopay-22/EloPay22_Kiosk-2.png)
Create a custom
self-service kiosk.
From self-order and ticketing to customer check-in
and more, deploying kiosks has never been easier.

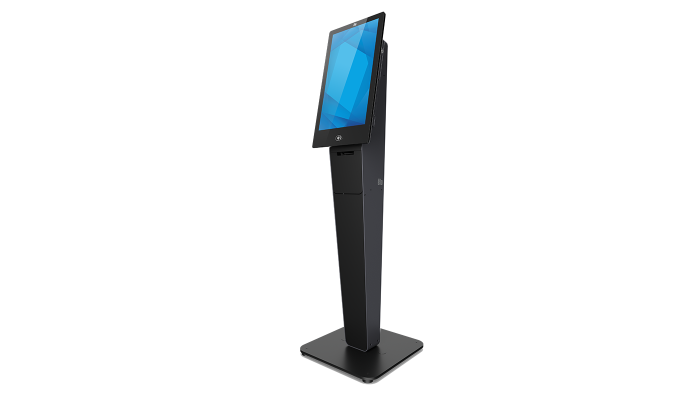

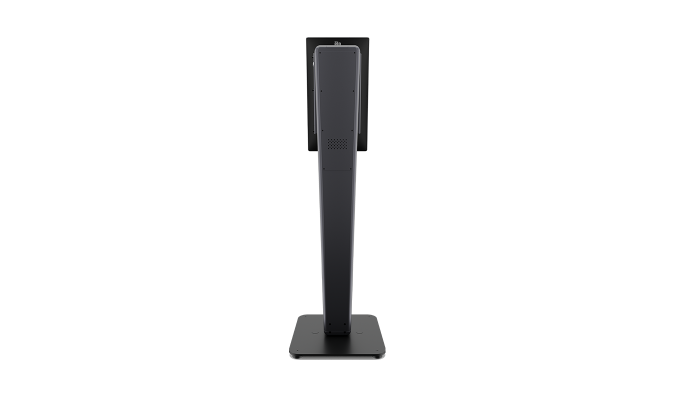

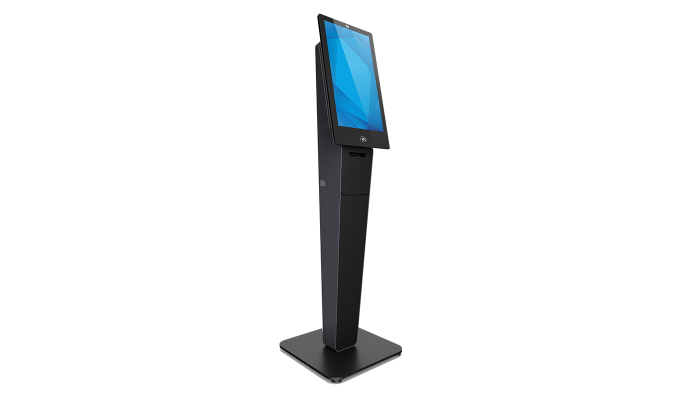

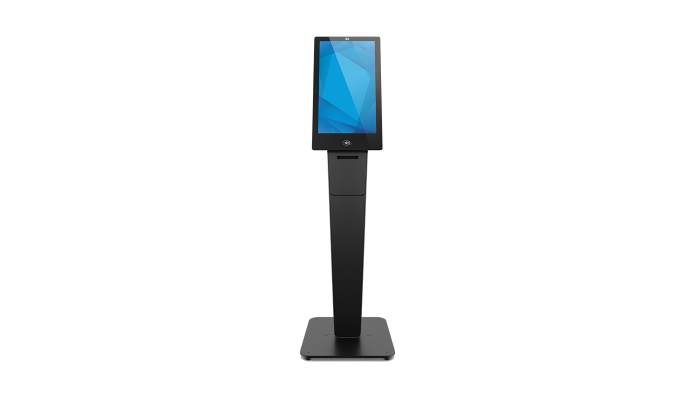

Pair the Elo Pay 22” with a variety of stands, including
the popular Wallaby Pro to create the self serve
solution your business needs.
Built to be modular.
VESA

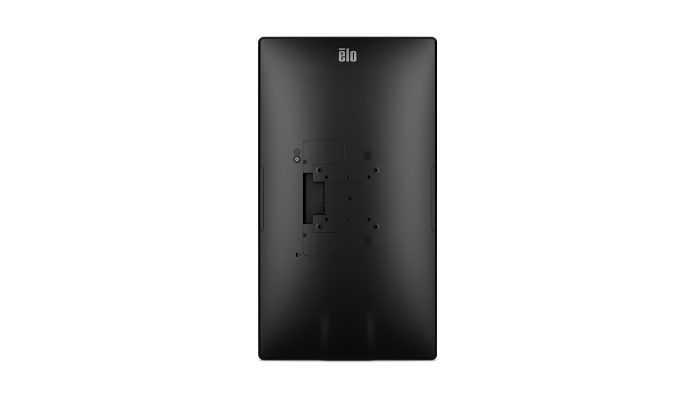

Easily mount the Elo Pay 22-inch with the built‑in VESA
mount - making it easy to pair with a variety of stands,
pole mounts and wall mounts.
![](https://docs.elotouch.com/elopay/elopay-22/EloPay22_VESA.png)
![](https://docs.elotouch.com/elopay/elopay-22/EloPay22_3dCamera.png)
Edge Connect
Seamlessly attach any combination of peripherals
including cameras, speaker bars and more.
Android device
management made easy.
EloView allows you to deploy and securely manage
your entire network of Android-powered Elo devices
from anywhere in the world.
-
Remotely deploy content and manage your
devices securely. -
Provision your devices in seconds with a
seamless out-of-the-box experience. -
Leverage Elo Home to create a customized
interface on your Elo Pay device.
![](https://docs.elotouch.com/M100/eloview.png)
![Mobile device management system Image of Android Device Management Interface](https://docs.elotouch.com/eloview/images/mobile_EloView_Device_Management.png)
![](https://docs.elotouch.com/elopay/elopay-22/EloPay22_EssentialEdge.png)
Get enterprise support
with Elo EssentialEdge.™
With easy-to-use development kits, robust management
tools, world class life cycle management and security, Elo
can help you deliver the convenience and familiarity of
Android interfaces in a secure, business-friendly way.
OS 360 – Take advantage of monthly security
updates to keep your devices secure.
Seamless Provisioning – Leverage EloView or
Google Zero Touch to easily set up your device.
Elo OEMConfig – Get Elo’s proprietary APIs on your
preferred Android MDM platform, saving months of
effort as new releases become available.
Get peace of mind
with EloCare.
From advance unit replacement to OS 360, EloCare
delivers service and support from the people who
know your Elo products best.
- Advance Unit Replacement
- Accidental Damage Protection
- Extended Warranty
- OS 360
Quality that
is built to last.
We engineer each product with a goal that goes
beyond meeting expectations; we aim to exceed
them. By integrating our technology into your
operations, you are partnering with us - and as
your partner, we are committed to delivering
reliable products so you can focus on growth and
innovation, confident in the knowledge that we
stand behind our products, ready to support you
every step of the way.
Specifications
-
Technical
Part Number(s)
E574316
Enclosure Color
Black
Touch Technology & Capacity
PCAP (TouchPro® Projected Capacitive) - 10 Touch
Touch Thru
Supports up to 6mm / 0.24" glass or 3mm / 0.12" plastic with up to 2 touches
Processor
Qualcomm Snapdragon SDA660
Memory (RAM)
4GB
Storage
64GB
OS
Android 12 with Google Play Services
Diagonal Size
21.5'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
16:9
Active Area
18.74" x 10.54" / 476 mm x 268 mm
Resolution
1920 x 1080 @ 60Hz
Number of Colors
8-bit (16.7 million)
Brightness (typical)
LCD Panel: 250 nits
TouchPro PCAP: 215 nitsResponse Time-total (typical)
14 ms
Contrast Ratio
1000:1
Viewing Angle
Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Peripheral Mounting
3x micro-USB 2.0 Elo Edge Connect ports
Support for 1.2A on one port and 500mA for the remaining three portsI/O Ports
1x USB 3.0 support (900mA)
Type C USB output*
Micro SD slot
GPIO
Ethernet 1x LAN (Gigabit)
DC in
* When using the standard 65W power brick, USB-C can support up to 7.5W. When using the optional 90W power brick, USB-C can support up to 27W. See User Manual for detailsNFC
Front facing NFC antenna
Programmable rear-lit white LED illuminates NFC contactless logo
Fully SoftPOS compatibleWebcam
8MP, Max Resolution: 1920x1080 30fps, Auto Focus, Focus Range: >10cm
Wireless
802.11a/b/g/n/ac + Bluetooth 5.0
Audio Ports
2x built-in Digital Microphones
Speakers
2x 0.8W
Power Supply
AC input voltage: 100-240 VAC
Input frequency: 50-60 Hz
power adapter (included in accessory box)Power Consumption (Typical)
On: 19.8W
Off: 0.4W
Sleep: 4.4WDimensions
23.06" x 12.78" x 1.17" / 585.6 mm x 324.7 mm x 29.7 mm
Shipping Box Dimensions
27.05" x 7.17" x 16.54" / 687 mm x 182 mm x 420 mm
Weight (Unpackaged)
9.1 lbs / 4.1 kg
Weight (Packaged)
15 lbs / 6.8 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 50°C / -4°F to 122°F
Humidity
Operating: 20% to 80%
Storage: 5% to 95%Regulatory approvals and declarations
UL/cUL (US)
FCC (US)
IC (Canada)
CE (Europe)
CB (International)
VCCI, MIC (Japan)
RCM (Australia)Supported Countries
Canada, USA, Australia, Japan, New Zealand, Austria, Belgium, Czech Republic, Denmark, France, Germany, United Kingdom, Hungary, Italy, Netherlands, Poland, Portugal, Romania, Spain, Sweden, Switzerland, Turkey, Brazil, Taiwan
Real-Time Clock
lithium coin cell battery
MTBF
50,000 hours demonstrated
Mounting Options
VESA 75mm and 100mm
Warranty
2-year
Extended Service Options
3 year OS 360 - Elo P/N: E873133
3 year Warranty Coverage – Elo P/N: E819394
4 year Warranty Coverage – Elo P/N: E819598
5 year Warranty Coverage – Elo P/N: E819795
3 year Warranty Coverage + ADP – Elo P/N: E130329
4 year Warranty Coverage + ADP – Elo P/N: E130530
5 year Warranty Coverage + ADP – Elo P/N: E130719
2 year Warranty Coverage + AUR – Elo P/N: E819985
3 year Warranty Coverage + AUR – Elo P/N: E820186
4 year Warranty Coverage + AUR – Elo P/N: E820388
5 year Warranty Coverage + AUR – Elo P/N: E820582
2 year Warranty Coverage + AUR + ADP – Elo P/N: E131490
3 year Warranty Coverage + AUR + ADP – Elo P/N: E131674
4 year Warranty Coverage + AUR + ADP – Elo P/N: E131859
5 year Warranty Coverage + AUR + ADP – Elo P/N: E132053OS Support
Monthly Android security updates available with Elo OS 360 package.
Sealability
Touchscreen sealed to LCD
What's in the Box
Elo Pay 22"
North American Power Cable
European Power Cable
1x Power Brick
Quick Install Guide
Screws for cable cover door (located in the power/Ethernet bay)Optional Peripherals
Magnetic Stripe Reader (MSR) – Elo P/N: E001002
Fingerprint Scanner – Elo P/N: E134286
2D Barcode Scanner (Black - SE2707) – Elo P/N: E393160
2D Barcode Scanner (Black - SE4720) – Elo P/N: E384627
2D Barcode Scanner (Black - SE4107) – Elo P/N: E245047
EMV Cradle for MagTek eDynamo - Elo P/N: E375343
EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981
EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930
Status Light (Micro-USB Connectivity) - Elo P/N: E644767
3D Camera - Elo P/N: E134699
Webcam - Elo P/N: E201494

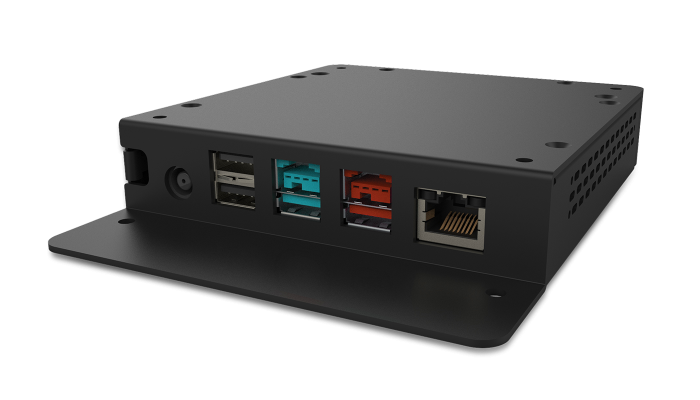

Expansion Module – Elo P/N: E809509
RFID - Elo P/N: E673037Stands, Mounts & Kits
Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088
Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382
Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069
Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663
Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864
Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151
65W Replacement Cable Kit (NA & EU power cables and power brick) – Elo P/N: E514304
90W Replacement Cable Kit (NA & EU power cables and 90W power brick) - Elo P/N: E413579
Slim Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E514693
Slim Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E514881 + E515260
Wallaby™ Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E421137
Wallaby™ Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E421325 + E797162
Replacement Cable Kit (NA & EU power cables) – Elo P/N: E512363
