5551L 55" (4K) Interactive Digital Signage (Replaced by 5553L)
How to buy

This product has been replaced by the - 5553L.


Overview

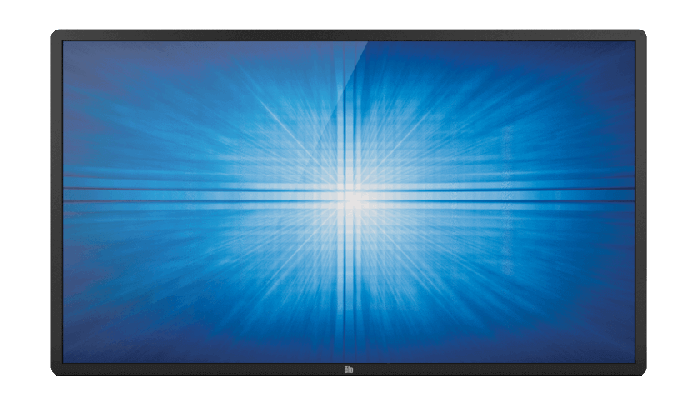

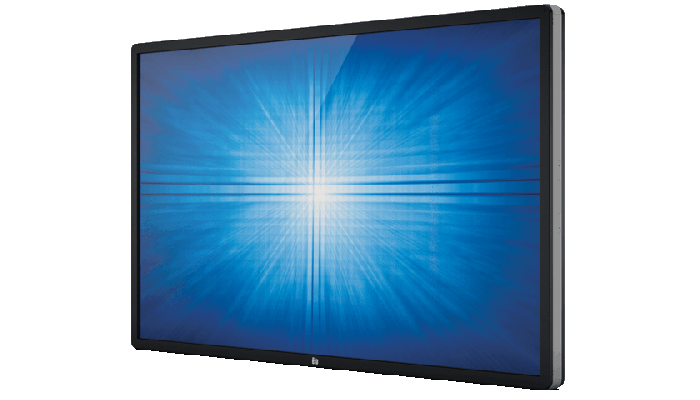

The Elo 5551L 55-inch Ultra High Definition (UHD) touchscreen signage display features phenomenal 4K resolution image quality in a slim, integrated package. Designed from the bottom up for retail, hospitality, enterprise, commercial real estate, education, corporate meeting rooms, lobbies and other commercial applications, the large widescreen 5551L offers a bright, 450-nit LED panel, with a high-quality, interactive canvas for attracting and engaging consumers. With a 10-touch ‘tablet-like’ performance, the infrared touchscreen technology provides higher touch sensitivity and brightness in a large 55-inch size.

Thinner & lighter.

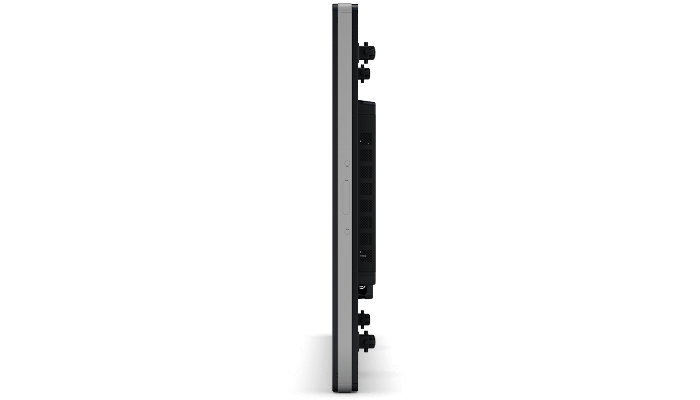

At 3.5 inches thin, the 5551L is compliant with the ADA requirement of less than 4-inch protrusion for wall-mounted products when used with an Elo low-profile mount.

 Image of item
Image of item

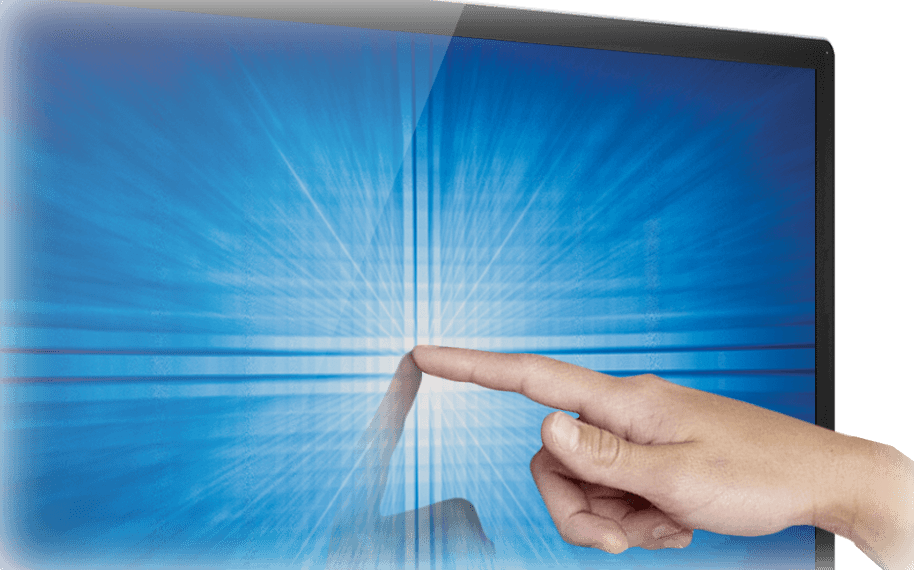

Integrated touch.

Elo’s products are factory-built touch systems with durability built in, not snapped on, preventing any “double bezel” appearance or rattling when touched. The 5551L delivers undistorted display clarity due to use of clear glass with true native 4K resolution, auto-switching between active input sources and RS232C serial control input. Available with infrared touchscreen technology and a traditional bezel construction, the 5551L delivers a sensitive multi-touch tablet-like response..
Processing power.

Optional, high-performance Windows® computer modules are available to turn the 5551L into a completely integrated all-in-one computer without the need for any cables or additional mounting hardware.

 Image of item
Other features.
  • Professional-grade hardware with strengthened touchscreen glass to withstand the rigors of public use
  • Three-year standard warranty (worldwide) with on-site exchange (NA only) / two-year extended warranty option available (NA and EMEA only)
  • Intel OPS compliant with available adapter kit
  • Flexible mounting in portrait, landscape and table-top orientation
Similar products.
3202L 32" Interactive Digital Signage
4202L 42" Interactive Digital Signage
4602L 46" Interactive Digital Signage
5502L 55" Interactive Digital Signage
5543L 55" Open Frame Touchscreen
7001LT 69.5" Interactive Digital Signage

Specifications

  • Technical

    Part Number(s)

    Infrared (Worldwide) - E268447

    Enclosure Color

    Black

    Touch Technology & Capacity

    Infrared - 10 Touch

    Touch Interfaces

    USB

    Diagonal Size

    54.6'' diagonal, Active matrix TFT LCD (LED)

    Active Area

    47.6" x 26.8" / 1209.6mm x 680.4mm

    Aspect Ratio

    16:9

    Resolution

    External HDMI and OPS: 3840 x 2160 30Hz
    External DisplayPort: 3840 x 2160 60Hz

    Viewing Angle

    Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

    Number of Colors

    1073.7 million

    Brightness (typical)

    LCD Panel: 450 nits
    IR: 405

    Response Time-total (typical)

    6.5 msec

    Contrast Ratio

    4000:1

    On Screen Display

    Controls: Menu, Up, Down, Select, Power
    Video Settings: Brightness, Contrast, VGA Settings (if available), Clock, Phase, Auto-Adjust, H-position, V-position, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Source
    OSD Timer: Change between 5 and 60 seconds
    Color Adjust: 9300K, 7500K, 6500K, 5500K and User mode
    Color Reference: Standard, Gaming, Movie, Photo, Webcam, Blur
    Saturation and Hue: In any mode other than Standard mode
    Audio: From Video Source, From Line-in and ECM Line-in
    Audio Controls: Mute, Volume up and Down
    Video: Choose from VGA, HDMI, DisplayPort, Elo Computer Module
    MDC Protocol: IIC or RS232
    Black Level: Standard, 5%, 10% and 20% Offset
    Light Sensor enable/disable: Sharpness Level
    Aspect Ratio: Fill Screen, Fill to Aspect Ratio and Direct Output
    Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
    Lockouts: OSD, Power
    Other Settings: Power Behavior, Tabletop mode, Information, MDC Protocol, Support and Help, System Temperature and Exit
    Accessible through switches on the unit's tethered OSD control box.

    I/O Ports

    Input: AC power, RJ45 Remote Connector, RS232 connector, HDMI, DisplayPort, USB type B, Audio Line In
    Output: Headphone Out

    Input Video Format

    HDCP-capable HDMI on Type A connector, DisplayPort 1.1a connector

    Input Video Frequency

    Horizontal: 30 – 139.2 KHz
    Vertical: 24 - 63 Hz

    Audio Input Connector

    3.5 mm TRS jack

    Audio Input Signal Range

    1Vrms max stereo signal (standard PC line out)

    Headphone Output Connector

    3.5 mm TRS jack

    Speakers

    Internal 4 x 5W stereo speakers

    Power Supply

    Internal AC

    Input Connector

    IEC 60320 C14

    Input Voltage

    100-240VAC 50/60Hz

    Power Consumption (Typical)

    Monitor Only
    (Typical at 120V at 60Hz): ON: 157 W; SLEEP: 15 W; OFF: 0.7 W
    (Typical at 230V at 50Hz): ON: 156 W; SLEEP: 15 W; OFF: 0.8 W

    Dimensions

    49.8" x 29" x 3.5" / 1267mm x 738mm x 90mm

    Shipping Box Dimensions

    55.9" x 34.6" x 9.3" / 1420mm x 880mm x 235mm

    Weight (Unpackaged)

    Monitor Only: 100 lbs / 45.4 kg
    Monitor with Computer Module: 105 lbs / 47.6 kg

    Weight (Packaged)

    Monitor Only: 121 lbs / 55 kg
    Monitor with Computer Module: 126 lbs / 57.2 kg

    Operating Temperature

    Portrait/Landscape Mode: 0° C to 40° C / 32°F to 104°F
    Tabletop Mode: 0° C to 35° C / 32°F to 95° F
    With OPS module: 0° C to 35° C / 32°F to 95° F

    Storage Temperature

    -20°C to 50°C / -4°F to 122°F

    Humidity

    Operating: 20% to 80%
    Storage: 10% to 95%

    Mounting Options

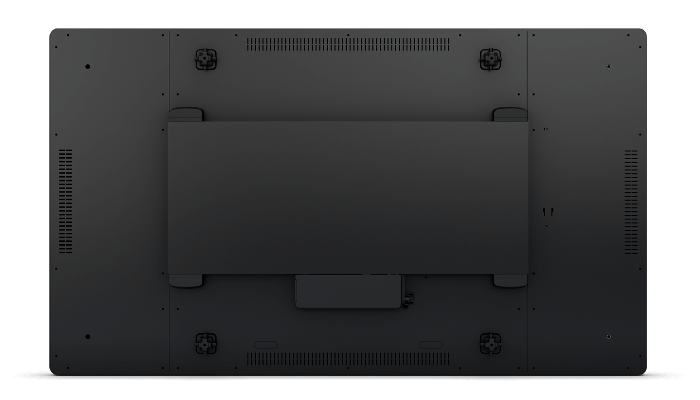

    VESA 4-hole Mount per MIS-F, 600, 600, 6mm

    Sealability

    Touchscreen sealed to bezel; Touchscreen sealed to LCD

    MTBF

    50,000 hours demonstrated

    Warranty

    3-year

    Extended Service Options

    4 year warranty coverage - Elo P/N: E446308
    5 year warranty coverage - Elo P/N: E967470
    4 year warranty coverage + AUR - Elo P/N: E065005
    5 year warranty coverage + AUR - Elo P/N: E065232
    4 year warranty coverage + OSE (Continental US only) - Elo P/N: E065906
    5 year warranty coverage + OSE (Continental US only) - Elo P/N: E898062

    Optional Product Coverage

    Extended Warranty (North America and EMEA only)

    Regulatory approvals and declarations

    UL, FCC - Class A, cUL, IC, CB, CE - Class A, C-Tick - Class A, NOM CoC, CCC, China RoHS
    With RFID: UL, FCC - Class A, CE - Class A

    RFID Supported Protocols

    ISO – 14443-A
    ISO – 14443-B
    ISO – 15693

    What's in the Box

    QIG, JP Class A Kiosk Info, HDMI cable, DisplayPort cable, USB cable, RS232 cable, 3.5mm audio cable, power cable (NA, EU/KR, UK, AR, CH, and JP plugs), 3-pin to 2-pin adapter for JP power cable, Energy label according to EU Regulation 1062/2010

    IDS Optional Accessories

    i3-6100 ECMG3 with No OS - Elo P/N: E400587
    i3-6100 ECMG3 with Windows 7 - Elo P/N: E400775
    i3-6100 ECMG3 with Windows 10 - Elo P/N: E400965
    i5-6500 ECMG3 with No OS - Elo P/N: E401168
    i5-6500 ECMG3 with Windows 7 - Elo P/N: E401365
    i5-6500 ECMG3 with Windows 10 - Elo P/N: E401558
    i5-6500 ECMG3 with Windows 10 (256 GB SSD & 8GB RAM) - Elo P/N: E458919
    i5-6500 ECMG3 with Windows 10 and DisplayNote Montage Software - Elo P/N: E343989
    i7-6700 ECMG3 with No OS - Elo P/N: E401764
    i7-6700 ECMG3 with Windows 7 - Elo P/N: E401962
    i7-6700 ECMG3 with Windows 10 - Elo P/N: E402161
    i7-6700 ECMG3 with Windows 10 (256 GB SSD) - Elo P/N: E459109
    i3 3.4 GHz ECMG2 - No OS for IDS 01 Series - Elo P/N: E001292
    i3 3.4 GHz ECMG2 - Windows 7 for IDS 01 Series - Elo P/N: E001293
    i3 3.4 GHz ECMG2 - Windows 8.1 for IDS 01 Series - Elo P/N: E001294
    i3 3.4 GHz ECMG2 - Windows 10 for IDS 01 Series - Elo P/N: E991018
    i5 3.7 GHz ECMG2 - No OS for IDS 01 Series - Elo P/N: E001295
    i5 3.7 GHz ECMG2 - Windows 7 for IDS 01 Series - Elo P/N: E001296
    i5 3.7 GHz ECMG2 - Windows 8.1 for IDS 01 Series - Elo P/N: E001297
    i7 4.0 GHz ECMG2 - No OS for IDS 01 Series - Elo P/N: E001298
    i7 4.0 GHz ECMG2 - Windows 7 for IDS 01 Series - Elo P/N: E001299
    i7 4.0 GHz ECMG2 - Windows 8.1 for IDS 01 Series - Elo P/N: E001300
    Web Cam Kit - Elo P/N: E688656
    NFC Adapter - Elo P/N: E918074
    OPS Kit - Elo P/N: E102270
    OSD Control Box - Elo P/N: E483757
    Replacement Cable Kit - Elo P/N: E000263
    Wall Mount Kit - Elo P/N: E248743
