E-Series 15-inch (15E3) AiO Touchscreen Computer (Discontinued September 2019)
Overview
The Elo E-Series 15-inch (15E3) 4:3 touchscreen computer is a commercial-grade solution powered by Intel Celeron J1900 Quad-Core processor to provide top-notch performance in a compact form factor. With a rugged design and fan-less operation, the E-Series is ideally suited for use in any retail or hospitality environment.
Sleek durability.The E-Series is available with two of Elo’s industry-leading touch technologies, both featuring a seamless edge-to-edge glass design that is easy to clean and built to endure commercial use. The TouchPro® Pro-G (Glass) Projected Capacitive (PCAP) delivers up to 10-touches while the AccuTouch® 5-wire resistive provides single-touch. Both feature an anti-glare display and USB interface. |
 |
 |

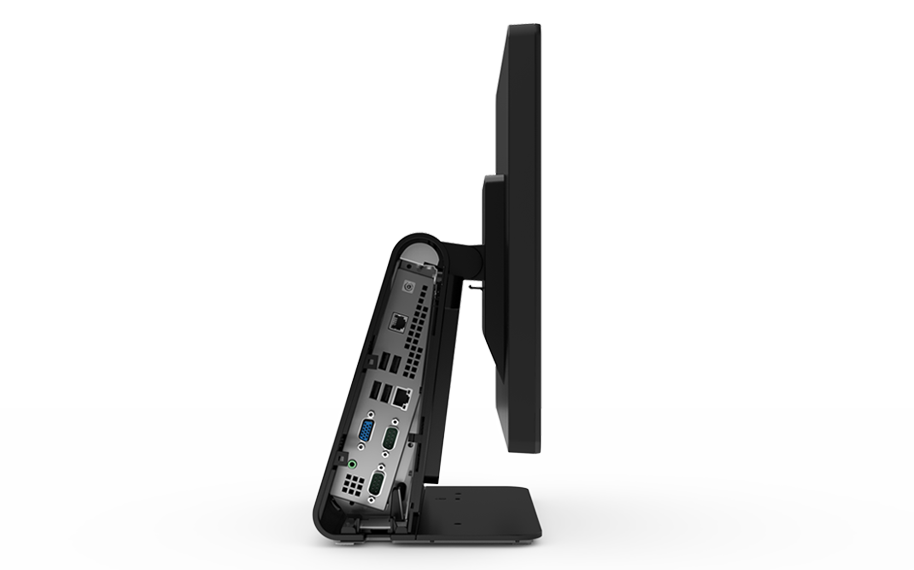

Connectivity.The E-Series AiO is designed for convenient serviceability with easy access to main components and secure mounting to a wall or pole or placed on top of a cash drawer. The 15E3 supports third party peripherals through four (4) USB and two (2) serial ports and has a VGA output to add an optional customer-facing display for advertising or customer communication. The connections are all hidden from view in the I/O bay, offering a clean, modern look while avoiding accidental disconnection. |
Professional-grade.Rigorously tested and backed by a three-year warranty, the E-Series delivers superior quality and reliability. The fan-less cooling design promotes a noise-free, dust-free and particulate-free operation, allowing you to maximize uptime and performance. |
 |
Other features.
- Serviceable internal components
- Easy mounting with threaded holes on base
- Removable base with 100mm VESA mounting
- Kensington security lock
Similar products.
E-Series 15.6-inch AiO Touchscreen ComputerX-Series 15-inch AiO Touchscreen Computer
X-Series 17-inch AiO Touchscreen Computer
X-Series 19.5-inch AiO Touchscreen Computer
Specifications
-
Technical
Part Number(s)
AccuTouch POSReady 7 (America, EMEA, Asia) - E292254
AccuTouch Win10 (America, EMEA, Asia) - E292635
AccuTouch No OS (America, EMEA, Asia) - E291777
TouchPro PCAP POSReady 7 (America, EMEA, Asia) - E293176
TouchPro PCAP Win10 (America, EMEA, Asia) - E293543
TouchPro PCAP No OS (America, EMEA, Asia) - E292972Enclosure Color
Black
Touch Technology & Capacity
5-Wire Resistive (AccuTouch®) - Single-Touch
PCAP (TouchPro® Projected Capacitive) - 10 TouchTouch Interface
USB
Processor
Intel Celeron J1900 Quad-Core Processor 2 GHz (up to 2.42 GHz) 2MB L2 Cache
Graphics
Intel HD Graphics
BIOS
AMI
Memory (RAM)
4GB DDR3L SODIMM on 1 of 1 slot
Storage
128GB 2.5” 7mm SATA SSD
NOTE: GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.Diagonal Size
15'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
4:3
Active Area
TouchPro PCAP: 12.17" x 9.18" / 309.1mm x 233.1mm
AccuTouch: 12.09" x 9.10" / 307.1mm x 231.1mmResolution
1024 x 768 @ 60Hz
Number of Colors
262,000
Brightness (typical)
LCD panel: 350 nits
TouchPro PCAP: 315 nits
AccuTouch: 280 nitsResponse Time-total (typical)
8 msec
Contrast Ratio
800:1
Viewing Angle
Horizontal: ± 80° or 160° total / Vertical: 70°/80° or 150° total
USB Ports
4 x USB 2.0
Serial Ports
2 x Native DB9 RS-232 (standard)
Ethernet Port
1 x LAN RJ45 (Gigabit)
Cash Drawer Port
1 x RJ12 (EPSON pinouts)
Video Out
VGA out
Audio Ports
1 x 3.5mm line out
OS
No OS
Windows POSReady 7
Windows 10Power Supply
External 19VDC universal-type power supply brick
AC input voltage: 100-240 VAC
Input frequency: 50-60 Hz
Maximum output power: 65W (Max Draw: 74W)Power Consumption (Typical)
30W
Max Touchcomputer Dimensions With Stand
14.1" x 14.1" x 6.3" / 358mm x 357mm x 161mm
Max Touchcomputer Dimensions Without Stand
14.1" x 13.8" x 6.1" / 358mm x 351mm x 156mm
Shipping Box Dimensions
18.1" x 9.8" x 16.8" / 460mm x 250mm x 425mm
Weight (with stand)
11.1 lbs / 5 kg
Shipping Weight (With stand)
15.9 lbs / 7.2 kg
Operating Temperature
0°C to 35°C / 32°F to 95°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%
Storage: 5% to 95%Regulatory approvals and declarations
UL/cUL, FCC, TUV, CB, CE, Mexico CoC, RCM, VCCI, CCC, KC, BSMI, Ukrsepro
Real-Time Clock
lithium-ion battery
MTBF
30,000 hours demonstrated
Mounting Options
Wall mount or secure base to tabletop/desktop
Warranty
3-year
Sealability
Touchscreen sealed to sub-bezel
Touchscreen sealed to LCDPower Cables
North American and European power cables included; Other regions available upon request.
Other Features
Serviceable internal components
Threaded holes on bottom of base for mounting
Removable base
Kensington security lockWhat's in the Box
E-Series Touchcomputer
Quick Install Guide
Power Adapter
US Type-B Power Cord (7A, 125V~)
EU Type-E+F Power Cord (2.5A, 250V~)
New “Expended” base cap
1 x secure screw for front coverReplacement DC Power Supply
19V DC power brick (P/N: E395350) is available at additional cost
Optional Peripherals

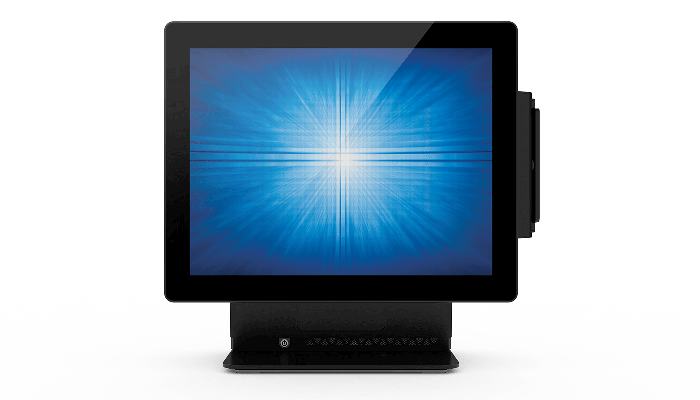

Magnetic Stripe Reader (MSR) – Elo P/N: E122229

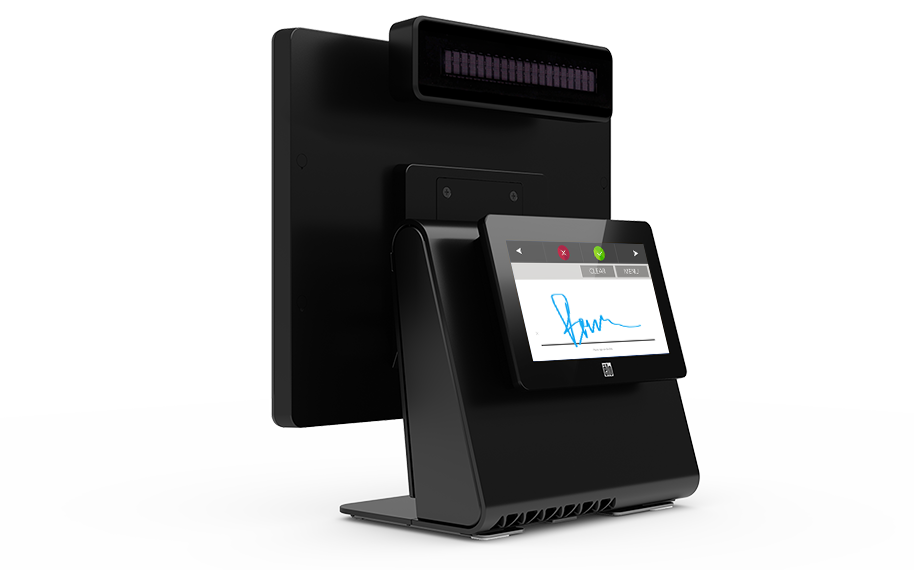

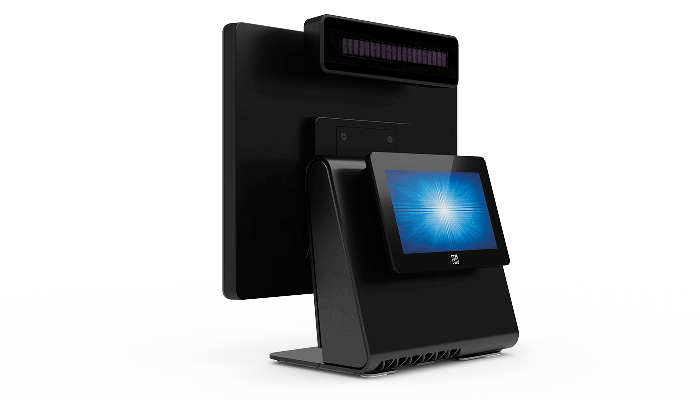

Customer Display (VFD) – Elo P/N: E122426
7" LCD Customer-facing Display – Elo P/N: E791658 (AccuTouch®)
Dallas Key Kit – Elo P/N E055348Stands, Mounts & Kits
Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088
Rear Facing Display Mount – Elo P/N: E122610
