E-Series 15.6-inch (15E2) AiO Touchscreen Computer (Replaced by E-Series 2)
This version has been replaced by the E-Series 2.
Overview

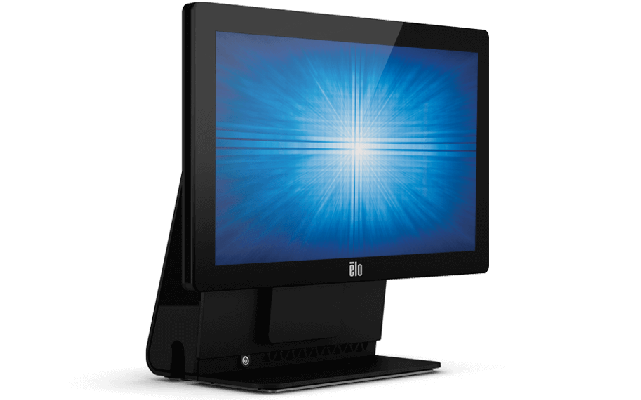

The Elo E-Series 15-inch touchscreen computer is a commercial-grade solution that delivers widescreen impact in a greatly reduced form factor. With a rugged design and fan-less operation, the E-Series is ideally suited for use in any retail or hospitality environment. Powered by an Intel Celeron J1900 (RevD) processor, the E-Series provides top-notch performance at a value-based price.

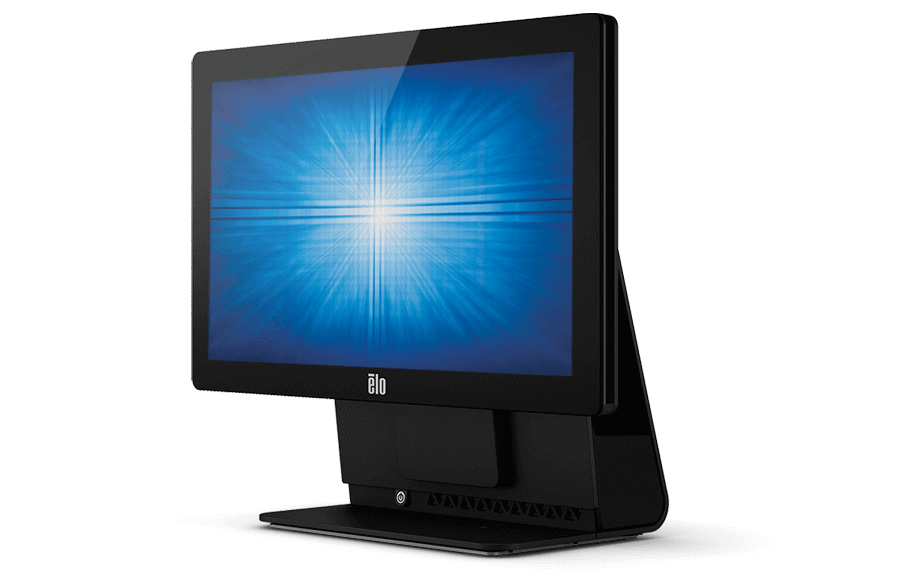

Sleek durability.The E-Series features a seamless edge-to-edge glass design that is easy to clean and built to endure commercial use. Available with IntelliTouch® zero-bezel surface acoustic wave (SAW) or AccuTouch® 5-wire resistive technologies, touch response using a finger, gloved hand, or soft stylus is fast, accurate, and drift free. Both feature pure glass construction that allows high light transmission without compromising durability or functionality. |
 |
 |

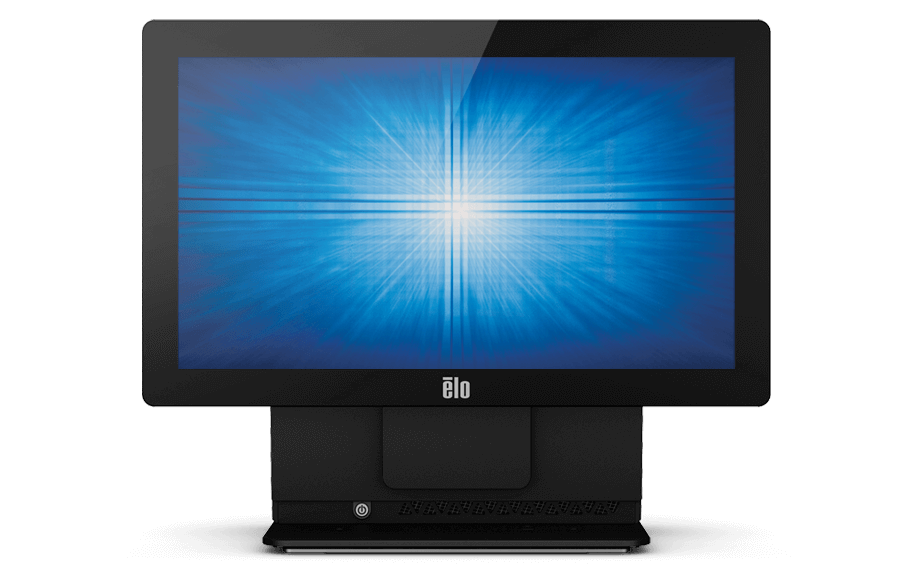

Connectivity.The 15-inch E-Series supports third-party peripherals through four USB and two serial ports. A second VGA output is available to add a second customer-facing display for advertising and customer engagement. |

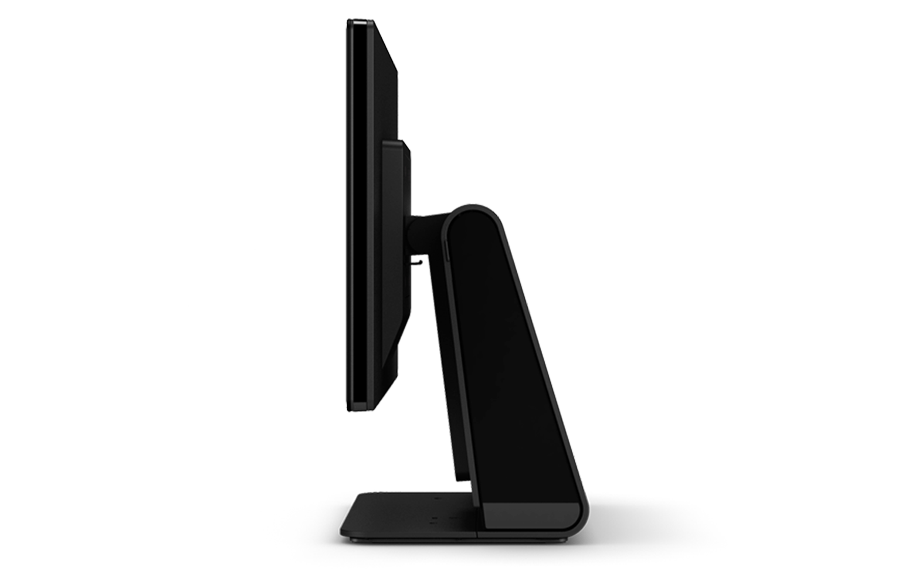

Professional-grade.Rigorously tested and backed by a three-year warranty, the E-Series delivers superior quality and reliability. The fan-less cooling design promotes a noise-free, dust-free and particulate-free operation, allowing you to maximize uptime and performance. |
 |
Other features.
- Serviceable internal components
- Easy mounting with threaded holes on base
- Removable base with 100mm VESA mounting
- Kensington security lock
Similar products.
X-Series 15-inch AiO Touchscreen ComputerX-Series 17-inch AiO Touchscreen Computer
X-Series 19.5-inch AiO Touchscreen Computer
Specifications
-
Technical
Part Number(s)
AccuTouch (J1900) POSReady (Worldwide) - E924675
AccuTouch (J1900) Win10 (Worldwide) - E353557
AccuTouch (J1900) No OS (Worldwide) - E757464
IntelliTouch (J1900) ZB POSReady (Worldwide) - E924393
IntelliTouch (J1900) ZB Win10 (Worldwide) - E353362
IntelliTouch (J1900) ZB No OS (Worldwide) - E732416Enclosure Color
Black
Touch Technology & Capacity
5-Wire Resistive (AccuTouch®) - Single-Touch
SAW ZB (IntelliTouch® Surface Acoustic Wave) - Single TouchProcessor
Intel Celeron 2 GHz (up to 2.42 GHz) Quad-Core J1900, 2MB L2 Cache
Graphics
Intel HD Graphics
BIOS
AMI
Memory (RAM)
4GB DDR3L SODIMM on 1 of 1 slot
Storage
128GB 2.5” 7mm SATA SSD
NOTE: GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.Diagonal Size
15.6'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
16:9
Active Area
IntelliTouch: 13.6" x 7.6" / 344.2mm x 193.5mm
AccuTouch: 13.7” x 7.8” / 348.2mm x 197.5mmResolution
1366 x 768 @ 60Hz
Number of Colors
262,000
Brightness (typical)
LCD panel: 220 nits
IntelliTouch ZB: 198 nits
AccuTouch: 176 nitsResponse Time-total (typical)
10 msec
Contrast Ratio
600:1
Viewing Angle
Horizontal: ±45° or 90° total / Vertical: 20°/45° or 65° total
USB Ports
4 x USB 2.0
Serial Ports
2 x Native DB9 RS-232 (standard)
Ethernet Port
1 x LAN RJ45 (Gigabit)
Additional Video Out
2nd VGA out
Audio Ports
1 x 3.5mm line out, 1 x 3.5mm line in, 1 x 3.5mm mic in
OS
No OS
Windows POSReady 7
Windows 10Languages
Windows POSReady7 - 35 Language groups
Power Supply
External 19VDC universal-type power supply brick
AC input voltage: 100-240 VAC
Input frequency: 50-60 Hz
Maximum output power: 65W (Max Draw: 74W)Power Consumption (Typical)
29W
Max Touchcomputer Dimensions With Stand
15.4" x 13.0" x 6.3" / 390mm x 330mm x 161mm
Max Touchcomputer Dimensions Without Stand
15.4" x 11.0" x 9.5" / 390mm x 280mm x 240mm
Shipping Box Dimensions
18.1" x 15.8" x 9.8" / 460mm x 400mm x 250mm
Weight (with stand)
10.4lbs / 4.7kg
Shipping Weight (With stand)
16.1lbs / 7.3kg
Operating Temperature
0°C to 35°C / 32°F to 95°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%
Storage: 5% to 95%Regulatory approvals and declarations
UL, cUL, FCC, TUV, CB, CE, CoC, VCCI, CCC, KC, BSMI, RCM, UKSERTCOMPUTER
Real-Time Clock
lithium-ion battery
MTBF
30,000 hours demonstrated
Mounting Options
Wall mount or secure base to tabletop/desktop
Warranty
3-year
Sealability
Touchscreen sealed to sub-bezel
Touchscreen sealed to LCDOther Features
Serviceable internal components
Threaded holes on bottom of base for mounting
Removable base
Kensington security lockWhat's in the Box
E-Series Touchcomputer, North America Power Cord; EU Power Cord; Power Adapter - 90W; Extended cable cover, Quick Installation Guide (QIG)
E-Series AC Power Cables Ordering Information
North America p/n: E042259
Europe/Korea p/n: E690013
China p/n: E030476
United Kingdom p/n: E235317
Taiwan p/n: E637694
Argentina p/n: E98419
Japan p/n: E109553
Japan 3-pin to 2-pin adapter p/n: E351985Replacement DC Power Supply
19V DC power brick (P/N: E395350) is available at additional cost
Optional Peripherals
Magnetic Stripe Reader (MSR) – Elo P/N: E122229
Customer Display (VFD) – Elo P/N: E122426
7" LCD Customer-facing Display – Elo P/N: E791658 (AccuTouch®)
Dallas Key Kit – Elo P/N E055348Stands, Mounts & Kits
Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088
Rear Facing Display Mount – Elo P/N: E122610
Accessories
(3)
Upgrades, add-ons, and more.

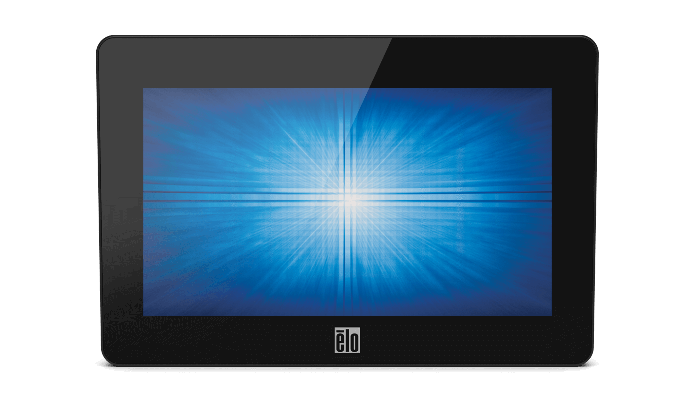

0700L 7" Touchscreen Monitor (Discontinued June 2019)

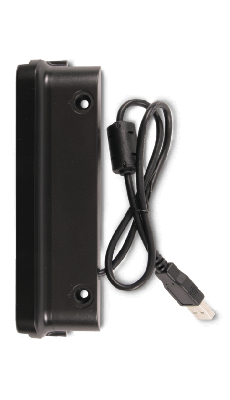

Magnetic Stripe Reader (E-Series)
