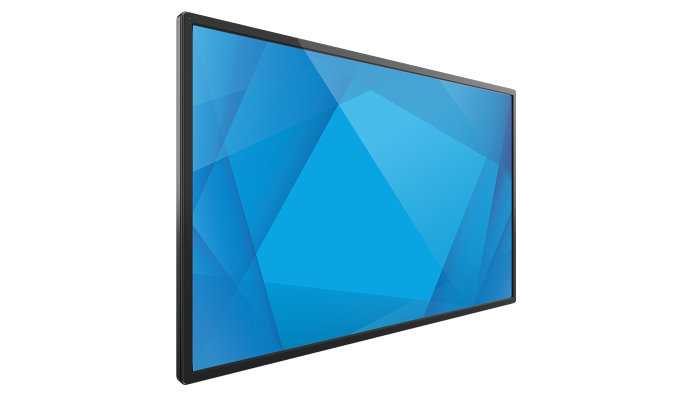

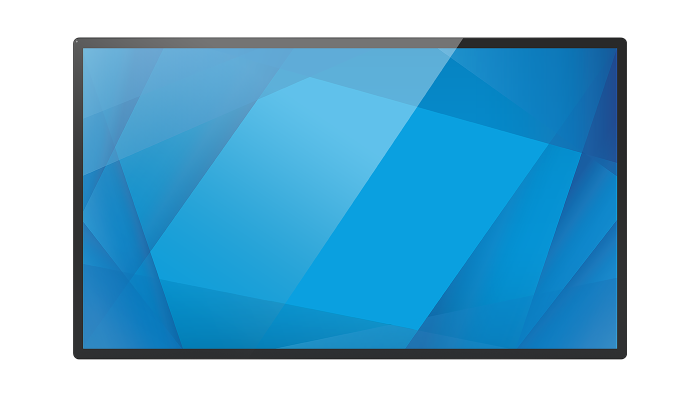

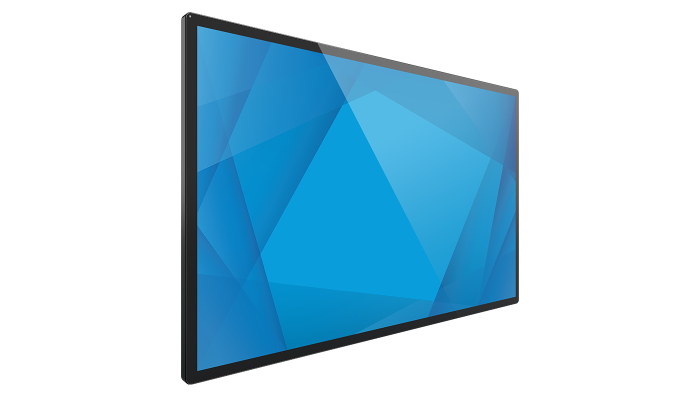

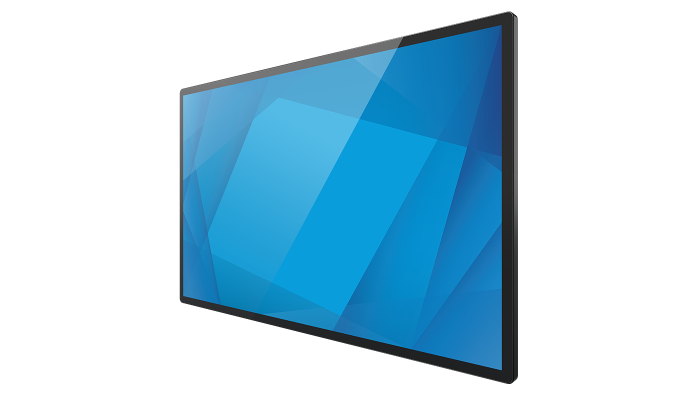

6554L 65"
Interactive Display
Elevate your applications with Elo’s 6554L 65‑inch touch screen monitor that brings
interactivity to any setting. With support for up to 40 simultaneous touches, lightning-fast
responsiveness, and anti-friction glass, Elo's 6554L prioritizes the user experience. And
by combining the touch display with the Elo Backpack or a Brightsign player, you can
effortlessly convert this display into a versatile, life-sized 65‑inch tablet.

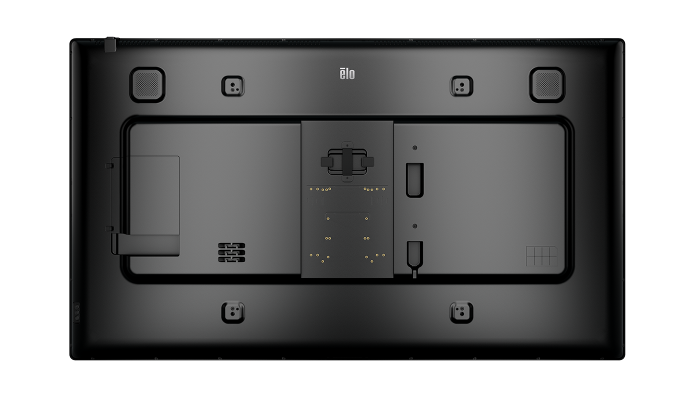

The back of your display
never looked so clean.
VESA for PC
mounting
Power brick and
power cable
mounting
External PC power
passthrough
Contained
cable routing
VESA for PC
mounting
Power brick and
power cable
mounting
External PC power
passthrough
Contained
cable routing
Remote device management
enabled with EloView.
With the addition of the integrated IoT control, you can easily manage your device settings with
EloView, Crestron or your preferred MDM solution via provided APIs.
Find the perfect digital signage display
for your applications, with sizes ranging
from 32 inches to 65 inches.
Connect your accessories to the edge. With up to 1.2
Amps, you can easily run four Elo Edge Connect
peripherals at one time.
Whether you're enhancing your retail environment with endless
aisle, engaging customers with easy to use self-service kiosks,
guiding visitors with interactive wayfinding or helping doctors and
patients interact in the hospital, the 6554L digital signage display
offers a sleek, minimalistic design engineered to withstand the
demands of continuous commercial use.
Touch Thru Glass Enabled with PCAP
With touch thru capability, Elo’s TouchPro® PCAP interactive displays
can be mounted behind a mirror, in a counter or in a fully encased
kiosk for added durability or aesthetics.
Versatile mounting options for
commercial interactive displays.
Our commercial-grade interactive displays can be mounted in

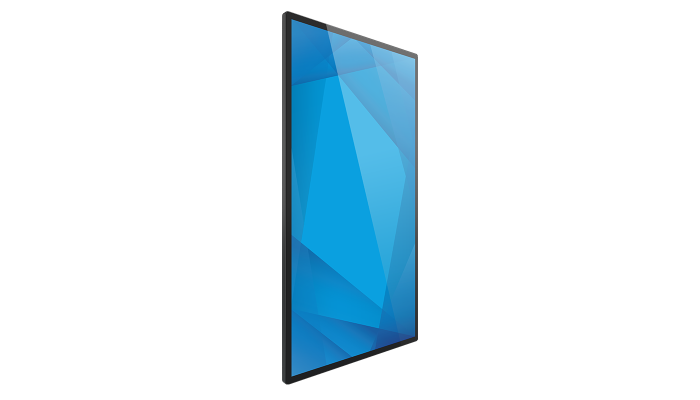

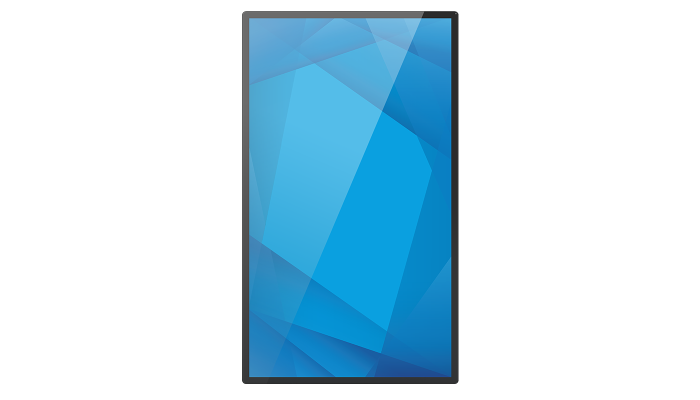

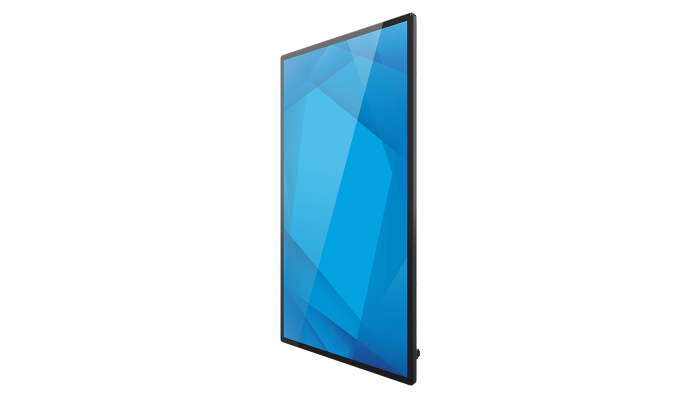

landscape, portrait and tabletop orientations, providing optimal
flexibility for mounting to a wall, in a kiosk or tabletop.
Designed for the demands
of commercial environments.
Built for 24/7 use in high-traffic environments with UL-60950 and IK-07 compliance,
Elo’s 6554L delivers the reliability and durability businesses need even in the most
demanding conditions. With the addition of extended product life cycles and global
certifications, you can trust in the long-term performance and suitability of the 6554L
for diverse international markets.
Get peace of mind
with EloCare.℠
EloCare delivers service and support from the people
who know your Elo products best. And as part of the
three-year standard warranty for large format digital
signage displays, Elo offers complimentary advance
unit replacement to cover you in the unfortunate
event your device requires service.
*AUR Included with 3-year standard warranty for US & EMEA only.
Quality that
is built to last.
We engineer each product with a goal that goes
beyond meeting expectations; we aim to exceed
them. By integrating our technology into your
operations, you are partnering with us - and as
your partner, we are committed to delivering
reliable products so you can focus on growth and
innovation, confident in the knowledge that we
stand behind our products, ready to support you
every step of the way.
Specifications
-
Technical
Part Number(s)
TouchPro PCAP (clear with anti-friction) - E104723
TouchPro PCAP (anti-glare) - E104912
IR (anti-glare) - E105106Enclosure Color
Black
Touch Technology & Capacity
PCAP (TouchPro® Projected Capacitive) - 40 Touch with Palm Rejection and Touch Thru capability
Infrared - 20 TouchTouch Interfaces
USB-C
Diagonal Size
64.5'' diagonal, Active matrix TFT LCD (LED)
Active Area
56.2" x 31.6" / 1428.48 mm x 803.5 mm
Aspect Ratio
16:9
Resolution
3840 x 2160 @ 60 Hz
Other Supported Resolutions
640 x 480 @ 60Hz
800 x 600 @ 56/60Hz
1024 x 768 @ 60Hz
1280 x 720 @ 60Hz
1280 x 960 @ 60Hz
1280 x 1024 @ 60Hz
1920 x 1080 @ 50/60Hz
2560 x 1440 60 Hz
2560 x 1600 60 Hz
3840 x 2160 30/60 HzViewing Angle
Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Number of Colors
10-bit (1.07 billion)
Brightness (typical)
LCD Panel: 500 nits
PCAP: 430 nits \IR: 450 nitsResponse Time-total (typical)
8 msec
Contrast Ratio
1100:1
Compute mounting options
Elo Backpack 4
Intel NUC with 100 mm x 100 mm VESA mounting plate
BrightSign XT/XD/XC/HD Series PlayerBuilt-in IoT control
EloView: Elo Cloud control supported
Crestron: Crestron Connected V2 supportedOn Screen Display
Let’s Get Started: Language Selection, Time Setting, Time Zone
Video Source Select: HDMI-1, HDMI-2, DisplayPort, USB-C
Video Settings: Video Port Discovery, Brightness, Contrast, Black Level, Sharpness and Aspect Ratio
Color Settings: Color Temperature, Color Sensor, User Preset (for color), Picture Modes and HDMI Full Range
Audio Settings: Audio Output, Mute, Volume selection
Information: Monitor, Temperature, IoT Network status, IoT Error Message, Help and Support
Power: Power Loss Behavior, Power Lock, Energy Saving Mode, Power Status Light options, HDMI CEC
Time: Time Set, On/Off Schedule
OSD Settings: Recall Defaults, OSD Timer, OSD Language, OSD Lock and OSD Portrait Rotation, Touch Through, Tabletop
Configuration: Source Port Lock (Will sync to EloView when connected), FW Update (via OTA or USB),
See user manual for full details.I/O Ports
2x HDMI 2.0
USB-C (for Touch control and Video input)
USB-A (for Wi-Fi Adapter only)
RJ45 (for IoT LAN port)
RJ45 (for optional OSD remote)
DisplayPort 1.4
3.5mm TRS jack (for RS232/MDC)
3.5mm Audio Headphones out
4x Elo Edge Connect Micro USB 2.0Control Buttons
Power
Video Source Selection
On Screen DisplayVideo
2x HDMI on Type A connector (HDCP-capable)
DisplayPort 1.2 connector (HDCP-capable)
USB-C connector (HDCP-capable)
Input Video Horizontal Sync frequency range: FHD: 30 – 135 KHz
Input Video Vertical Sync (frame rate) frequency range: 24 - 64 HzHeadphone Output Connector
3.5 mm TRS jack
Speakers
2 x 10 W stereo speakers
Power
Input connector (power): IEC 60320-C13
Input signal specifications (power): 100-240VAC 50/60Hz
Output connector (bypass input power to backside device): IEC 60320-C14
AC outlet short cable (IEC C14 to C5 head) power rating: 100V/2A (200Watt), 220V/2A (440Watt)Maximum Operating Time
24 hours/day
Power Consumption (Typical)
PCAP:
ON: 157 W
SLEEP: 2 W
OFF: 0.7 W
IR:
ON: 152 W
SLEEP: 2 W
OFF: 0.7 WDimensions
PCAP: 58.69" x 34.07" x 3.35" / 1490.6 mm x 865.5 mm x 85.1 mm
IR: 58.69" x 34.07" x 3.78" / 1490.6 mm x 865.5 mm x 95.9 mmShipping Box Dimensions
68.9" x 45.28" x 11.02" / 1750 mm x 1150 mm x 280 mm
Weight (Unpackaged)
PCAP: 111.14 lbs / 50 kg
IR: 114.13 lbs / 50.1 kgWeight (Packaged)
PCAP: 131.04 lbs / 60 kg
IR: 136.24 lbs / 60.1 kgOperating Temperature
Portrait/Landscape/Tilt (≤15°) Mode: 0°C to 40°C / 32°F to 104°F
Table top Mode: 0° C to 35° C / 32°F to 95°FStorage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%
Storage: 10% to 95% (38.7°C max wet bulb temperature)Mounting Options
VESA 600 mm x 600 mm, M8
Sealability
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF
50,000 hours demonstrated
Warranty
3-year with AUR included
Extended Service Options
4 year warranty coverage + AUR - Elo P/N: E740135
5 year warranty coverage + AUR - Elo P/N: E740330
3 year warranty coverage + OSE - Elo P/N: E740527*
4 year warranty coverage + OSE - Elo P/N: E740728*
5 year warranty coverage + OSE - Elo P/N: E740918*
*Continental US onlyRegulatory approvals and declarations
UL 62368-1
FCC/CEC (US)
cUL, IC (Canada)
CB (International safety) (IEC/EN60950-1+IEC/EN62368-1)
CE (Europe)
VCCI (Japan)
RCM (Australia)
CCC/CEL, China RoHS (China)
NOM Mexico
IK07 and UL60950 for ball drop testEnergy Star
8.0
Other Features
Ambient Light Sensor - changes panel color to match ambient light, Auto Wake
OTA FW upgradeWhat's in the Box
6554L Interactive Display
Quick Install Guide
AC(in) Power cable, IEC 60320-C13 to NA plug
AC(in) Power cable, IEC 60320-C13 to EU/KR plug
AC(in) Power cable, IEC 60320-C13 to UK plug
AC(out) Power cable, IEC 60320-C14 to IEC 60320-C5 (0.3m) (With PSE certified)
USB cable (1m) (Connector: Type-C to Type-C)
Energy label according to EU Regulation 2019/2013, 1x EU EEI, 2x UK EEI
4x M4x6mm flat head screws (for BrightSign players)IDS Optional Accessories
2D Barcode Scanner (SE4107) – Elo P/N: E245047
2D Barcode Scanner (SE2707) – Elo P/N: E393160
Fingerprint Scanner – Elo P/N: E134286
Stand for IDS - Elo P/N: E722153
Wired OSD Remote - Elo P/N: E483757
Wall Mount Kit - Elo P/N: E721949
Replacement Cable Kit - Elo P/N: E285277
Passive Stylus - Elo P/N: E727568
Active PCAP Stylus - Elo P/N: E216215
Elo Backpack® 4 (Value Model) - Elo P/N: E393754
Elo Backpack® 4 (Standard Model) - Elo P/N: E393359
RFID - Elo P/N: E673037
4K Conference Camera - Elo P/N: E988153
Wi-Fi Adapter Kit - Elo P/N: E131942
1.8M HDMI 2.0 Cable - Elo P/N: E951189
1.8M RS232 Cable - Elo P/N: E959434
1.8M USB Type-A to Type-C Cable - Elo P/N: E951381
1.8M DisplayPort to DisplayPort video Cable - Elo P/N: E582895
Elo 1M USB Type-C Cable Kit - Elo P/N: E802914
