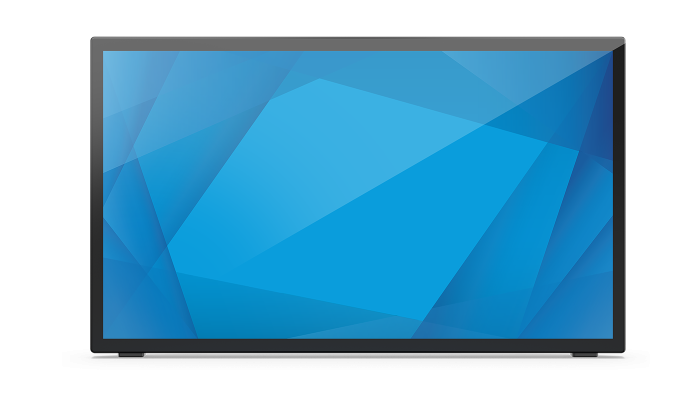

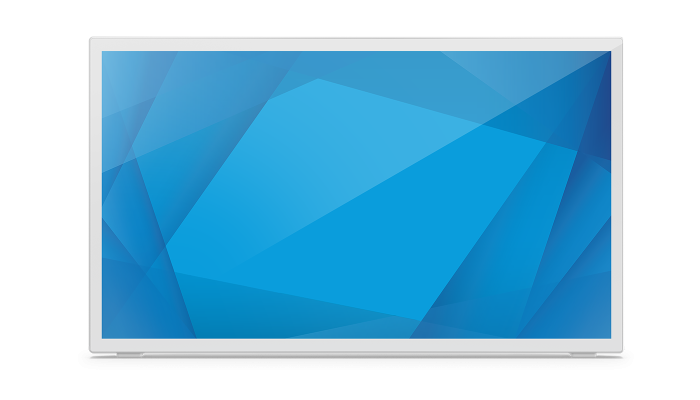

The bezel just
got smaller.

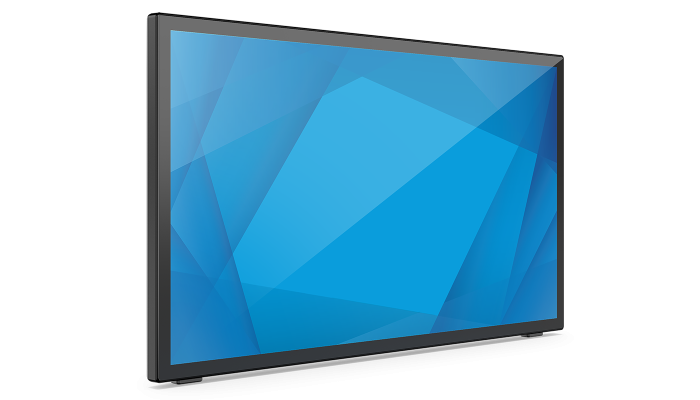

The 2270L 22” touchscreen
offers up to a 70% reduction
in the bezel compared to
similar models.

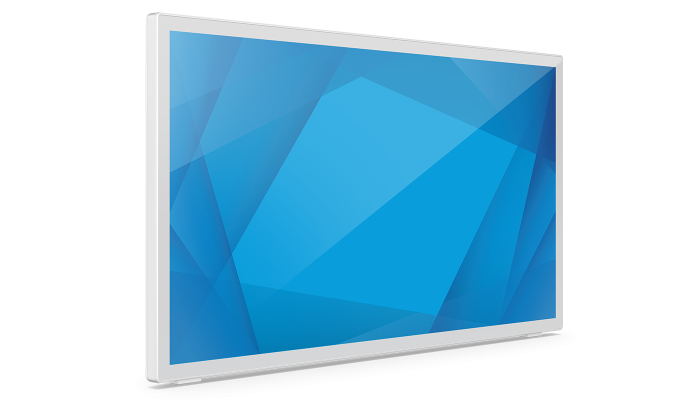

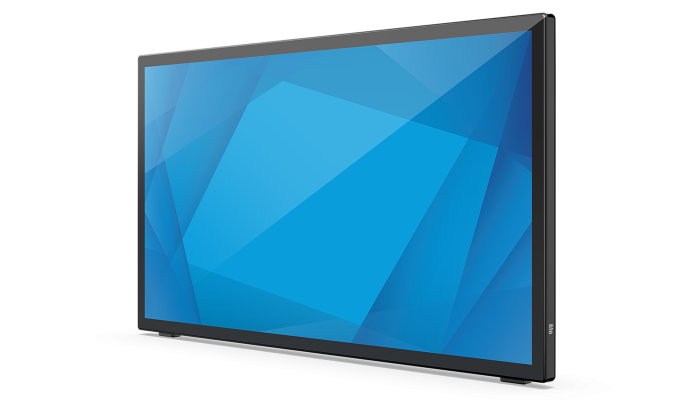

Minimalistic
design to fit
any space.

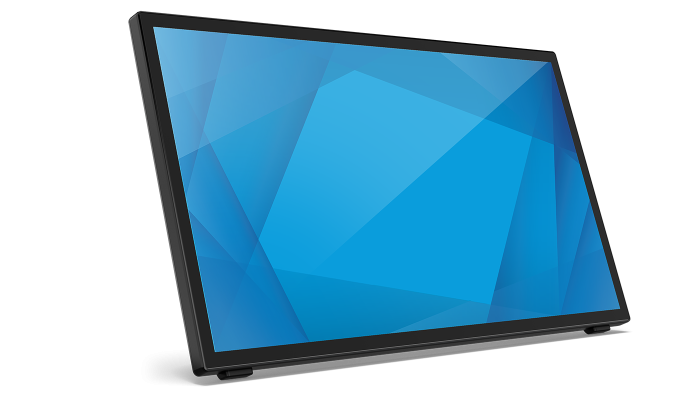

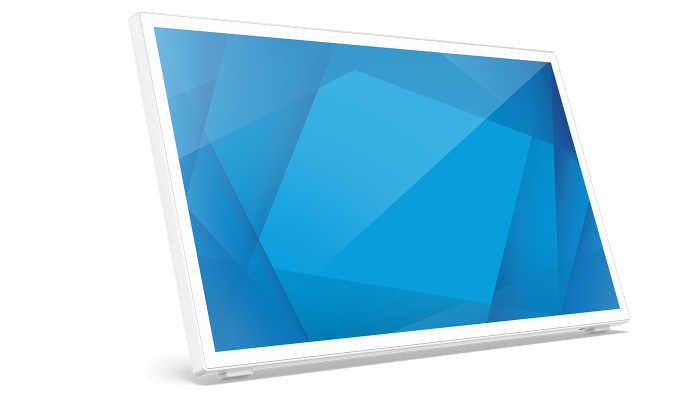

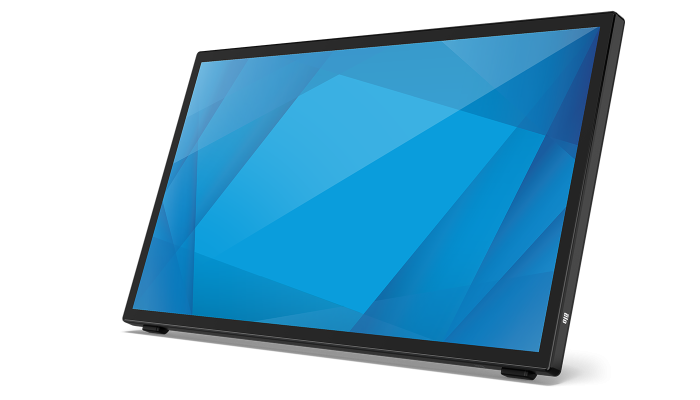

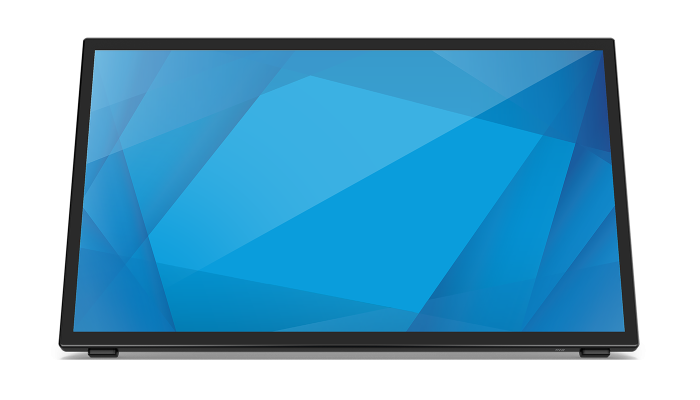

From 20 degrees to
70 degrees, angle
the display where
you want it.
Place it on a desktop,
mount it on a wall or
configure the 2270L
to fit your space with
VESA-compatibility.

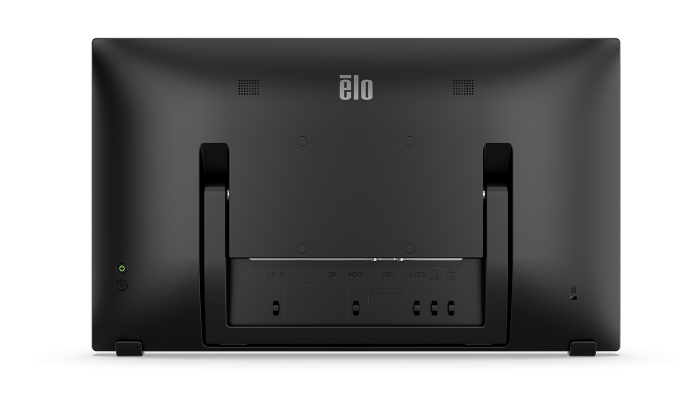

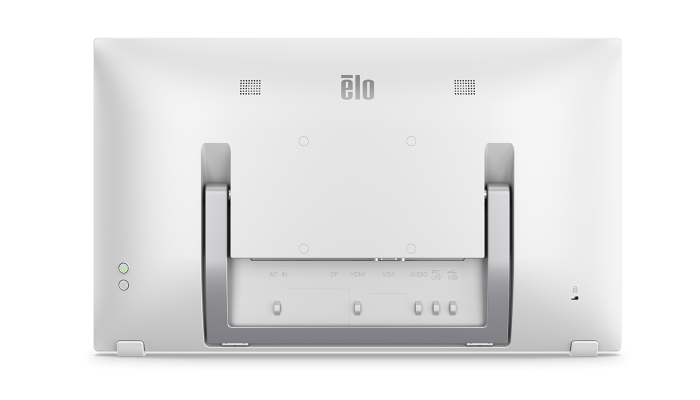

Built-in
speakers and
integrated IO.
Place it on a desktop,
mount it on a wall or
configure the 2270L
to fit your space with
VESA-compatibility.
Built-in
speakers and
integrated IO.
Durable, energy
efficient touchscreen.
- Scratch-resistant glass surface.
- IK07 impact resistant.
- ES8.0 certified for greater
energy efficiency.
Increase viewing comfort
with low blue light and
flicker free features.
Navigate the OSD directly
on the touchscreen.
We have made it easier to manage your
On-Screen Display (OSD) controls – Now you
can use the touchscreen or the controls you
are used to on the rear side of the monitor.
Order your 2270L today.
Specifications
-
Technical
Part Number(s)
Black, clear - E510259
Black, anti-glare - E511214
White, anti-glare - E265991Enclosure Color

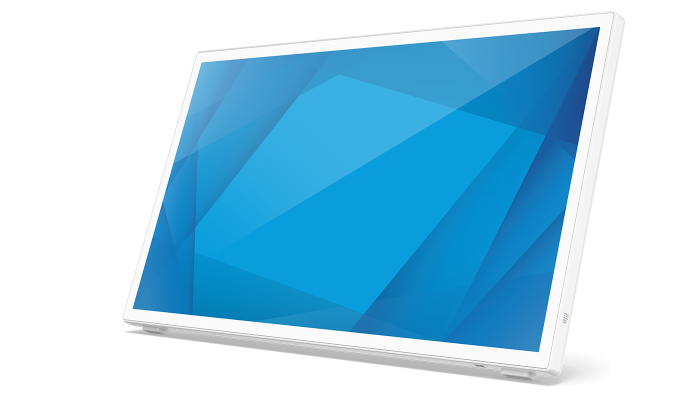

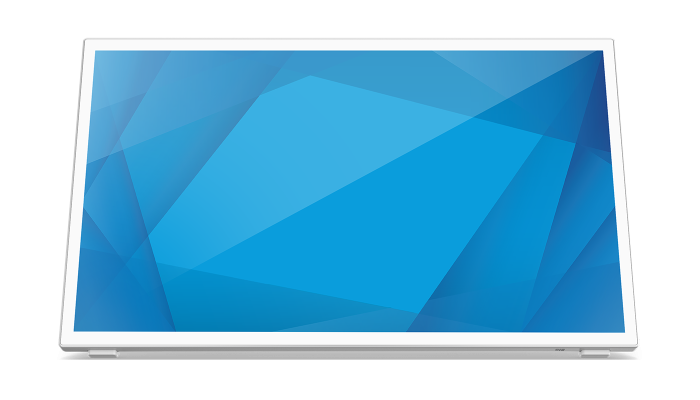

White or Black
Touch Technology & Capacity
PCAP (TouchPro® Projected Capacitive) - 10 Touch
Diagonal Size
21.5'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
16:9
Active Area
18.74" x 10.54" / 476.06 mm x 267.79 mm
Resolution
1920 x 1080 @ 50, 60Hz
Other Supported Resolutions
640 x 480 60Hz
640 x 400 70Hz
720 x 400 70Hz
800 x 500 60Hz
800 x 600 56Hz, 60Hz
1024 x 768 60Hz
1280 x 720 @ 58Hz, 60Hz
1280 x 800 60Hz
1280 x 1024 60Hz
1366 x 768 60Hz, 60Hz RB
1440 x 900 60Hz, 60Hz RB
1680 x 1050 60Hz, 60Hz RBViewing Angle
Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Number of Colors
16.7 million
Brightness (typical)
LCD Panel: 250 nits
TouchPro PCAP: 225 nitsResponse Time-total (typical)
14 msec
Contrast Ratio
1000:1
Touch Interface
USB
Surface Treatment
Clear or Anti-glare
On Screen Display
Accessible through touch OSD, and press Menu button to pop up touch OSD diagram.
Controls: Menu, Power
Settings: Brightness, Contrast, Video Priority, Clock, Phase, H-position, V-position, Auto-Adjust, Color Temperature, Low Blue Light, Volume, Mute, Audio Source Select, Line-in/Headphone Out, OSD Timeout, OSD Language, Aspect Ratio, Sharpness, Touch on Sleep mode ON/OFF, Power LED ON/OFF, Recall Defaults
Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
Lockouts: OSD, PowerI/O Ports
AC Input (IEC60320 C6)
Audio in/out
VGA
HDMI
DisplayPort
USB 2.0 Type B
2x USB 2.0 Type ASpeakers
Two x 2W internal speakers
Video
VGA (Female DB-15 connector)
HDMI (receptable type A)
DisplayPortInput Video Frequency
Horizontal: 30 – 82KHz
Vertical: 50 - 75HzPower
AC power input connector (IEC 60320 C6)
AC input voltage range: 100-240VAC, 50/60HzPower Consumption (Typical)
Only display and touch function available:
ON (Default - 80% Brightness): 12.2 W
ON (Typical - 100% Brightness): 13.8 W
SLEEP: 0.5 W
OFF: 0.16 WMonitor Dimensions (without Stand)
19.87" x 11.91" x 1.63" / 504.7 mm x 302.4 mm x 41.3 mm
Shipping Box Dimensions
23.19" x 5.35" x 15.55" / 589 mm x 136 mm x 395 mm
Weight (Unpackaged)
9.04 lbs / 4.1 kg
Weight (Packaged)
14.11 lbs / 6.4 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%; Storage: 10% to 95% (38.7℃ max wet bulb temperature)
MTBF
50,000 hours demonstrated
Mounting Options
VESA 4-hole 100mm mounting interface on rear of unit
Other Features
Energy Star 8.0
TUV Rheinland (Flicker Free)
TUV Rheinland (Low Blue Light)
Power collection function via DDCCIWarranty
3-year
Extended Service Options
4 year warranty coverage - Elo P/N: E898247
5 year warranty coverage - Elo P/N: E898449
3 year warranty coverage + AUR - Elo P/N: E898648
4 year warranty coverage + AUR - Elo P/N: E894921
5 year warranty coverage + AUR - Elo P/N: E895125Regulatory approvals and declarations
Argentina AR certificate
Canada CUL, IC
China CCC
Europe CE
United Kingdom UKCA
Korea KCC
Taiwan BSMI
United States FCC, UL
Japan VCCI, PSE
International CB
Australia RCM
Russia EAC
Mexico CoC
RoHS, China RoHS, WEEE, REACHImpact Protection
IK07
What's in the Box
2270L Touchmonitor
Quick Install Guide
HDMI cable
Touch USB cable
NA Power cable
EU Power cable
EEI Label (EU)
2x EEI Label (UK)
2x Replace foot cover
5x Cable tieStands, Mounts & Kits
Elo Stand 1902/3-2202/3 - White (100 mm VESA) - Elo P/N: E808963
