1509L 15.6" Touchscreen Monitor
How to buy

Overview

The Elo 1509L 15.6-inch widescreen LED touchscreen monitor delivers a low-profile, retail-hardened solution with a pure glass construction to allow high light transmission without compromising durability or functionality. Available with IntelliTouch surface acoustic wave (SAW) offering single touch capacity, the 1509 has been "built for touch" offering an ideal solution for general applications including hospitality and retail environments.

Integrated touch.

With no moving parts to wear out, the 1509 offers a touch response that is fast, accurate, and drift-free using a finger, gloved hand, or soft stylus.

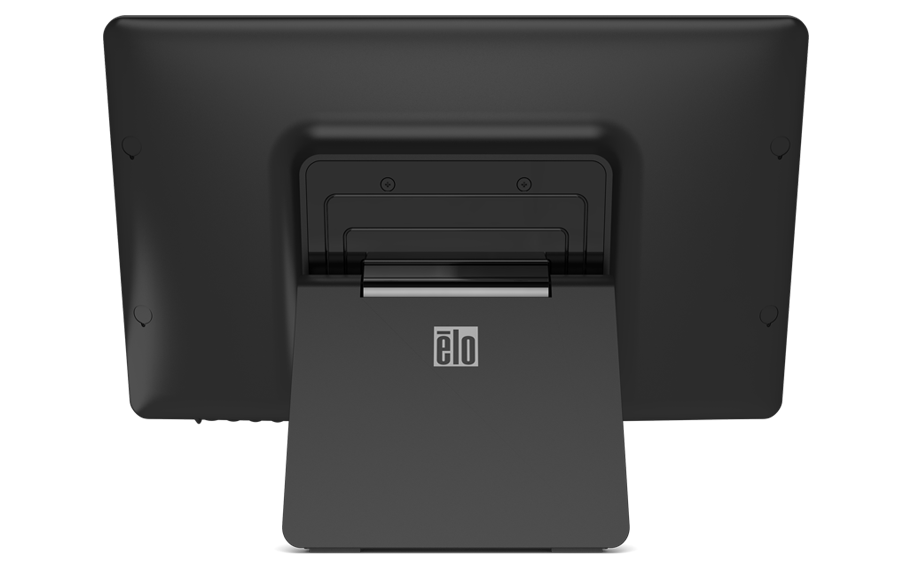

Flexible mounting.

The touchscreen monitor can be affixed to a counter, or when the stand is removed, mounted on a wall or to a pole, and with the LED backlight power consumption is significantly reduced.

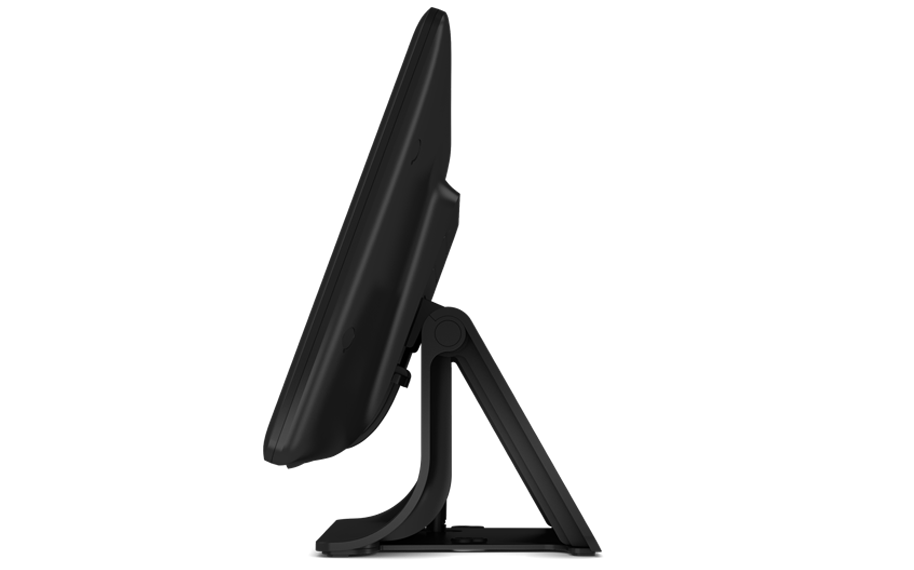

Commercial grade.

The 15.6-inch touchscreen monitor delivers the quality and reliability Elo is known for and is backed by our two-year standard warranty. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Other features.
  • Sleek and modern widescreen design with built-for-touch reliability
  • Energy savings using LED technology
  • Pure, clear glass touchscreen for superior picture quality
  • Removable stand allows the monitor to be mounted on a wall or to a pole (via VESA bracket)
  • Fixable to counter for extra security
  • Optional, field-installable magnetic stripe reader (MSR)
  • Touchscreen is sealed for resistance to water, dust, grease

Specifications

  • Technical

    Part Number(s)

    IntelliTouch - E534869

    Enclosure Color

    Black

    Touch Technology & Capacity

    SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch

    Diagonal Size

    15.6'' diagonal, Active matrix TFT LCD (LED)

    Aspect Ratio

    16:9

    Active Area

    13.4" x 7.6" / 344mm x 194mm

    Resolution

    1366 x 768

    Other Supported Resolutions

    640 x 480 at 60Hz
    800 x 600 at 60Hz
    1024 x 768 at 60Hz
    1280 x 800 at 60, 60RB Hz
    1280 x 960 at 60Hz
    1280 x 1024 at 60Hz
    1360 x 768 at 60Hz
    1366 x 768 at 60, 60RB Hz

    Viewing Angle

    Horizontal: ±45° / Vertical: +15°, -35°

    Number of Colors

    16.7 million

    Brightness (typical)

    LCD Panel: 220
    IntelliTouch: 180 nits

    Response Time-total (typical)

    8 msec

    Contrast Ratio

    400:1

    Input Video Format

    Analog VGA on Female DB-15 connector

    Input Video Signal Connector

    Mini D-sub 15-pin VGA type

    Input Video Frequency

    Horizontal: 30 - 80 KHz
    Vertical: 60 Hz

    Touch Interface

    USB

    Power Supply

    AC-DC power adapter

    Input Voltage

    12VDC +/- 5%; 100-240VAC, 50/60Hz

    Input Connector

    Coaxial power jack (2mm pin outer diameter, 6.4mm barrel inner diameter)

    Adapter Input Connector

    IEC 60320 C14

    Adapter Input Voltage Range

    100-240VAC, 50/60Hz

    Power Consumption (Typical)

    ON (monitor only): 8.1W
    SLEEP (monitor + AC/DC adapter at 230V/50Hz): 1.44W
    OFF (monitor + AC/DC adapter at 230V/50Hz): 0.56W

    On Screen Display

    Controls: menu, up, down, select

    Settings: Brightness, contrast, clock, phase, H-position, V-position, auto-adjust, sharpness, color temperature, OSD timeout, OSD language, recall defaults

    Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese

    Lockouts: OSD, power

    Accessible through switches along the bottom.

    Monitor Dimensions (with Stand)

    15.4" x 9.5" x 11.4" / 392.2 mm x 241.5 mm x 288.3 mm

    Shipping Box Dimensions

    17.9" x 13.9" x 8.1" / 455mm x 355mm x 205mm

    Weight (Unpackaged)

    5.2 lbs / 2.4 kg

    Weight (Packaged)

    8.6 lbs / 3.9 kg

    Operating Temperature

    0°C to 40°C / 32°F to 104°F

    Storage Temperature

    -20°C to 60°C / -4°F to 140°F

    Humidity

    Operating: 20% to 80%; Storage: 10% to 95%

    Sealability

    Touchscreen sealed to bezel
    Touchscreen sealed to LCD

    MTBF

    50,000 hours demonstrated

    Mounting Options

    75 mm, 4-hole VESA mount on rear of unit

    Warranty

    2-year

    Extended Service Options

    1 Year Extended Warranty - Elo P/N: 758588-000
    2 Year Extended Warranty - Elo P/N: 930057-000

    Regulatory approvals and declarations

    RCM, cUL, IC, CCC, CE, UKCA, VCCI, KCC, CoC, EAC, BSMI, UL, FCC, CB, RoHS, China RoHS, WEEE

    What's in the Box

    1509L Touchscreen Monitor
    VGA Cable
    USB Cable
    Power brick
    Quick Install Guide

    Replacement DC Power Supply

    UK: E529990
    Taiwan: E945226
    Japan: E415191
    India: E249003
    Argentina: E870572

    Optional IntelliTouch Stylus Pen

    Elo P/N: D82064-000

    Optional Peripherals

    Magnetic Stripe Reader (MSR) – Elo P/N: E757859
    18W wall mount power brick (includes wall plugs for US/JP/TW, Brazil, EU, UK, KR, ARG, IND and CH clipped-in plugs) – Elo P/N: E318531

    Stands, Mounts & Kits

    Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088
