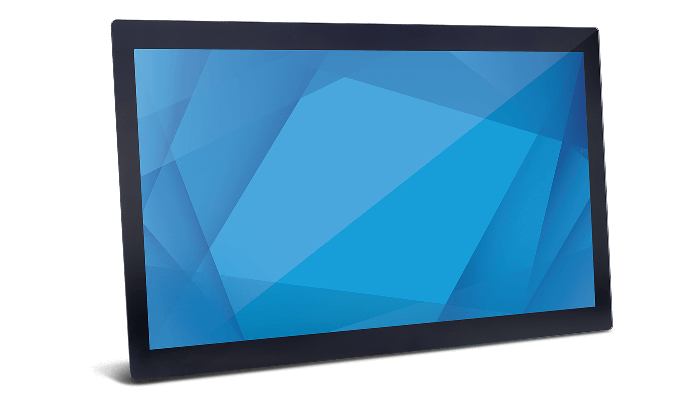

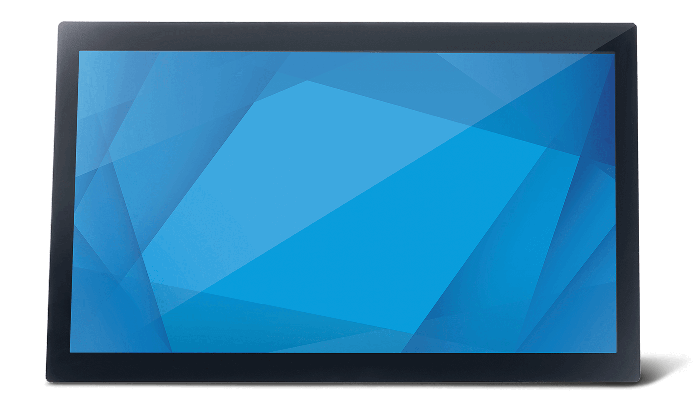

15.6-inch TouchPro® Display Module
How to buy
TouchPro Display Modules

TouchPro Display Modules

Elo's Touchscreen Display Modules combine industry-leading touch screens with liquid crystal displays (LCDs) - all in one embedded solution to help streamline your supply chain and simplify assembly.
The robust chemically strengthened cover glass with anti-glare treatment makes them well suited for deployment in a wide variety of commercial and industrial environments - from factory automation and medical displays to commercial kitchen equipment.
Available in standard sizes ranging from 7 to 15.6-inches and custom options up to 32-inches, Elo’s touchscreen display modules offer superior touch performance in harsh environments, excellent optical clarity, and robust EMI performance.

Endless Versatility

  • Industrial IoT

    Industrial
    IoT

  • Gaming & Entertainment

    Gaming &
    Entertainment

  • Building Automation

    Building
    Automation

  • Healthcare

    Healthcare

  • Outdoor

    Outdoor

Available Sizes

  • Custom Up to 32-inch

    Custom
    Up to 32-inch

  • 7-inch

    7-inch

  • 10.1-inch

    10.1-inch

  • 15.6-inch

    15.6-inch

Contact Us
How it Works

How it Works

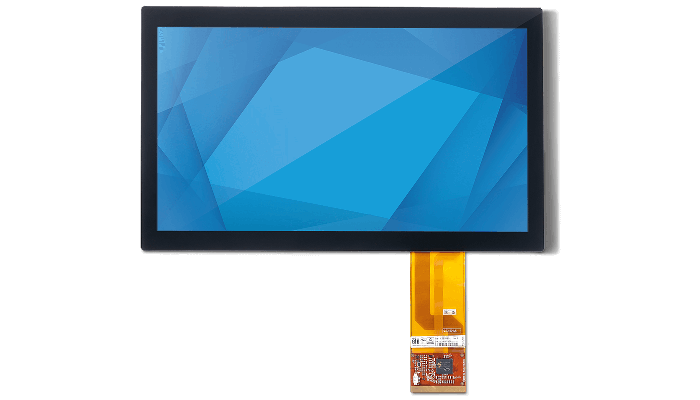

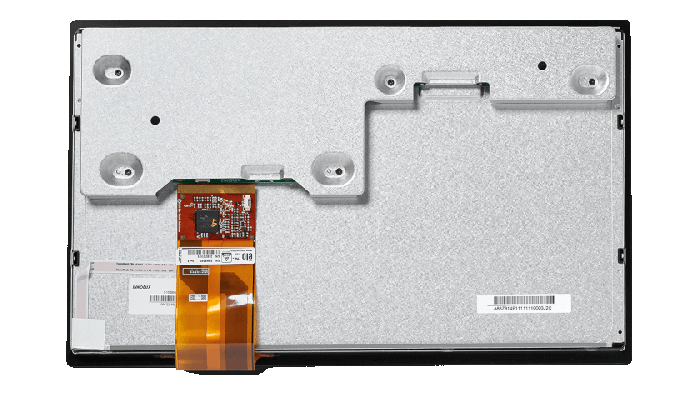

With a TouchPro Pro-F PCAP touch screen and chip-on-flex (COF) touch controller bonded to a commercial grade LCD, Elo’s Touchscreen Display Modules deliver reliability that is ready for integration.

Customize Your TDM

From design and engineering to prototyping and production, partner with Elo to create your touchscreen display module. By leveraging our premium PCAP touch screens, display expertise and LCD buying power, Elo can help you develop the perfect touch enabled display for your application.
  • LCD
    LCD
    Choose: Resolution, Brightness, Temperature Range, Viewing Angle, Interface
  • PCAP Touch Screen
    PCAP Touch Screen
    Choose: Film, Glass, Metal Mesh
  • Cover Glass
    Cover Glass
    Choose: Custom sizes, shapes, edge treatments, holes and cut-outs, Materials (strengthened glass, safety glass, PMMA) Surface treatments, Border (colors, logos, icons, IR transmissive windows)
  • Display Enhancements
    Display Enhancements
    Choose: IR blockers, UV filters, Sunlight readable
  • Bonding
    Bonding
    Choose: Perimeter Bond, Optical Bond, Tape Bond
  • Touch Controller
    Touch Controller
    Choose: Wide variety of touch IC’s and form factors, Performance tuning for water and contaminants, Suitable for thick cover glass or overlays, Other application specific tuning as requested
Learn More

Specifications

  • Technical

    Part Number(s)

    TDM: E844357
    TDK: E420575

    Construction

    Glass-Film-Film

    Touch Outline Dimensions

    374 mm x 233 mm

    Cover Glass

    1.8mm chemically strengthened soda lime glass

    Surface Treatment

    Anti-Glare 80 ± 10GU

    Light Transmittance

    88 ± 3%

    Haze

    <15%

    Touch Controller Form Factor

    COF

    Touch Interface

    USB

    Touch Accuracy

    +/- 2.5mm

    Streaming Report Rate

    >100Hz

    Number of Touches

    Multi Touch (Up to 10)

    Touch Screen Operating Temp Range

    TDM: -20°C to +70°C
    TDK: -30°C to +85°C

    LCD Diagonal

    15.6”

    LCD Resolution

    1366 x 768

    LCD Viewing Area

    TDM: 345.9 mm x 195.2 mm
    TDK: 344.2 mm x 193.5 mm

    LCD Brightness

    TDM: 300 nits
    TDK: 400 nits

    LCD Backlight Life

    50,000 hours

    LCD Viewing Angle

    TDM: 160 degree typical, horizontal and vertical
    TDK: 85/85/50/80

    LCD Operating Temp Range

    TDM: -20°C to +60°C
    TDK: -30 to +85°C

    LCD Interface

    LVDS

    Warranty

    2-year
