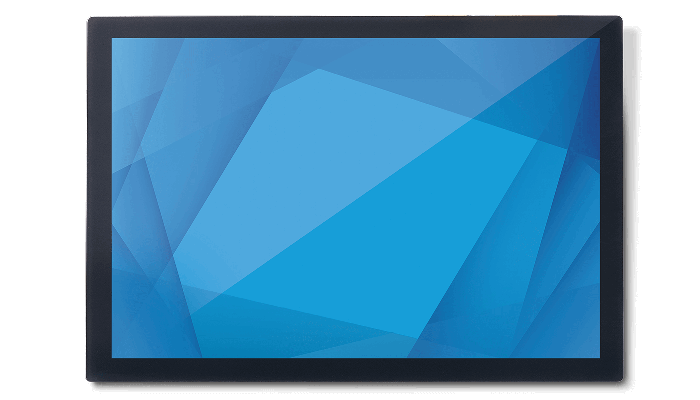

10.1-inch TouchPro® Display Module
TouchPro Display Modules
Elo's Touchscreen Display Modules combine industry-leading touch screens with liquid crystal displays (LCDs) - all in one embedded solution to help streamline your supply chain and simplify assembly.
The robust chemically strengthened cover glass with anti-glare treatment makes them well suited for deployment in a wide variety of commercial and industrial environments - from factory automation and medical displays to commercial kitchen equipment.
Available in standard sizes ranging from 7 to 15.6-inches and custom options up to 32-inches, Elo’s touchscreen display modules offer superior touch performance in harsh environments, excellent optical clarity, and robust EMI performance.
Endless Versatility
-
Industrial
IoT -
Gaming &
Entertainment -
Building
Automation -
Healthcare
-
Outdoor
How it Works

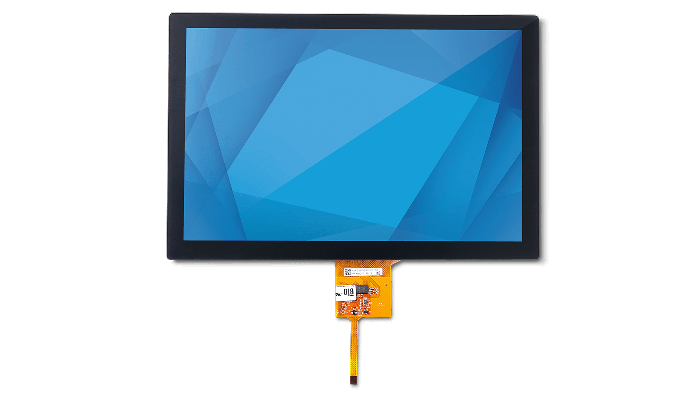

With a TouchPro Pro-F PCAP touch screen and chip-on-flex (COF) touch controller bonded to a commercial grade LCD, Elo’s Touchscreen Display Modules deliver reliability that is ready for integration.
Customize Your TDM
From design and engineering to prototyping and production, partner with Elo to create your touchscreen display module. By leveraging our premium PCAP touch screens, display expertise and LCD buying power, Elo can help you develop the perfect touch enabled display for your application.
-
LCDChoose: Resolution, Brightness, Temperature Range, Viewing Angle, Interface -
PCAP Touch ScreenChoose: Film, Glass, Metal Mesh -
Cover GlassChoose: Custom sizes, shapes, edge treatments, holes and cut-outs, Materials (strengthened glass, safety glass, PMMA) Surface treatments, Border (colors, logos, icons, IR transmissive windows)
-
Display EnhancementsChoose: IR blockers, UV filters, Sunlight readable -
BondingChoose: Perimeter Bond, Optical Bond, Tape Bond -
Touch ControllerChoose: Wide variety of touch IC’s and form factors, Performance tuning for water and contaminants, Suitable for thick cover glass or overlays, Other application specific tuning as requested
Specifications
-
Technical
Part Number(s)
TDM: E270763
TDK: E111391Construction
Glass-Film-Film
Touch Outline Dimensions
242.0 mm x 165.6 mm
Cover Glass
1.8mm chemically strengthened soda lime glass
Surface Treatment
Anti-Glare 80 ± 10GU
Light Transmittance
88 ± 3%
Haze
<15%
Touch Controller Form Factor
COF
Touch Interface
USB
Touch Accuracy
+/- 2.5mm
Streaming Report Rate
>100Hz
Number of Touches
Multi Touch (Up to 10)
Touch Screen Operating Temp Range
TDM: -20°C to +70°C
TDK: -30°C to +85°CLCD Diagonal
10.1”
LCD Resolution
1280 x 800
LCD Viewing Area
217.6 mm x 136.2 mm
LCD Brightness
400 nits
LCD Backlight Life
30,000 hours
LCD Viewing Angle
178 degree typical, horizontal and vertical
LCD Operating Temp Range
-20°C to +60°C
LCD Interface
LVDS
Warranty
2-year
