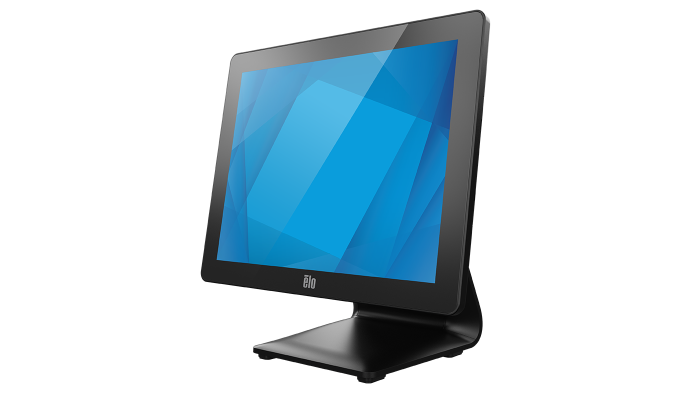

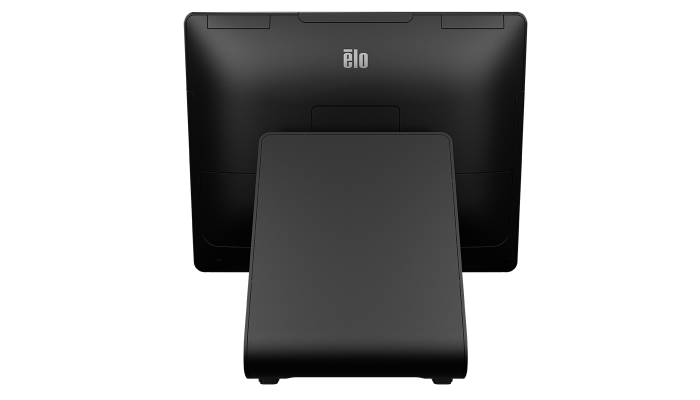

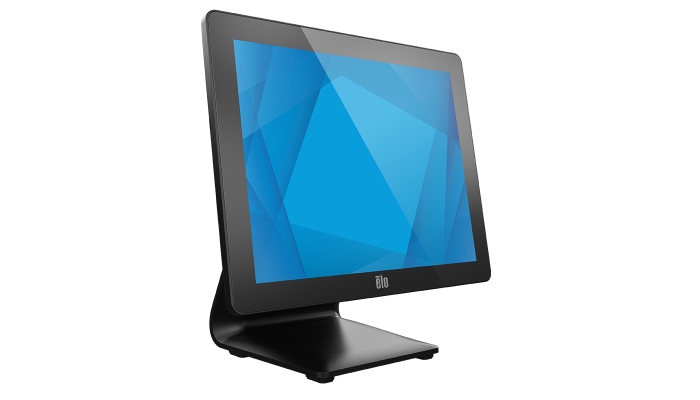

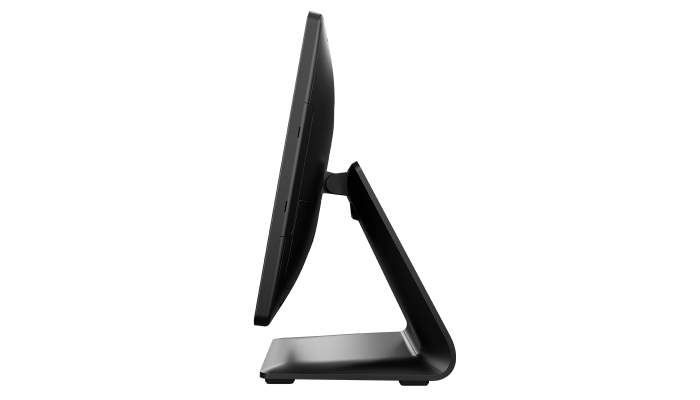

Completely redesigned
I‑Series 3 with Intel.

Specifications

• Technical

  ---

  Part Number(s)

  Celeron, Win10, 8GB RAM, 128GB SSD, Anti-glare, With Stand - E700571 (Quick Ship Ready)*
  Celeron, No OS, 8GB RAM, 128GB SSD, Anti-glare, With Stand - E700385 (Quick Ship Ready)*
  i3, Win10, 8GB RAM, 128GB SSD, Anti-glare, With Stand - E700960
  i3, No OS, 8GB RAM, 128GB SSD, Anti-glare, With Stand - E700774
  i5, Win10, 8GB RAM, 128GB SSD, Anti-glare, With Stand - E701351
  i5, No OS, 8GB RAM, 128GB SSD, Anti-glare, With Stand - E701155
  i7, Win10, 16GB RAM, 256GB SSD, Anti-glare, With Stand - E701737
  i7, No OS, 16GB RAM, 256GB SSD, Anti-glare, With Stand - E701555

  *Quick Ship available for North America & LATAM only

  Enclosure Color

  Black

  Touch Technology & Capacity

  PCAP (TouchPro® Projected Capacitive) - 10 Touch

  Processor

  Celeron: Intel Celeron Processor 7305L (8M Smart Cache, up to 1.10 GHz)
  i3: Intel Core i3-1215UL Processor (10M Smart Cache, up to 4.40 GHz by Intel Turbo Boost Technology 2.0)
  i5: Intel Core i5-1245UL Processor (12M Smart Cache, up to 4.40 GHz by Intel Turbo Boost Technology 2.0) with Intel vPro Support
  i7: Intel Core i7-1265UL Processor (12M Smart Cache, up to 4.80 GHz by Intel Turbo Boost Technology 2.0) with Intel vPro Support

  Graphics

  Intel UHD Graphics
  For i5 & i7 Models: Intel Iris Xe Graphics eligible: to use the Intel Iris Xe Graphics, the system must be populated with 128-bit (dual channel) memory. Otherwise, use the Intel UHD Graphics.

  BIOS

  AMI

  Memory (RAM)

  Celeron & i3: 8GB 4800MHz DDR5 SO-DIMM on 1 of 2 slots (Expandable to 64GB maximum on 2 slots)

  i5 & i7: 16GB 4800MHz DDR5 SO-DIMM on 1 of 2 slots (Expandable to 64GB maximum on 2 slots)

  NOTE: Maximum memory using 2 slots. Expandable up to 64GB maximum, SO-DIMM DDR5-4800. Check brand of the memory included in your unit before purchasing the memory kit.

  Storage

  128GB M.2 PCIe (NVMe) SSD 80 TBW
  256GB M.2 PCIe (NVMe) SSD 160 TBW

  GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.

  TPM

  2.0

  Active Management Technology (AMT)

  Celeron & i3: N/A
  i5 & i7: Intel Active Management Technology

  Diagonal Size

  15.6'' diagonal, Active matrix TFT LCD (LED)

  Aspect Ratio

  4:3

  Active Area

  11.97" x 8.98" / 304.1 mm x 228.1mm

  Resolution

  1024 x 768 @ 60Hz

  Number of Colors

  262,000

  Brightness (typical)

  LCD panel: 400 nits
  TouchPro PCAP: 340 nits

  Response Time-total (typical)

  23 msec

  Contrast Ratio

  800:1

  Viewing Angle

  Horizontal: ± 80° or 160° total / Vertical: 70°/80° or 150° total

  I/O Ports

  1x RJ45 LAN (Gigabit) Port
  4x USB 3.0 Ports
  4x Micro USB 2.0 Ports for Elo Edge Connect peripherals
  1x 24V Powered USB Port
  2x 12V Powered USB Ports
  1x RJ50 Powered Serial Port
  1x 12V/24V Cash Drawer Port (EPSON Pinout, 24V default; selectable by BIOS setting)
  1x Full-function USB-C Port (Power up to 27W, USB 3.0, Display Port, Additional Video Out)
  1x Audio Port (3.5 mm headset jack)

  Wireless

  802.11 a/b/g/n/ac/ax 2.4GHz, 5GHz and 6GHz

  Bluetooth

  Bluetooth 5.3

  Speakers

  2 x 2W internal speakers

  OS

  No OS
  Windows 10 IoT Enterprise LTSC 64-bit

  Languages

  Windows 10 - 36 Language groups

  Power Supply

  External 24VDC universal-type power supply brick
  AC input voltage: 100-240 VAC
  Input frequency: 50-60 Hz
  Maximum output power: 180W

  Power Consumption (Typical)

  Without Peripherals*
  On Celeron: 34W
  On i3: 49W
  On i5: 50W
  On i7: 50W
  Sleep: < 5W
  Off: < 0.5W

  *Condition for i5 and i7 models with 16GB DIMM/256GB SSD, others with 8GB DIMM/128GB SSD

  Dimensions

  14.15" x 14.02" x 7.78" / 359.5 mm x 356.0 mm x 197.5 mm

  Shipping Box Dimensions

  19.6" x 19.2" x 13.6" / 497 mm x 487 mm x 345 mm

  Weight (Unpackaged)

  14.77 lbs / 6.7 kg

  Weight (Packaged)

  17.42 lbs / 7.9 kg

  Operating Temperature

  0°C to 35°C / 32°F to 95°F
  Note: the thermal report pass airflow 0.5m/s condition. For non-OS SKUs, recommend using the Elo optimize TDP tool for better performance.

  Storage Temperature

  -20°C to 60°C / -4°F to 140°F

  Humidity

  Operating: 20% to 80%
  Storage: 5% to 95% (38.7°C max wet bulb temperature)

  Energy Star

  Energy Star 8.0 certified configurations available

  Regulatory approvals and declarations

  Canada cUL, IC
  United States UL, FCC
  Germany TUV
  Europe CE
  Australia RCM
  United Kingdom UKCA
  International CB
  Argentina S-Mark
  Brazil ANATEL
  Japan VCCI, MIC
  China CCC, SRRC
  Mexico NOM
  RoHS CoC
  New Zealand R-NZ
  Singapore IMDA for i5 models only

  Real-Time Clock

  CR2450 lithium metal battery

  MTBF

  50,000 hours demonstrated

  Mounting Options

  75mm VESA mount

  Warranty

  3-year

  Extended Service Options

  4 year warranty coverage - Elo P/N: E819598
  5 year warranty coverage - Elo P/N: E819795
  3 year warranty coverage + AUR - Elo P/N: E820186
  4 year warranty coverage + AUR - Elo P/N: E820388
  5 year warranty coverage + AUR - Elo P/N: E820582

  Ingress Protection

  IP54

  Sealability

  Touchscreen sealed to sub-bezel
  Touchscreen sealed to LCD

  Power Cables

  North American and European power cables included

  Other Features

  Serviceable internal components
  Kensington lock

  What's in the Box

  I-Series
  North America Power Cord
  European Power Cord
  Power Adapter – 180W
  Cable RJ-50 to DB-9
  Quick Installation Guide (QIG)
  Cable tie
  CFD mounting screw
  VESA mounting screw
  VESA cover
  VESA cover mounting screw

  Upgrade Options

  8GB 5600MHz DDR5 SO-DIMM – Elo P/N: E466053
  16GB 5600MHz DDR5 SO-DIMM – Elo P/N: E466237
  32GB 5600MHz DDR5 SO-DIMM – Elo P/N: E466430
  M.2 PCIe (NVMe) 128GB SSD – Elo P/N: E466613
  M.2 PCIe (NVMe) 256GB SSD – Elo P/N: E466803
  Changing SO-DIMM or SSD requires opening the back cover. Special care must be taken when removing and replacing the back cover to prevent losing the IP rating or possibly damaging the touch computer. Please contact Elo technical support or product manag

  Optional Peripherals

  Magnetic Stripe Reader (MSR) – Elo P/N: E001002
  Fingerprint Scanner – Elo P/N: E134286
  Customer Display (2x20 VFD) – Elo P/N: E001003
  2D Barcode Scanner (Black - SE4720) – Elo P/N: E384627
  2D Barcode Scanner (Black - SE4107) – Elo P/N: E245047
  EMV Cradle for MagTek eDynamo - Elo P/N: E375343
  EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981
  EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930
  Status Light (Micro-USB Connectivity) - Elo P/N: E644767
  3D Camera - Elo P/N: E134699
  Webcam - Elo P/N: E201494
  RFID - Elo P/N: E673037
  Elo Edge Connect™ Speaker Bar (Black) - Elo P/N: E894719
  Elo Edge Connect™ Speaker Bar (White) - Elo P/N: E133780

  Stands, Mounts & Kits

  Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088
  Tabletop Stand for 15" Display - Elo P/N: E466998
  Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382
  Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069
  Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458
  Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663
  Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864
  Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151
  Slim Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E514693
  Slim Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E514881 + E515260
  Power Brick Kit, 24V 180W - Elo P/N: E845269
  1002L - Elo P/N: E155834
  1002L - Elo P/N: E324341
  1302L - Elo P/N: E683595
  Elo 2ft authorized USB-C cable - Elo P/N: E969524
  Elo 6ft authorized USB-C cable – Elo P/N: E710364
  Wallaby™ Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E421137
  Wallaby™ Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E421325 + E797162
