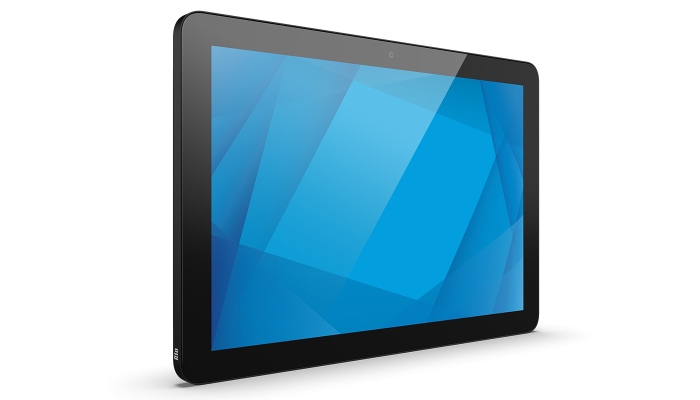

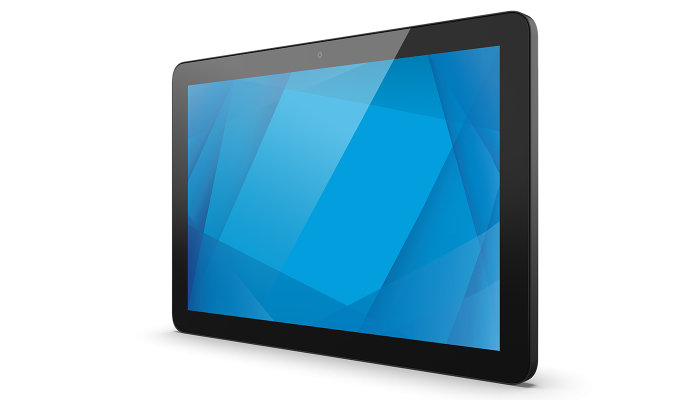

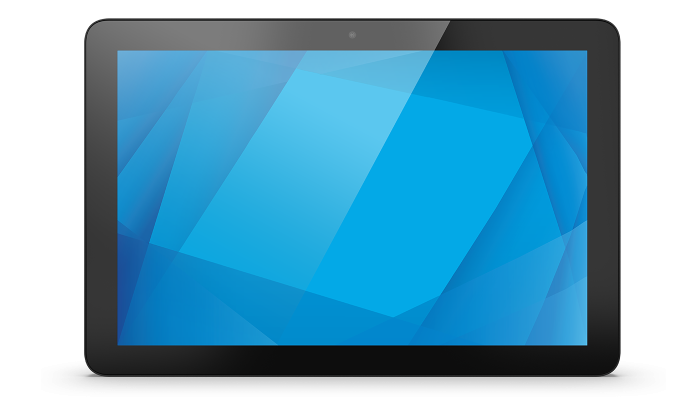

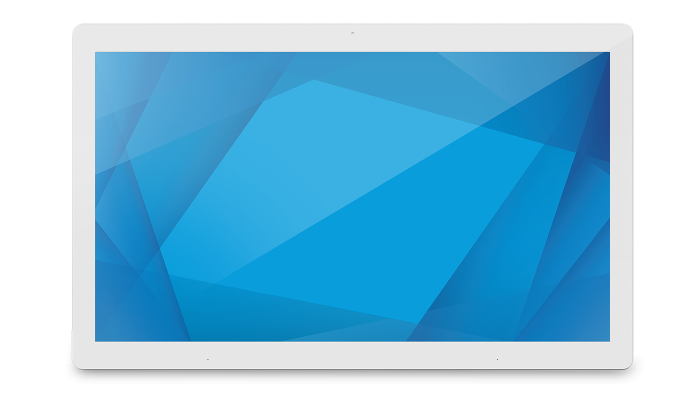

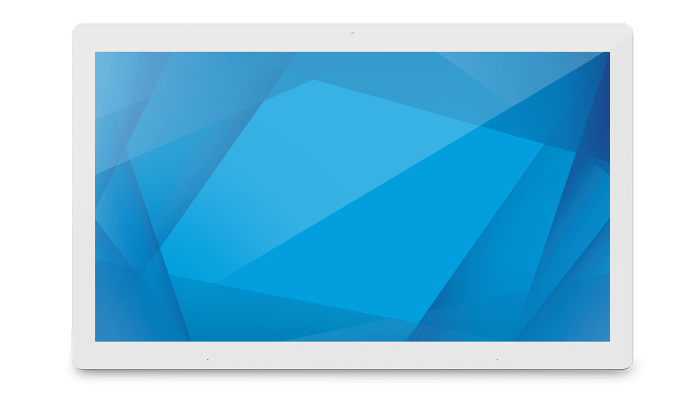

I-Series Linux computer. Secure. Flexible. Powerful.
Modular, Linux
touchscreen platform.
Used across the globe for everything
from self-service, point-of-sale and price
checkers to industrial controls and visitor
management, the I-Series platform
provides a versatile Linux touchscreen
computer to power almost any application.
Experience the Elo
approach to Linux.
With decades of development and
customizations made to support global
enterprise customers, Elo’s Linux-based
platform offers Linux device drivers,
uniform SDKs, a constantly growing set
of tools and an expansive lineup across
sizes and form factors.
Create your perfect POS system.
Transform the I-Series Linux computer into a
powerful, industrial-design POS system that
scales with your business.
Amazing touchscreen kiosks.
From self-order and self-checkout to order
pickup and virtual assistants, pair the
I-Series Linux device with a variety of
stands to create your perfect kiosk.
Build engaging brand experiences.
Educate buyers, create brand awareness
and drive purchases in store with an
easy-to-use Linux touchscreen platform
that can adapt as needs change.
Commercial-gradeperformance.
Equipped with Rockchip 6-core processor
and your choice of Debian 10 OS distributions
or newer, the I-Series Linux computer delivers
the performance your business needs.
Expand with
Edge Connect.
With the Elo Edge Connect system, you
can seamlessly attach any combination of
peripherals to the edge of the Linux
touchscreen, including payment devices,
cameras, barcode readers and more.
Do more with power
over ethernet (POE).
With the POE adapter, you can say goodbye to
your power adapter and the expense of power
drops. All you need is a POE-capable network
and to connect the POE adapter to the I-Series
Linux computer.
Get peace of mind
with EloCare.SM
From advance unit replacement to accidental
damage protection, EloCare delivers service
and support from the people who know your
Elo Linux device best.
- Advance Unit Replacement
- Extended Warranty
- Accidental Damage Protection
- Professional Services
Specifications
-
Technical
Part Number(s)
E143205
Enclosure Color
Black
Touch Technology & Capacity
PCAP (TouchPro® Projected Capacitive) - 10 Touch
Touch Thru
Supports up to 6mm / 0.24" glass or 3mm / 0.12" plastic with up to 2 touches
Processor
Rockchip RK3399
Memory (RAM)
4GB
Storage
32GB
OS
Linux Debian 10
Diagonal Size
10.1'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
16:10
Active Area
8.54" x 5.34" / 217 mm x 136 mm
Resolution
1280 x 800 @ 60Hz
Number of Colors
8-bit (16.7 million)
Brightness (typical)
LCD Panel: 300 nits
TouchPro PCAP: 250 nitsResponse Time-total (typical)
25 msec
Contrast Ratio
800:1
Viewing Angle
Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
Peripheral Mounting
4x micro-USB 2.0 Elo Edge Connect ports
Support for 1.2A on one port and 500mA for the remaining three portsI/O Ports
1x USB 3.0 support (900mA)
Type C USB output
Micro SD slot
GPIO
Ethernet 1x LAN (Gigabit)
DC inWebcam
5MP, Max Resolution: 1920x1080 30fps, Auto Focus
Wireless
802.11a/b/g/n/ac + Bluetooth 5.0
Audio Ports
1x built-in Analog Microphone
Speakers
2x 2W
Power Supply
AC input voltage: 100-240 VAC
Input frequency: 50-60 Hz
power adapter (included in accessory box)Power Consumption (Typical)
On: 7.2W
Off: 0.4W
Sleep: 3.4WPower Over Ethernet (PoE)
Supported via Elo PoE Device PN: E413396
Reference the I-Series user guide for details.Dimensions
9.96" x 6.65" x 0.87" / 252.9 mm x 169.0 mm x 22.1 mm
Shipping Box Dimensions
12.4" x 5.5" x 9.0" / 315 mm x 140 mm x 228 mm
Weight (Unpackaged)
1.8 lbs / 0.8 kg
Weight (Packaged)
4.9 lbs / 2.2 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 50°C / -4°F to 122°F
Humidity
Operating: 20% to 80%
Storage: 5% to 95%Regulatory approvals and declarations
UL/cUL (US)
FCC (US)
IC (Canada)
CE (Europe)
CB (International)
VCCI, MIC (Japan)
RCM (Australia)
ANATEL (Brazil)Real-Time Clock
lithium coin cell battery
MTBF
50,000 hours demonstrated
Mounting Options
VESA 75mm
Extended Service Options
3 year Warranty Coverage – Elo P/N: E819394
4 year Warranty Coverage – Elo P/N: E819598
5 year Warranty Coverage – Elo P/N: E819795
3 year Warranty Coverage + ADP – Elo P/N: E130329
4 year Warranty Coverage + ADP – Elo P/N: E130530
5 year Warranty Coverage + ADP – Elo P/N: E130719
2 year Warranty Coverage + AUR – Elo P/N: E819985
3 year Warranty Coverage + AUR – Elo P/N: E820186
4 year Warranty Coverage + AUR – Elo P/N: E820388
5 year Warranty Coverage + AUR – Elo P/N: E820582
2 year Warranty Coverage + AUR + ADP – Elo P/N: E131490
3 year Warranty Coverage + AUR + ADP – Elo P/N: E131674
4 year Warranty Coverage + AUR + ADP – Elo P/N: E131859
5 year Warranty Coverage + AUR + ADP – Elo P/N: E132053Sealability
Touchscreen sealed to LCD
What's in the Box
I-Series 4
North American Power Cable
European Power Cable
1x Power Brick
Quick Install Guide
Screws for cable cover door (located in the power/Ethernet bay)Optional Peripherals
Magnetic Stripe Reader (MSR) – Elo P/N: E001002
Fingerprint Scanner – Elo P/N: E134286
GPIO Cable - Elo P/N: E211544
POE Module Kit - Elo P/N: E413396
EMV Cradle for MagTek eDynamo - Elo P/N: E375343
EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981
EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930
Status Light (Micro-USB Connectivity) - Elo P/N: E644767
3D Camera - Elo P/N: E134699
Webcam - Elo P/N: E201494Stands, Mounts & Kits
Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088
Short Tabletop Stand for 10'' I-Series - Elo P/N: E160104
Tabletop Flip Stand for 10'' & 15'' I-Series - Elo P/N: E924077
Z20 Stand for 10'' & 15'' I-Series - Elo P/N: E809321
Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382
Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069
Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458
Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663
Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864
Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151
Expansion Module - Long Cable Kit - Mounted under the flip stand - Elo P/N: E923781
Elo Stand 1302L - Black (75 mm VESA) - Elo P/N: E307788
Elo Stand 1302L - White (75 mm VESA) - Elo P/N: E307974
65W Replacement Cable Kit (NA & EU power cables and power brick) – Elo P/N: E514304
90W Replacement Cable Kit (NA & EU power cables and 90W power brick) - Elo P/N: E413579
Replacement Cable Kit (NA & EU power cables) – Elo P/N: E512363
