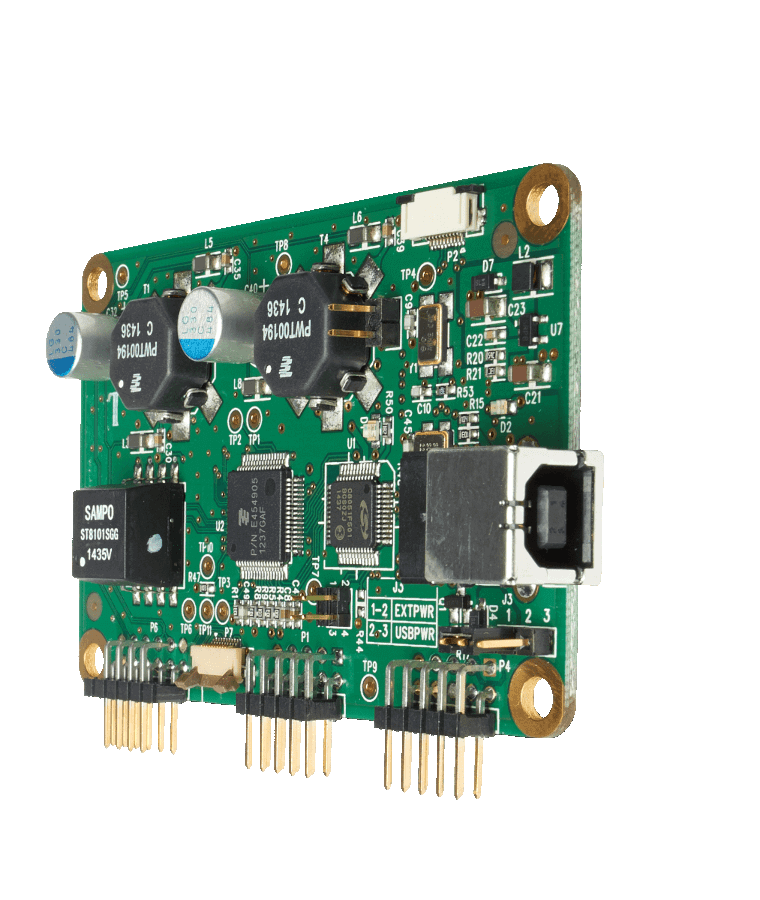

IntelliTouch® 2521 Series Controller (dual touch) (Discontinued April 2024)
Overview
The Elo 2521 controller is a HID-compliant device that can be used for dual-touch applications. IntelliTouch controllers are designed to work specifically with IntelliTouch SAW touchscreens. Building technology with coordinating components enables a much smoother design and user experience.
 |
Works two waysThe 2521 series controller is a 2-touch unit that works through serial interface or via USB. It is a full-speed, self-powered, USB device when USB is used. |
Fully OptimizedElo’s IntelliTouch controllers are designed and manufactured to work specifically with IntelliTouch SAW touchscreens for optimal performance. The controller maintains a no-touch reference signal. This reference signal is continuously updated to adapt to electronic drift and effects of contamination such as dirt and scratches. The live signal is compared to the reference signal to detect touches. |
 |
Specifications
-
Technical
Part Number(s)
E156921
Technology
SAW (IntelliTouch® Surface Acoustic Wave)
Number of Touches
Single Touch
Input Methods
Finger
Gloved hand
Passive stylusDimensions
60mm x 35mm x 10mm
Surface Treatment
Clear
Input Voltage
4.4V to 13.8V
Report Rate
<10ms
Baud Rate
for RS232 Interface: 9600 (default) and 19200
Current - Operating Mode
150mA
Operating Temperature
-5°C to 65°C
Storage Temperature
-20°C to 85°C
Humidity
10% to 90% RH (Non Condensing)
Controller Cables
Serial cable: P/N D16890-000
USB cable: P/N D38640-000
Dual serial/USB cable: P/N D40022-000
