AccuTouch® 5-Wire Resistive, Zero-Bezel
Overview

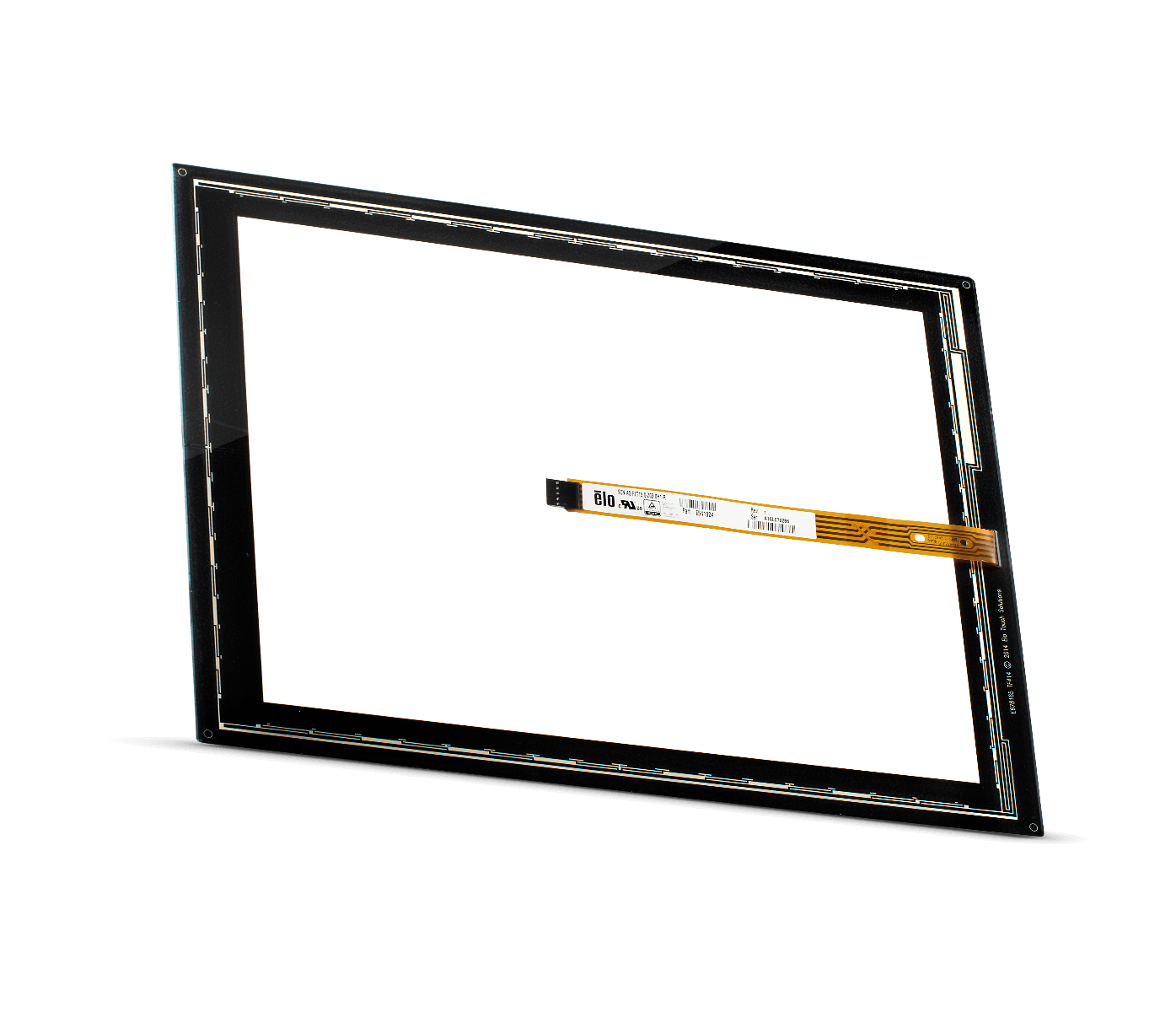

The Elo Touch Solutions AccuTouch resistive touchscreens are based on proven five-wire resistive technology, the preferred solution for applications that demand reliability, input flexibility, and contamination resistance. The AccuTouch five-wire resistive touchscreens use a glass panel with a uniform resistive coating. A thick polyester coversheet is tightly suspended over the top of the glass, separated by small, transparent insulating dots. The screens work with standard Elo controller/chip solutions and drivers under a wide variety of operating systems, and are available in a set of standard products as well as customized designs.
 |

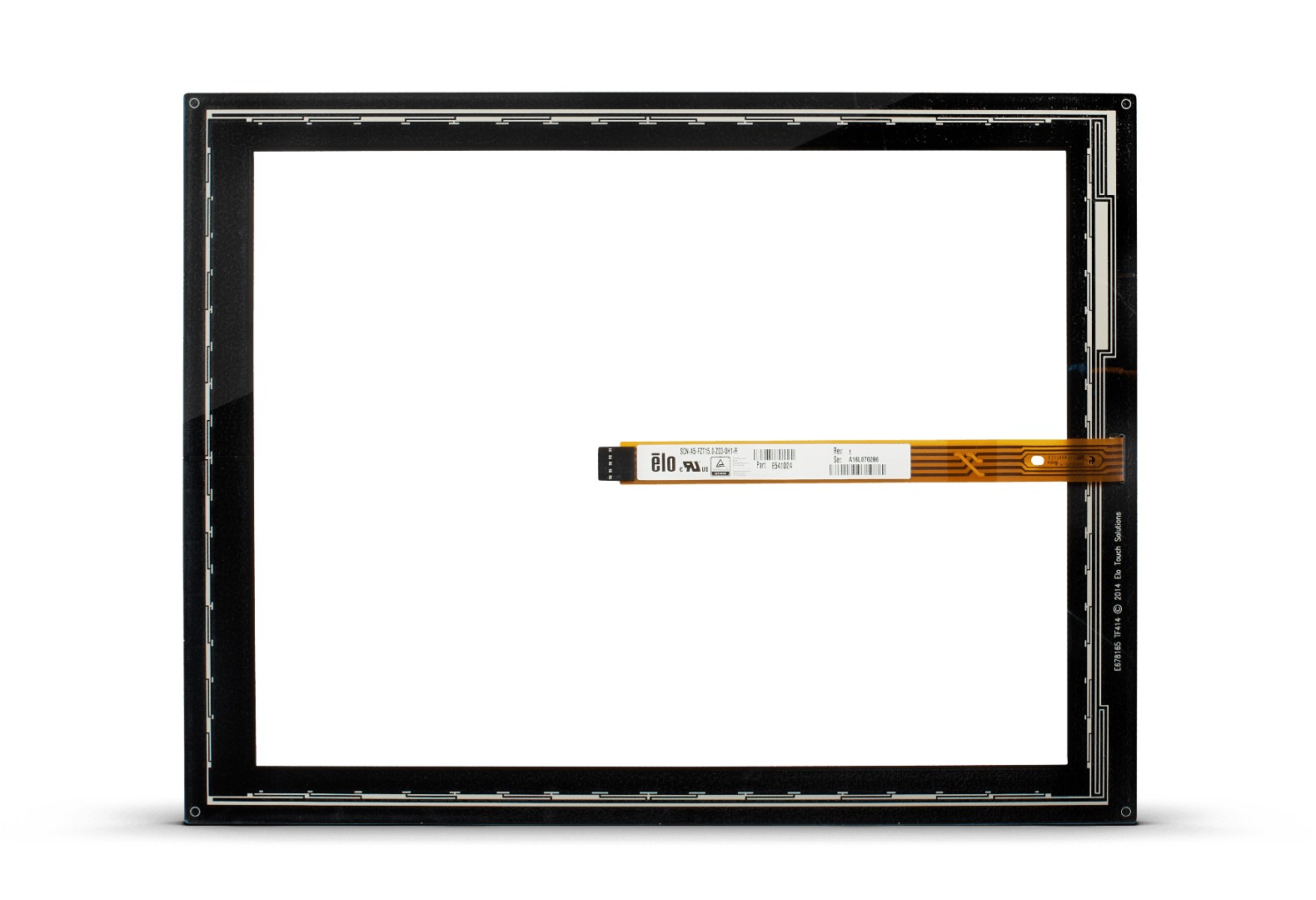

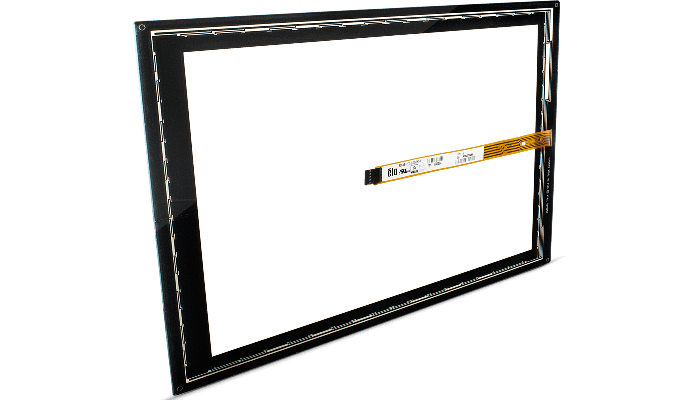

Smooth IntegrationsAccuTouch Zero-Bezel touchscreens are available with proprietary Elo technology to deliver a touch response that is drift-free and accurate in high-use applications. The zero-bezel design eliminates the need for a traditional front-bezel, achieving a smooth, seamless flat surface for a clean, modern look. AccuTouch zero-bezel resistive touchscreens use a flexible printed circuit cable that virtually eliminates the cable attachment bump that is typical on most resistive touchscreens and enables a smooth, flat integration. |
Quality is built inElo AccuTouch delivers both X and Y measurements made on a stable rear glass layer where many other resistive touchscreen designs use a flexing plastic coversheet to measure only one axis. As a result, AccuTouch resistive touchscreens provide a longer product life, designed to withstand more than 35 million touches. |  |
 |
High industry standardsAccuTouch touchscreens can be sealed against contamination to support NEMA 4/4x/12 and IP65 standards. Every screen meets pencil hardness 4H per ASTM D3363. Agency approvals include: UL, cUL, TÜV, CE and FCC Class A. |
Factory Video
Elo’s new state of the art facility in Suzhou, China occupies a quarter of a million square feet and includes 155,000 square feet of manufacturing space with adjacent offices and warehouses. It is home to Elo’s industry leading touchscreen solutions including AccuTouch 5-wire resistive, IntelliTouch surface acoustic wave and TouchPro projected capacitive touchscreens.
Elo is proud to be the only company in the world that produces its own touch screens, ASICs, firmware and software drivers in-house.
Applications
- Voting, gaming and lottery terminals
- Industrial automation/Industrial panel PC
- Medical equipment
- Office automation
- Retail automation
- Pharmacy automation
Specifications
-
Technical
Technology
5-Wire Resistive (AccuTouch®)
Number of Touches
Single Touch
Input Methods
Finger
Gloved hand
Passive stylusDimensions
controller dimensions in inches
Light Transmittance
HL products: 80% ±5% at 550nm wavelength
Cover Glass Thickness
T=1.8mm,2.4mm, 3.2mm
Surface Treatment
Clear
Durability
AccuTouch Zero-Bezel: meets pencil hardness 4H per ASTM D3363
Sealability
Can be sealed to meet NEMA 4 and 12 and IP 65 standards
Resolution
Touchpoint density is based on controller resolution of 4096 x 4096
Positional Accuracy
Standard deviation error is less than 0.080 (2mm)
Operating Temperature
1. -10°C to +50°C & 90% Relative Humidity (non-condensing on interior of screen)
2. -10°C to +60°C & 50% Relative Humidity (non-condensing on interior of screen)
3. -10°C to +70°C & 10% Relative Humidity (non-condensing on interior of screen)Operating Environment
Designed for indoor and semi outdoor environments. Not intended for applications with direct sunlight/UV exposure.
Storage Temperature
Low temperature: -40°C
Temperature-Humidity (noncondensing
on interior of screen):
1. 50° C and 90% Relative Humidity for 10 days,
2. 60º C and 50% Relative Humidity for 10 days or
3. 70º C and 10% Relative Humidity for 10 days.Humidity
90% RH at max 50C
Warranty
3-year
Controller Cables
Serial cable: P/N D16890-000
USB cable: P/N D38640-000
Dual serial/USB cable: P/N D40022-000
