PayPoint® Plus for Android™ — with Google Play Services (3.0)
PayPoint® Plus
for Android™ 3.0 POS System
PayPoint Plus for Android combines a reliable and secure, commercial-grade POS System with flexibility and functionality of Google Play Services. Running Android 8.1 and powered by a blazing-fast Qualcomm® Snapdragon™ octa-core processor, the all-in-one mPOS solution brings unmatched style to the point of sale with a distinctive modern aesthetic. PayPoint Plus provides everything a merchant needs including a 15.6" Android-powered system, a fully integrated 2D barcode scanner from Honeywell, a 3-inch printer from Star Micronics, an encryptable MSR from MagTek, full-sized 16-inch cash drawer and connections for third party peripherals. With a flip-for-signature touchscreen and built-in customer facing display to encourage shopper engagement, this space-saving and commercial-grade AiO is ideal for retail, hospitality, restaurants and entertainment venues.
Whether you deploy one hundred or one hundred thousand PayPoint devices, EloView® makes it easy to connect and control them while Google Mobile Services gives you access to Google’s most popular apps and APIs. Available with your choice of size and configuration, the POS system is designed to offer versatility across environments with the durability to meet the demands of continuous public use.
Watch the PayPoint Plus Overview Video
Google Play Services
Now you can create a seamless experience for your customers - from their personal devices to your interactive experiences in store. With Google Play Services, your app can take advantage of the latest, Google-powered features while maintaining the added flexibility of EloView - making deployments and management a breeze.
apps on commercial devices
enterprise apps can leverage
- Webview
- Firebase
- Push Notifications
- Location Services
- App Updates
- YouTube Control
Elo's Approach to Android
The Android mobile architecture is a smart choice for ensuring your rollout is inexpensive.
Secure
Protect from unauthorized access.
Security updates on your schedule.
Flexible
One image across all form factors.
Customizable behavior.
Supports peripherals businesses need.
Predictable
Extended lifecycles for businesses.
Under roadmap control.
Manageable
Control settings.
Manage content.
Administer permissions remotely.
Large Display
PayPoint Plus for Android offers a full HD 15.6-inch TouchPro® PCAP touchscreen display enabling multi-touch responses with up to 5-touches simultaneously.
Rotating Display Head
Engage the customer by allowing them to control their transaction. With the rotating display head you can enable customers to participate in loyalty programs, view their purchases and sign to complete their transaction.
Integrated Peripherals
-
Printer
The Star TSP100iii is a standard 3-inch (80mm) printer with
auto-cutter and print speed of 230mm/sec. -
Barcode Scanner
The Honeywell N3680 is an omnidirectional 1D/2D engine with
optional capability to add plugins. For example-EasyDLTM
enables users to read government-issued identification cards in
US and Canada. -
Cash Drawer
The full size industry-standard cash drawer with 3-position
lock offers two layouts — five bill / six coin or four bill / eight
coin. A second cash drawer can be added using the I/O port. -
Customer Facing Display (CFD)*
In some parts of the world, it is required to have a CFD on
your POS system. Elo simplifies this by integrating it into the
PayPoint Plus solution, creating a true AiO platform for your transaction.
*Only available on select models -
MSR
The Magtek 3-track encryptable MSR offers remote key injection. Swipe loyalty cards with default security Level 2 or encrypt to Level 3 through the Elo Peripherals app to read sensitive credit card data.
3-inch Printer
PayPoint Plus brings robust printer performance with a TSP100iii built by Star Micronics. Drop-in a standard 80mm width paper and print with speed at 230mm/sec. The printer supports multiple languages, barcodes and logo printing. Reliability comes first — this printer has been tested to MCBF of 60 million lines.

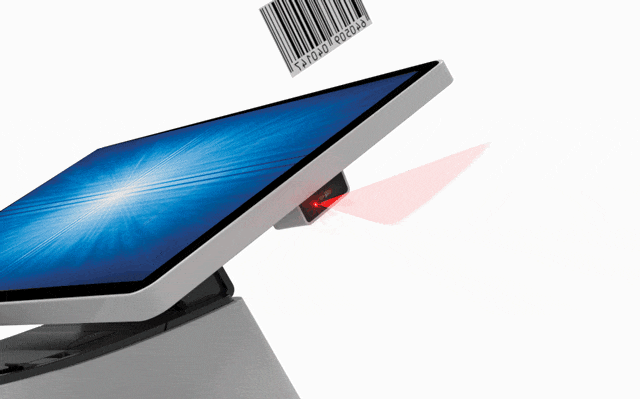

Barcode Scanner
2D barcoding is the new norm across retail and hospitality. PayPoint Plus is equipped with an omnidirectional 1D/2D scanner built by Honeywell. The scanner can be configured for operating modes, illumination, beep volume and choice of symbologies to optimize performance for your specific needs. PayPoint Plus offers optional plug-ins like EasyDL to scan and parse data from drivers licenses in the United States and Canada.

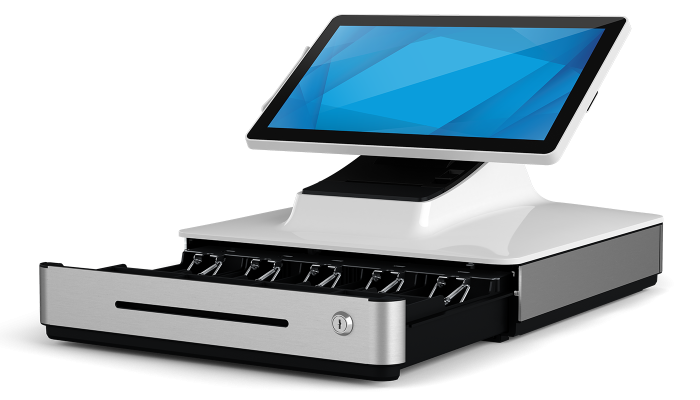

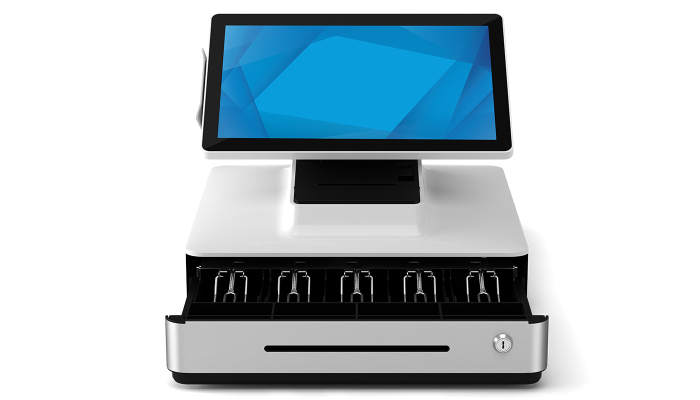

Full Size Cash Drawer
The full size 16-inch industry-standard cash drawer offers a 3-position lock and the
ability to add second cash drawer through an I/O port.
N. America / China Model
Five bill & six coin layout
Worldwide Model
Four bill & eight coin layout
Magnetic Stripe Reader
PayPoint Plus is equipped with a 3-track encryptable Magnetic Stripe Reader (MSR) built by Magtek. The MSR can be used for loyalty cards or employee check-in. To encrypt the device to accept credit card payments, you can use the intuitive toolkit Elo provides.
Connectivity for 3rd Party Peripherals
PayPoint Plus has additional input/output ports including serial, USB and mini-HDMI
to support 3rd party peripherals. From scales or a secondary display to NFC and
EMV devices — PayPoint Plus offers many options. You can even add a second cash
drawer if needed.
Connectivity
PayPoint Plus for Android offers Wi-Fi 802.11 b/g/n/ac providing support for both 2.4Ghz
and 5Ghz bands. In addition, BLE 4.1 enables connectivity to third party devices.
Power
-
Memory/Storage
PayPoint Plus for Android offers 3GB of RAM and 32GB of memory enhancing smooth operation of multiple apps at all times.
-
OS
PayPoint Plus for Android deploys Android 8.1 (Oreo) giving you the capability to use the latest Android OS features.
-
Processor
PayPoint Plus for Android brings the blazing fast Qualcomm® Snapdragon™ octa-core processor enabling a faster checkout.
Add Your Software
Elo offers software development kits to ease integration of the PayPoint Plus with your POS application. The SDK provides toolsets that can detect PayPoint hardware and configure all integrated peripherals like printer, scanner, MSR and CFD. With the peripheral test app, you can update firmware, manage key injection and check the status of hardware during support calls. Once certified and integrated, all the merchant has to do is simply plug and play. At Elo, we aim to offer a simple and elegant solution that does not require any in-store installation or support.
EloView®
PayPoint Plus for Android is designed to work with EloView — a secure, cloud based platform that allows you
to remotely update OS, deploy your POS applications in locked mode and manage your devices quickly
with ease. EloView offers value every step of the way in your customers journey. Provision your POS app
remotely during deployment and reduce installation costs. Remotely manage devices, update OS or your
POS app at a scheduled time-reducing down time during these updating in the field. EloView is a modular
system that can support your existing management tools and is designed to run stock Android apps.
Get Peace of Mind With EloCareSM
EloCare is service and support from the people who know your Elo products best. From extended warranties and on-site exchange to advance unit replacement and field services, the highly skilled Elo technical specialists will get you up and running.
Specifications
-
Technical
Part Number(s)
White (North America) - E464326
Black (North America) - E464529
White (Worldwide) - E464915
Black (Worldwide) - E464724Enclosure Color
White or Black
Touch Technology & Capacity
PCAP (Projected Capacitive) - up to 5 touches
Diagonal Size
15.6'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
16:9
Resolution
1920 x 1080 @ 60Hz
Active Area
13.54" x 7.64" / 344 mm x 194 mm
Brightness (typical)
LCD Panel: 300 nits
PCAP: 260 nitsResponse Time-total (typical)
30 msec
Contrast Ratio
800:1
Viewing Angle
Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
Processor
Qualcomm Snapdragon 2.0GHz Octa-Core
Memory (RAM)
3GB
Storage
32GB
NOTE: GB equals one billion bytes when referring to storage capacity. Accessible capacity may be lessUSB Ports
4 x Type A USB 2.0
1 x mini USB 2.0
1 x 12V powered USB portSerial Ports
2 x RJ45
HDMI
1 x micro HDMI port
Ethernet Port
1 x LAN (Gigabit)
Wireless
802.11b/g/n/ac + Bluetooth 4.1
Cash Drawer Port
1 x RJ12
Magnetic Stripe Reader (MSR)
Magtek 3 track encryptable
Default Security Level 2Barcode Reader
Honeywell N3680 1D/2D barcode scanner
CMOS sensor with 640 x 480 pixel resolution
Supported symbologies:
- Linear: Codabar, Code 11, Code 128, Code 2 of 5, Code 39, Code 93 and 93i, EAN/JAN-13, EAN/JAN 8, IATA Code 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI, GS1 Databar, UPC-A, UPC E, UPC-A/EAN-13 with Extended coupon Code, Coupon GS1 Code 32 (PARAF), EAN-UCC Emulation, GS1 Data bar
- 2D Stacked: Codablock A, Codablock F, PDF417, MicroPDF417
- 2D Matrix: Aztec Code, Data Matrix, MaxiCode, QR Code, Chinese Sensible (Han Xin) code
- Postal Codes: Australian Post, British Post, Canadian Post, China Post, Japanese Post, Korea Post, Netherlands Post, Planet Code, PostnetCustomer Display
2x16 character display*
*North America/China model onlyPrinter
Star TSP100III USB thermal 3" (80mm) receipt printer with auto-cutter
Speed of 250mm/sec
Maximum paper roll diameter 80mm
Paper thickness: 0.053-0.085mmCash Drawer
Cash Drawer Outside Dimensions: 16.18" x 16.54" x 3.50" / 411 mm x 420 mm x 89 mm
Removable till insert
Media slot for checks
3 position lock
NA/China Models:
5 bill, 6 coin built in cash drawer
Cash Drawer Inside Dimensions:
- Bill: 6.61" x 2.80" x 2.00" / 168 mm x 71 mm x 51 mm
- Coin: 3.39" x 2.28" x 2.00" / 86 mm x 58 mm x 51 mm
Worldwide Models:
4 bill, 8 coin built in cash drawer
Cash Drawer Inside Dimensions:
- Bill: 6.45" x 3.54" x 2.20" / 164 mm x 90 mm x 56 mm, 90 mm cash slot adjustable +/-6 mm / 0.24"
- Coin: 1.57" x 3.54" x 1.41" / 40 mm x 90 mm x 36 mm)Speakers
1 x 1W internal speaker
OS
Android 8.1™ Oreo™ with Google™ Play Services; EloView® content deployment and management
Power
AC input voltage: 100-240 VAC
Input frequency: 50-60 HzPower Consumption (Typical)
92W
Dimensions
16.2" x 12.6" x 16.2" / 420 mm x 411 mm x 321 mm
Shipping Box Dimensions
25.5" x 21.6" x 19.1" / 648 mm x 548 mm x 484 mm
Weight (Unpackaged)
19.84 lbs / 9kg
Weight (Packaged)
29.76 lbs / 13.5kg
Operating Temperature
0°C to 35°C / 32°F to 95°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%
Storage: 5% to 95%Real-Time Clock
lithium coin cell battery
Warranty
3-year
Extended Service Options
4 year warranty coverage - Elo P/N: E819598
5 year warranty coverage - Elo P/N: E819795
3 year warranty coverage + AUR - Elo P/N: E820186
4 year warranty coverage + AUR - Elo P/N: E820388
5 year warranty coverage + AUR - Elo P/N: E820582Sealability
Touchscreen sealed to LCD
Power Cables
Internal Power Supply
Power cable dependent on region of saleMounting Options
Ability to secure base to tabletop
What's in the Box
PayPoint Plus for Android
Power cable
1 x Receipt paper roll
2 x Cash drawer keys
Quick Installation Guide
RJ45 to DB9 serial cableOptional Accessories
White Cable Kit (1 per box) - Elo P/N: E784408
Cash Drawer Kit, NA (5 bill/6 coin) - Elo P/N: E784606
Cash Drawer Kit, Worldwide (4 bill/8 coin) - Elo P/N: E202512
Spare Keys 001 (1 set of 2 keys) - Elo P/N: E201914
Spare Keys 002 (1 set of 2 keys) - Elo P/N: E202119
Spare Keys 003 (1 set of 2 keys) - Elo P/N: E202321
RJ45 to DB9 Cable Kit (10 per box) - Elo P/N: E202717Regulatory approvals and declarations
FCC, UL, cUL, CE, CB, VCCI, MIC, RCM
Supported Countries
Canada, USA, Australia, Japan, South Korea, New Zealand, Austria, Belgium, Czech Republic, Denmark, France, Germany, United Kingdom, Hungary, Italy, Netherlands, Poland, Portugal, Romania, Spain, Sweden, Switzerland, Turkey
