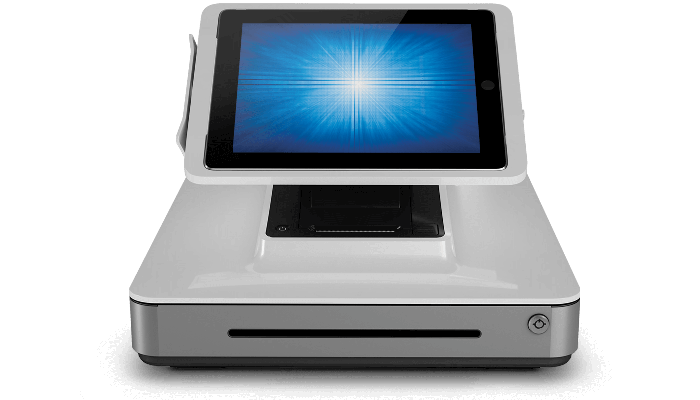

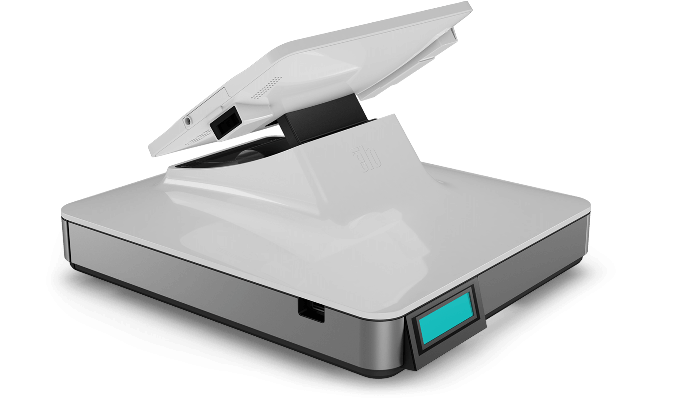

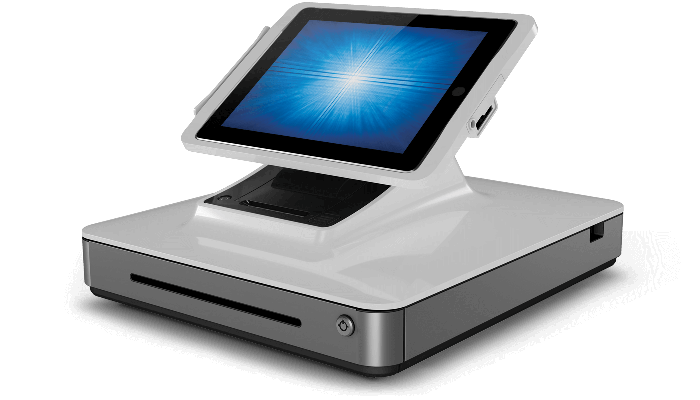

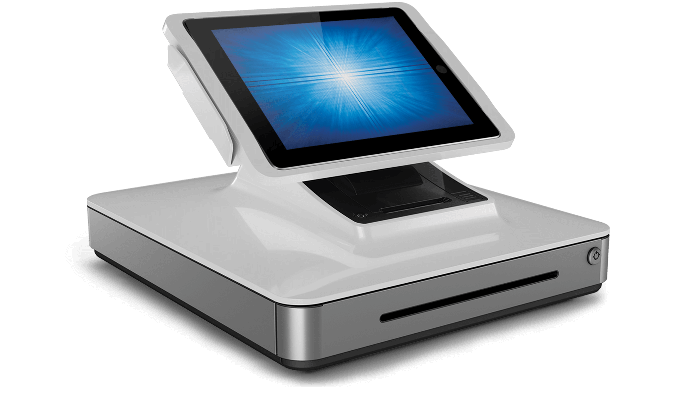

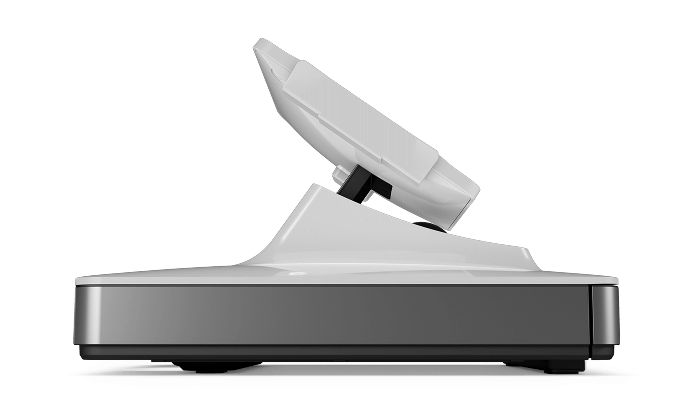

PayPoint® for iPad® (Gen 1)
How to buy

This model has been discontinued. Please see the replacement models - PayPoint® POS Systems.

Overview

PayPoint is an all-in-one mPOS solution that brings simplicity and elegance to the point of sale. Offering sleek, modern style with peripherals built in, the PayPoint platform is retail hardened and built to last with a three-year warranty.

Plug & play.

With its single cable design, PayPoint makes setting up the point of sale system fast and easy. Just unbox, plug in, connect, and go.

 Image of item
Image of item
Sleek design.

For retailers and operators, counter space is always at a premium. Ensuring that the counter looks inviting while remaining functional is of the utmost importance. With its small footprint and attractive design, PayPoint turns the cash wrap into a beautiful and functional space to allow you to better serve your customers.

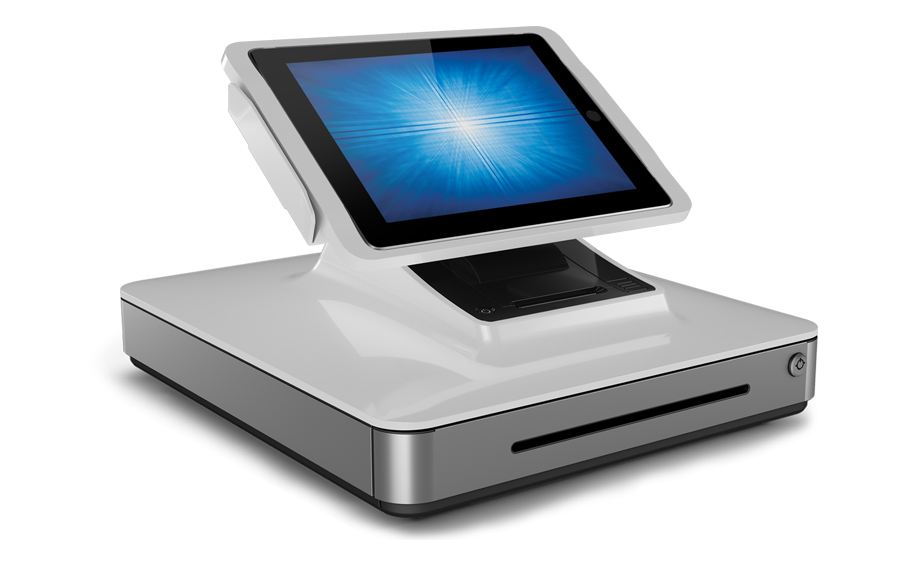

Functionality delivered.

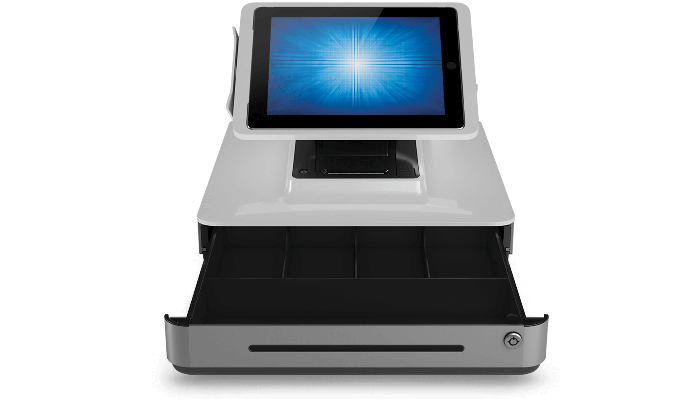

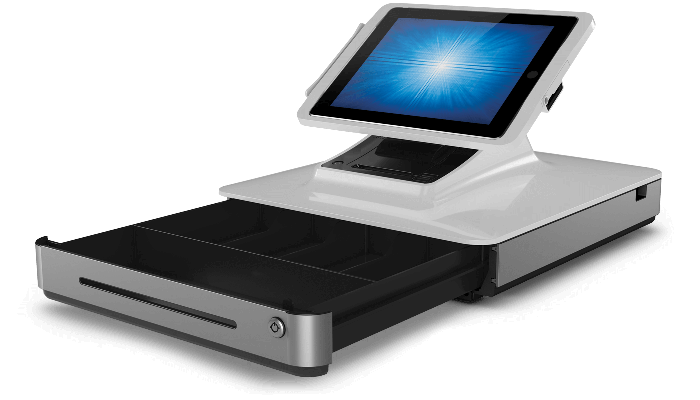

PayPoint integrates a receipt printer, cash drawer, MSR, barcode scanner and customer-facing display. The flip-for-signature screen encourages shopper engagement and electronic receipt delivery. Bluetooth connectivity and expansion ports allows for the addition of optional peripherals such as a handheld scanner or weight scale.

For traditional payments, leverage the built-in MSR or add Elo’s optional NFC reader for contactless payments and proximity marketing. For EMV support, pair with your preferred EMV reader via USB or Bluetooth to provide your customers with a full-function, mobile point of sale experience that supports highly secure EMV transactions.

 Image of item
Image of item
Integrated flexibility.

Whether working with one of Elo’s strategic point of sale software partners or deploying your own iOS application, you can easily add the mPOS functionality you need to run your business.

PayPoint Certified Software Partners
Other features.
  • Integrated receipt printer, cash drawer, MSR, barcode scanner and customer facing display
  • Bluetooth module (via iPad) and expansion ports for external peripherals
  • Ability to secure base to tabletop or desktop
  • Three-year warranty
  • iOS SDK that allows developers to certify PayPoint with ease

Specifications

  • Technical

    Part Number(s)

    White (Americas) - E008250
    White (EMEA) - E318353
    White (Asia/Pacific) - E380553

    Enclosure Color

    White or Black

    iPad Compatibility

    iPad Pro 9.7"
    iPad (2017 model)
    iPad Air
    iPad Air 2
    iPad 10.2" (2019 model)
    iPad Pro 10.5" (2017 model)
    iPad Air 10.5" (2019 model)

    NOTE: Supports Lightning based iPads only

    USB Ports

    1 x Type A USB (for charging)
    1 x Mini USB (for charging)

    Serial Ports

    1 x RJ45

    Barcode Reader

    1D CCD

    Magnetic Stripe Reader (MSR)

    Magtek 3 track encryptable
    Default security level 2

    Printer

    2” (50.8mm) thermal receipt printer with tear bar
    Maximum paper roll diameter 80mm, paper thickness: 0.053-0.085mm

    Customer Display

    2x16 character display

    Cash Drawer

    4 bill, 5 coin built in cash drawer
    Removable coin slot insert
    Slot for checks

    OS

    SDK support for iOS 7 and above

    Power

    AC input voltage: 100-240 VAC
    Input frequency: 50-60 Hz

    Power Consumption (Typical)

    20W

    Max Touchcomputer Dimensions With Stand

    15.7” x 13.5” x 9.9” / 398.78mm x 342.9mm x 251.46mm

    Shipping Box Dimensions

    18.9” x 11.2” x 16.5” / 480mm x 285mm x 420mm

    Weight (Unpackaged)

    With iPad: 12.94 lbs / 5.86 kg
    Without iPad: 11.91 lbs / 5.78 kg

    Weight (Packaged)

    17.65 lbs / 8 kg

    Operating Temperature

    0°C to 35°C / 32°F to 95°F

    Storage Temperature

    -20°C to 60°C / -4°F to 140°F

    Humidity

    Operating: 20% to 80%
    Storage: 5% to 95%

    Regulatory approvals and declarations

    UL/cUL, FCC, CE, CB, CCC

    Real-Time Clock

    lithium-ion battery

    MTBF

    50,000 hours demonstrated

    Warranty

    3-year

    Extended Service Options

    4 year warranty coverage - Elo P/N: E819598
    5 year warranty coverage - Elo P/N: E819795
    3 year warranty coverage + AUR - Elo P/N: E820186
    4 year warranty coverage + AUR - Elo P/N: E820388
    5 year warranty coverage + AUR - Elo P/N: E820582

    Power Cables

    Power cable depends on region of sale
    Internal Power Supply

    Other Features

    Serviceable internal components

    What's in the Box

    PayPoint for iPad (includes: cash drawer, printer, MSR, barcode scanner and customer facing display)
    RJ45 to DB9 cable
    Power cable
    2 receipt paper rolls
    2 cash drawer keys
    iPad 10.5” and iPad Air 2 trays
    Quick Installation Guide

    Optional Accessories

    PayPoint NFC Kit - Elo P/N: E149962
    PayPoint Cash Drawer Kit US - Elo P/N: E332393
    PayPoint Cash Drawer Kit Worldwide - Elo P/N: E332197
    EMV Cradle for Ingenico ICMP - Elo P/N: E953516
    EMV Cradle for Verifone E355 - Elo P/N: E002639

    Contact PayPoint Sales

    1.844.356.3548

Accessories

(1)

Upgrades, add-ons, and more.
Image of item

EMV Cradles

Configurations

(3)

Refine your search:
Compare Compare
Image of item
E008250 (Americas)
  • SDK support for iOS 7 and above
  • 3-year
  • Americas
Compare Compare
Image of item
E318353 (Europe)
  • SDK support for iOS 7 and above
  • 3-year
  • Europe
Compare Compare
Image of item
E380553 (Asia/Pacific)
  • SDK support for iOS 7 and above
  • 3-year
  • Asia/Pacific
No Configurations found.

Resources

(9)

  • Collateral

    Spec Sheet

    Go
  • Drawings and Certificates

    Dimensional Drawing

    Go

    Agency Approval Certificates

    Go
  • User Guides

    English

    Go

    Simplified Chinese

    Go

    Quick Install Guide

    Go

    QIG: EMV Cradle

    Go
  • Additional Support Resources

    MFI Submission Guide

    Go

    PayPoint Software Development Kit

    Go
