PayPoint® for Android™ — with Android Open Source Rev B (Replaced by EloPOS)
This version has been discontinued. Please see the replacement models - EloPOS for Android.
Overview
Powered by Android™ 7.1 (Nougat), the upgraded PayPoint for Android point of sale solution offers the same sleek and elegant design now delivering 4x the speed with the Qualcomm® Snapdragon™ octa-core processor, 3GB of RAM and 32GB of storage. The retail hardened all-in-one mPOS solution brings simplicity and modern style to the point of sale with peripherals built in and reliability backed by a three-year warranty.
Plug & play.With its single cable design, PayPoint makes setting up the mobile point of sale system fast and easy. Just plug in, connect, and go. |
 |
 |
Sleek design.Whether in a retail or QSR environment, counter space is at a premium when it comes to the POS system. Ensuring that the counter looks inviting and remains functional is of the utmost importance. With its small footprint and attractive design, PayPoint for Android turns the cash wrap into a beautiful and functional space to allow you to better serve your customers. |
Functionality delivered.The PayPoint for Android POS platform integrates a receipt printer, cash drawer, MSR, barcode scanner and, on select models, customer facing display. The flip-for-signature screen encourages shopper engagement and electronic receipt delivery. Bluetooth 4.1 connectivity and expansion ports allow for the addition of optional peripherals such as a handheld scanner or weight scale. For traditional payments, leverage the built-in MSR or add Elo’s optional NFC reader for contactless payments and proximity marketing. For EMV support, pair with your preferred EMV reader via USB or Bluetooth to provide your customers with a full-function, mobile point of sale experience that supports secure EMV transactions. |
 |
 |
Integrated flexibility.Whether working with one of Elo’s strategic point of sale software partners or deploying your own application, you can easily add the mPOS functionality you need to run your business. PayPoint Certified Software Partners |
Manage remotely.With EloView®, you have the power to manage your Android-powered PayPoint system remotely. Deploy your POS application, load content, and update the operating system easily and effectively with the secure and scalable device-management platform. Learn more about EloView. |
 |
 |

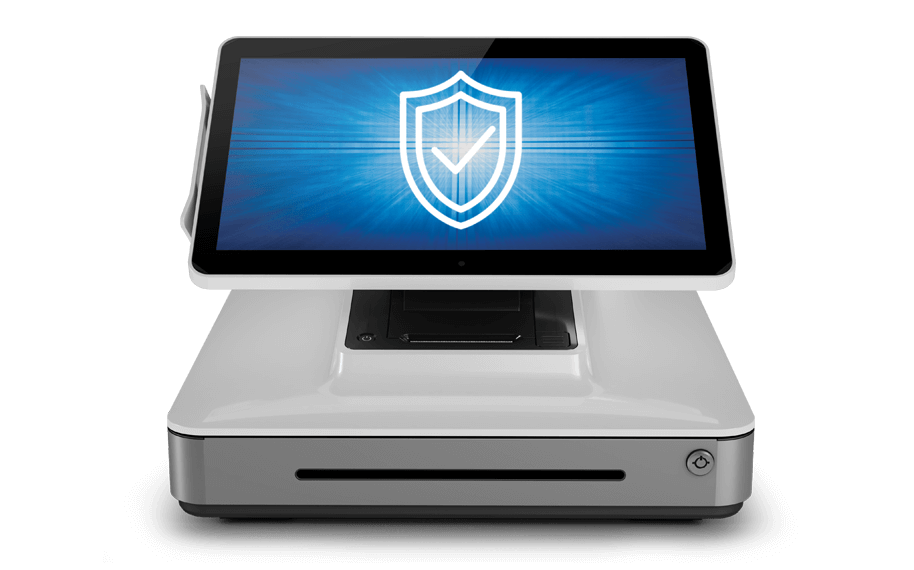

Security is a Priority.Elo has solved one of the biggest pain points of Android by enabling security updates on a flexible schedule – giving you full control of your environment. |
Other features.
- 13.3-inch projected capacitive (PCAP) display
- Wi-Fi and LAN network connectivity
- Bluetooth module and expansion ports for external peripherals
- Ability to secure base to tabletop or desktop
- Three-year warranty
- Android SDK that allows developers to certify PayPoint with ease
Specifications
-
Technical
Part Number(s)
White (Americas) - E346732
White (Europe) - E347129Enclosure Color
White
Touch Technology & Capacity
PCAP (TouchPro® Projected Capacitive) - up to 5 touches
Diagonal Size
13.3'' diagonal, Active matrix TFT LCD
Aspect Ratio
16:9
Resolution
1920 x 1080 @ 60Hz
Active Area
11.53" x 6.49" / 293 mm x 165 mm
Brightness (typical)
LCD Panel: 350 nits
PCAP: 300 nitsResponse Time-total (typical)
30 msec
Touch Interface
USB/I2C
Contrast Ratio
800:1
Viewing Angle
Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
Processor
Qualcomm Snapdragon 2.0GHz Octa-Core
Memory (RAM)
3GB
Storage
32GB
NOTE: GB equals one billion bytes when referring to storage capacity. Accessible capacity may be lessUSB Ports
1 x USB 2.0
1 x mini USB 2.0Ethernet Port
1 x LAN (Gigabit)
Wireless
802.11 b/g/n/ac + Bluetooth 4.1
Magnetic Stripe Reader (MSR)
Magtek 3 track encryptable
Default Security Level 2Barcode Reader
1D CCD
Customer Display
2x16 character display
Printer
2" thermal printer with tear bar
Cash Drawer
4 bill, 5 coin built in cash drawer
Removable coin slot insert
Slot for checksSpeakers
1 x 1W internal speaker
OS
Android 7.1 with EloView content deployment and management
Power
AC input voltage: 100-240 VAC
Input frequency: 50-60 HzPower Consumption (Typical)
56W
Dimensions
13.6" x 11.3" x 8.4" / 345 mm x 288 mm x 212 mm
Shipping Box Dimensions
17.7" x 18.7" x 13.4" / 450 mm x 475 mm x 340 mm
Weight (Unpackaged)
13.85 lbs / 6.28kg
Weight (Packaged)
19.25 lbs / 8.73kg
Operating Temperature
0°C to 35°C / 32°F to 95°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%
Storage: 5% to 95%Real-Time Clock
lithium coin cell battery
Warranty
3-year
Extended Service Options
4 year warranty coverage - Elo P/N: E819598
5 year warranty coverage - Elo P/N: E819795
3 year warranty coverage + AUR - Elo P/N: E820186
4 year warranty coverage + AUR - Elo P/N: E820388
5 year warranty coverage + AUR - Elo P/N: E820582Sealability
Touchscreen sealed to LCD (all)
Power Cables
Internal Power Supply (North American or China, European or UK)
Mounting Options
Ability to secure base to tabletop
What's in the Box
13-inch PCAP display, cash drawer, printer, MSR, barcode scanner, customer facing display, Power cable, 2 receipt paper rolls, 2 cash drawer keys, Quick Installation Guide
Optional Accessories
PayPoint NFC Kit - Elo P/N: E149962
PayPoint Cash Drawer Kit US - Elo P/N: E332393
PayPoint Cash Drawer Kit Worldwide - Elo P/N: E332197
EMV Cradle for Ingenico ICMP - Elo P/N: E953516
EMV Cradle for Verifone E355 - Elo P/N: E002639Regulatory approvals and declarations
UL/cUL, FCC, CE, CB, CCC
