PayPoint® for Android™ — with Google Play Services 3.0 (Replaced by EloPOS)
This version has been discontinued. Please see the replacement models - EloPOS for Android.
Overview

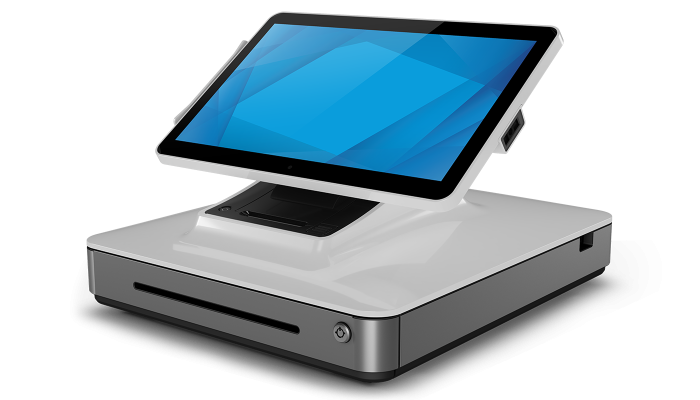

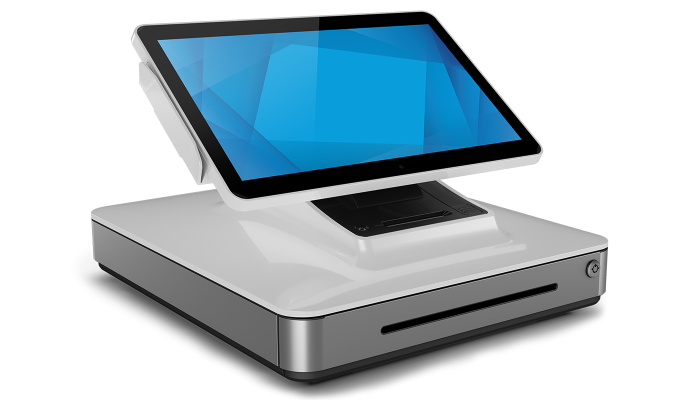

PayPoint® for Android™ combines a reliable and secure, commercial-grade POS System with flexibility and functionality of Google Play Services. Running Android 8.1 and powered by a blazing-fast blazing-fast Qualcomm® Snapdragon™ octa-core processor, the all-in-one mPOS solution brings unmatched style to the point of sale with a distinctive modern aesthetic. PayPoint provides everything a merchant needs in a compact Android-powered system including a 13.3-inch touchscreen, fully integrated peripherals and connections for third party devices. With a flip-for-signature touchscreen and built-in customer facing display to encourage shopper engagement, this space-saving and commercial-grade AiO is ideal for retail, hospitality, restaurants and entertainment venues.
Whether you deploy one hundred or one hundred thousand PayPoint devices, EloView® makes it easy to connect and control them while Google Mobile Services gives you access to Google’s most popular apps and APIs. Available with your choice of size and configuration, the POS system is designed to offer versatility across environments with the durability to meet the demands of continuous public use.
Plug & play.With its single cable design, PayPoint makes setting up the mobile point of sale system fast and easy. Just plug in, connect, and go. |
 |
 |
Sleek design.Whether in a retail or QSR environment, counter space is at a premium when it comes to the POS system. Ensuring that the counter looks inviting and remains functional is of the utmost importance. With its small footprint and attractive design, PayPoint for Android turns the cash wrap into a beautiful and functional space to allow you to better serve your customers. |

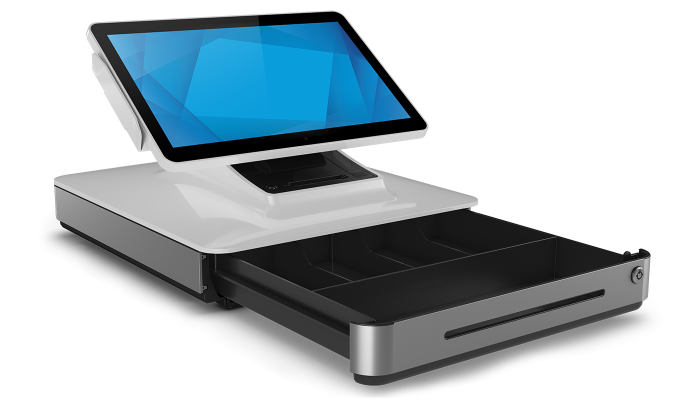

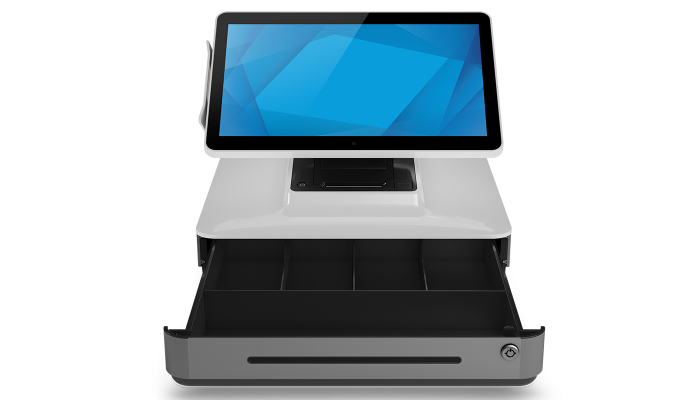

Functionality delivered.The PayPoint for Android POS platform integrates a receipt printer, cash drawer, MSR, barcode scanner and, on select models, customer facing display. The flip-for-signature screen encourages shopper engagement and electronic receipt delivery. Bluetooth 4.1 connectivity and expansion ports allow for the addition of optional peripherals such as a handheld scanner or weight scale. For traditional payments, leverage the built-in MSR or add Elo’s optional NFC reader for contactless payments and proximity marketing. For EMV support, pair with your preferred EMV reader via USB or Bluetooth to provide your customers with a full-function, mobile point of sale experience that supports secure EMV transactions. |
 |
 |
Integrated flexibility.Whether working with one of Elo’s strategic point of sale software partners or deploying your own application, you can easily add the mPOS functionality you need to run your business. PayPoint Certified Software Partners |
Manage remotely.PayPoint for Android is designed to work with EloView — a secure, cloud based platform that allows you to remotely update OS, deploy your POS applications in locked mode and manage your devices quickly with ease. EloView offers value every step of the way in your customers journey. Provision your POS app remotely during deployment and reduce installation costs. Remotely manage devices, update OS or your POS app at a scheduled time-reducing down time during these updating in the field. EloView is a modular system that can support your existing management tools and is designed to run stock Android apps. Learn more about EloView. |
 |
 |
Google™ Play ServicesNow you can create a seamless experience for your customers – from their personal devices to your interactive experiences in store. With Google Play Services, your app can take advantage of the latest, Google-powered features while maintaining the added flexibility of EloView – making deployments and management a breeze. |
Elo’s Approach to AndroidThe Android mobile architecture is a smart choice for ensuring your rollout is inexpensive, consumer-friendly and adaptable long-term.
|
 |
 |
Get Peace of Mind With EloCareSM.EloCare is service and support from the people who know your Elo products best. From extended warranties and on-site exchange to advance unit replacement and field services, the highly skilled Elo technical specialists will get you up and running. |
Other features.
- 13.3-inch projected capacitive (PCAP) display
- Wi-Fi and LAN network connectivity
- Bluetooth module and expansion ports for external peripherals
- Ability to secure base to tabletop or desktop
- Three-year warranty
- Android SDK that allows developers to certify PayPoint with ease
Specifications
-
Technical
Part Number(s)
White (North America) - E463541
Black (North America) - E463738
White (Worldwide) - E463943
Black (Worldwide) - E464141Enclosure Color
White or Black
Touch Technology & Capacity
PCAP (TouchPro® Projected Capacitive) - up to 5 touches
Diagonal Size
13.3'' diagonal, Active matrix TFT LCD
Aspect Ratio
16:9
Resolution
1920 x 1080 @ 60Hz
Active Area
11.53" x 6.49" / 293 mm x 165 mm
Brightness (typical)
LCD Panel: 350 nits
PCAP: 300 nitsResponse Time-total (typical)
30 msec
Touch Interface
USB/I2C
Contrast Ratio
800:1
Viewing Angle
Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
Processor
Qualcomm Snapdragon 2.0GHz Octa-Core
Memory (RAM)
3GB
Storage
32GB
NOTE: GB equals one billion bytes when referring to storage capacity. Accessible capacity may be lessUSB Ports
1 x USB 2.0
1 x mini USB 2.0Ethernet Port
1 x LAN (Gigabit)
Wireless
802.11 b/g/n/ac + Bluetooth 4.1
Magnetic Stripe Reader (MSR)
Magtek 3 track encryptable
Default Security Level 2Barcode Reader
1D CCD
Customer Display
2x16 character display
Printer
2" thermal printer with tear bar
Cash Drawer
4 bill, 5 coin built in cash drawer
Removable coin slot insert
Slot for checksSpeakers
1 x 1W internal speaker
OS
Android 8.1™ Oreo™ with Google™ Play Services; EloView® content deployment and management
Power
AC input voltage: 100-240 VAC
Input frequency: 50-60 HzPower Consumption (Typical)
56W
Dimensions
13.6" x 11.3" x 8.4" / 345 mm x 288 mm x 212 mm
Shipping Box Dimensions
17.7" x 18.7" x 13.4" / 450 mm x 475 mm x 340 mm
Weight (Unpackaged)
13.85 lbs / 6.28kg
Weight (Packaged)
19.25 lbs / 8.73kg
Operating Temperature
0°C to 35°C / 32°F to 95°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%
Storage: 5% to 95%Real-Time Clock
lithium coin cell battery
Warranty
3-year
Extended Service Options
4 year warranty coverage - Elo P/N: E819598
5 year warranty coverage - Elo P/N: E819795
3 year warranty coverage + AUR - Elo P/N: E820186
4 year warranty coverage + AUR - Elo P/N: E820388
5 year warranty coverage + AUR - Elo P/N: E820582Sealability
Touchscreen sealed to LCD (all)
Power Cables
Internal Power Supply (North American or China, European or UK)
Mounting Options
Ability to secure base to tabletop
What's in the Box
13-inch PCAP display, cash drawer, printer, MSR, barcode scanner, customer facing display, Power cable, 2 receipt paper rolls, 2 cash drawer keys, Quick Installation Guide
Optional Accessories
PayPoint NFC Kit - Elo P/N: E149962
PayPoint Cash Drawer Kit US - Elo P/N: E332393
PayPoint Cash Drawer Kit Worldwide - Elo P/N: E332197
EMV Cradle for Ingenico ICMP - Elo P/N: E953516
EMV Cradle for Verifone E355 - Elo P/N: E002639Regulatory approvals and declarations
UL/cUL, FCC, CE, CB, CCC, SRRC
Supported Countries
Canada, USA, Australia, Japan, South Korea, New Zealand, Austria, Belgium, Czech Republic, Denmark, France, Germany, United Kingdom, Hungary, Italy, Netherlands, Poland, Portugal, Romania, Spain, Sweden, Switzerland, Turkey
