3263L 32-inch Full HD Open-Frame
The perfect touchscreen for any enclosure.
Elo's 3263L 32-inch full HD open-frame delivers a state-of-the-art slim form factor designed for easy integration into enclosures and kiosks. Whether for self-order and self-checkout kiosks or industrial controls, operating room control boards and wayfinding solutions, Elo’s commercial-grade interactive displays offer the versatility to add touch to your solution.
Get the durability your kiosks need.
UL60950
IK07
Ready for 24/7 Use
IP65 (requires integration)
Brilliant,
interactive
TouchPro® PCAP display.
The 3263L offers anti-glare or anti-friction models with edge-to-edge glass and up to 40 simultaneous touches for an enhanced, tablet-like experience.
Integrated connectivity.
HDMI
USB 2.0
VGA
RJ45
Captivate customers
and employees
with reliable,
easy to use interactive solutions.
Payment and Ticketing
Operating Room Control Board
Point of Information
Self-Order/
Automation/
Wayfinding & Interactive Signage
Designed for easy integration.
Mount the 3263L touchscreen monitor in landscape, portrait and upward facing orientations, providing optimal flexibility for integrating in any counter, kiosk or cabinet design.

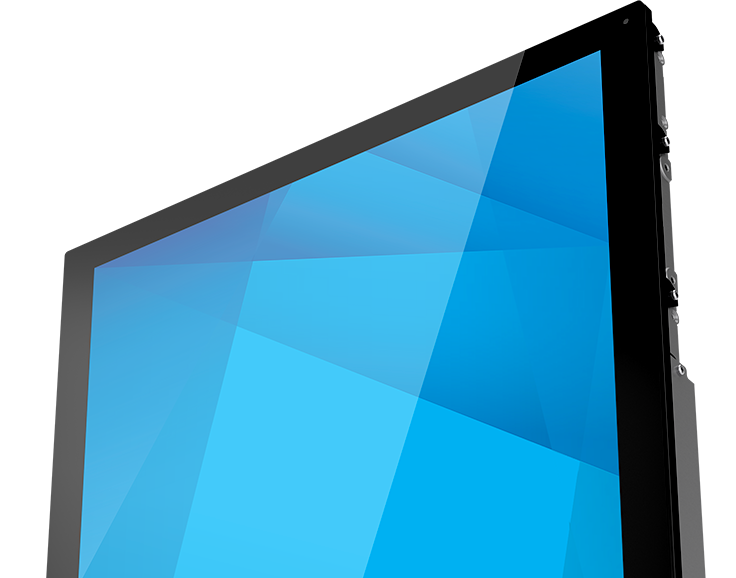

Get the viewing experience you want to see.
Whether viewing straight on or at an angle, close-up or from a distance, Elo’s touchscreen displays offer optimal clarity for the viewing experience.
Place your touchscreen behind
an extra layer
of protection.
For installations that require specific IP ratings or protection from vandalism and harsh environments, Elo’s TouchPro PCAP displays offer touch thru capability. With touch thru technology, the display can be mounted behind a front layer of glass up to 6 mm or plastic up to 3 mm to create a fully enclosed kiosk.
Make your digital transformation faster, and more affordable.
Elo EssentialEdge™ for Android offers everything you need to build and operate interactive solutions for your business.
Learn more
The Elo Backpack
brings
computing power
that scales.
With the Elo Backpack you get a powerful, commercial-grade Android compute engine purpose-built to fit in compact spaces. Boasting a small footprint in both size and weight, the Elo Backpack can secure inside any kiosk with the built-in VESA mount. Scaling Elo’s commercial Android platform across sizes and form factors has never been easier.
Learn more
EloCare℠ provides
service and support from
the people who know your Elo products best.
Learn more
Advanced Unit Replacement
Extended Warranty
Professional Services
Specifications
-
Technical
Part Number(s)
TouchPro PCAP (clear with anti-friction) - E343671
TouchPro PCAP (anti-glare) - E343872Enclosure Color
Black
Touch Technology & Capacity
PCAP (TouchPro® Projected Capacitive) - 40 Touch with Palm Rejection and Touch Thru capability
Touch Thru
Supports up to 6mm glass/3mm plastic with up to 2 touches. Supports gloves up to 1.4mm
Touch Interface
USB
Diagonal Size
31.5'' diagonal, Active matrix TFT LCD (LED)
On Screen Display
Accessible through switches on the OSD Control Remote accessory.
Controls (side): Menu, Up, Down, Select
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Recall Defaults, Video Source, Touch, RTC, MDC, Touch Through
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, Power
RTC Settings: The clock/time and the monitor ON/OFF schedule can be changed within this menu. Daylight Saving time is adjusted for automatically and will change the current time by one hour to accommodate daylight savings time.
See user manual for full details.Aspect Ratio
16:9
Active Area
27.5" x 15.47" / 698.4 mm x 392.9 mm
Resolution
1920 x 1080 @ 60hz
Other Supported Resolutions
640x480 @ 60Hz
800x600 @ 56/60Hz
1024x768 @ 60Hz
1280x720 @ 60Hz
1280x800 @ 60Hz RB
1280x960 @ 60Hz
1280x1024 @ 60Hz
1366x768 @ 60Hz
1366x768 @ 60Hz RB
1440x900 @ 60Hz
1440x900 @ 60Hz RB
1680x1050 @ 60Hz
1680x1050 @ 60Hz RB
1920x1080 @ 60HzViewing Angle
Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Number of Colors
8-bit (16.7 million)
Brightness (typical)
LCD panel: 500 nits
TouchPro PCAP: 425 nitsResponse Time-total (typical)
8 msec
Contrast Ratio
3000:1
I/O Ports
HDMI 1.4 x2
USB 2.0 Type B (for Touch)
RJ45 (for optional OSD remote)
VGAVideo
2x HDCP-capable HDMI on Type A connector
Female DE-15 VGA connector
Input Video Horizontal Sync frequency range: 31.5 – 80 KHz
Input Video Vertical Sync (frame rate) frequency range: 47 – 63 KHzPower
Input connector (power): IEC 60320-C14
Input signal specifications (power): 100-240VAC 50/60HzMaximum Operating Time
24 hours/day
Power Consumption (Typical)
ON: 44.3 W
SLEEP: 0.61 W
OFF: 0.20 WDimensions
29.42" x 17.82" x 2.16" / 747.3 mm x 452.7 mm x 55 mm
Shipping Box Dimensions
39.4" x 12.05" x 26.79" / 1000 mm x 306 mm x 680 mm
Weight (Unpackaged)
24.17 lbs / 10.99 Kg
Weight (Packaged)
37.47 lbs / 17.03 Kg
Operating Temperature
Portrait/Landscape Mode: 0°C to 40°C / 32°F to 104°F
Tabletop Mode: 0° C to 35° C / 32°F to 95°FStorage Temperature
Portrait/Landscape Mode: -20°C to 60°C / -4°F to 140°F
Tabletop Mode: -20° C to 60° C / -4° F to 140° FHumidity
Operating: 20% to 80%
Storage: 10% to 90% (38.7°C max wet bulb temperature)Sealability
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF
50,000 hours demonstrated
Warranty
3-year
Extended Service Options
4 year warranty coverage + AUR - Elo P/N: E740135
5 year warranty coverage + AUR - Elo P/N: E740330Regulatory approvals and declarations
Argentina S-Mark
Australia RCM
Canada CUL, IC
China CCC
Europe CE
Japan VCCI
Korea KCC e-Standby
Mexico CoC
Russia EAC
Taiwan BSMI
United States UL, FCC
International CB
Mexico NOM
RoHS, China RoHS, WEEE
Energy Star 8.0
UL 60950 ball-drop compliant
IK07 impact compliant
CB (International safety) (IEC/EN60950-1+IEC/EN62368-1)Mounting Options
VESA 400mm x 200mm
See dimensional drawings for detailsOther Features
Ambient Light Sensor - changes panel color to match ambient light, Auto Wake
What's in the Box
Quick Install Guide
HDMI 1.4 cable (Type A plug to Type A plug)
VGA cable (DB-15 male to DB-15 male)
USB cable (Type A plug to Type B plug)
RJ45 Wired OSD remote
Power cable, IEC 60320-C13 to NA plug
Power cable, IEC 60320-C13 to EU/KR plug
Power cable, IEC 60320-C13 to UK plug
Energy label according to EU Regulation 2019/2013
8 sets Flushmount Brackets 48 pcs ScrewsOptions / Peripherals / Upgrades
Remote OSD (RJ45) - Elo P/N: E483757
Elo 32-inch Wide Flush-mount Bracket - Elo P/N: E312503
Optional PCAP Stylus Pen - Elo P/N: E066148
Elo Backpack® 4 (Value Model)- Elo P/N: E393754
Elo Backpack® 4 (Standard Model) - Elo P/N: E393359
