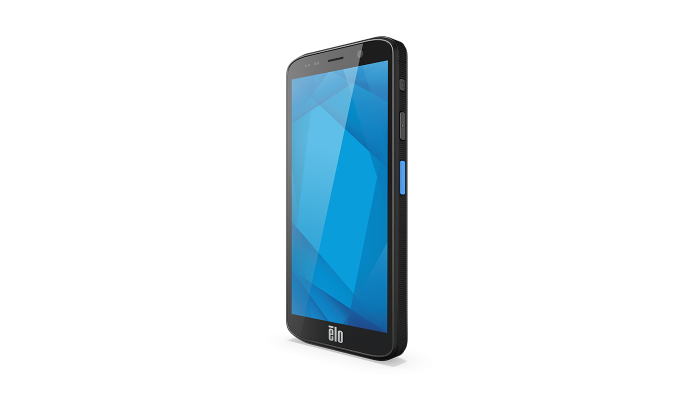

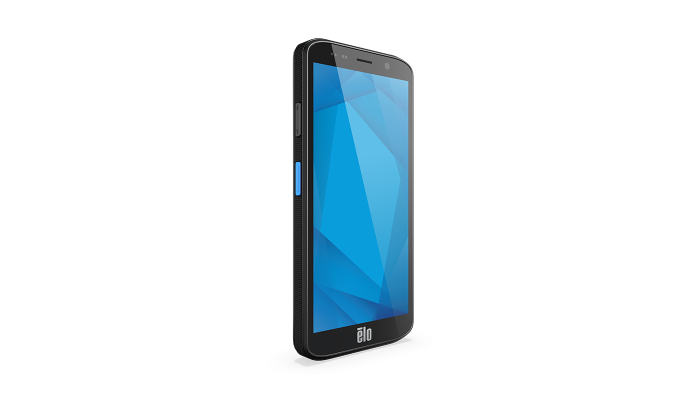

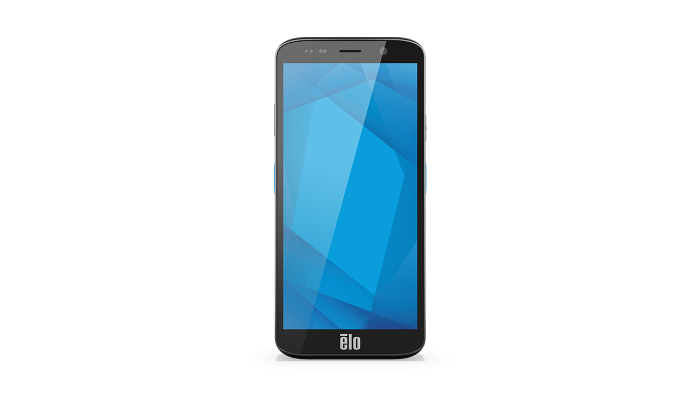

M51 Rugged
Mobile Computer
The M51 rugged mobile computer delivers a 6‑inch full HD
touch display, Android 14 OS, powerful Qualcomm 6490 octa-
core processor, integrated NFC and optional 2D barcode
scanner. From enhancing retail store operations and
warehouse management to ticketing – boost efficiency with
the M51 mobile computer.
Propel your
productivity.
- Qualcomm 6490 octa-core processor
- Android 14 with GMS & OS 360*
- Warm-swappable 4,500 mAh battery
- 12 hour battery life**
- WiFi 6E, 5G LTE & Bluetooth 5.2
*OS 360 sold separately.
**Exact battery life depends on use.
*OS 360 sold separately.
**Exact battery life depends on use.

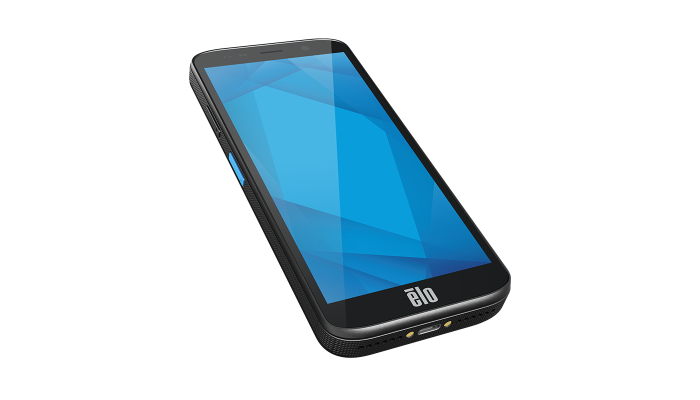

6-inch full HD display.
The M51 Android mobile computer offers a brilliant,
6-inch FHD multi-touch display complete with
chemically strengthened glass.
Integrated NFC
With the integrated NFC, customers can quickly and
easily tap contactless payments through the glass.

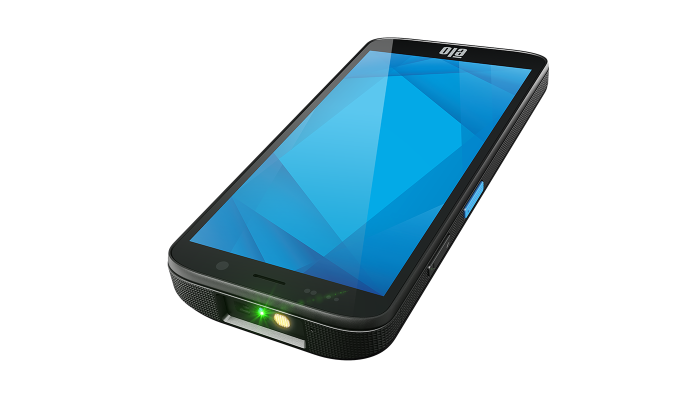

Barcode Scanner
With the optional 2D barcode scanner, you can easily
manage inventory, expedite queues, fulfill curbside
pickups, or scan ticket at venues.
Integrated Cameras
The M51 offers an integrated 13MP auto-focus
rear camera and a 8MP fixed-focus front camera.
All the accessories
you need and more.

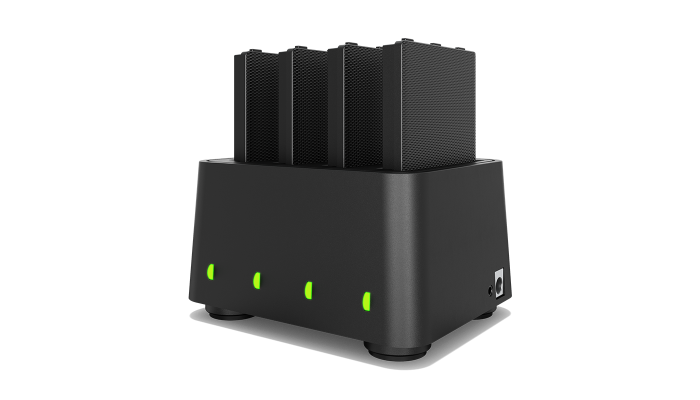

4-Unit Battery Charger

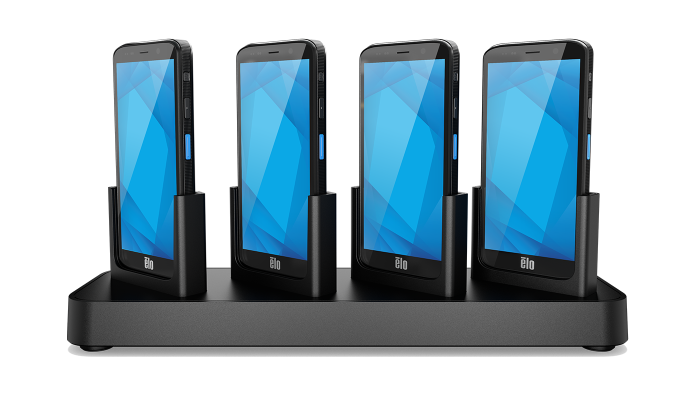

4-Unit Device Charger

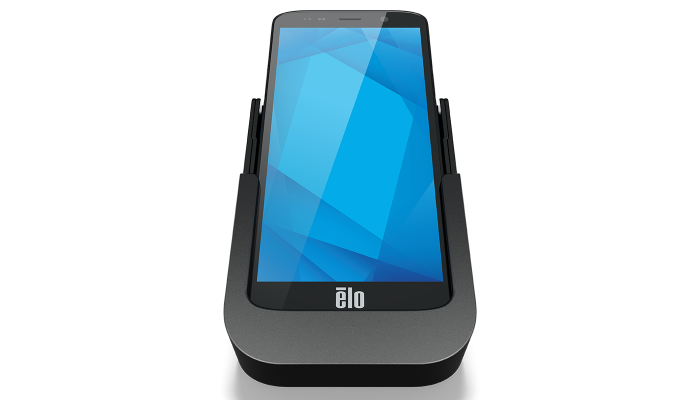

Single Unit Dock
Scan Handle with Trigger
Built to endure the demands
of continuous commercial use.
Chemically
strengthened glass
IP68
Rating
1.2m drop per
MIL-STD 810G
Warm-swappable
battery
Android device
management
made easy.
EloView allows you to deploy and securely manage
your entire network of Android-powered Elo devices
from anywhere in the world.
-
Manage battery life with ease by viewing up-to-
date battery statistics directly on the device or
manage your entire fleet directly from EloView. -
Provision your devices in seconds with a
seamless out-of-the-box experience. -
Leverage Elo Home to create a customized
interface on your mobile Android device.
Get enterprise support
with Elo EssentialEdge.™
With easy-to-use development kits, robust management tools,
world class life cycle management and security, Elo can help
you deliver the convenience and familiarity of Android
interfaces in a secure, business-friendly way.
EloCare OS 360 – Access bi-monthly security updates and OS
upgrades through Android 15 to keep your devices secure.
Learn More
Google Android Enterprise Recommended – Rest assured that
the M51 has met Google’s strict enterprise requirements.
Seamless Provisioning – Leverage EloView or Google Zero
Touch to integrate with your choice of MDM provider.
Elo OEMConfig – Get immediate support of Elo’s proprietary
APIs on your favorite MDM platforms and manage device-
specific features and settings.
Get peace of mind
with EloCare.℠
From advance unit replacement to OS 360, EloCare
delivers service and support from the people who
know your Elo products best.
- Advance Unit Replacement
- Accidental Damage Protection
- Extended Warranty
- OS 360
Quality that
is built to last.
We engineer each product with a goal that goes
beyond meeting expectations; we aim to exceed
them. By integrating our technology into your
operations, you are partnering with us - and as
your partner, we are committed to delivering
reliable products so you can focus on growth and
innovation, confident in the knowledge that we
stand behind our products, ready to support you
every step of the way.
Specifications
-
Technical
Part Number(s)
Cellular, No Scanner, United States - E450425
Cellular, Scanner, United States - E450619
Cellular, No Scanner, Europe - E450052
Cellular, Scanner, Europe - E450234
WiFi, No Scanner, Worldwide - E446755
WiFi, Scanner, Worldwide - E449855Enclosure Color
Black
Touch Technology & Capacity
PCAP (Projected Capacitive) - 2 Touch
Processor
Qualcomm QCM6490 8x Kryo 670 CPU up to 2.7GHz
Memory (RAM)
8GB LPDDR5
Storage
128GB UFS
Expansion Options
MicroSD card supports up to SDXC UHS-1 1TB
SIM
1 nano SIM, 1 eSIM
OS
Android 14 with GMS
Planned upgrade to Android 16 available with OS 360 subscriptionDisplay
6” Optically Bonded High Definition LCD
Touchscreen
Capacitive touch with Corning Gorilla Glass Victus
Water droplet rejection
Anti-Fingerprint CoatingSensor
Light sensor (automatically adjust backlight brightness)
Proximity sensor (disable display and touch when user places against head during the call)
AccelerometerResolution
2160 x 1080
Brightness (typical)
500 nits
Battery
Rechargeable, 3.85V/4520mAh
Warm Swap battery mode
Qualcomm Quick Charge 4Cellular
United States: E450425, E450619
5G FR1: n2/5/12/25/30/38/41/48/66/71/77/78;
4G: B2/4/5/12/13/14/17/25/29/30/38/41/42/43/46/48/66/71;
3G: B2/4/5;
Carrier: AT&T certified
Europe: E450052, E450234
5G FR1: n1/3/7/8/28/38/41/77/78/79;
4G: B1/2/3/5/7/8/20/26/28/38/39/40/41;
3G: B1/5/8;
Carrier: OpenGPS
GPS, GLONASS, Galileo and BeiDou-concurrent L1/G1/E1/B1 (GPS, GLO, GAL, BeiDou) + L5/E5a/BDSB2a (GPS, GAL, BeiDou)
AGPS supportI/O Ports
USB Type-C for display, charging, and data
Rear pogo pad for scan trigger handle
Bottom pogo pad for chargingCamera
Rear: 13MP Auto-Focus with Flash LED, supports torch mode
Front: 8MP Fixed FoucsNFC
MiFare
Felica
ISO15693
ISO 14443 Type A/B
Support CPoCBarcode Scanner
Zebra SE4100 1D/2D scan engine (Scanner SKU only)
Wireless
IEEE 802.11 a/b/g/n/ac/ax, WIFI 6E, 2x2 MU-MIMO
Bluetooth
Bluetooth 5.2
LED
1x combination Green/Amber LED for charging status
1x combination Blue/Red user programmable LED
Vibrator for haptic feedbackKeyboard
On screen keyboard
Audio
Dual microphone with noise cancellation
Dual speakers with combine a receiver on the top
Bluetooth headset support
USB-C PTT headset and USB-C headset supportButtons
Dual scan buttons (programmable buttons)
Power button
Push to talk button
Volume up/down buttonsDimensions
6.65" x 3.07" x 0.65" / 168.8 mm x 78 mm x 16.5 mm
Shipping Box Dimensions
8.66" x 5.28" x 2.91" / 220 mm x 134 mm x 74 mm
Weight (Unpackaged)
298g
Weight (Packaged)
700g
Operating Temperature
-20°C to 50°C / -4°F to 122°F
Storage Temperature
-30°C to 60°C / -22°F to 140°F
Humidity
5% to 95% non-condensing
Regulatory approvals and declarations
UL, FCC (US) - Class B
cUL, IC (Canada)
CB (International safety)
CE (Europe) - Class B
RCM (Australia)
NOM (Mexico)ESD
+/- 8kV contact discharge, +/- 15kV air discharge
Drop Rating
4ft/1.2m drops per MIL810-G
6ft/1.8m drops with the protective boot per MIL 810-GTumble Rating
1000 tumbles, 1.6ft./0.5m with the protective boot per IEC 60068-2-32
Warranty
1-year
Extended Service Options
2 year warranty coverage - Elo P/N: E764955
3 year warranty coverage - Elo P/N: E765148
4 year warranty coverage - Elo P/N: E765352
5 year warranty coverage - Elo P/N: E765553
2 year warranty coverage + AUR - Elo P/N: E765759
3 year warranty coverage + AUR - Elo P/N: E765956
4 year warranty coverage + AUR - Elo P/N: E766156
5 year warranty coverage + AUR - Elo P/N: E766346
3 year warranty coverage + ADP - Elo P/N: E672040
5 year warranty coverage + ADP - Elo P/N: E672239
1 year warranty coverage + AUR + ADP - Elo P/N: E894512
3 year warranty coverage + AUR + ADP - Elo P/N: E672440
5 year warranty coverage + AUR + ADP - Elo P/N: E672646
3 year OS360 – Elo P/N: E897877
4 year OS360 – Elo P/N: E898079
5 year OS360 – Elo P/N: E898282
3 year one battery coverage – Elo P/N: E654254
3 year two battery coverage – Elo P/N: E654820OS Support
Bi-monthly Android security updates available with Elo OS 360 package
Sealability
IP68 per IEC standard 60529
What's in the Box
Elo M51
Power Adapter with US. EU and UK plugs
1.8M USB- C Cable
Quick Install GuideOptional Accessories
Single Device Dock with Pogo-Pins - Elo P/N: E534089
Single Device Dock with USB-C - Elo P/N: E367373
4 Unit Device Charger - Elo P/N: E526176
4 Slot Battery Charger - Elo P/N: E526745
M51 Battery - Elo P/N: E533892

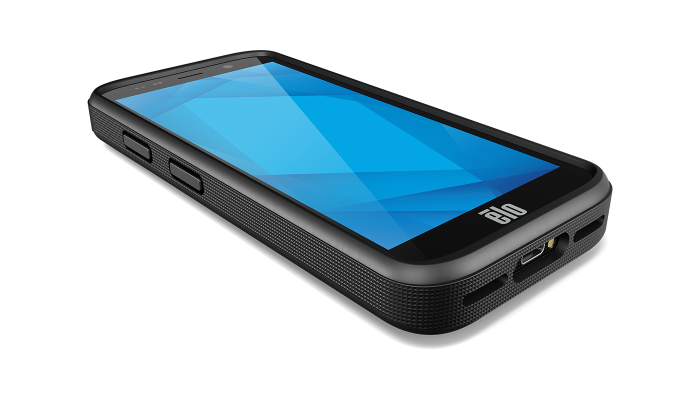

Rubber Boot - Elo P/N: E525977
Scan Handle - Elo P/N: E527331

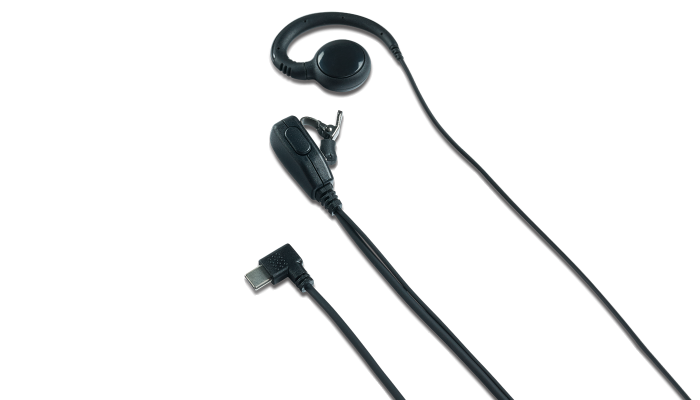

PTT USB-C Headset - Elo P/N: E527713

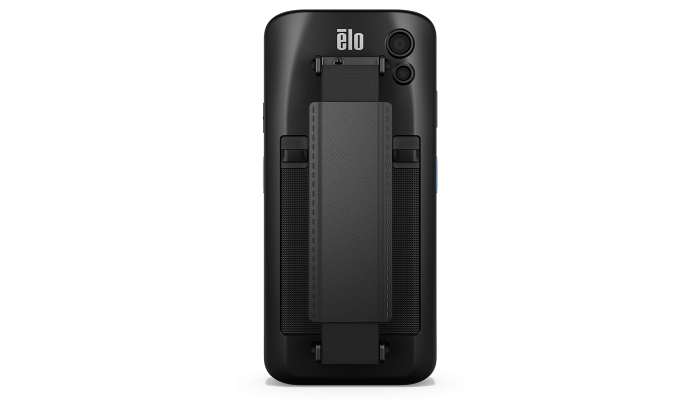

Handstrap - Elo P/N: E118460

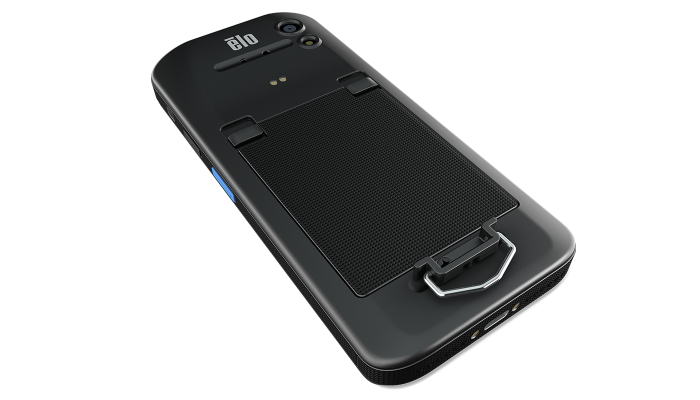

Lanyard Connector- Elo P/N: E527515
Holster - Elo P/N: E527141
Large Hub - Elo P/N: E815235
Small Hub - Elo P/N: E815044
