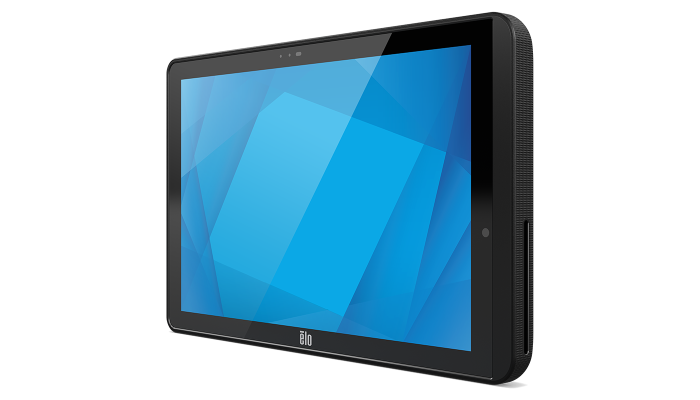

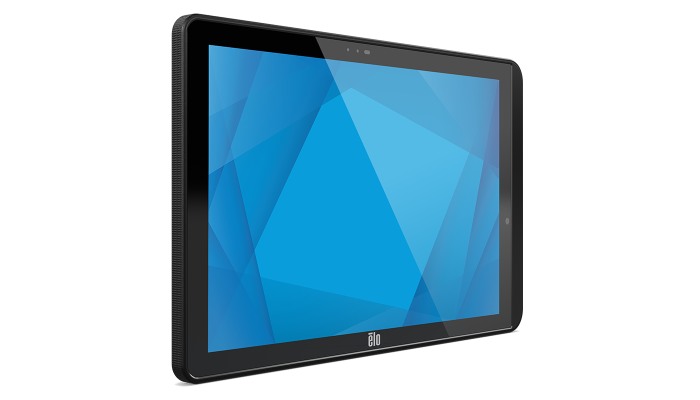

Elo Pay M100 Mobile POS Tablet
Accept payments
from anywhere.
The Elo Pay M100 offers the ultimate rugged, enterprise-grade
mobile point of sale tablet in a slim ergonomic form factor.
Boasting a 10.1-inch FHD scratch resistant touch display,
integrated payment with PCI/PTS 6.0 pin-on-glass, flexible
Android 12 OS, and Qualcomm SD660 processor, the M100 Pay
brings powerful performance with the security, unified
architecture and long life cycle businesses need.

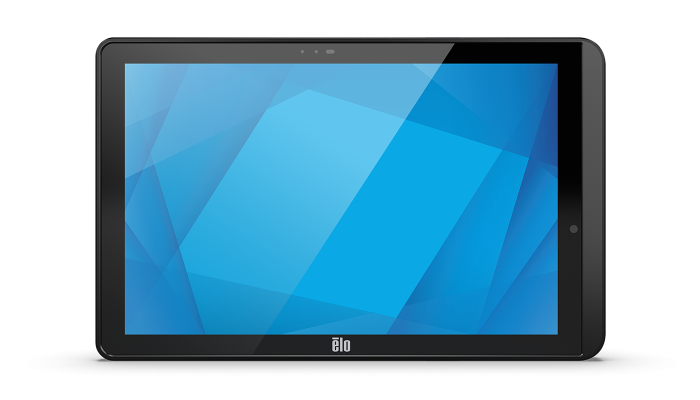

Brilliant 10-inch display
for every application.
Whether you are accepting payment, taking orders and inventory
or supporting curbside order and pickup, the Elo Pay M100
portable pos computer delivers an enterprise-grade, Android
mobile point of sale system ready to run your business.
Pin on Glass - Enter your pin directly on the screen.
EMV - Insert cards with chips.
NFC - Tap with contactless payments.
Integrated cameras
for recognizing,
scanning & capturing.
The Elo Pay M100 offers an integrated 8MP auto‑focus rear
camera and a 5MP fixed-focus front camera.
Add on accessories.
Barcode Scanner
Fingerprint Reader
Flexible Strap Options
From mobile
to fixed POS.

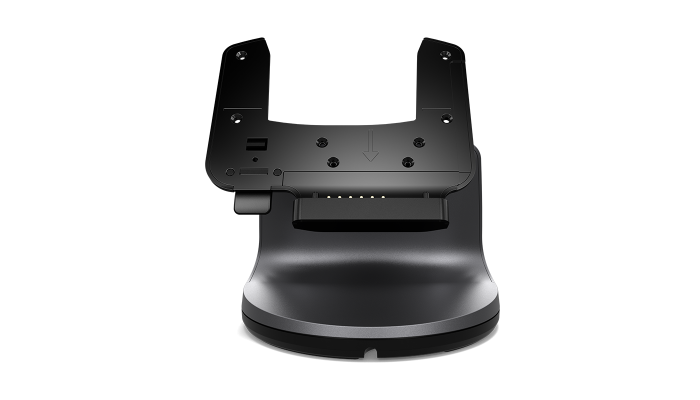

Go from mobile to fixed with the
rotating POS Dock that swivels
from merchant- to customer‑facing.
Battery life to
cover your shift.
With enough battery life to cover your shift*, you
don’t have to worry about having backups to
support constant rotation. And with the quick
charge feature, your handheld pos terminal can
be fully powered in just a few hours.
*Exact battery life depends on use
Rugged mobile
computer.
The mobile pos hardware is purpose-built to
endure commercial use with features including:
-
Corning Gorilla
Glass Victus -
IP54
-
Drop Resistant* (1 m)
*rugged case improves drop to 1.6 m
Unified hardware.
Unified payment.
Elo Pay Terminals leverage one payment kernel to
simplify the payment process, increase security, and
improve the user experience.
Process transactions
with confidence.
Elo Pay offers comprehensive payment services that
enables merchants to process transactions with
confidence. With end to end encryption, secure
tokenization, robust terminal management and easy
to use REST APIs for quick integration, merchants can
get started quickly and securely.
Android device
management
made easy.
EloView allows you to deploy and securely manage
your entire network of Android-powered Elo devices
from anywhere in the world.
-
Remotely deploy content and manage your
devices securely. -
Provision your devices in seconds with a
seamless out-of-the-box experience. -
Leverage Elo Home to create a customized
interface on your Elo Pay M100 device.
Get enterprise support
with Elo EssentialEdge.™
With easy-to-use development kits, robust
management tools, world class life cycle
management and security, Elo can help you deliver
the convenience and familiarity of Android interfaces
in a secure, business-friendly way.
OS 360 – Take advantage of monthly security
updates to keep your devices secure.
Seamless Provisioning – Leverage EloView or
Google Zero Touch to easily set up your device.
Elo OEMConfig – Get Elo’s proprietary APIs on your
preferred Android MDM platform, saving months of
effort as new releases become available.
Get peace of mind
with EloCare.℠
From advance unit replacement to OS 360, EloCare
delivers service and support from the people who
know your Elo products best.
- Advance Unit Replacement
- Accidental Damage Protection
- Extended Warranty
- OS 360
Get peace of mind
with EloCare.℠
From advance unit replacement to OS 360, EloCare
delivers service and support from the people who
know your Elo products best.
- Advance Unit Replacement
- Accidental Damage Protection
- Extended Warranty
- OS 360
Quality that
is built to last.
We engineer each product with a goal that goes
beyond meeting expectations; we aim to exceed
them. By integrating our technology into your
operations, you are partnering with us - and as
your partner, we are committed to delivering
reliable products so you can focus on growth and
innovation, confident in the knowledge that we
stand behind our products, ready to support you
every step of the way.
Specifications
-
Technical
Part Number(s)
Elo Pay M100, Cellular (AT&T), United States, Canada - E121790
Elo Pay M100, Cellular (Open Carrier), Europe - E122179
Elo Pay M100, WiFi, Worldwide - E121405
Elo Pay M100 (with barcode scanner), Cellular (AT&T), United States, Canada - E121593
Elo Pay M100 (with barcode scanner), Cellular (Open Carrier), Europe - E121973
Elo Pay M100 (with barcode scanner), WiFi, Worldwide - E121214
Enclosure Color
Black
Processor
Qualcomm Snapdragon 660 2.2GHz Octa-Core Processor
Memory (RAM)
4GB
Storage
64GB
Expansion Options
MicroSD card supports up to 1TB SDXC
SIM
Available on cellular SKU’s with user accessible nano SIM and eSIM (Cannot be used simultaneously)
OS
Android 12 with GMS (AOSP Capable)
Planned upgrade to Android 14 available with OS 360 subscriptionDisplay
10.1" Optically Bonded FHD
Touchscreen
Projective capacitive with Corning Gorilla Glass
Water rejection
Anti-Fingerprint CoatingSensor
Light sensor (automatically adjust backlight brightness)
AccelerometerResolution
1920 x 1200
Brightness (typical)
500 nits
Contrast Ratio
900:1
Battery
Rechargeable Li-Polymer, 3.8V/8000mAh
User Replaceable battery
Qualcomm Quick Charge 3Cellular
LTE US, Canada Carriers: AT&T
LTE Europe: Open Carrier
For E121593, E121790
4G/LTE: B2, B4, B5, B12, B13, B17, B25, B26, B41
3G/WCDMA: B2, B4, B5
For E121973, E122179
4G/LTE: B1, B3, B5, B7, B8, B20, B40;
3G/WCDMA: B1, B5, B8
GPS
GPS, GLONASS, Galileo and BeiDou-concurrent L1/G1/E1/B1 (GPS, GLO, GAL, BeiDou)
AGPS support
*On cellular models onlyI/O Ports
USB Type-C: Support display, charging, and data
Bottom pogo pad: for charging and USB 2.0 Host
Rear pogo: Support optional Fingerprint reader, ScannerCamera
Rear Camera: 8MP Auto-Focus with Flash LED and Flashlight (torch)
Front Camera: 5MP Fixed-Focus with Face AuthenticationPayment
EMV Contactless ISO 14443-A/B, MiFare, ISO-18092
EMV Chip Card Reader (chip and pin-on-glass)Certifications
PCI-PTS 6.2 (PCI Approval Number: 4-30551)
EMV L1 & L2
Visa PayWave
Mastercard PayPass
Amex ExpressPay
Discover D-PAS
Mastercard TQM
Apple Pay™
Google Pay™
Samsung Pay™Barcode Scanner
SE4100 scan engine (1D/2D imager)
*on M100 Scanner models onlyWireless
IEEE 802.11 a/b/g/n/ac, 2x2 MU-MIMO
Bluetooth
Bluetooth 5.0
LED
1x combination Green/Amber LED for charging status
1x combination Blue/Red LED for scan, error, or user programmableKeyboard
On screen keyboard
Audio
Dual microphone with noise cancellation
Dual speakers
USB-C PTT headset and USB-C headset supportButtons
Dual scan buttons
Power button
Volume up/down buttonsDimensions
10.06" x 6.38" x 0.54" / 255.48 mm x 161.96 mm x 13.67 mm
Shipping Box Dimensions
12.64" x 8.54" x 2.91" / 321 mm x 217 mm x 74 mm
Weight (Unpackaged)
M100 w/ Scanner : 1.74 lbs / 789 g
M100 w/o Scanner: 1.69 lbs / 767 g
M100C w/ Scanner: 1.75 lbs / 794 g
M100C w/o Scanner: 1.70 lbs / 772 gWeight (Packaged)
M100 w/ Scanner : 3.25 lbs / 1473 g
M100 w/o Scanner: 3.20 lbs / 1451 g
M100C w/ Scanner: 3.26 lbs / 1478 g
M100C w/o Scanner: 3.21 lbs / 1456 gOperating Temperature
-20°C to 50°C / -4°F to 122°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
5% to 95% non-condensing
Regulatory approvals and declarations
UL, FCC (US) - Class B
cUL, IC (Canada)
CB (International safety)
CE (Europe) - Class BESD
Class B: 8kV contact, 15kV air
Drop Rating
Multiple 1m drops per MIL 810-G
1.6m drops with the ruggedized case per MIL 810-GWarranty
1-year
Extended Service Options
2 year warranty coverage - Elo P/N: E764955
3 year warranty coverage - Elo P/N: E765148
4 year warranty coverage - Elo P/N: E765352
5 year warranty coverage - Elo P/N: E765553
2 year warranty coverage + AUR - Elo P/N: E765759
3 year warranty coverage + AUR - Elo P/N: E765956
4 year warranty coverage + AUR - Elo P/N: E766156
5 year warranty coverage + AUR - Elo P/N: E766346
3 year warranty coverage + ADP - Elo P/N: E672040
5 year warranty coverage + ADP - Elo P/N: E672239
1 year warranty coverage + AUR + ADP - Elo P/N: E894512
3 year warranty coverage + AUR + ADP - Elo P/N: E672440
5 year warranty coverage + AUR + ADP - Elo P/N: E672646
3 year OS 360 - Elo P/N: E822682
4 year OS 360 - Elo P/N: E834310
5 year OS 360 - Elo P/N: E822484OS Support
Bi-monthly Android security updates available with Elo OS 360
Sealability
IP54 per IEC standard 60529
What's in the Box
Elo Pay M100
USB Type C Charger with Qualcomm Quick Charge 3 (US. EU and UK plugs)
USB C Cable
Quick Install GuideOptional Accessories

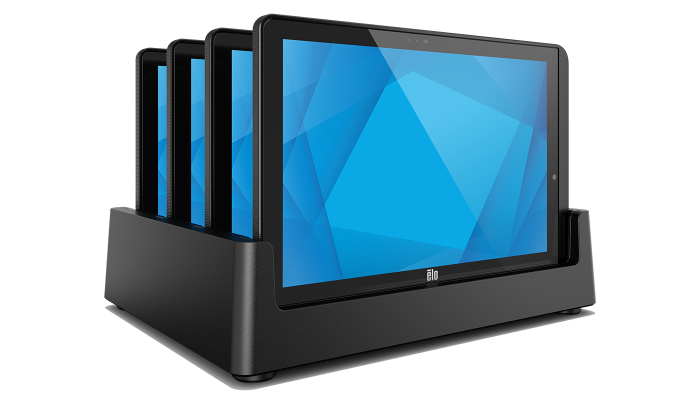

4 Device Charger - Elo P/N: E118661

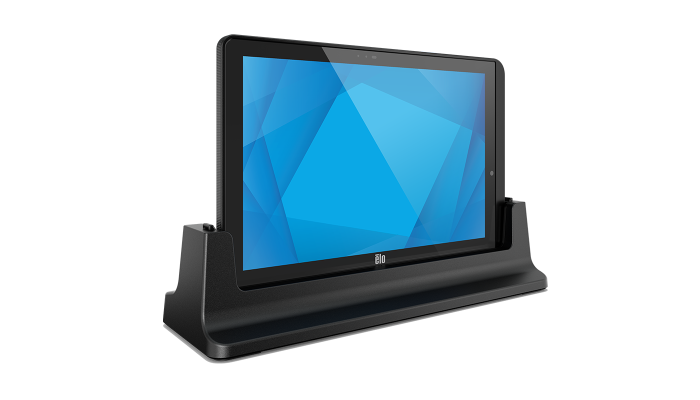

Device Charger - Elo P/N: E118851
Rotating POS Dock - Elo P/N: E119034
Rotating POS Dock (USB-C) - Elo P/N: E640102

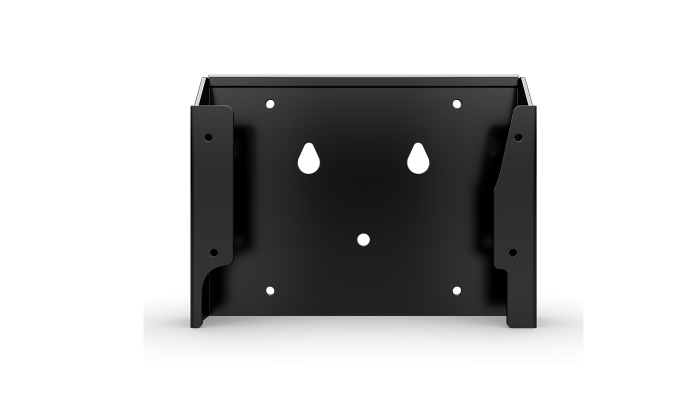

Mobile VESA Mount - Elo P/N: E193052
Rugged Case - Elo P/N: E119632
Hand Strap - Elo P/N: E119827

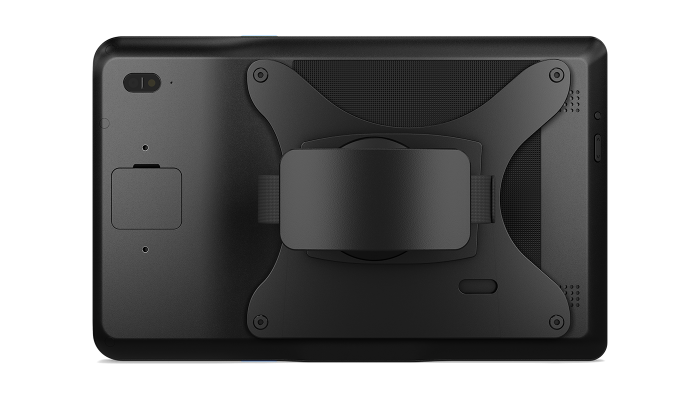

Rotating Hand Strap - Elo P/N: E120428
Rotating Neck Strap - Elo P/N: E120022
Carry Strap - Elo P/N: EE120228

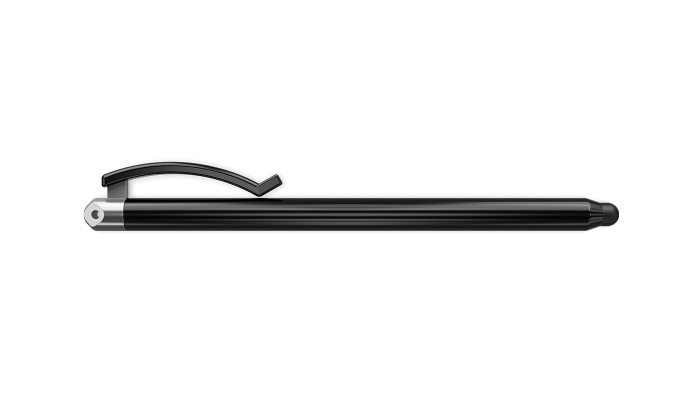

Stylus - Elo P/N: E120625

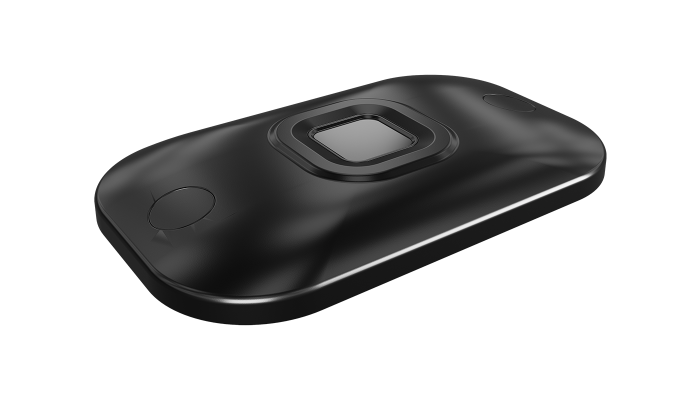

Fingerprint Reader - Elo P/N: E121016
Spare Battery – Elo P/N: E326107
Large Hub -Elo P/N: E815235
Small Hub - Elo P/N: E815044

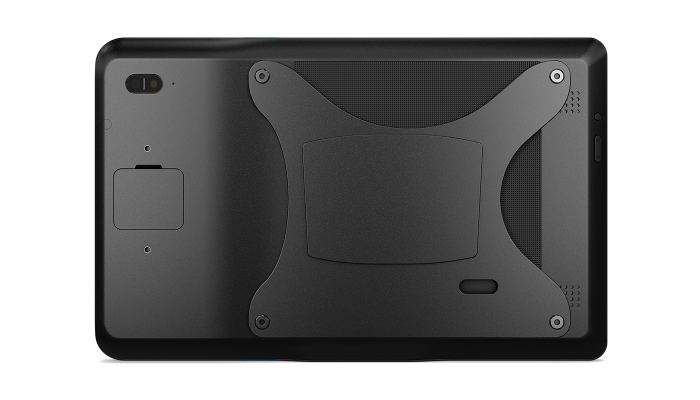

Back Bracket - Elo P/N: E640293
