Fingerprint Reader (Replaced by updated Fingerprint Scanner)
This product has been replaced by the - Fingerprint Scanner.

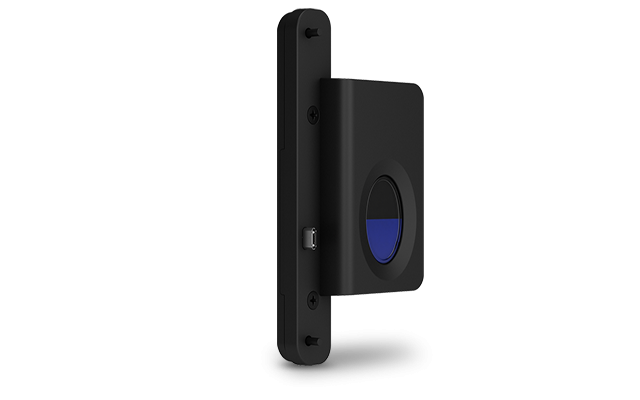

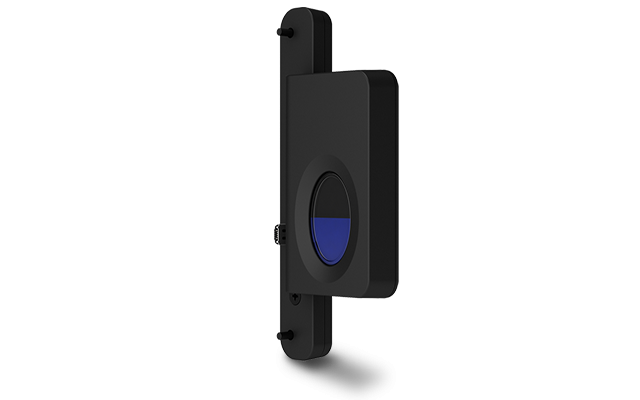

The Biometric Fingerprint Reader is a USB-powered device that optically scans the fingerprint when the user touches the glowing window. Optical technology gives the highest quality fingerprint scans and reliability.
Specifications
-
Technical
Part Number(s)
E001001
Enclosure Color
Black
Interface
Compatible with USB Type 1.0, 1.1 or 2.0
Power Supply
5.0VDC ± 0.25V
Power Consumption (Typical)
Scanning Mode: 100 mA (typical)
Idle Mode: 120 mA (typical)
Suspend Mode: 0.5 mA (typical)Resolution
512 dpi
Scan Data
8-bit grayscale
Scan Capture Size
14.6 mm x 18.1 mm
Image Capture Speed
100ms
Electrostatic Discharge (ESD)
Up to 19kV mounted in case
Shipping Box Dimensions
7.1" x 6.3" x 2.3" / 180 mm x 160 mm x 57 mm
Weight (Unpackaged)
0.3 lbs / 0.14 kg
Weight (Packaged)
0.36 lbs / 0.16 kg
Operating Temperature
0°C to 40°C
Warranty
2-year
