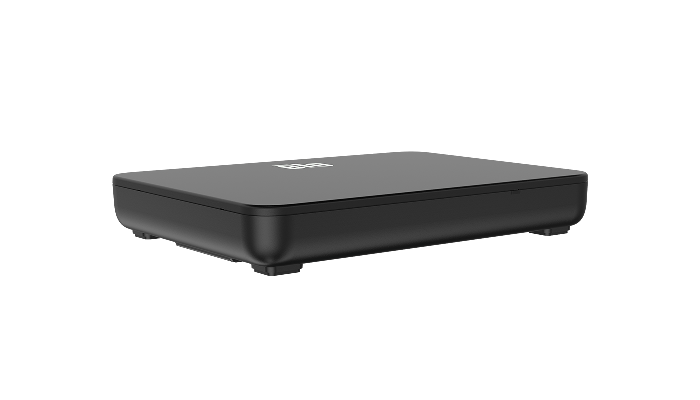

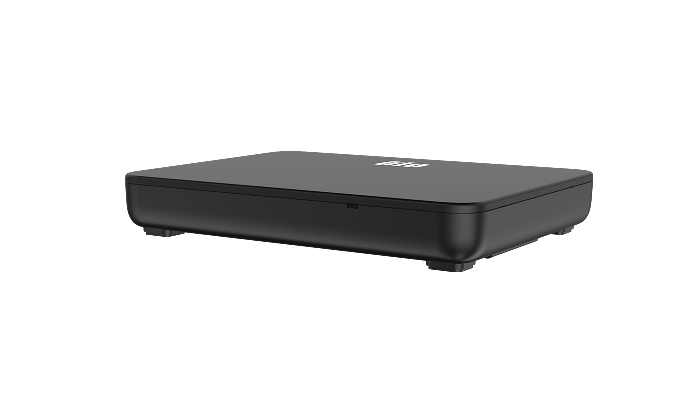

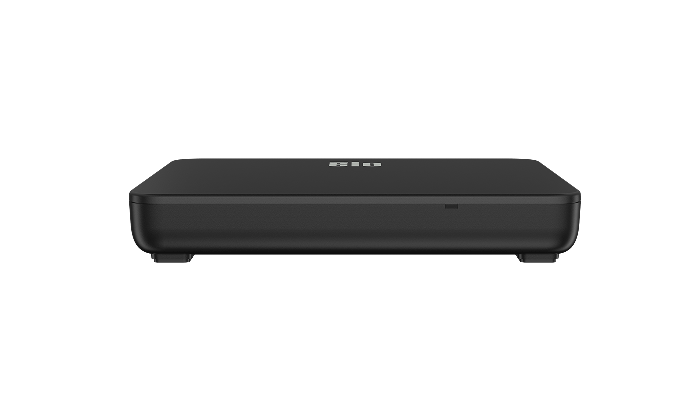

EM10 Expansion Module

Specifications

• Technical

  ---

  Part Number(s)

  E863687

  Enclosure Color

  Black

  Compatibility

  DS10 Docking Station
  Touchscreen monitors with USB C: 1002L, 1302L, 1502L

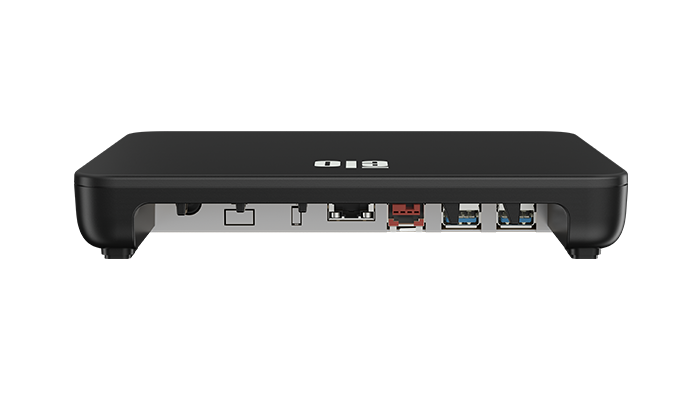

  I/O Ports

  24V DC IN Jack Connector
  USB- Type C
  USB- Type C - Display Out
  Ethernet 10/100/1000 Mbps
  24V Powered USB
  4 x USB 3.0 Type A

  Dimensions

  7.32" x 5.82" x 1.14" / 186 mm x 148 mm x 29 mm

  Shipping Box Dimensions

  9.25" x 6.85" x 5.51" / 235 mm x 174 mm x 140 mm

  Mounting Options

  Countertop (Refer to QIG for more details)

  Weight (Unpackaged)

  0.99 lbs / 0.45 kg

  Weight (Packaged)

  3.31 lbs / 1.5 kg

  Operating Temperature

  0°C to 40°C / 32°F to 104°F

  Storage Temperature

  -20°C to 50°C / -4°F to 122°F

  Humidity

  Operating: 20% - 80%
  Storage: 10% - 95%

  Regulatory approvals and declarations

  UL, FCC (US) - Class B
  cUL, IC (Canada)
  CB (International safety)
  CE (Europe) - Class B
  VCCI (Japan)
  RCM (Australia)
  China RoHS

  MTBF

  50,000 hours demonstrated

  Warranty

  1-year

  What's in the Box

  Power Adapter (150W(24V/6.25A)
  US power cord
  EU power cord
  1 x USB-C to USB-C cable (1.8mm)
  6 x Tie Wraps
  2 x M4 Screws
  QIG
