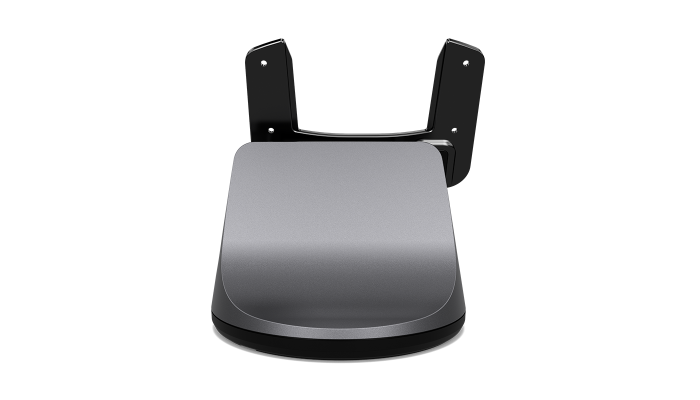

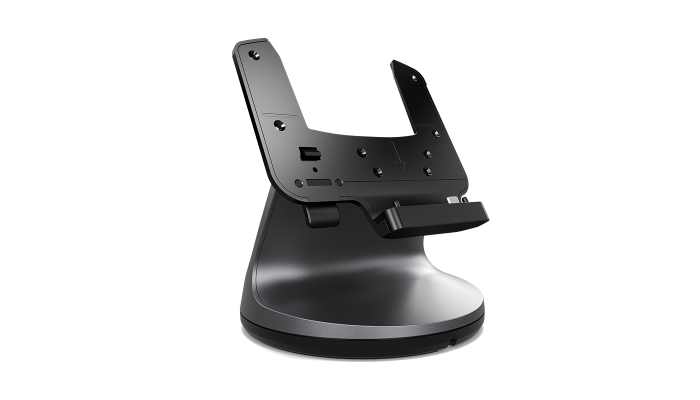

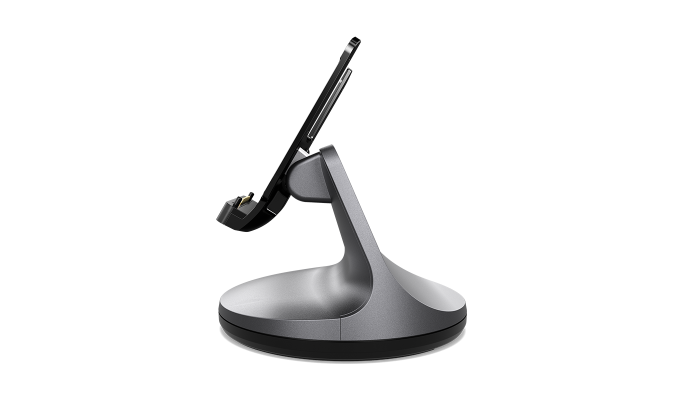

Elo Pay M100 Rotating POS Dock

Specifications

• Technical

  ---

  Part Number(s)

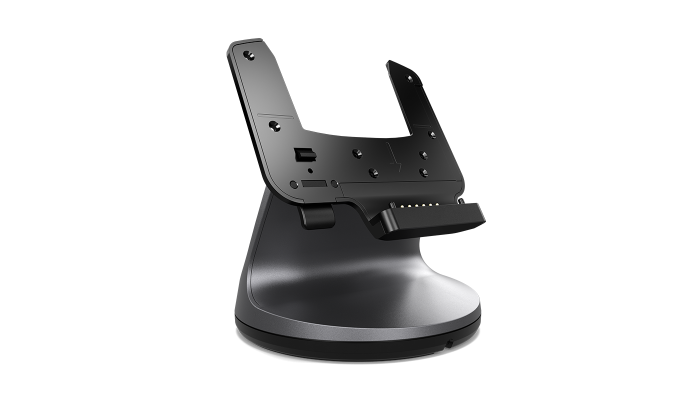

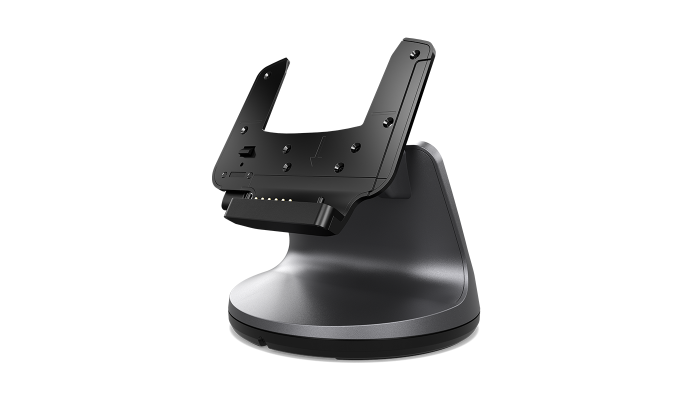

  Elo Pay M100 Rotating POS Dock with Pogo Pins - E119034

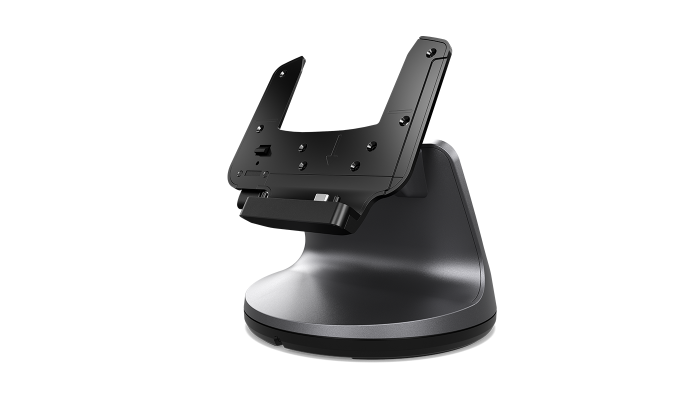

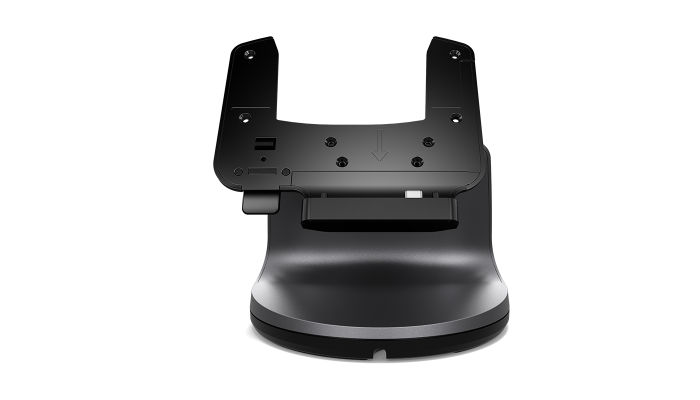

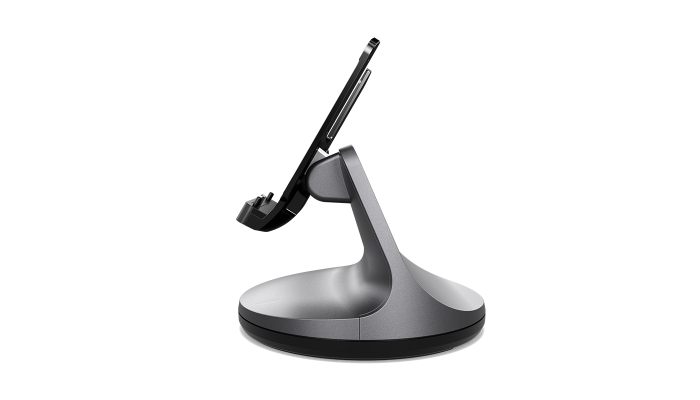

  Elo Pay M100 Rotating POS Dock with USB-C - E640102

  Compatibility

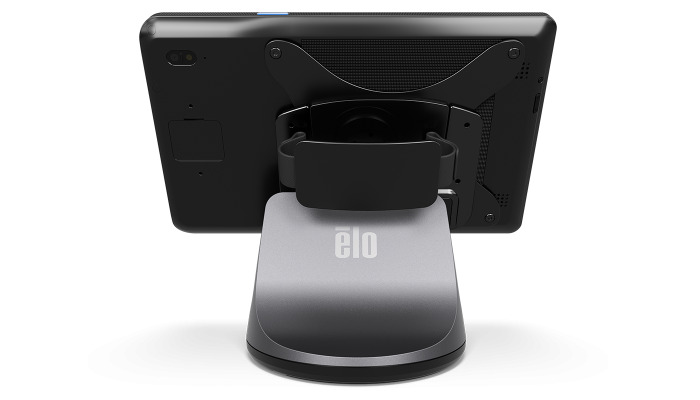

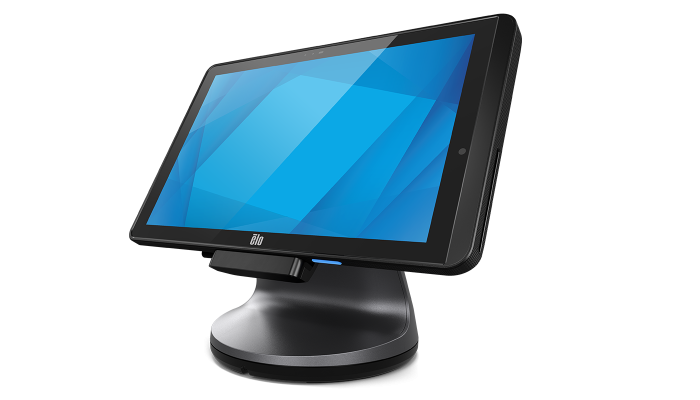

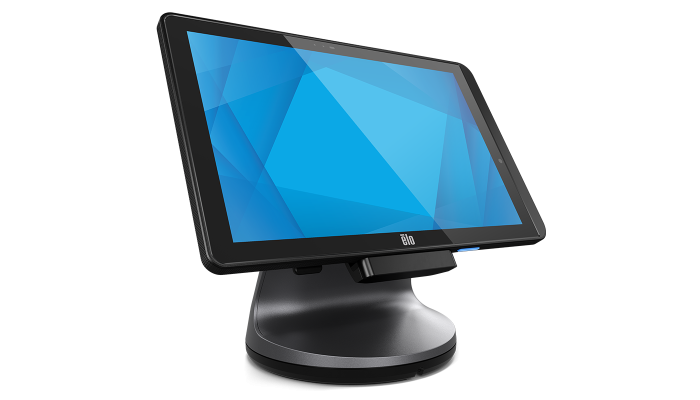

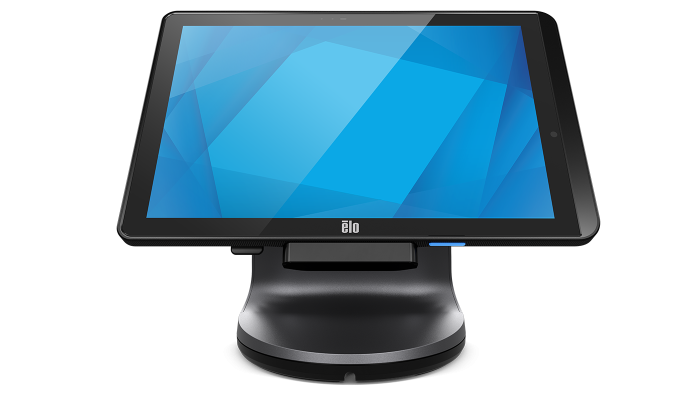

  Elo Pay M100

  Mounting Options

  M100 requires one of the following for attachment:
  Rotation handstrap - E120428
  Rotation Neckstrap - E120022
  Back bracket - E640293

  Dimensions

  5.99" x 5.51" x 6.30" / 152.2 mm x 140 mm x 160 mm

  Shipping Box Dimensions

  10.51" x 10.51" x 9.84" / 267 mm x 267 mm x 250 mm

  Weight (Unpackaged)

  3.53 lbs / 1600 g

  Weight (Packaged)

  8.16 lbs / 3700 g

  Operating Temperature

  -20°C to 50°C / -4°F to 122°F

  Storage Temperature

  -20°C to 60°C / -4°F to 140°F

  Humidity

  5% to 95% non-condensing

  Regulatory approvals and declarations

  UL, FCC (US) - Class B
  cUL, IC (Canada)
  CB (International safety)
  CE (Europe) - Class B

  Warranty

  1-year

  What's in the Box

  POS Dock
  1x Base Plate
  1 x Flat Head screw: M3 x 6mm
  1 x Pan Head screw: M3 x 7mm
  1 x Flat Head screw: M4 x 12mm
  QIG
