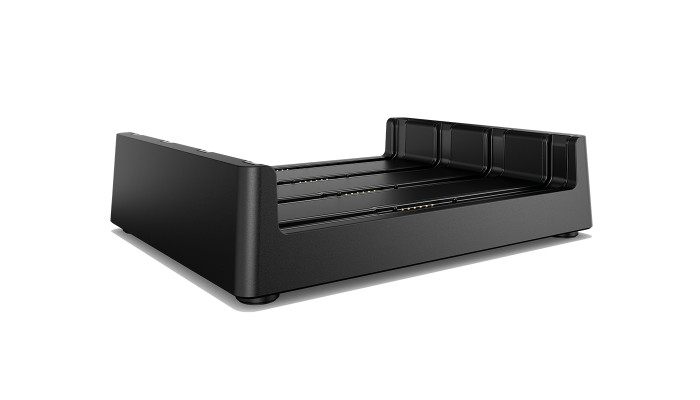

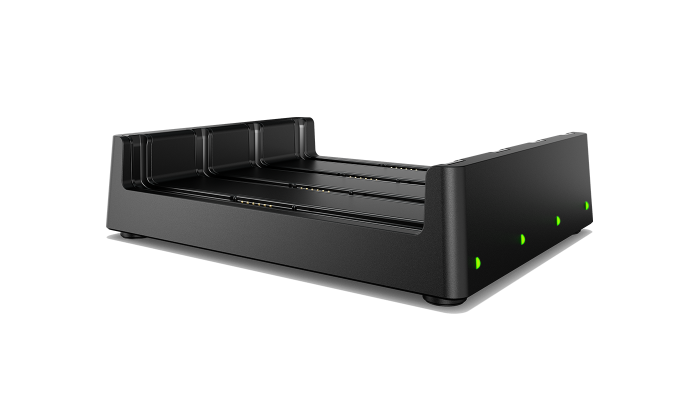

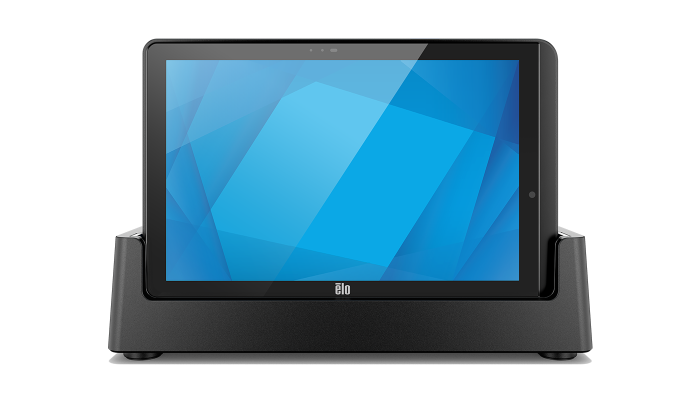

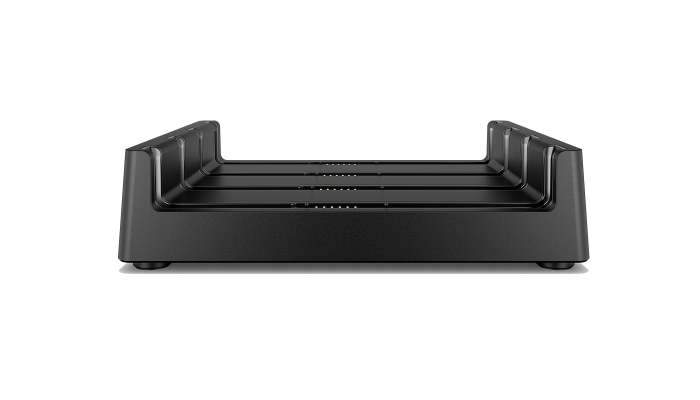

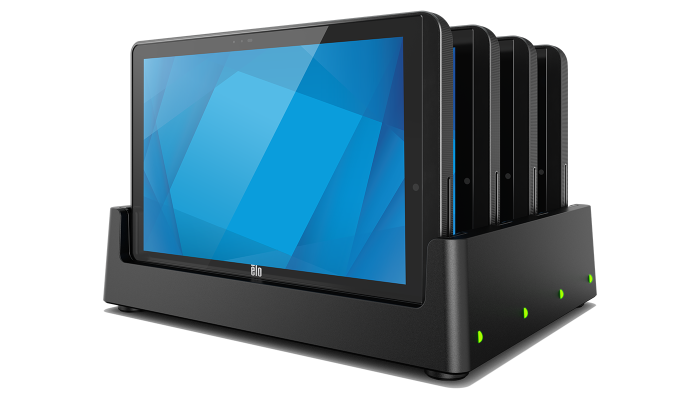

Elo Pay M100 4 Unit Device Charger

Specifications

• Technical

  ---

  Part Number(s)

  E118661

  Compatibility

  Elo Pay M100

  Dimensions

  11.56" x 9.17" x 3.07" / 293.66 mm x 232.97 mm x 77.98 mm

  Shipping Box Dimensions

  12.8" x 10.63" x 4.53" / 325 mm x 270 mm x 115 mm

  Weight (Unpackaged)

  3.68 lbs / 1670 g

  Weight (Packaged)

  4.74 lbs / 2150 g

  Operating Temperature

  0°C to 50°C / 32°F to 122°F

  Storage Temperature

  -20°C to 60°C / -4°F to 140°F

  Humidity

  5% to 95% non-condensing

  Regulatory approvals and declarations

  UL, FCC (US) - Class B
  cUL, IC (Canada)
  CB (International safety)
  CE (Europe) - Class B

  Warranty

  1-year

  What's in the Box

  4 Unit Device Charger
  4x space holder for use without Rugged Case (preassembly)
  24V/5A-120W power adapter with NA/EU/UK power cords
  1x Pan Head screw: M3 x 10mm
  QIG
