Elo Pay 10" Integrated Payment POS

Elo Pay 10"
POS System

Streamline your point of sale with the Elo Pay 10" integrated payment
solution. Featuring a 10.1-inch FHD scratch-resistant touch display, Android
12 OS and Qualcomm SD660 processor, the Elo Pay 10" delivers unmatched
quality, speed and reliability. And with advanced EMV and NFC technologies
complemented by the convenience of PCI/PTS 6.2 certified pin-on-glass
functionality, the Elo Pay system simplifies your POS operations, offering
the efficiency and security that retailers and merchants require.

Order now

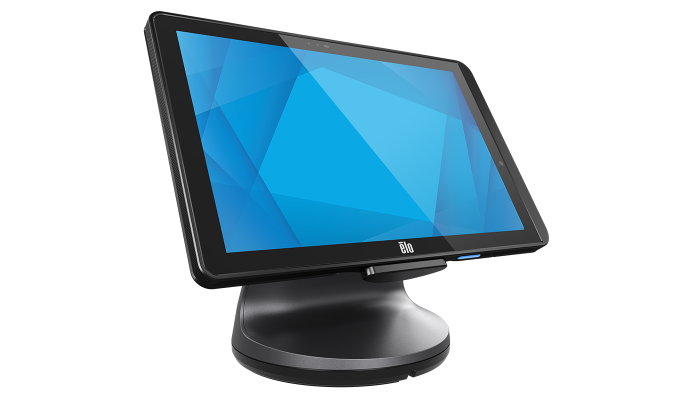

Image of The Elo Pay 10” POS System with Integrated Payments

Enjoy the convenience
of integrated payment.

Whether your customers have a physical card or contactless via their mobile
phone, the Elo Pay 10" POS Terminal accepts all forms of payment.

Image of credit card tapping the 10” screen on the Elo Pay 10” POS system

EMV - Insert cards with chips.
NFC - Tap with contactless payments.
Pin on Glass - Enter your pin directly on the screen.

Go from merchant-
to customer-facing
with a 180° swivel.

Image of credit card tapping customer facing POS system

Create a customer-
facing interactive
payment terminal.

Engineered for
commercial use.

The fully integrated Elo Pay 10" POS system
is purpose-built to endure commercial
environments with features including:

Chemically
strengthened glass

IP54

50,000 MTBF

Image of touchscreen POS system with integrated payments

Unified Hardware.
Unified Payment.

Elo Pay Terminals leverage one payment
kernel to simplify the payment process,
increase security, and improve the
user experience.

Elo Pay delivers fast, secure
and scalable payment services.

Elo Pay offers comprehensive payment services that enables merchants
to process transactions with confidence. With access to multiple
payment applications, end-to-end encryption, secure tokenization,
robust terminal management and easy to use APIs for quick integration,
merchants can get started quickly and securely.

Learn more

Android device
management made easy.

EloView allows you to deploy and securely manage
your entire network of Android-powered Elo devices
from anywhere in the world.

Remotely deploy content and manage
your devices securely.
Provision your devices in seconds with a
seamless out-of-the-box experience.
Leverage Elo Home to create a customized
interface on your Elo Pay device.

Explore EloView

Image of EloView device management screen interface

Get enterprise support
with Elo EssentialEdge.™

With easy-to-use development kits, robust management
tools, world class life cycle management and security, Elo
can help you deliver the convenience and familiarity of
Android interfaces in a secure, business-friendly way.

OS 360 - Take advantage of monthly security updates to
keep your devices secure.

Seamless Provisioning - Leverage EloView or Google
Zero Touch to easily set up your device.

Elo OEMConfig - Get Elo's proprietary APIs on your
preferred Android MDM platform, saving months
of effort as new releases become available.

Explore Elo EssentialEdge

Get peace of mind
with EloCare.^SM

From advance unit replacement to OS 360, EloCare
delivers service and support from the people who
know your Elo products best.

Advance Unit Replacement
Accidental Damage Protection
Extended Warranty
OS 360

Learn more

Quality that
is built to last.

We engineer each product with a goal that goes beyond
meeting expectations; we aim to exceed them. By integrating
our technology into your operations, you are partnering with
us - and as your partner, we are committed to delivering
reliable products so you can focus on growth and innovation,
confident in the knowledge that we stand behind our
products, ready to support you every step of the way.

Learn more

Specifications

Technical

Part Number(s)

With Stand - E369331
No Stand - E931600

Enclosure Color

Black

Processor

Qualcomm Snapdragon 660 2.2GHz Octa-Core Processor

Memory (RAM)

4GB

Storage

64GB

Expansion Options

MicroSD card supports up to 1TB SDXC

OS

Android 12 with GMS (AOSP Capable)
Planned upgrade to Android 14 available with OS 360 subscription

Display

10.1" Optically Bonded FHD

Touchscreen

Projective capacitive with Corning Gorilla Glass
Water rejection
Anti-Fingerprint Coating

Sensor

Light sensor (automatically adjust backlight brightness)
Accelerometer

Resolution

1920 x 1200

Brightness (typical)

500 nits

Contrast Ratio

900:1

I/O Ports

USB Type-C: Support display and data

Camera

Rear Camera: 8MP Auto-Focus with Flash LED and Flashlight (torch)
Front Camera: 5MP Fixed-Focus with Face Authentication

Payment

EMV Contactless ISO 14443-A/B, MiFare, ISO-18092
EMV Chip Card Reader (chip and pin-on-glass)

Certifications

PCI-PTS 6.2 (PCI Approval Number: 4-30551)
EMV L1 & L2
Visa PayWave
Mastercard PayPass
Amex Express Pay
Discover D-PAS
EFTPOS
JCB
Unionpay Quickpass
Interac
Mastercard TQM
Apple Pay™
Google Pay™
Samsung Pay™

Wireless

IEEE 802.11 a/b/g/n/ac, 2x2 MU-MIMO

Bluetooth

Bluetooth 5.0

LED

1x combination Green/Amber LED for user programmable
1x combination Blue/Red LED for scan, error, or user programmable

Keyboard

On screen keyboard

Audio

Dual microphone with noise cancellation
Dual speakers

Buttons

2x Programmable buttons
Power button
Volume up/down buttons

Dimensions

E369331: 10.06" x 8.45" x 7.87" / 255.5 mm x 214.7 mm x 200 mm
E931600: 10.06" x 6.38" x 0.54" / 255.5 mm x 162 mm x 13.7 mm

Shipping Box Dimensions

E369331: 14.06" x 10.84" x 11.30" / 357 mm x 275 mm x 287 mm
E931600: 12.68" x 8.54" x 2.91" / 322 mm x 217 mm x 74 mm

Weight (Unpackaged)

E369331: 2354g
E931600: 625g

Weight (Packaged)

E369331: 5550g
E931600: 1307g

Operating Temperature

0°C to 40°C / 32°F to 104°F

Storage Temperature

-20°C to 60°C / -4°F to 140°F

Humidity

5% to 95% non-condensing

Regulatory approvals and declarations

UL, FCC (US) - Class B
cUL, IC (Canada)
CB (International safety)
CE (Europe) - Class B

ESD

Class B: 8kV contact, 15kV air

Warranty

1-year

Extended Service Options

2 year warranty coverage - Elo P/N: E764955
3 year warranty coverage - Elo P/N: E765148
4 year warranty coverage - Elo P/N: E765352
5 year warranty coverage - Elo P/N: E765553
2 year warranty coverage + AUR - Elo P/N: E765759
3 year warranty coverage + AUR - Elo P/N: E765956
4 year warranty coverage + AUR - Elo P/N: E766156
5 year warranty coverage + AUR - Elo P/N: E766346
3 year warranty coverage + ADP - Elo P/N: E672040
5 year warranty coverage + ADP - Elo P/N: E672239
1 year warranty coverage + AUR + ADP - Elo P/N: E894512
3 year warranty coverage + AUR + ADP - Elo P/N: E672440
5 year warranty coverage + AUR + ADP - Elo P/N: E672646
3 year OS 360 - Elo P/N: E822682
4 year OS 360 - Elo P/N: E834310
5 year OS 360 - Elo P/N: E822484

OS Support

Bi-monthly Android security updates available with Elo OS 360

What's in the Box

Elo Pay 10"
POS Dock and Base Plate (E369331 only)
USB Type C Charger (US. EU and UK plugs)
1.8m USB-C Cable (E931600 only)
Quick Install Guide

Optional Accessories

Stylus - Elo P/N: E120625
Large Hub -Elo P/N: E815235
Small Hub - Elo P/N: E815044
