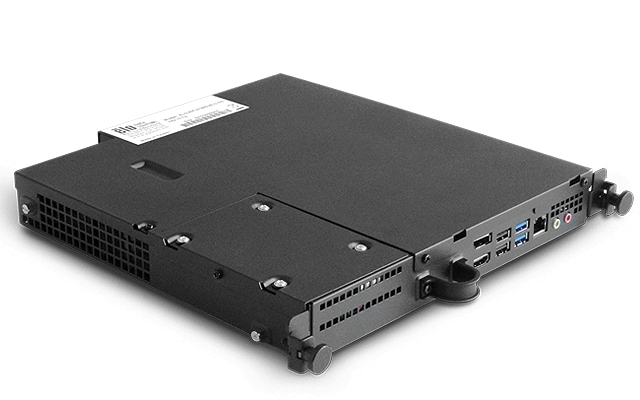

Windows Computer Modules (ECMG2B) for IDS 01-Series (Discontinued August 2018)
How to buy

Overview

The Elo Interactive Digital Signage (IDS) touch platform featuring the Intel® Core™ 4th Generation CPUs with enhanced graphic engines enables increased customer engagement and immersive brand experiences by adding an exciting new dimension to traditional broadcast digital signage - the power of touch.

Commercial-grade.

Elo's ECMG2 computer modules, available for use with the Elo 3201L, 4201L, 5501LT, 5551L and 7001LT IDS touchscreens are well-suited for interactive media delivery and online collaboration for modern office environments. The computer modules are easily installed into the IDS display – avoiding costs of in-wall installation of a traditional player or PC.



Powerful processing.

Computer modules are available in a choice of three models: ECMG2-i3 based on a 3.40GHz Intel® Core i3 processor and HD4400 graphics; ECMG2-i5 based on a 3.70GHz Intel® Core i5 processor and HD4600 graphics; and ECMG2-i7 based on a 4.00GHz Intel®Core i7 processor and HD4600 graphics.
Reliability.

Centralized management and security capabilities of Microsoft® Windows® ensures compatibility with many content management servers and web-based consoles for seamless connection with the internet, digital marketing, interactive whiteboard, building directory, virtual receptionist, and point-of-information (POI) applications. The ECM can also support optimal partitioning of locally cached and network stored content, allowing developers to monitor and deploy content via device-to-device or web connections.



Specifications

  • Technical

    Part Number(s)

    i3 3.40GHz ECMG2B - No OS for IDS 01 Series - Elo P/N: E001292
    i3 3.40GHz ECMG2B - Windows 7 for IDS 01 Series - Elo P/N: E001293
    i3 3.40GHz ECMG2B - Windows 8.1 for IDS 01 Series - Elo P/N: E001294
    i3 3.40GHz ECMG2B - Windows 10 for IDS 01 Series - Elo P/N: E991018
    i5 3.70GHz ECMG2B - No OS for IDS 01 Series - Elo P/N: E001295
    i5 3.70GHz ECMG2B - Windows 7 for IDS 01 Series - Elo P/N: E001296
    i5 3.70GHz ECMG2B - Windows 8.1 for IDS 01 Series - Elo P/N: E001297
    i5 3.70GHz ECMG2B - Windows 10 for IDS 01 Series - Elo P/N: E991722
    i7 4.00GHz ECMG2B - No OS for IDS 01 Series - Elo P/N: E001298
    i7 4.00GHz ECMG2B - Windows 7 for IDS 01 Series - Elo P/N: E001299
    i7 4.00GHz ECMG2B - Windows 8.1 for IDS 01 Series - Elo P/N: E001300
    i7 4.00GHz ECMG2B - Windows 10 for IDS 01 Series - Elo P/N: E992193

    Enclosure Color

    Black

    Processor

    Intel® Core™ i3:
    i3-4130 3.40 GHz
    3MB Intel Smart Cache
    5 GT/s DMI

    Intel Core i5:
    i5-4590S 3.70GHz
    6MB Intel Smart Cache
    5 GT/s DMI

    Intel Core i7:
    i7-4790S 4.00GHz
    8MB Intel Smart Cache
    5 GT/s DMI

    Chipset

    Intel® H81 Chipset

    Graphics

    i3: Intel HD 4400
    i5: Intel HD 4600
    i7: Intel HD 4600

    BIOS

    AMI

    Memory (RAM)

    i3: 2GB DDR3L SO-DIMM on 1 of 2 slots
    i5: 4GB DDR3L SO-DIMM on 1 of 2 slots
    i7: 8GB DDR3L SO-DIMM on 1 of 2 slots

    Storage

    For Windows Pro 7 & No OS Models:
    320 GB 2.5” SATA 4K Hard Disk Drive (HDD)

    For Windows 10 Models:
    128 GB 2.5” SATA Solid State Drive (SSD)

    Max/Slot

    8 GB DDR3L SO-DIMM per slot

    USB Ports

    2 x USB 2.0 Type A
    2 x USB 3.0 Type A

    Ethernet Port

    1GB LAN RJ45

    Audio Ports

    1 x 3.5 mm Line out
    1 x 3.5 mm MIC in

    Video Out

    1 x HDMI (UHD/4K capable)
    1 x DisplayPort (UHD capable)

    OS

    No OS
    Windows Pro 7*
    Windows 8.1
    Windows 10

    OS Languages

    Windows 7: 35 language groups: Arabic, Brazilian Portuguese, Bulgarian, Chinese (Simplified), Chinese (Traditional), Chinese (Hong Kong), Croatian, Czech, Danish, Dutch, English, Estonian, Finnish, French, German, Greek, Hebrew, Hindi, Hungarian, Italian, Japanese, Korean, Lithuanian, Norwegian, Polish, Portuguese, Romanian, Russian, Serbian Latin, Slovak, Slovenian, Spanish, Swedish, Thai, Turkish, Ukrainian

    Windows Embedded 8.1: 10 pre-installed language groups: Chinese (Simplified), Chinese (Traditional), English, French, German, Italian, Japanese, Korean, Russian, Spanish

    Power Supply

    Power supplied by Elo's interactive digital signage display

    Dimensions

    10.76” x 9.94” x 1.46” / 273mm x 252mm x 37mm

    Shipping Box Dimensions

    15.4” x 14.25” x 4.75” / 390mm x 362mm x 120mm

    Weight (Unpackaged)

    4.40 lbs / 2.00 kg

    Weight (Packaged)

    5.9 lbs / 2.7 kg

    Operating Temperature

    0°C to 40°C / 32°F to 104°F

    Storage Temperature

    -20°C to 60°C / -4°F to 140°F

    Humidity

    Operating: 20% to 80%
    Storage: 5% to 95%

    Real-Time Clock

    lithium coin cell battery

    MTBF

    50,000 hours demonstrated

    Regulatory approvals and declarations

    UL, cUL , FCC, IC, CE, VCCI, BSMI, RCM, International CB

    Warranty

    3-year

    Extended Service Options

    1 Year Extended Warranty for i3 EMC1 and ECMG2 - P/N: E330676
    1 Year Extended Warranty for i5 EMC2, ECM3 and ECMG2 - P/N: E126594
    2 Year Extended Warranty for i3 EMC1 and ECMG2 - P/N: E159751
    2 Year Extended Warranty for i5 EMC2, ECM3 and ECMG2 - P/N: E770396

    Optional Product Coverage

    Advance Unit Replacement program (North America only)
    Extended Warranty (North America and EMEA only)

    *Windows 7 License

    Select Windows 7 systems (excluding POS 7 systems) are preinstalled with Windows 7 and come with a license for Windows 8.1 or Windows 10 at no additional charge. These systems include an upgrade to Windows 8.1 or Windows 10, depending on the license used, and subject to the licensing terms of the Windows software, you may temporarily use the loaded Windows version before upgrading.

Configurations

(12)

Refine your search:
Compare Compare
Image of item
E001292
  • Compatible with IDS 01-Series
  • Intel® Core™ i3-4130 3.40 GHz
  • 320GB
  • 2GB
  • No OS
Compare Compare
Image of item
E001293
  • Compatible with IDS 01-Series
  • Intel® Core™ i3-4130 3.40 GHz
  • 320GB
  • 2GB
  • Windows 7*
Compare Compare
Image of item
E001294
  • Compatible with IDS 01-Series
  • Intel® Core™ i3-4130 3.40 GHz
  • 320GB
  • 2GB
  • Windows 8.1
Compare Compare
Image of item
E001295
  • Compatible with IDS 01-Series
  • Intel® Core™ i5-4590S 3.70GHz
  • 320GB
  • 4GB
  • No OS
Compare Compare
Image of item
E001296
  • Compatible with IDS 01-Series
  • Intel® Core™ i5-4590S 3.70GHz
  • 320GB
  • 4GB
  • Windows 7*
Compare Compare
Image of item
E001297
  • Compatible with IDS 01-Series
  • Intel® Core™ i5-4590S 3.70GHz
  • 320GB
  • 4GB
  • Windows 8.1
Compare Compare
Image of item
E001298
  • Compatible with IDS 01-Series
  • Intel® Core™ i7-4790S 4.00GHz
  • 320GB
  • 8GB
  • No OS
Compare Compare
Image of item
E001299
  • Compatible with IDS 01-Series
  • Intel® Core™ i7-4790S 4.00GHz
  • 320GB
  • 8GB
  • Windows 7*
Compare Compare
Image of item
E991018
  • Compatible with IDS 01-Series
  • Intel® Core™ i3-4130 3.40 GHz
  • 128GB SSD
  • 2GB
  • Windows 10
Compare Compare
Image of item
E991722
  • Compatible with IDS 01-Series
  • Intel® Core™ i5-4590S 3.70GHz
  • 128GB SSD
  • 4GB
  • Windows 10
Compare Compare
Image of item
E001300
  • Compatible with IDS 01-Series
  • Intel® Core™ i7-4790S 4.00GHz
  • 320GB
  • 8GB
  • Windows 8.1
Compare Compare
Image of item
E992193
  • Compatible with IDS 01-Series
  • Intel® Core™ i7-4790S 4.00GHz
  • 128GB SSD
  • 8GB
  • Windows 10
No Configurations found.
