E281-4035 PC-Bus Controller (Discontinued September 2001)

Specifications

• Technical

  ---

  Part Number(s)

  498363-000

  Technology

  5-Wire Resistive (AccuTouch®)

  Response Time-total (typical)

  18 ms for 14" touchscreen
  22 ms for 19" touchscreen
  Half-card size

  Dimensions

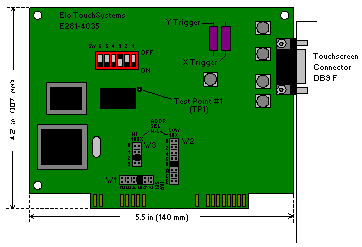

  Please reference dimensional drawing if available.

  Resolution

  900 touchpoints/in2 / 140 touchpoints/cm2

  Construction

  CMOS construction

  Operating Temperature

  0°C to 50°C, 10% to 90% RH, noncondensing

  Operating Environment

  Polled or interrupt-driven operation

  Storage Temperature

  -40°C to 71°C, 10% to 90% RH, noncondensing

  MTBF

  50,000 hours demonstrated

  Warranty

  5-year

  Regulatory approvals and declarations

  UL and cUL Recognized Components for Information Technology Equipment Model E281-4035 is a UL Listed Accessory

  Mounting Options

  Surface mount

  Other Features

  Base I/O Port and IRQ jumper selectable
  UL Listed Accessory, File E133802
  Stream or single-point mode
  15 levels of Z-axis response for E281-4035 PC-Bus Controller
  255 levels of Z-axis response for Serial and ADB Controllers
  MTBF calculations per MIL-HDBK-217E, Notice 1 Update
  No CFCs used in manufacture
  On-board diagnostics
