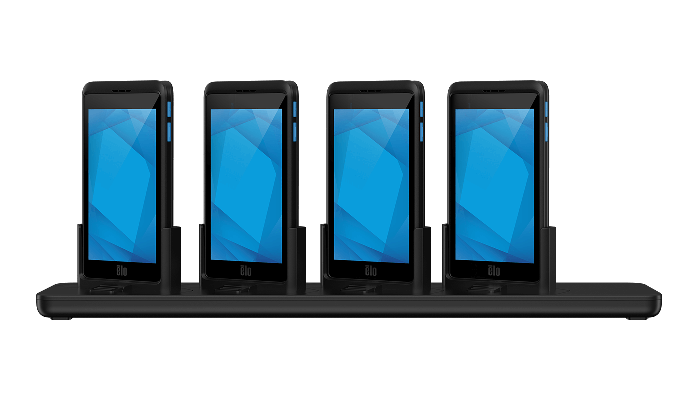

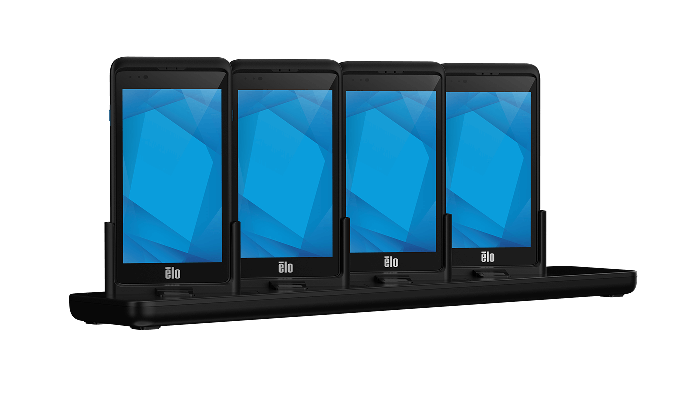

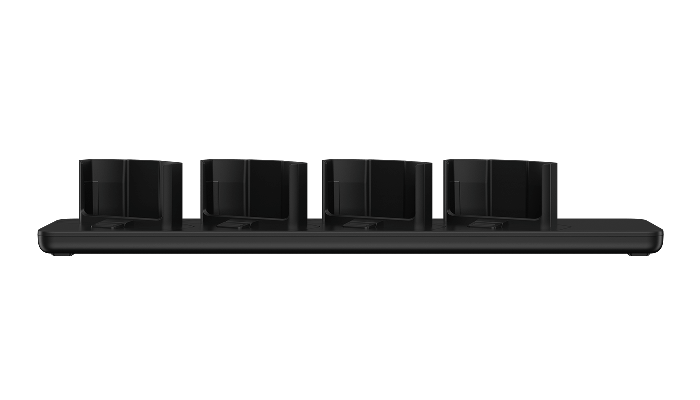

DC10 4 Slot Device Charger

Specifications

• Technical

  ---

  Part Number(s)

  E864653

  Enclosure Color

  Black

  Compatibility

  M50 Mobile Computer

  I/O Ports

  12V DC IN Jack Connector

  Dimensions

  2.78" x 19.15" x 3.70" / 70.7 mm x 486.6 mm x 94 mm

  Shipping Box Dimensions

  21.3" x 5.51" x 6.30" / 540 mm x 140 mm x 160 mm

  Mounting Options

  Countertop or Wall (with included wall mount bracket)

  Weight (Unpackaged)

  3 lbs / 1.35 kg

  Weight (Packaged)

  6.5 lbs / 2.95 kg

  Operating Temperature

  0°C to 40°C / 32°F to 104°F

  Storage Temperature

  -20°C to 50°C / -4°F to 122°F

  Humidity

  Operating: 20% - 80%
  Storage: 10% - 95%

  Regulatory approvals and declarations

  UL, FCC (US) - Class B
  cUL, IC (Canada)
  CB (International safety)
  CE (Europe) - Class B
  VCCI (Japan)
  RCM (Australia)
  China RoHS

  MTBF

  50,000 hours demonstrated

  Warranty

  1-year

  What's in the Box

  Power Adapter 12V/7.5A - 90W
  US power cord
  EU power cord
  Wall mount bracket option
  1x Tie wrap for cable management
  4x screws for wall/desk mounting
  QIG
