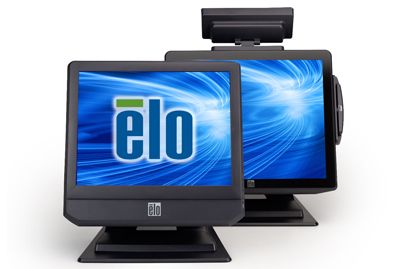

B3 Rev.A Touchcomputer (Discontinued June 2013)
How to buy

Overview

The Elo B-Series Rev.A All-in-One touchcomputer platform simply provides in a compact design, more flexibility with a choice of configuration and connectivity options, more serviceability with easy access to key components, and more processing power. In addition, a wide array field-installable peripherals, spill-resistant sealing, and a selection of input/output port connection options make the B-Series Rev.A both versatile and powerful. It is designed with the future in mind, allowing easy field serviceability of all of the main components.

The B-Series Rev.A is engineered for flexibility, with multiple memory and storage configurations, as well as scalable computing power featuring three high-performance processor configurations: Cool and Quiet B2 Fan-less Intel Atom Dual-Core 1.66 GHz, Performance B1 Fan-cooled Intel Celeron Dual-Core 2.2GHz or Performance Ultra B3 Fan-cooled Intel Core 2 Duo 3.0 GHz.

The flexibility, serviceability and performance of the B-Series Rev.A are rare in commercial All-in-One touchcomputers. In a stylish, compact design, the B-Series Rev.A provides three highly configurable, ruggedized touchcomputers, in two screen sizes – 15-inch and 17-inch, plus the choice of three industry-leading Elo touch technologies. The B-Series Rev.A touchcomputer family has been developed to meet the diverse needs of a wide variety of point-of-sale (POS), point-of-information (POI), and point-of-service venues, including retail and hospitality display units, customer loyalty systems, internet access sites, digital signage as well as bedside entertainment, home automation and control.

Other features
  • Choice of high-performance processor configurations - Facilitates a wide range of business and computing options
  • Full range of standard connectivity ports plus expansion ports to add functionality - One system can be tailored to meet virtually any application or business requirement
  • Second hard drive option for expanded storage or RAID configuration - Enables extra storage capacity or disk mirroring (RAID) for data protection
  • Customer-installable peripheral, memory and storage options - Easily upgrade as business needs grow; down-time is minimized with easy-to-install system upgrade options for complete compatibility in a harmonious design
  • Supports industry standard low profile PCI-E (PCI Express) expansion cards - Outstanding configurability/customization options to meet all your connectivity needs
  • "Designed for touch" from the ground-up; stable stand and tiltable display with VESA mount for table-top, wall or pole mounting options - Stability to withstand the rigors of use in a public environment; mounting options to complement store layout and customer traffic
  • 3 year warranty plus Elo quality and reliability - Satisfaction and peace of mind from nearly 40 years of experience built into all products

Specifications

  • Technical

    Part Number(s)

    15-inch AccuTouch (Antiglare, Worldwide) - E643109
    17-inch AccuTouch (Antiglare, Worldwide) - E634336
    15-inch AccuTouch (Antiglare, Worldwide) - E218254
    17-inch AccuTouch (Antiglare, Worldwide) - E986405
    15-inch AccuTouch (Antiglare, Worldwide) - E689177
    17-inch AccuTouch (Antiglare, Worldwide) - E923025
    15-inch AccuTouch (Antiglare, Worldwide) - E109239
    17-inch AccuTouch (Antiglare, Worldwide) - E903857
    15-inch AccuTouch (Antiglare, Worldwide) - E246058
    17-inch AccuTouch (Antiglare, Worldwide) - E036742
    15-inch AccuTouch (Antiglare, Worldwide) - E419608
    17-inch AccuTouch (Antiglare, Worldwide) - E922366
    15-inch IntelliTouch (Antiglare, Worldwide) - E322742
    17-inch IntelliTouch (Antiglare, Worldwide) - E220702
    15-inch IntelliTouch (Antiglare, Worldwide) - E029640
    17-inch IntelliTouch (Antiglare, Worldwide) - E552112
    15-inch IntelliTouch (Antiglare, Worldwide) - E193599
    17-inch IntelliTouch (Antiglare, Worldwide) - E166438
    15-inch IntelliTouch (Antiglare, Worldwide) - E630820
    17-inch IntelliTouch (Antiglare, Worldwide) - E287274
    15-inch IntelliTouch (Antiglare, Worldwide) - E850522
    17-inch IntelliTouch (Antiglare, Worldwide) - E082960
    15-inch IntelliTouch (Antiglare, Worldwide) - E083730
    17-inch IntelliTouch (Antiglare, Worldwide) - E298566
    15-inch Acoustic Pulse Recognition (Antiglare, Worldwide) - E686884
    17-inch Acoustic Pulse Recognition (Antiglare, Worldwide) - E946671
    15-inch Acoustic Pulse Recognition (Antiglare, Worldwide) - E064057
    17-inch Acoustic Pulse Recognition (Antiglare, Worldwide) - E202303
    15-inch Acoustic Pulse Recognition (Antiglare, Worldwide) - E574487
    17-inch Acoustic Pulse Recognition (Antiglare, Worldwide) - E728542
    15-inch Acoustic Pulse Recognition (Antiglare, Worldwide) - E071289
    17-inch Acoustic Pulse Recognition (Antiglare, Worldwide) - E798032
    15-inch Acoustic Pulse Recognition (Antiglare, Worldwide) - E541063
    17-inch Acoustic Pulse Recognition (Antiglare, Worldwide) - E790994
    15-inch Acoustic Pulse Recognition (Antiglare, Worldwide) - E455429
    17-inch Acoustic Pulse Recognition (Antiglare, Worldwide) - E413523

    Enclosure Color

    Dark Gray

    Touch Technology & Capacity

    5-Wire Resistive (AccuTouch®) - Single-Touch
    SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch
    Acoustic Pulse Recognition - Single Touch

    Processor

    Intel 1.66GHz Atom Dual-Core D510
    1MB L2 Cache
    533MHz System Bus

    BIOS

    Phoenix

    Memory (RAM)

    1GB Low-Profile DDR2 DIMM
    on 1 of 2 slots
    (Expandable to 4GB maximum on 2 slots)

    Hard Disk Drive

    160GB 2.5” SATA HDD

    Chipset

    Intel NM10 Express

    Diagonal Size

    15'' diagonal, Active matrix TFT LCD (LED)

    Control Buttons

    Controls (bottom): menu, up, down, select, power
    Settings: brightness, contrast, phase, auto adjust, H-position, V-position, clock, sharpness, RGB, OSD H-position, OSD V-position, OSD time, OSD language, recall, power button
    Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
    Lockouts: user controls

    Aspect Ratio

    4:3

    Active Area

    12.0" x 9.0" / 304.1mm x 228.1mm

    Resolution

    1024 x 768 @ 60Hz

    Number of Colors

    16.7 million

    Brightness (typical)

    LCD panel: 250 nits
    AccuTouch: 200 nits
    Acoustic Pulse Recognition: 225 nits
    IntelliTouch: 225 nits

    Response Time-total (typical)

    8 msec

    Contrast Ratio

    700:1

    Viewing Angle

    Horizontal: ±70° or 140° total / Vertical: 65°/60° or 125° total

    USB Ports

    6 x USB 2.0 (4 on I/O, 1 x USB Side Access, 1 x USB Hidden/Protected)
    Additional internal ports available for optional Elo peripherals

    Serial Ports

    2 x USB-to-Serial RS-232 (standard)

    Ethernet Port

    1 x LAN RJ45 (Gigabit)

    Wireless

    Optional USB wireless kit available (802.11b/g/n)

    Cash Drawer Port

    Optional cash drawer kit available (12V/24V default; selectable via jumper)

    Additional Video Out

    Optional 2nd VGA port expansion card

    Audio Ports

    1 x 3.5mm line-in
    1 x 3.5mm line-out
    1 x 3.5mm mic-in

    Speakers

    Two 2W internal speakers

    OS

    No OS
    Windows XP Professional Service Pack 3 (32-bit only)
    Windows POSReady 2009
    Windows 7 Professional (32-bit only)

    Languages

    Windows XP – 24 Language groups; Windows 7 – 35 Language groups
    Windows POSReady 2009 – 32 Language groups

    Power Supply

    External 12VDC universal-type power supply brick
    AC input voltage: 100-240VAC
    Input frequency: 50-60Hz
    Maximum output power: 150W (Max draw: 170W)

    Input Voltage

    100-240VAC

    Power Consumption (Typical)

    36W

    Max Touchcomputer Dimensions With Stand

    14.0" x 14.3" x 10.5" / 354mm x 363mm x 267mm

    Max Touchcomputer Dimensions Without Stand

    14.0" x 14.3" x 14.1" / 355mm x 364mm x 359mm

    Shipping Box Dimensions

    17.4" x 21.9" x 10.2" / 443mm x 555mm x 258mm

    Weight (with stand)

    19.0 lbs / 8.6 kg

    Weight (without stand)

    14.2 lbs / 6.4 kg

    Weight (Packaged)

    27.6 lbs / 12.5 kg

    Operating Temperature

    32°F to 95°F / 0°C to 35°C

    Storage Temperature

    -4°F to 140°F / -20°C to 60°C

    Humidity

    Operating: 20% to 80%
    Storage: 5% to 95%

    Regulatory approvals and declarations

    UL/cUL, CE, CCC, NOM, AR S-Mark, FCC, GOST-R, C-Tick, TUV, VCCI

    Real-Time Clock

    lithium-ion battery

    MTBF

    50,000 hours demonstrated

    Mounting Options

    100mm VESA mount or secure base to tabletop or desktop

    Warranty

    3-year

    Sealability

    Touchscreen sealed to bezel (IntelliTouch)
    Touchscreen sealed to sub-bezel (AccuTouch, APR)
    Touchscreen sealed to LCD (all)

    Power Cables

    North American and European power cables included

    Other Features

    Serviceable internal components
    Removable base with 100mm VESA mountingM
    Threaded holes on bottom of base for mounting

    Expansion Options

    Wireless Adapter (USB, 802.11b/g/n)
    Cash Drawer Port (12V/24V) expansion card
    Second VGA Port expansion card
    Modem PCI-E Card
    Parallel Port PCI-E Card

    Replacement DC Power Supply

    12V DC power brick, part number E806884, is available at additional cost.

    Optional IntelliTouch Stylus Pen

    D82064-000, available at additional cost.

    Optional Acoustic Pulse Recognition (APR) Stylus Pen

    E963860, available at additional cost

    Optional Accessories/Peripherals

    Second 160GB Hard Disk Drive (HDD)
    64GB Solid State Drive (SSD)
    Second HDD/SSD Mounting Bracket Kit only
    1GB Low-Profile DDR2 Memory DIMM Kit
    2GB Low-Profile DDR2 Memory DIMM Kit
    4GB Low-Profile DDR2 Memory DIMM Kit
    Magnetic Stripe Reader- Elo P/N: E545781
    Customer Display (2x20 VFD) - Elo P/N: E879762
    Biometric Fingerprint Reader (FPR) - Elo P/N: E375206

    Magnetic Stripe Reader (MSR)

    The MSR is a USB 2.0 device that reads all three data stripes on standard credit cards or driver's licenses conforming to ISO/ANSI standards. The MSR has foreign language capability. The MSR is powered from the USB port; no external power is needed. The MSR features are:
    - Reads up to 3 tracks of information
    - Bidirectional swipe reading
    - Superior reading of high jitter, scratched, and worn

    MagStripe cards
    - Reliable for over 1,000,000 card swipes
    - Reads ISO7811, AAMVA, and most other card data formats
    - PC software makes configuration changes easy
    - Swipe speeds from 3 to 60 inches per second
    - Interfaces: USB-IDTech-HID
    - Fully supports USB 2.0
