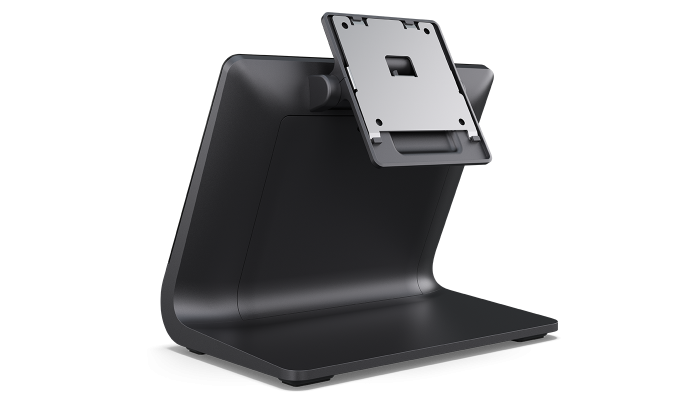

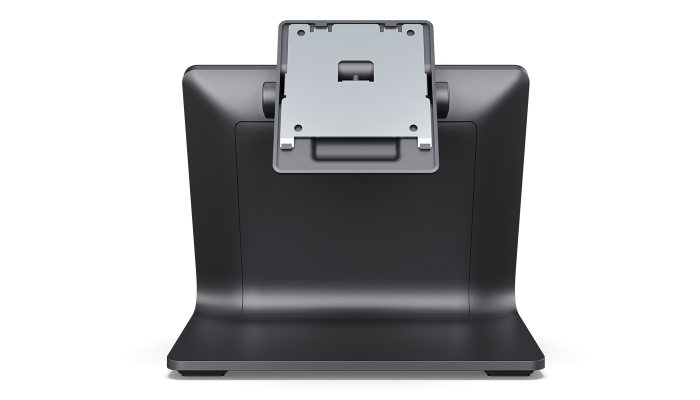

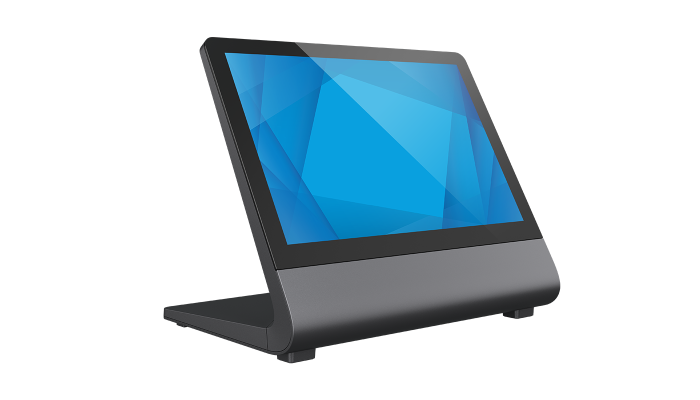

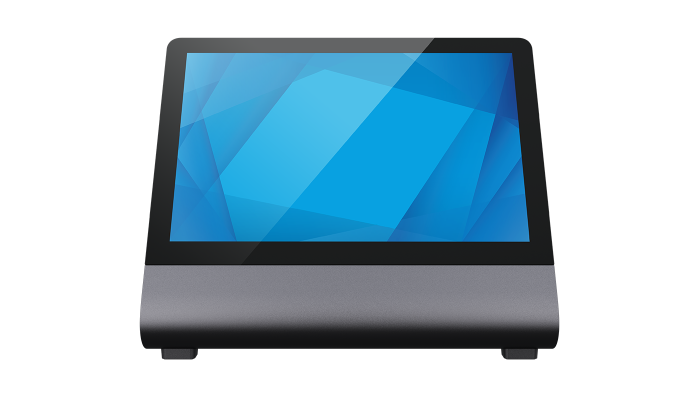

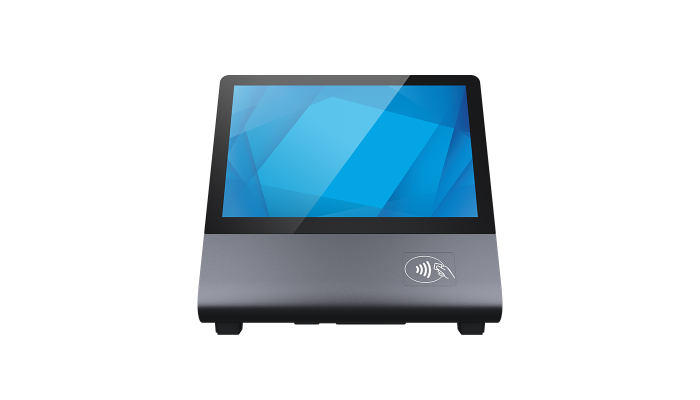

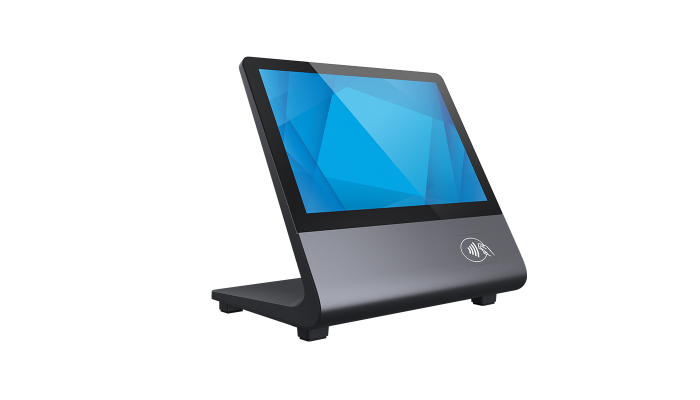

Z30 POS Stand

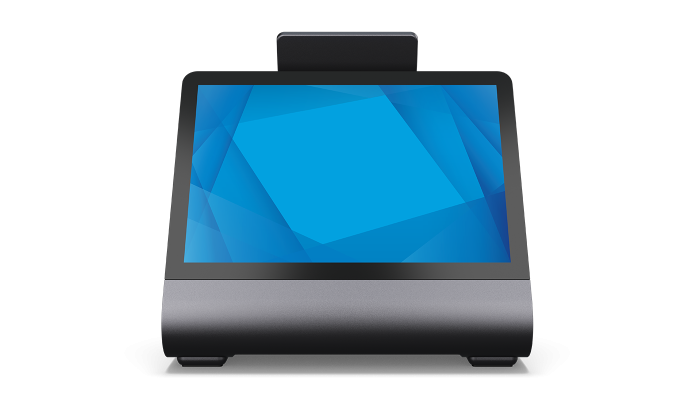

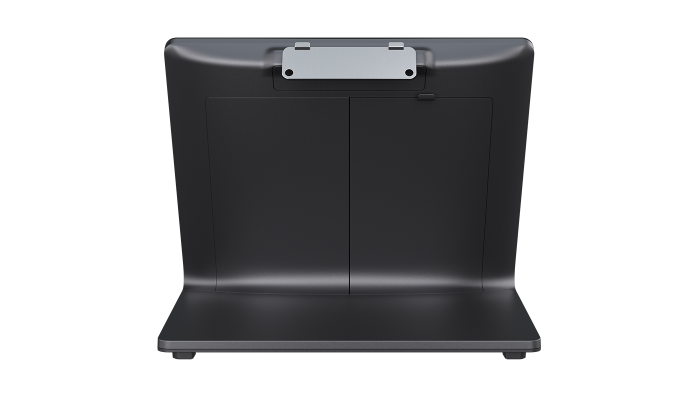

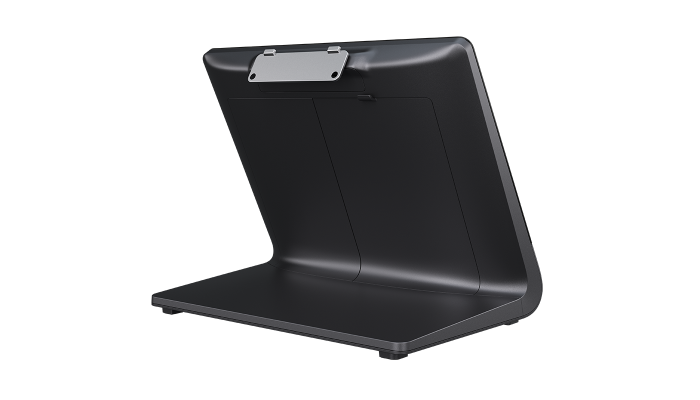

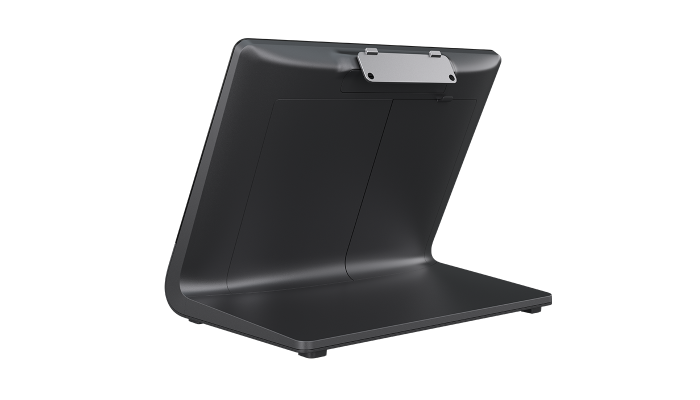

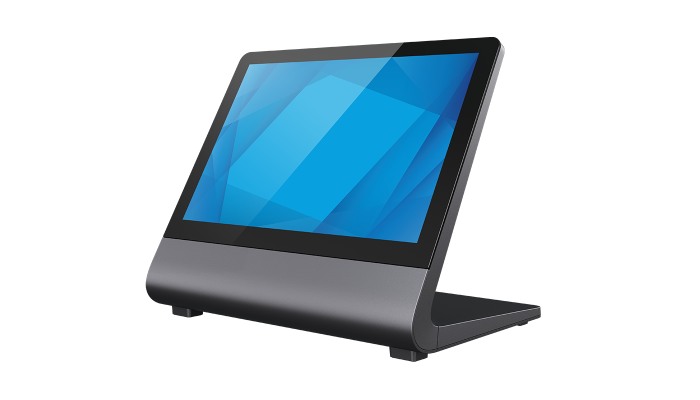

Complete with a built-in customer-facing touchscreen display, integrated connectivity hub and concealed cable routing, the Z30 delivers a beautifully robust point-of-sale stand.
Add the perfect touchscreen display.

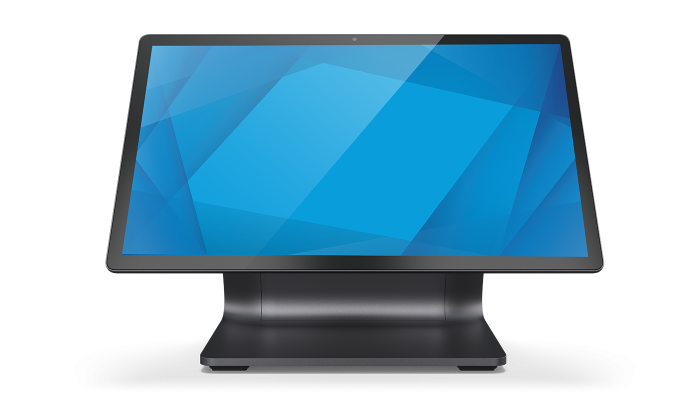

15" I-Series Slate
Integrated interactive CFD.
Integrated I/O
From payment devices and scanners
to a cash drawer and printer, there is room
for everything you need at point of sale.
Conceal Your Cables
Keep your counter clean with the
integrated cable routing system.
Single Cable Connection
Connect a secondary display with
a single USB‑C cable that provides
touch, video and power.
Specifications
-
Technical
Part Number(s)
Z30 POS Stand without CFD - E767561
Z30 POS Stand with CFD - E768749Enclosure Color
Dark Gray Metallic
Compatibility
Main Display:
15" I-Series 3 Slate with Intel
Customer-facing Display (for use with E767561):
0702L – Elo P/N: E796382
1002L – Elo P/N: E155834 and E324341
1302L – Elo P/N: E683595 and E683787
1502L – Elo P/N: E125496Display Head Connection
USB-C
I/O Ports
DC Input
4 x USB-A 3.0 (900mA)
RJ45 Ethernet LAN (Gigabit)
RJ12 (Cash drawer)* 12/24V
Powered USB 24V
USB-C output - CFD (DisplayPort, Touch & Power Delivery up to 27W)
*User will need to select modePower
AC input voltage: 100-240 VAC
Input frequency: 50-60 HzPower Consumption (Typical)
Without CFD:
On: 1.2W
Off: <0.1W
Sleep: 1.2W
With CFD:
On: 6.5W
Off: <0.1W
Sleep: 2WIntegrated Customer-Facing Display
Size -10.1 inch
Resolution - 1200x1920 @ 60 Hz
Active Display Area (H x V) - 5.3" x 8.53" / 135.36 mm x 216.58 mm
Viewing Angle - Horizontal: ±80° or 160° total / Vertical: ±80° or 160° total
Brightness - LCD Panel: 450 nits, TouchPro PCAP: 387 nits
Number of Colors - 8-bit (16.7M)
Touch Technology - TouchPro PCAP
Sealing - Touchscreen sealed to LCD
Number of Touches - 10Weight (Unpackaged)
5.51 lbs / 2.5 kg
Weight (Packaged)
10.36 lbs / 4.7 kg
Dimensions
9.68" x 7.85" x 6.46" / 245.8 mm x 199.3 mm x 164.2 mm
Shipping Box Dimensions
12.2" x 12.2" x 12.2" / 310 mm x 310 mm x 310 mm
Operating Temperature
0° C to 40° C / 32° F to 104° F
Storage Temperature
-20° C to 50° C / -4° F to 122° F
Humidity
Operating: 20% - 80% / Storage: 5% - 95%
MTBF
50,000 hours demonstrated
Warranty
2-year
Extended Service Options
3 year warranty coverage - Elo P/N: E375367
4 year warranty coverage - Elo P/N: E375573
5 year warranty coverage - Elo P/N: E375771
2 year warranty coverage + AUR - Elo P/N: E375970
3 year warranty coverage + AUR - Elo P/N: E376169
4 year warranty coverage + AUR - Elo P/N: E376362
5 year warranty coverage + AUR - Elo P/N: E376547Regulatory approvals and declarations
FCC (US)
IC (Canada)
CE (Europe)
VCCI (Japan)
RCM (Australia)What's in the Box
Z30 Gen 2 POS Stand
North American Power Cable
European Power Cable
Quick Install Guide
150W Power Brick
2 x Zip Ties
2 x M4x6 mm screws in a plastic bag
1 x M4x8 mm screw in a plastic bag
Base Plate – for mounting to a countertop
