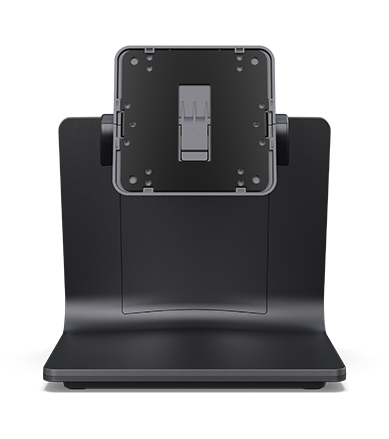

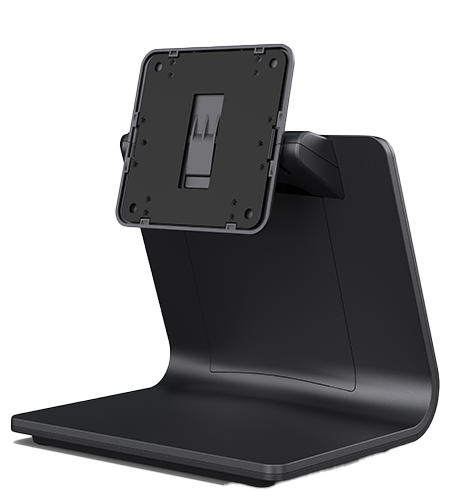

Z10 POS Stand
Complete with concealed cable routing and the flexibility to mount a customer-facing display on the back, the Z10 POS Stand delivers an elegant, minimalistic design to help optimize checkout in compact spaces.
Add the perfect touchscreen display.
15" I-Series 4 Slate

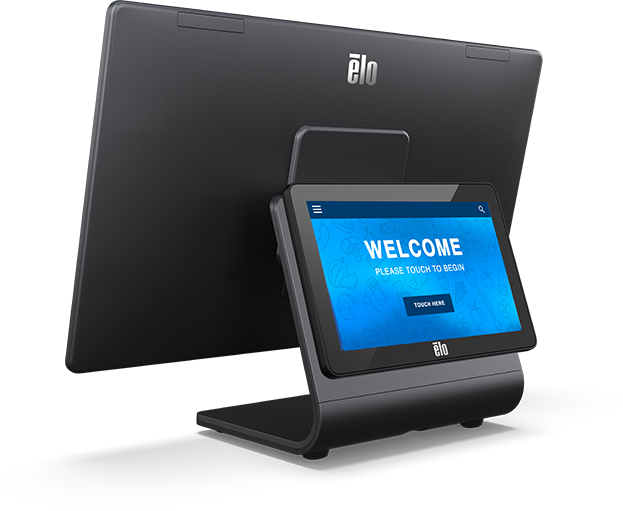

Optional 7-inch CFD.
Conceal Your Cables
Keep your counter clean with the
integrated cable routing system.
Single Cable Connection
Connect a secondary display with
a single USB cable that provides
touch, video and power.
Create your perfect POS system.
From integrated I/O and a customer-facing display to concealed cable routing, Elo’s modular point of sale solutions can be tailored to fit any business.
| I/O | EloPOS Z10 | EloPOS Z20 | EloPOS Z30 |
|---|---|---|---|
| Ethernet |  |
|
|
| 4x USB-A 3.0 | |
|
|
| Cash Drawer Port | |
|
|
| 24V powered USB | |
||
| USB-C | |
||
| Edge Connect Ports** | |
| Main Display | ||||||
|---|---|---|---|---|---|---|
| I-Series 4 | |
|||||
| I-Series 4 Slate | |
|
||||
| Secondary Display | |||
|---|---|---|---|
| Integrated | |
||
| Mount for CFD | |
|
|
*RJ12 (serial/cash drawer) **On I‑Series 4
EloPOS Z10
Compatible with the 15‑inch I‑Series Slate
I/O
-
Ethernet
-
4x USB-A 3.0
Secondary Display
-
Optional 7-inch CFD.
EloPOS Z20
Compatible with the 10‑ & 15‑inch I‑Series 4
I/O
-
Ethernet
-
4x USB-A 3.0
-
Cash Drawer Port*
-
USB‑C
-
Edge Connect Ports**
Secondary Display
-
Optional 10‑, 13‑ or 15‑inch CFD.
EloPOS Z30
Compatible with the 15‑inch I‑Series Slate.
I/O
-
Ethernet
-
4x USB-A 3.0
-
Cash Drawer Port*
-
24V powered USB
-
USB‑C (non-CFD model)
Secondary Display
-
Choose integrated CFD; or no CFD in stand.
*RJ12 (serial/cash drawer) **On I‑Series 4
Specifications
-
Technical
Part Number(s)
E398278
Enclosure Color
Dark Gray Metallic
Compatibility
Main Display:
15" I-Series 4 Slate
Customer-facing Display:
0702L – Elo P/N: E796382Mounting Options
VESA 75mm
Weight (Unpackaged)
2.43 lbs / 1.1 kg
Weight (Packaged)
4.41 lbs / 2.0 kg
Dimensions
6.9" x 4.9" x 5.3" / 175 mm x 200.7 mm x 134.6 mm
Shipping Box Dimensions
8.19" x 11.8" x 11.2" / 208 mm x 300 mm x 285 mm
Operating Temperature
0° C to 40° C / 32° F to 104° F
Storage Temperature
-20° C to 50° C / -4° F to 122° F
Humidity
Operating: 20% - 80% / Storage: 5% - 95%
MTBF
50,000 hours demonstrated
Warranty
2-year
Extended Service Options
3 year warranty coverage - Elo P/N: E375367
4 year warranty coverage - Elo P/N: E375573
5 year warranty coverage - Elo P/N: E375771
2 year warranty coverage + AUR - Elo P/N: E375970
3 year warranty coverage + AUR - Elo P/N: E376169
4 year warranty coverage + AUR - Elo P/N: E376362
5 year warranty coverage + AUR - Elo P/N: E376547What's in the Box
Z10 POS Stand
4 x M4 screws for attaching the head to the stand
4 x M4 x 18 screws for attaching an 0702L CFD
CFD Mounting Cover
Quick Install Guide
