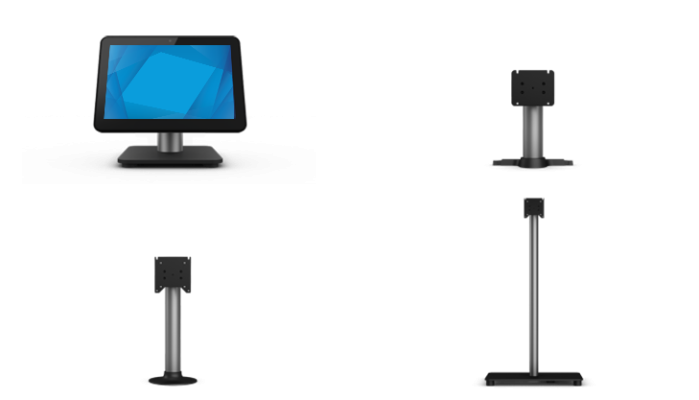

Pole Stands

Specifications

• Technical

  ---

  Part Number(s)

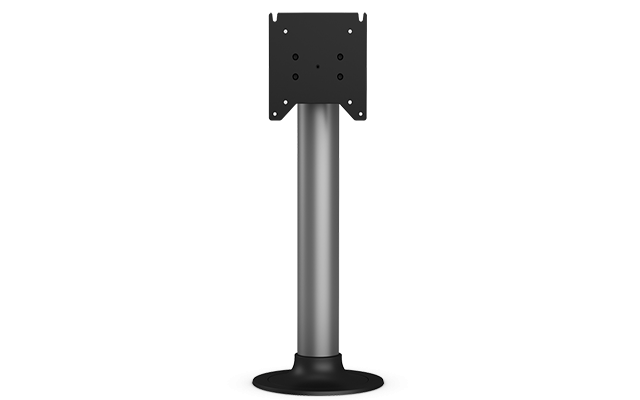

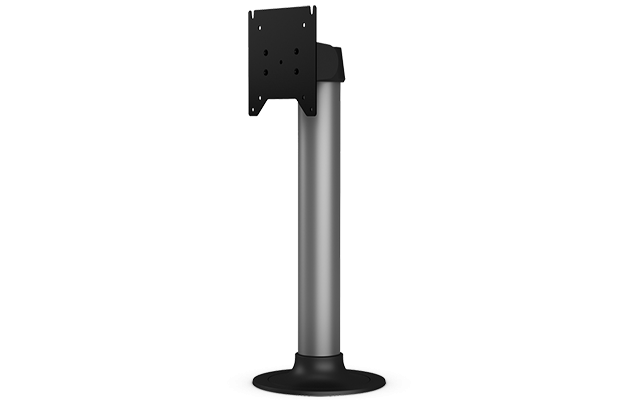

  6” (152.4 mm) Pole Mount Bolt Down Kit - E047458
  12” (304.8 mm) Pole Mount Bolt Down Kit - E047663
  18” (457.2 mm) Pole Mount Bolt Down Kit - E047864

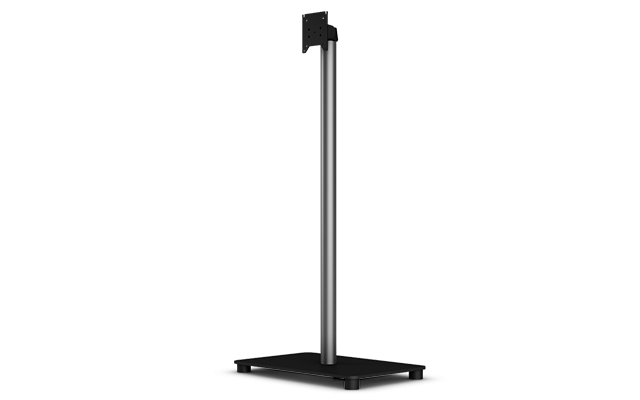

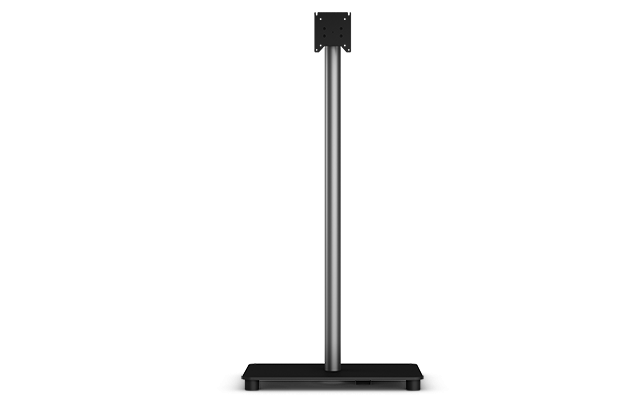

  Pole Mount Floor Stand - E048069

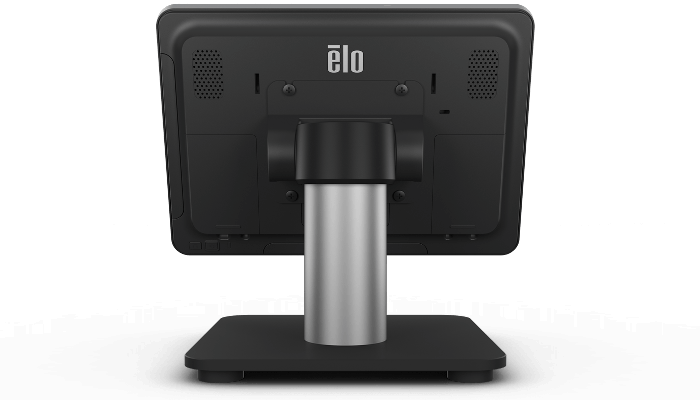

  Pole Mount Tabletop Stand - E160104

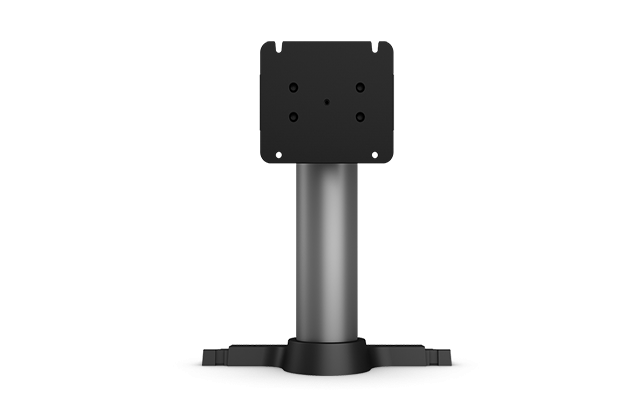

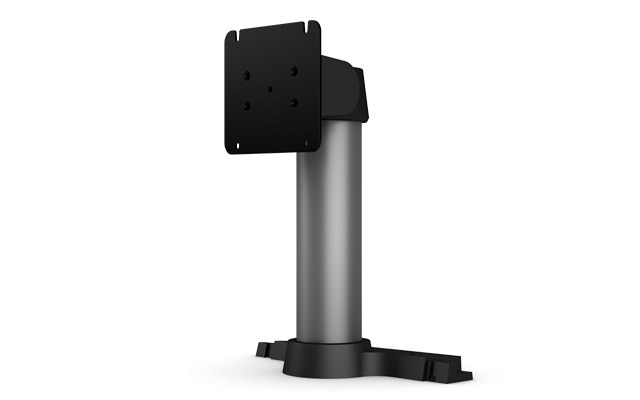

  Rear-facing Display Pole Mount Kit - E038989

  Enclosure Color

  Black/Silver

  Compatibility

  E047458, E047663, E047864, E048069: 1002L, 1302L, 1502L, 1502LM, 1902L, 1903LM, 2002L, 2202L, 2203LM, Android I-Series 2/3/4 (10”, 15”, 22”), Windows I-Series 2.0 (15”)*
  E160104: 0702L, 1002L, Android I-Series 2/3/4 (10”)
  E038989: 0702L, 1002L, 1302L, Android I-Series 2/3/4 (10”)
  *M4x17 mounting screws are recommended when pairing with Windows I-Series 2.0 (15”)

  Mounting Options

  E047458, E047663, E047864, E048069, E160104: 75 x 75mm and 100 x 100mm
  E038989: 75 x 75mm

  Dimensions

  E047458: 6.4" x 6.4" x 9.8" / 163.5 mm x 163.5 mm x 249.5 mm
  E047663: 6.4" x 6.4" x 15.7" / 163.5 mm x 163.5 mm x 399.5 mm
  E047864: 6.4" x 6.4" x 21.0" / 163.5 mm x 163.5 mm x 534.5 mm
  E048069: 21.7" x 13.8" x 42.0" / 550 mm x 350 mm x 1066.5 mm
  E160104: 7.1" x 7.1" x 6.8" / 180 mm x 180 mm x 172.5 mm
  E038989: 8.3" x 4.8" x 10.0" / 210 mm x 122 mm x 253.4 mm

  Shipping Box Dimensions

  E047458: 13.7" x 10.2" x 9.6" / 348 mm x 258 mm x 245 mm
  E047663: 19.6" x 10.2" x 9.6" / 498 mm x 258 mm x 245 mm
  E047864: 24.6" x 10.4" x 9.1" / 625 mm x 265 mm x 230 mm
  E048069: 44.9" x 18.5" x 10.0" / 1140 mm x 470 mm x 255 mm
  E160104: 11.22" x 11.02" x 9.25" / 285 mm x 280 mm x 235 mm
  E038989: 11.8” x 9.8" x 7.9" / 300 mm x 250 mm x 200 mm

  Weight (Unpackaged)

  E047458: 2.5 lbs / 1.14 kg
  E047663: 3.1 lbs / 1.4 kg
  E047864: 3.5 lbs / 1.6 kg
  E048069: 33.1 lbs / 15 kg
  E160104: 5.29 lbs / 2.4 kg
  E038989: 2.4 lbs / 1.1 kg

  Weight (Packaged)

  E047458: 4.1 lbs / 1.87 kg
  E047663: 5.1 lbs / 2.3 kg
  E047864: 5.8 lbs / 2.64 kg
  E048069: 38.4 lbs / 17.4 kg
  E160104: 6.2 lbs / 2.81 kg
  E038989: 3.3 lbs / 1.49 kg

  Warranty

  2-year

  What's in the Box

  E047458, E047663, E047864: Stand, 100mm VESA plate, QIG, 4x M4x6 pan-head screws, 4x M4x8 pan-head screws, 4x M4x12 pan-head screws
  E048069: Stand, 75mm VESA plate, Installation Flyer, 4x M4x6 pan-head screws, 4x M4x8 pan-head screws, 4x M4x12 pan-head screws
  E160104: Stand, 100mm VESA plate, 4x M4x 6 Pan-Head screws, 4x M4x8 pan-head screws
  E038989: Stand, VGA cable, USB cable, USB Y cable, QIG, 4x M4x6 pan-head screws, 4x M4x8 pan-head screws
