IDS Touch Stylus

Specifications

• Technical

  ---

  Part Number(s)

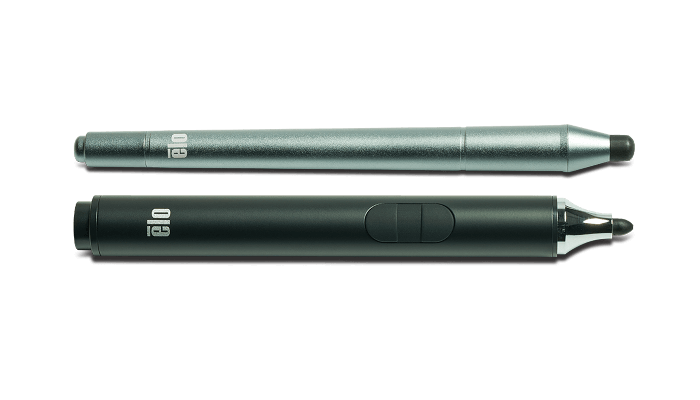

  Active Stylus for PCAP IDS Displays - E216215
  Passive Stylus for IR IDS Displays - E727568

  Compatibility

  Active: 5053L, 5553L, 6553L PCAP Interactive Displays
  Passive: 4303L, 5053L, 5054L, 5553L, 5554L, 6553L IR Interactive Displays

  Technology

  Active: Active Capacitive Coupled
  Passive: N/A

  Enclosure Color

  Active: Black/Silver
  Passive: Space grey

  Working Frequency

  Active: 90KHz – 250KHz, Frequency Hopping Supported
  Passive: N/A

  Pressure Level

  Active: Up to 1024 levels
  Passive: N/A

  Buttons

  Active: Eraser, Barrel
  Passive: N/A

  Active Tip Force

  Active: < 25g, Max: 400g
  Passive: N/A

  Report Rate

  Active: Typical: ≥ 133Hz
  Passive: N/A

  Power

  Active: AA battery x1, replaceable
  Passive: N/A

  Power Consumption (Typical)

  Active:
  Active: 6mA @1.5V
  Suspend: 75uA @1.5V

  Passive: N/A

  Touch Accuracy

  Active:
  ≤ ±1mm for center area
  ≤ ±1.5mm within 8mm of the edges

  Passive: N/A

  Jitter

  Active:
  ≤ ±1mm for center area
  ≤ ±1.5mm within 8mm of the edges

  Passive: N/A

  Supported Operating Systems

  Active: Win7, Win10, Android, Linux
  Passive: N/A

  Other Features

  Active:
  Auto Power Off: enter sleep mode after idle for 2 mins
  Pressure Detection
  Tilt Angle Detection
  Pen Priority
  Function Button: Lower for eraser function, upper for barrel function

  See User Guide for details on how to use these functions.

  Passive: N/A

  Dimensions

  Active: 5.68" x 0.63" / 144.2 mm x 16 mm
  Passive: 6.52" x 0.56" / 165.6 mm x 14.3 mm

  Weight (Unpackaged)

  Active: 0.06 lbs / 26 g
  Passive: 0.07 lbs / 32 g

  Operating Temperature

  0°C to 50°C / 32°F to 122°F

  Storage Temperature

  30°C to 70°C / -22°F to 158°F

  Humidity

  Operating: 20% to 80%; Storage: 10% to 95% (38.7℃ max wet bulb temperature)

  Warranty

  2-year

  What's in the Box

  Active:
  Black active stylus x1

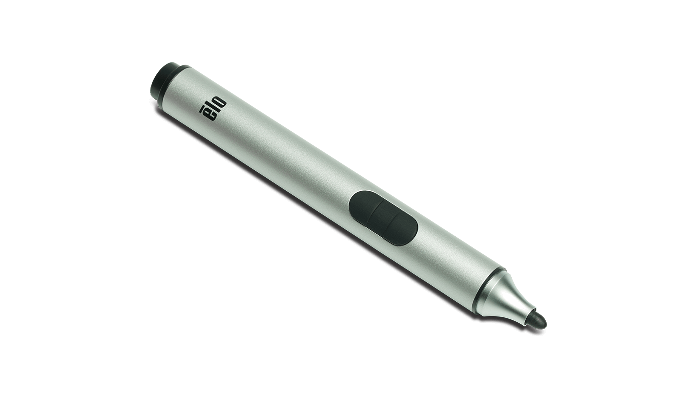

  Silver active stylus x1
  AA battery x2

  Passive:
  Space grey passive stylus x2
