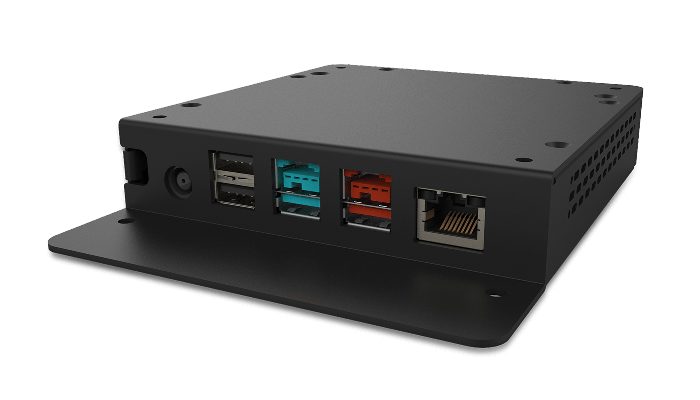

Expansion Module for Android (Gen 1)

Specifications

• Technical

  ---

  Part Number(s)

  Long Cable Kit - Mounted under the flip stand - E923781
  Short Cable Kit - Mounted on the back of the I-Series - E412240

  Enclosure Color

  Black

  Compatibility

  E923781 - Compatible with the 15” I-Series for Android
  E412240 - Compatible with the 15” and 22” I-Series for Android

  Note: Expansion Module requires 150W power brick, different from I-Series (included in the box).

  I/O Ports

  12V (1.5A) Powered USB; 24V (2.3A) Powered USB; Serial COM Port (RJ45); 5V USB 2.0 (x2); 19V DC IN

  Dimensions

  5.79" x 4.69" x 1.02" / 147mm x 119mm x 26mm

  Shipping Box Dimensions

  13.5" x 10.0" x 3.93" / 344mm x 255mm x 100mm

  Mounting Options

  100mm VESA mount

  Additional mounting options with I-Series Flip Stand - Elo P/N: E924077 (see I-Series Flip Stand dimensional drawing MS601866 for more details)

  Weight (Unpackaged)

  1.26 lbs / 0.57 kg

  Weight (Packaged)

  4.00 lbs /1.81 kg

  Operating Temperature

  0°C to 40°C / 32°F to 104°F

  Storage Temperature

  -20°C to 60°C / -4°F to 140°F

  Humidity

  Operating: 20% to 80%; Storage: 10% to 95%

  Regulatory approvals and declarations

  CE (Europe) - Class A
  China RoHS

  The following countries are certified with the i-series:
  UL, FCC (US) - Class A
  cUL, IC (Canada)
  CB (International safety)
  VCCI (Japan)
  RCM (Australia)
  BSMI (Taiwan)
  KCC (Korea)

  MTBF

  50,000 hours demonstrated

  Warranty

  2-year

  What's in the Box

  150W power brick - Elo P/N: E001060
  Power cable (1.8 m) IEC 60320-C5 to NA plug
  Power cable (1.8 m) IEC 60320-C5 to EU/KR plug
  RJ45 to DB9 Serial Cable
